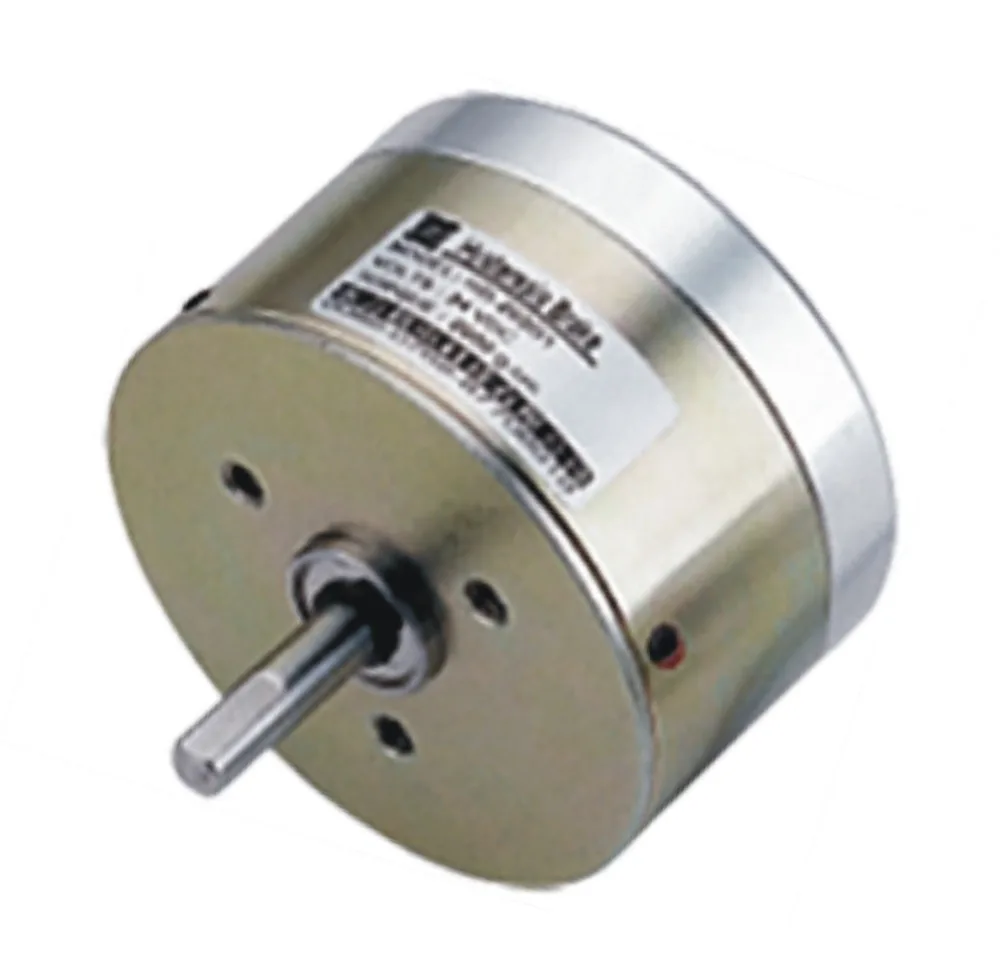

Гистерезисные тормозные компоненты для тестирования двигателя
100,00 $ - 120,00 $
LINKJOIN MATS 3000M bh изогнутый силиконовый стальной искривленный трассировщик гистерезис петля инструмент торговая гарантия поставщик
- Категория: >>>
- Поставщик: Hunan Linkjoin Technology Co. Ltd.
Сохранить в закладки 60650496510:
Описание и отзывы
Характеристики

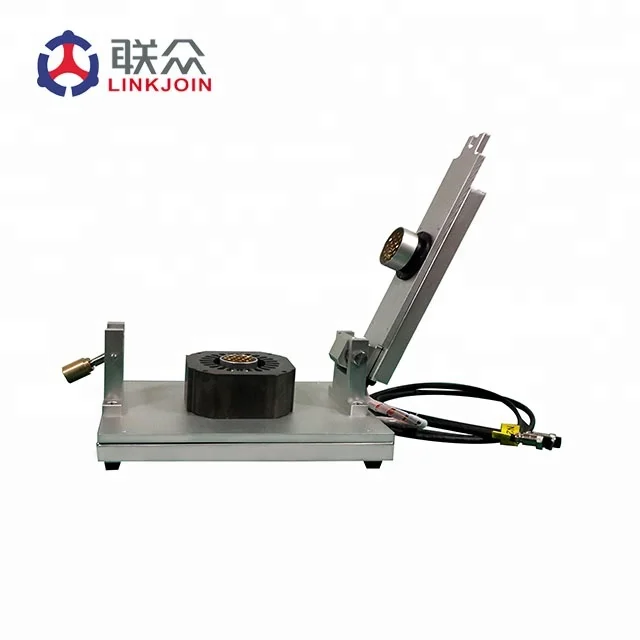

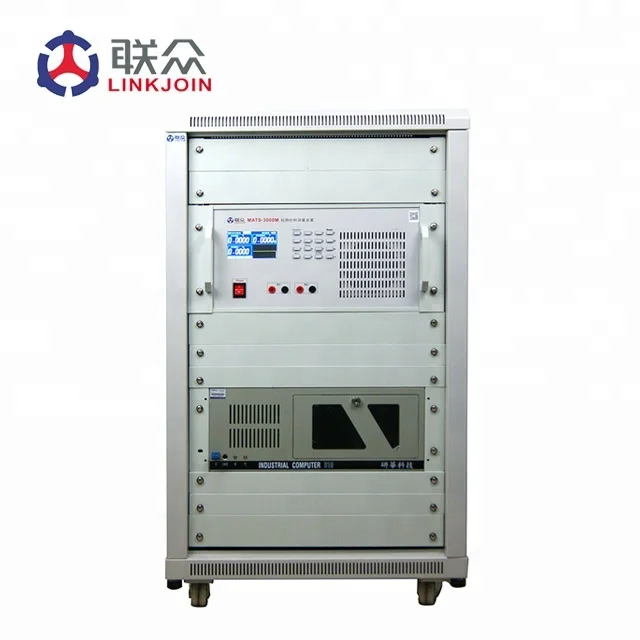

LINKJOIN MATS-3000M bh curve silicon steel bh curve tracer bh hysteresis loop instrument trade assurance supplier
Product Information
MATS-3000M Hysteresisgraph is the special magnetic measurement instrument which is based on the technology of computer, software, A/D data acquisition and ARM embedded system.
MATS-3000M Hysteresisgraph adopts digital waveform compensation and digital feedback technology which can accurately measure the AC parameters of soft magnets such as electrical steel sheet(strip), permalloy, amorphous and nanocrystalline under the frequency of 20Hz~2kHz, the measured parameters are total loss ratios Ps, magnetic polarization Jm, magnetic field strength Hm, excitating power Ss, amplitude permeability μa, AC magnetization curve and loss curve.
Main Features
(1) Adopt Windows measurement software, convenient to use.
(2) Use voltammery and DDA to measure dynamic hysteresis loop, and accurately measure μa, δ, Ps, Br and Hc.
(3) The third generation signal source technology makes it keep the relative high Signal to Noise Ratio when the primary output as low as 10mV.
(4) With digital dynamic feedback treatment technology , the minimum measured secondary voltage signal can reach to 1mVrms.
(5) Adopt digital waveform compensation technology, by the application of digital treatment technology of digital synthesis and phase shift to effectively guarantee the waveform factor of secondary current when the sample is near the saturation magnetization state and make the measurement results more accurate.
(6) Newly design of the overall cooling channel of the chassis, which effectively improve the stability of continuous high-power measurement.
(7) 4.5 inch 854*480 high resolution IPS screen is embedded in the front panel, which displays the real voltage parameter and waveform state.
(8) It can automatically and constantly test 255 test points, each one costs about 30 seconds(related with samples); lock frequency, lock Bm or lock Hm modes are optional to get the AC magnetization curve and loss curve.
Technical Data
Item | Parameters | Specifications |
Work environment | Input power | Single-phase 200V~240V, 50Hz±10%, maximum 10A |
| Environment | Temperature: 23±5℃; Humidity: 30~75%RH |
| External magnetic field interference | Absolutely avoided |
| Thermal balance time | 10 mins |
Measuring range | Applied standards | GB/T 3655-2008, GB/T 13789-2008, GB/T 3658-2008, IEC 60404-2, IEC 60404-3, IEC 60404-6 |
| Measuring materials | silicon steel, soft ferrite, permalloy, amorphous and nanocrystalline, and electric pure iron. |
| Sample shape | Test strip samples with Epstein Frame. |
|
| Winding test samples such as ring, E shape and U shape |
| Measured parameters | Ps, Jm, Hm, Ss, μa, δ, Br and Hc, and calculate parameters of μ′, μ″, μL, μR, Q and AL under certain conditions. |
Instrument parameters | Output power | 500VA sine wave(20Hz-40Hz: 150VA; 40Hz-1KHz: 500VA; 1KHz-2KHz: 350VA) |
| Frequency | 20Hz~2000Hz, frequency fineness :1Hz |
| Output voltage | 0~1V~10V~50V~150V four automatic ranges |
| Output current | 0~10A |
| Measurement model | Fixed Bm and Fixed Hm can be selected under the frequency of 20Hz-2000Hz. |
Data acquisition card | 12Bit±1LSB | |
Industry computer | Main Board: G41, 5PCI slot, 2*RS-232 CPU: E5300 dicaryon 2.6G RAM: DDR3 1333, 2G Hard disk: Seagate500G,SATA,16M Operating system: Windows XP or Windows 7 | |

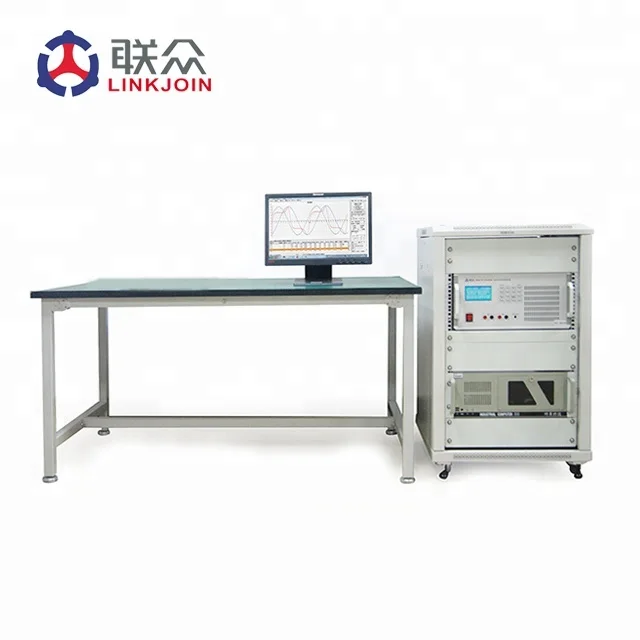

Product Overview

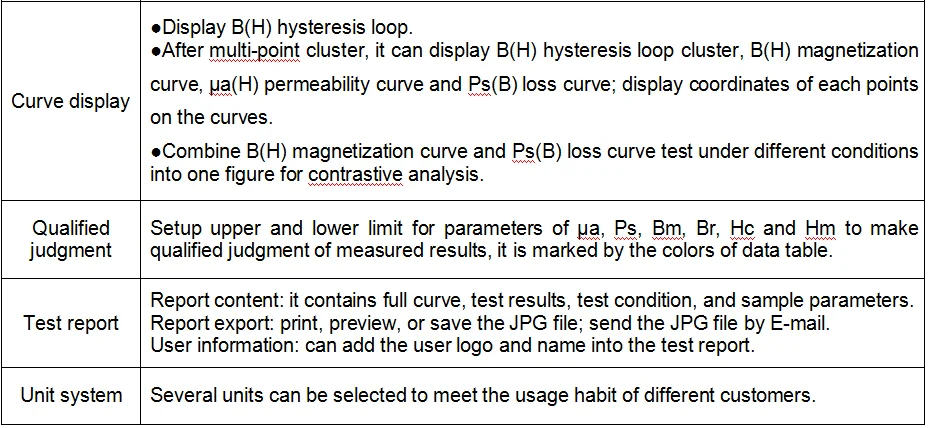

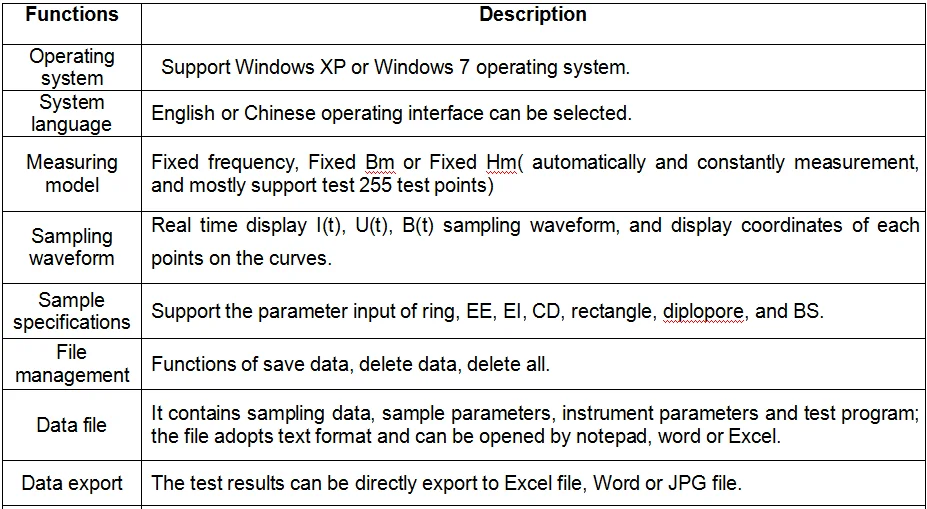

Software function
Software Interface

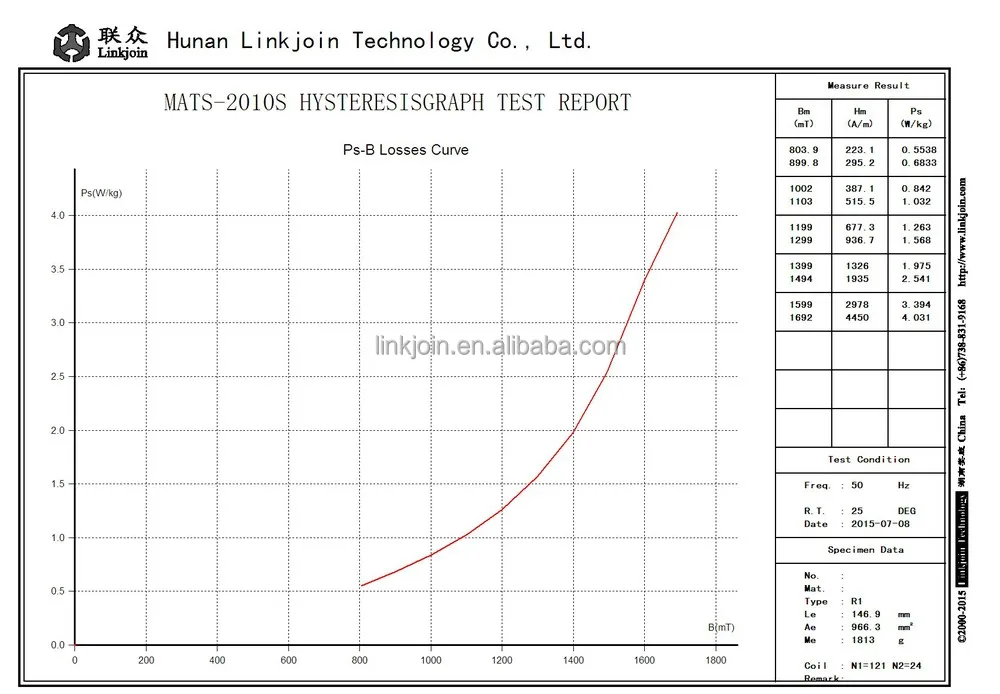

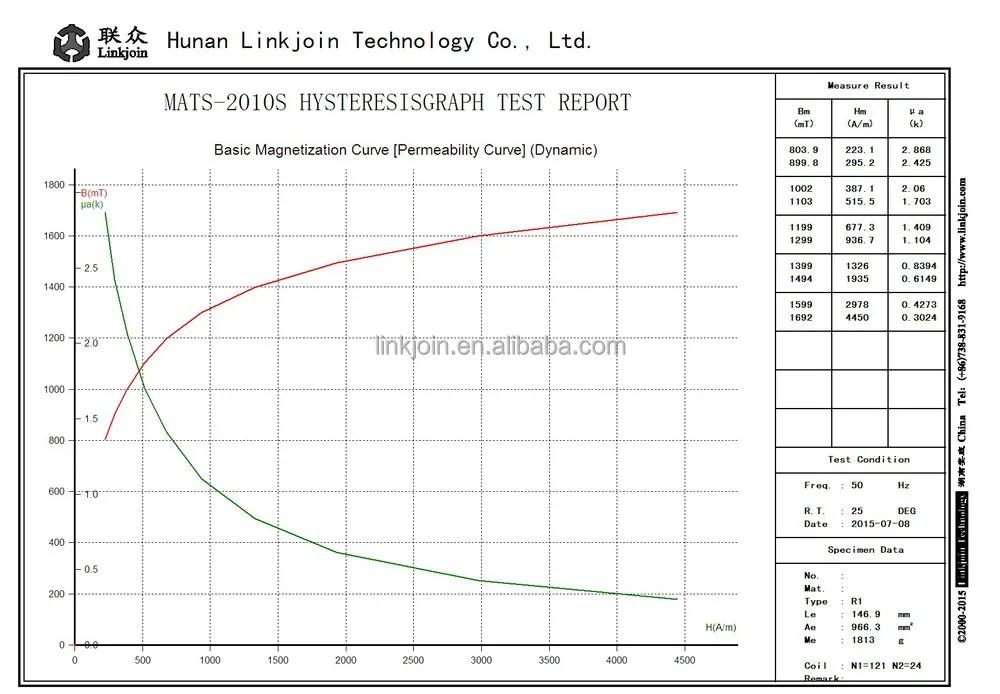

Test Reports

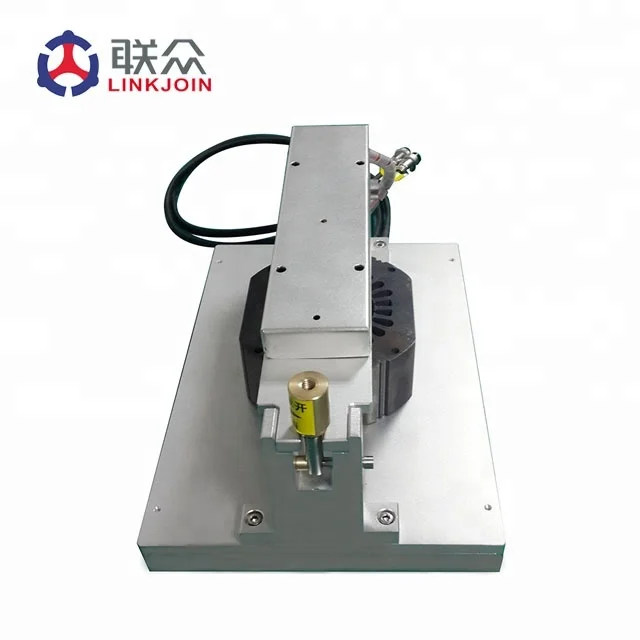

Excitation Device(Optional)

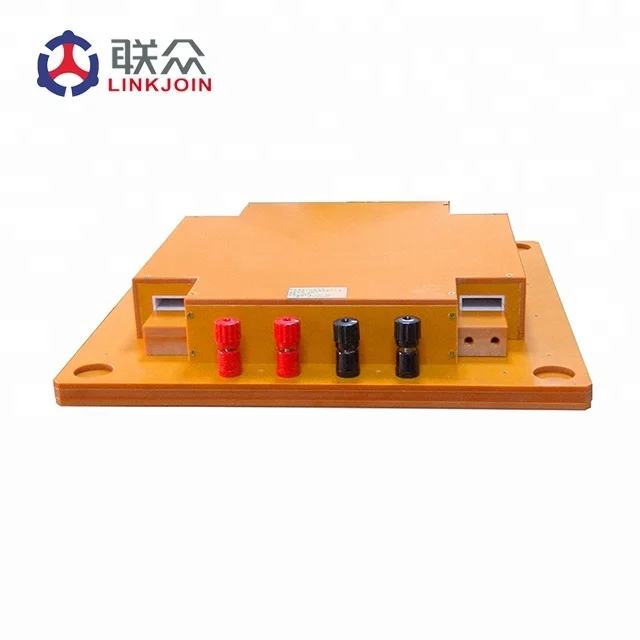

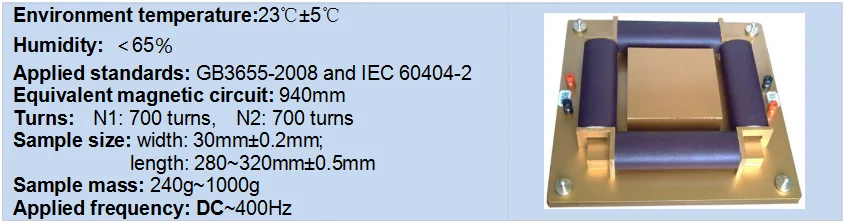

1. ES-700 Epstein Frame

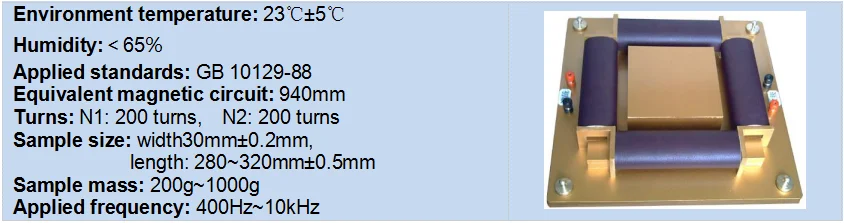

2. ES-200 Midband Frame

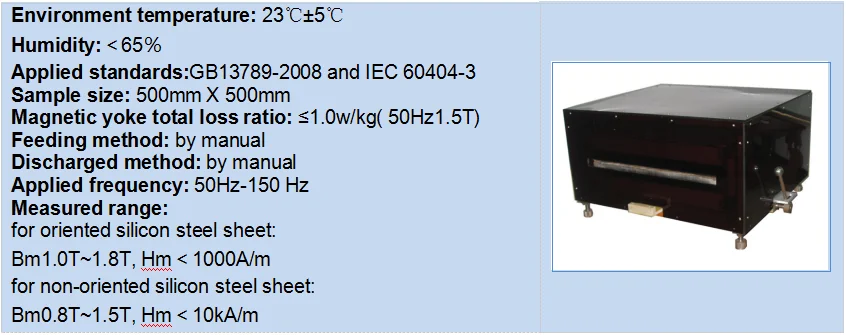

3. SST-500 Permeameter

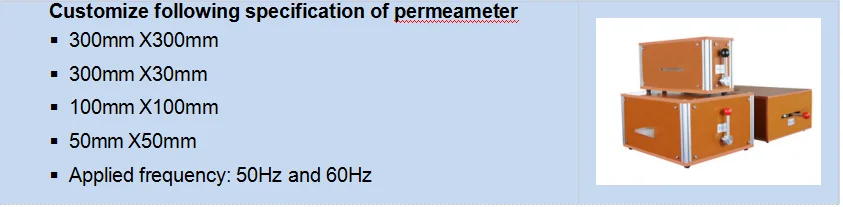

4.Standard Permeameter

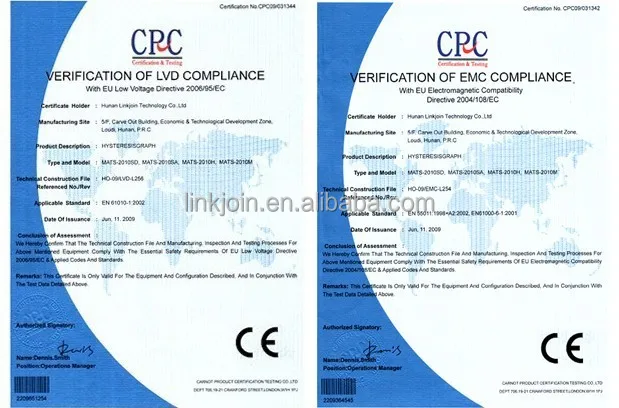

CE Certificates
Company Information
Our services
HUNAN LINKJOIN TECHNOLOGY CO., LTD. warrants each instrument of its manufacture to be free from defects in material and workmanship. Our obligation under this warranty is limited to servicing or adjusting any instrument returned to our factory for that purpose. The warranty period is 18 months. On returning the equipment under warranty, the buyer bears the costs for the shipment to LINKJOIN; LINKJOIN bears the costs for returning the device to the buyer. However, the buyer bears all the costs for shipment, taxes and duties, if the device is returned to LINKJOIN from abroad.
The warranty period begins on the date of delivery of the product or later on the date of installation of the product if the product is installed by LINKJOIN, the warranty period begins on the 31st day after delivery, provided that if you schedule or delay the LINKJOIN installation for more than 30 days after delivery.
LINKJOIN warrants the product only if it has been sold by an authorized LINKJOIN employee, sales representative, dealer or LINKJOIN headquarter.
The warranty period does not apply to defects of product result from improper or inadequate maintenance, repair or calibration;unauthorized modification or misuse; improper site preparation or maintenance. Caution: the hall probe is easy to damage; it's not in the warranty scope list.
Exhibition Shows
Advantages
1. 100% Manufacture
Both our factory and company are founded in Loudi, Hunan Province. We are specialized in manufacture and
sales of magnetic measurement instruments. All the products are made by our own factory. So our price is
competitive.
2. Quality control
From the material to the final product. All the components together with production procedure are inspected
and controlled. We ensure the products have been fully inspected by our QC one by one before shipment.
3. Reliable after sales service
Free training for the operation of equipment in our company, which is provided by our professional training
department.
We provide 18months warranty for the maintenance without charges for components change or repairing.
(except for fragile parts) . And we are responsible for lifelong repair, and charge appropriately for repair
service out of warranty period.
FAQ
Q1: What are the terms of payments?
A1: We accept T/T, Western Union, Paypal, and cash.
Q2: How long it will take to delivery the goods?
A2: If we have the goods in stock, we will delivery them within3 working days after we get your payment. If we
do not have in stock, we will delivery them before the deadline which we both parties agreed on.
Q3: What kind of package you offer?
A3: We pack the goods by the export box,fill with foam to make sure the goods in good condition for storage
and shipment.
Q4: What kind of shipment ways are available?
A4: By sea to your nearest port.
By air to your nearest airport.
By express(DHL, UPS, FedEx, TNT, EMS) to your door.
If customers have their own express account number, transportation fee paid by such accounts are also
welcome.We will provide you a tracking No. after we ship the goods, so that you can track the goods
conveniently.
Похожие товары
Дальний/Ближний гистерезиса аварийных сигналов простота в эксплуатации анализатор растворённого кислорода
DX-2012H AC DC ysteresisgraph bh петли гистерезиса инструмент автоматический выключатель bh кривой tracer Для Лаборатория университета
Высококачественное седло из ПВХ, Оцинкованное u-образное натяжение клиновидного типа, фитинги из нержавеющей стали, ремонтные зажимы, зажим для шланга
0,03 $ - 1,80 $
Университетская лаборатория, постоянный и переменный ток, ysessisgraph bh, инструмент с петлей гистерезиса, изогнутый трассировщик bh

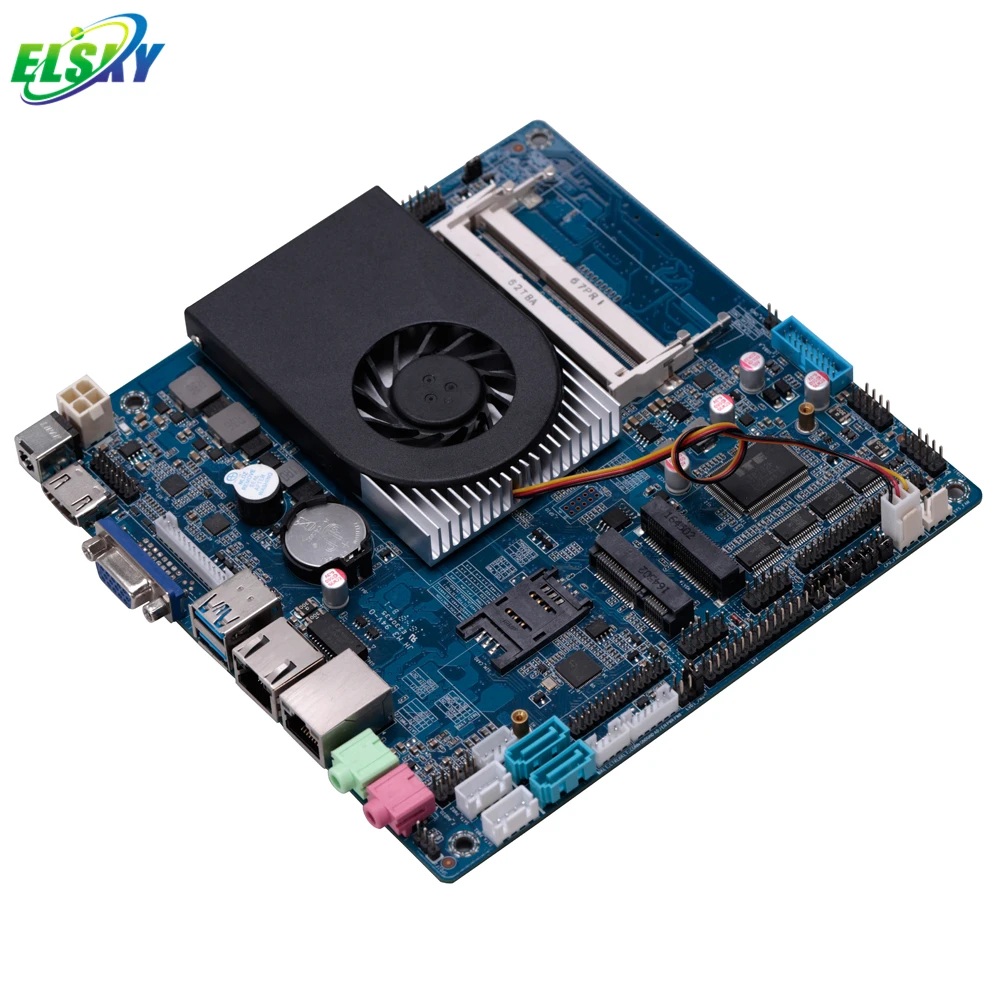

Intel Kaby Lake Core I5 I5-7200U 1000 м RJ45 двойной Lan материнской платы с чипсетом amd Материнская плата для спортивной экшен-камеры 4k @ 60 Гц hd-дисплей
