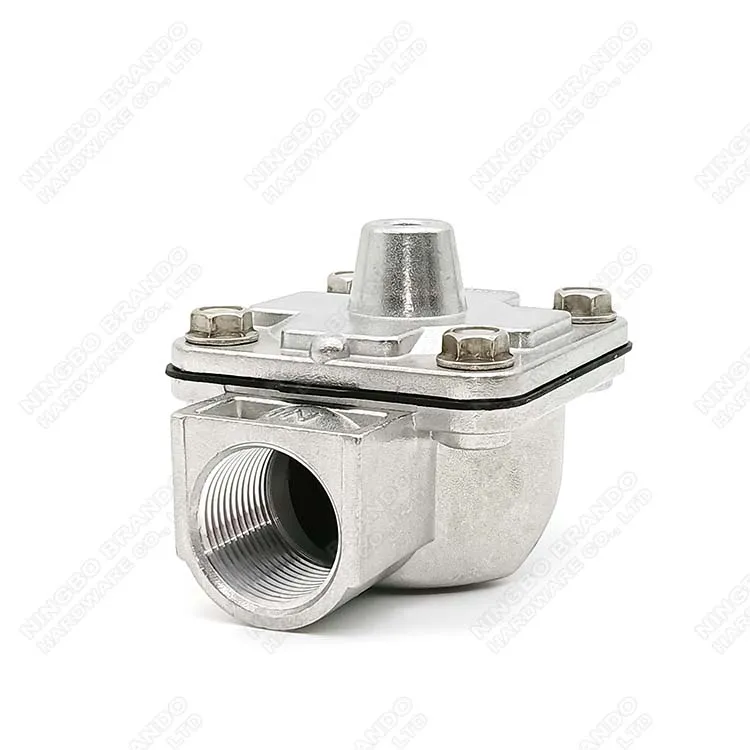

Dust Collector For Clean Air Pulse Diaphragm Valve

The CA type pulse valve developed by our factory is inch pipe thread connection.

The exhaust chamber volume of improved CA type pulse valve is increased. We choose the good quality material rubber of the diaphragm and use new technical to make sure tough enough, the springs are improved, so that the exhaust volume of valve is increased to raise the magnetic strength and sensitivity as well as the element reliability and operation stability of pulse valve. Its service life will be greatly longer than others.

Valve body and cover are pressure die cast aluminum alloy . Normally, diaphragms are made from Buna N elastomer, and are suitable for temperatures ranging from -40 degrees F to 180 degrees F. Viton material diaphragms are option for high temperature applications.

CA-45T  220VAC

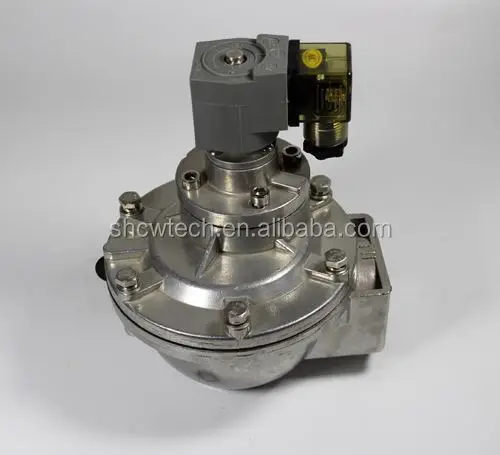

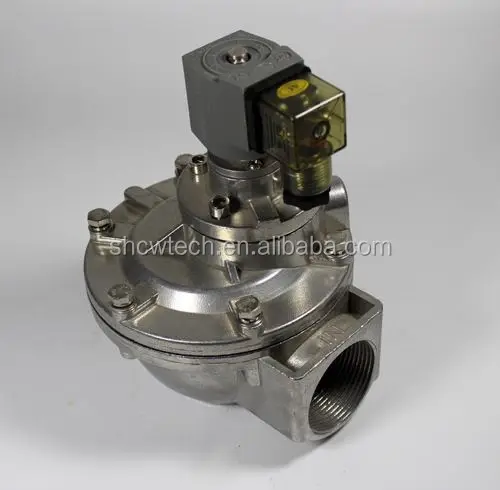

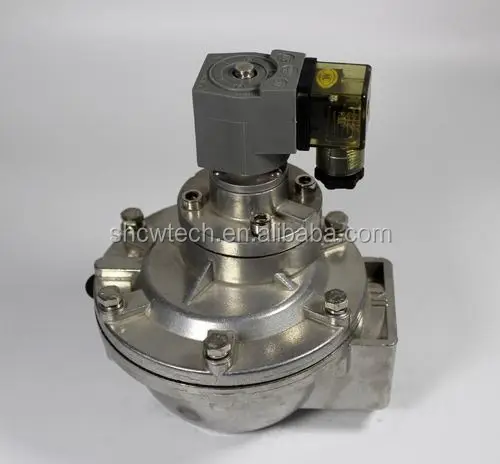

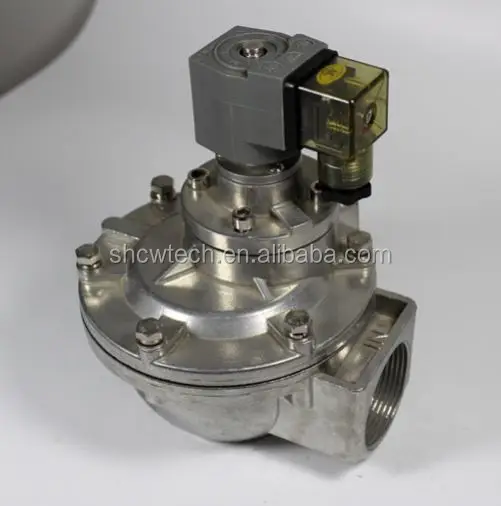

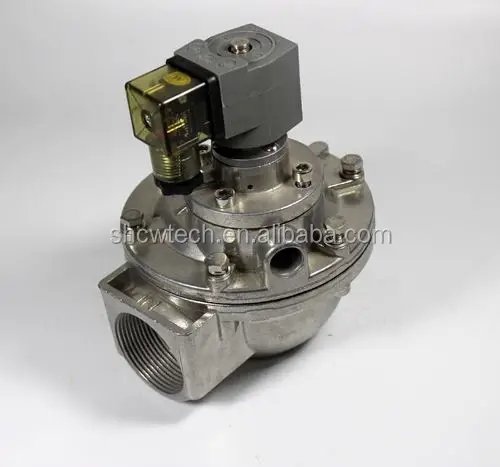

T series 1.5" port size CA pulse valve
Voltage: AC220V, DC24V, AC24V and so on!
Thread: G, NPT, PT and so on

 Dust Collector For Clean Air Pulse Diaphragm Valve

CA sereis pulse valve specification:

Structure of the pulse valve

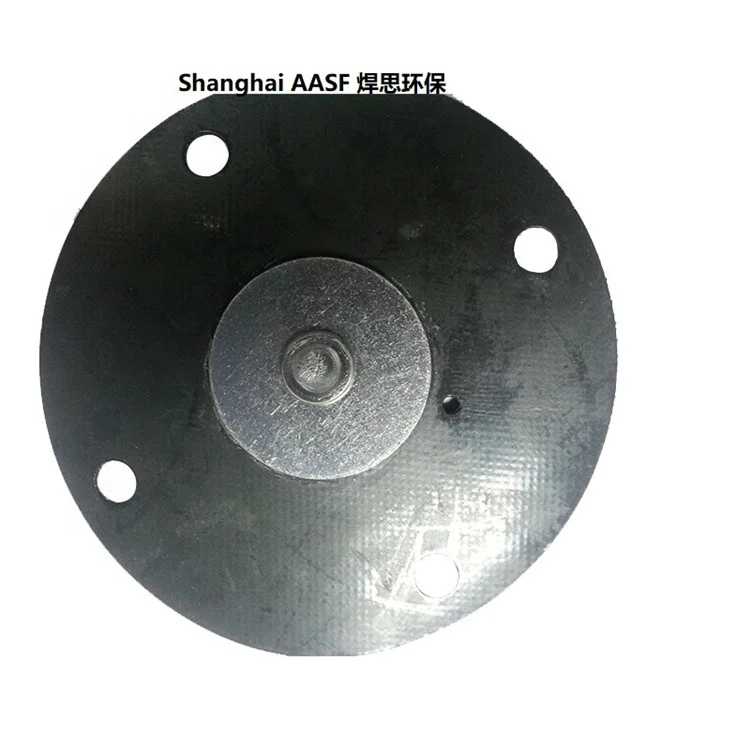

Diaphragm repair kits suit for goyen type pulse valve

Pulse timer suit for pulse valve

Working pressure:0.4~0.6MPa

Working medium: Compressed clean air

Voltage:DC24V, AC24V, AC110V, AC220V/50HZ

Used for bag house dust collector

1.Temperature:-10°C~55°C

2.The relative humidity of air not exceeding 85%

3. Service life of diaphragm:1 million times

INSTALL AND APPLICATION

1.controlled by the solenoid valve integrated remote control box.

2. Inlet port of the pulse valve connect with the air container, Outlet connect with dust blowing pipe, it can be metal pipe connections, also can be pressure pipe fasten with clamps.

3. Note: the air container need the capacity to supply steady air source, inside of the air container should be clean enough without any sundries such as rust. The pipe should be upright, same height, no leaking with the air container, and air container need to meet safety requirement.

4. Working pressure have to control from 0.2 to 0.6Mpa, and steadily.

Normally 2 ways to control the pulse valve, Controlled by the DMK pulse controller or just use air control pulse valve

Working Principle

Pulse valve parts including pilot, diaphragm, coil and valve body.

The diaphragm keep close because of air pressure balance.

Pulse timer send input signals so that the the coil make armature attracted and moving. Balance lost and balancing hole to release the pressure air in the back cavity of diaphragm quickly; the pressure air in the front cavity holds up the diaphragm to open the passage and the valve start one time jet.
When the pulse signal disappears and the spring push the armature works immediately to resume the position, balancing hole been closed. Balance resumed in both cavity, so the valve stop jet.
