Industrial 16 Serial Device Server RS232/RS485 to TCP RJ45 Converter

Описание и отзывы

Характеристики

Features

10/100Mbps, Auto/Manual

Real COM driver for Windows, one port of NC616 can be accessed by up to 6 hosts at the same time.

Supports TCP and UDP Socket, a port supports 6-session with different modes (TCP Server, TCP Client and UDP)

Considerable security mechanism: Setting “Read, Write and Control” via IP address, MAC address and Users.

TCP mode complies with RFC2217 standard, which provides standard program interfaces for you

Connects serial port terminal to UNIX, coming true multi-screen switch.

Supports PPP with RADIUS User- verifying

Supports 16-port PPP dial-in, dial-out, and redial at the same time.

Supports SNMP MIB-II network management.

You can configure network-packing mechanism based on actual network status, suiting to specific and complicated network better.

Supports 16-port RS-232/422/485

NC616 provides a convenient and easy connection mode for network-enabling your devices. RS-232 and RS-422/485 can coexist in one IO-Server, so when you want to connect two different devices to Ethernet, you just need one IO-Server. This mode is not only cost-effective, but also easy to manage.

Standard 19-inch rack-mountable installation design

NC616 is made in professional casing design, which can be installed on the Standard 19-inch Rack-mount. Humanistic design for Interfaces and LED Indicators, RJ45 connector, make NC616 not only keep attractive, but also facilitate observation and maintenance.

Particular, applied parameters configuration

Ethernet configuration: The LAN speed of IO-Server cannot only be detected by itself, but also can be configured according to your will. You can adjust operating modes based on the actual network status.

Serial configuration: “Data is traveling from serial ports to Ethernet.” This means: data is packed and sent to network after it is obtained from serial port by IO-Server.

According to specific network and your procedures, you can change the parameters on IO-Server for network-packing mechanism,

Security function

Network security is pretty important for console control. COMHIGHER IO-Server provides a series security mechanism, such as MAC address, IP address, and Users limitation, which competence includes Read, Write, and control.

Specifications

   CPU: 32bit, 100MHz.

   RAM: 8M

   Ethernet:

Speed: 10/100Mbps, Auto/Manual

Parameter: 10Mf, 10Mh, 100Mf, 100Mh.

Protection: 1.5KV magnetic isolation

   Serial:

Interface: 16-port RS-232

Port type: RJ45

Protection: 1,15KV ESD; 2,Short Circuit.

Serial Communication parameters

        Parity: None, Even, Odd, Space, Mark

Data bits: 5, 6, 7, 8

Stop bits: 1, 1.5, 2

Flow control: RTS/CTS, XON/XOFF

Speed: 50 bps to 460.8Kbps

Software Features

Protocols: DHCP, Telnet, TCP, UDP, IP, ICMP, ARP, SNMP, PPP

Real COM driver: Windows NT/2000 /XP/2003 COM driver

Fixed TTY: Fixed TTY driver for SCO UNIX and Linux

Configuration

Telnet/Console/Web

Network Management

SNMP MIB-II

Power Requirements

Power Input:  NC616: 176-264VAC. 47-63Hz

NC616-220V: 176-264VDC

NC616-110V: 100-240VDC

NC616-48V: 36-60VDC

Mechanical Specifications

Material: Metal

Weight: 2.75kg

Environmental

Relative Temperature:    -20° to  85°C

Relative Humidity:       5%  to   95%

 Regulatory Approvals

CE

FCC

Optional Accessories

RJ45 8-pin to DB9 Male cable (RS-232) RJ45 8-pin to DB25 Male cable (RS-232)

RJ45 8-pin to DB9 Female cable (RS-232) RJ45 8-pin to DB25 Female cable (RS-232)

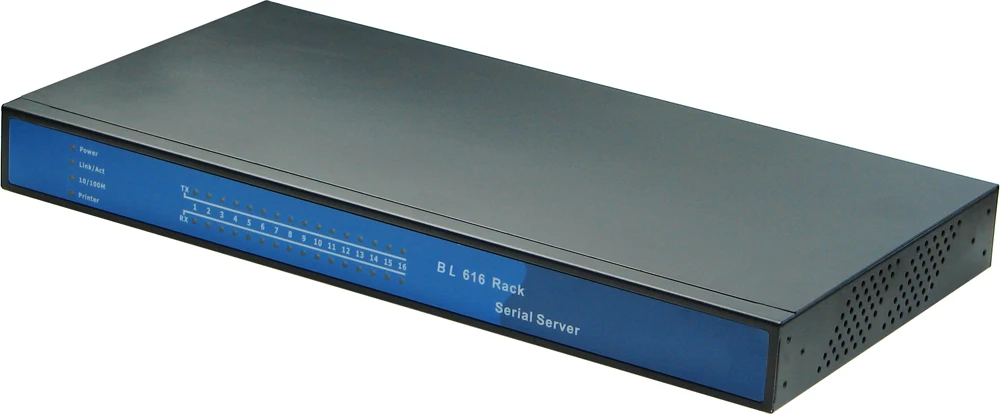

Appearance and Dimensions

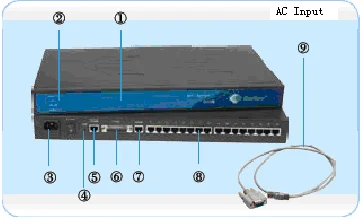

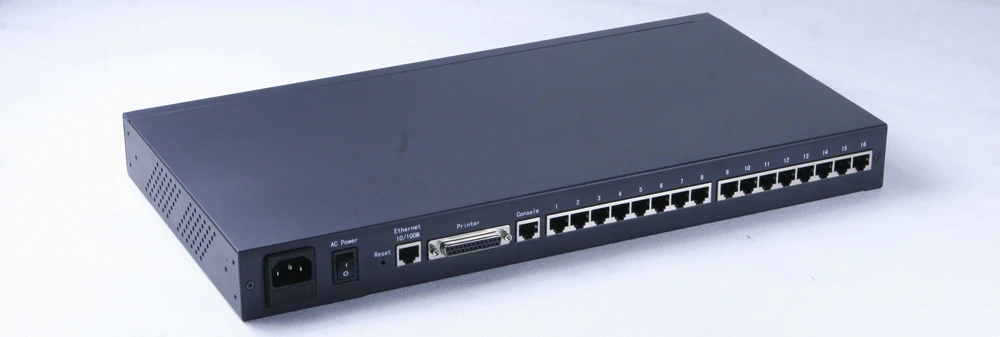

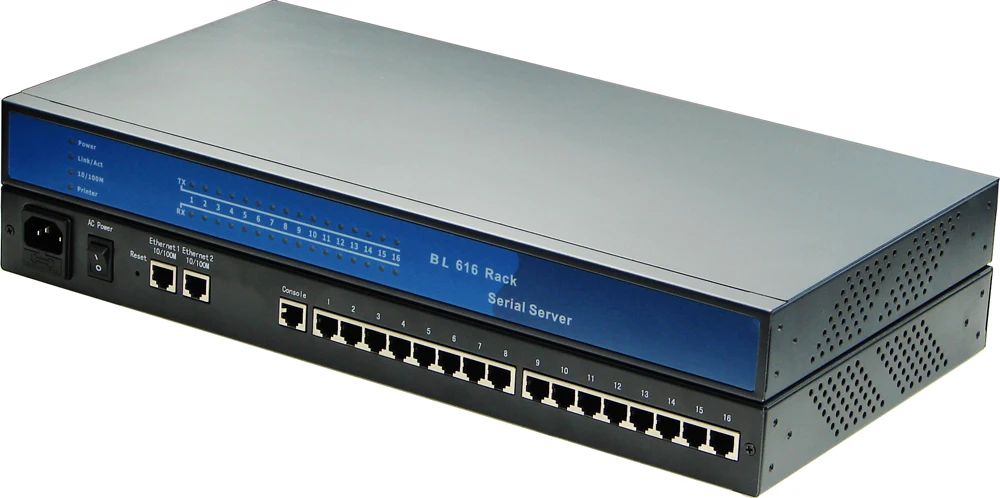

NC616 AC Input

1, LED Indicators (Serial TXD/RXD)

2, LED Indicators (Ethernet, System status)

3, AC Power Input (176-264VAC)

4, Reset

5, Ethernet (10/100Mbps)

6, Printer

7, Console

8, Serial Interface (RS-232/422/485)

9, Cable (RJ45 to DB9/DB25)

NC616 DC Input

1, LED Indicators (Serial TXD/RXD)

2, LED Indicators (Ethernet, System status)

3, Screw Terminal Connector Power Input (220V/110V/48VDC)

4, Reset

5, Ethernet (10/100Mbps)

6, Printer

7, Console

8, Serial Interface (RS-232/422/485)

9, Cable (RJ45 to DB9/DB25)

Pin Assignments

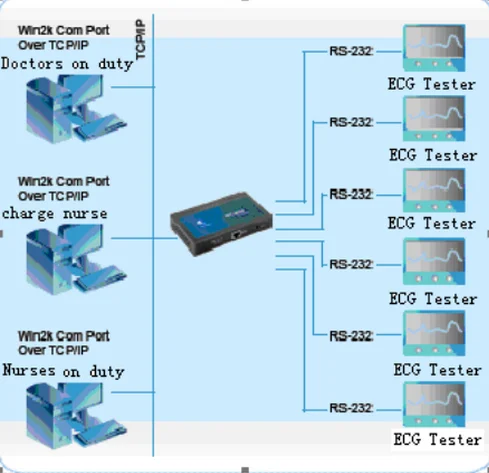

Typical Applications

Total solution for Console Server

The problem that Router manufactures facing is how to establish a virtual environment to test the performance of Router in operation. Generally, manual test is inefficient, and the result is not precise, not supplying a powerful persuasion. NC616 has 16 RS-232 ports, which can connect 16 RS-232 consoles for Router at the same time. This mode makes you easy to change, control and monitor status for Routers by writing testing procedures.

Benefits: Simplify connections; Realize networking for testing system; Realize control function for hosts, reduce cost; Users do not work with devices anymore; Standard rack-mount.

Ordering Information

NC616 Rack: 16-port RS-232 Serial Device Server, 220VAC Input.

NC616-220V Rack: 16-port RS-232 Serial Device Server, 220VDC Input

NC616-110V Rack: 16-port RS-232 Serial Device Server, 110VDC Input

NC616-48V Rack: 16-port RS-232 Serial Device Server, 48VDC Input

The products above include: 1 Serial Device Server, Installation CD, Quick Installation Guide, Product Warranty.

Optional Accessories

CAB-RJ45M25: RJ45 8-pin to DB25 Male cable

CAB-RJ45M9: RJ45 8-pin to DB9 Male cable

CAB-RJ45F25: RJ45 8-pin to DB25 Female cable

CAB-RJ45F9: RJ45 8-pin to DB9 Female cable
