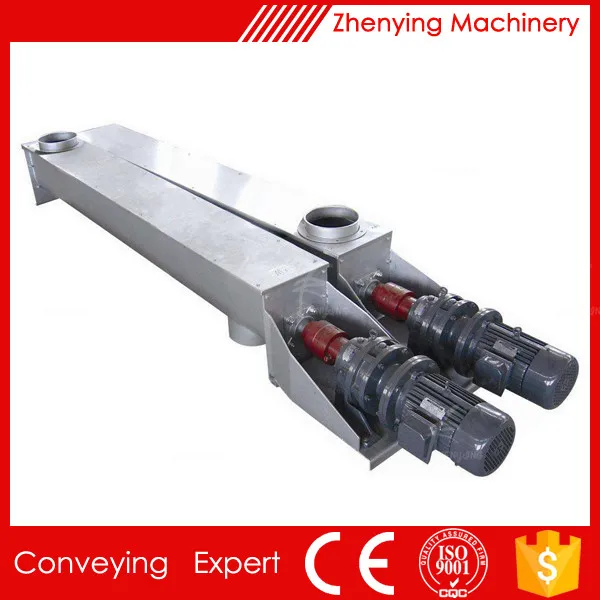

Спиральный шнековый конвейер для стружки
- Категория: >>>
- Поставщик: Xinxiang Zhenying Mechanical Equipment Co. Ltd.
Сохранить в закладки 60656850238:
Описание и отзывы
Характеристики

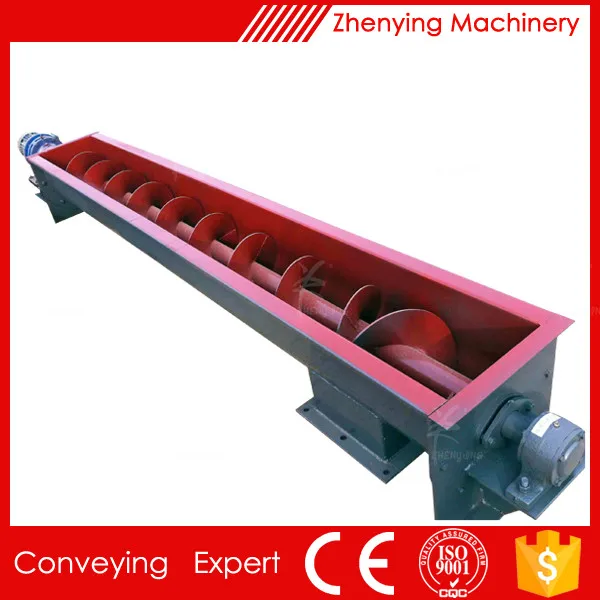

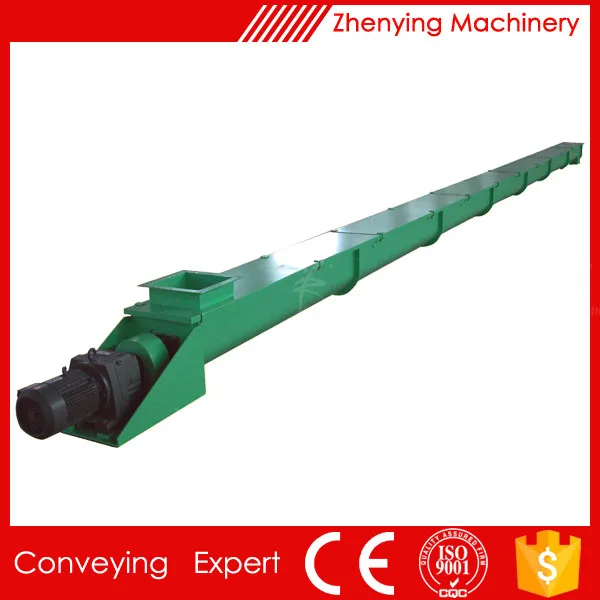

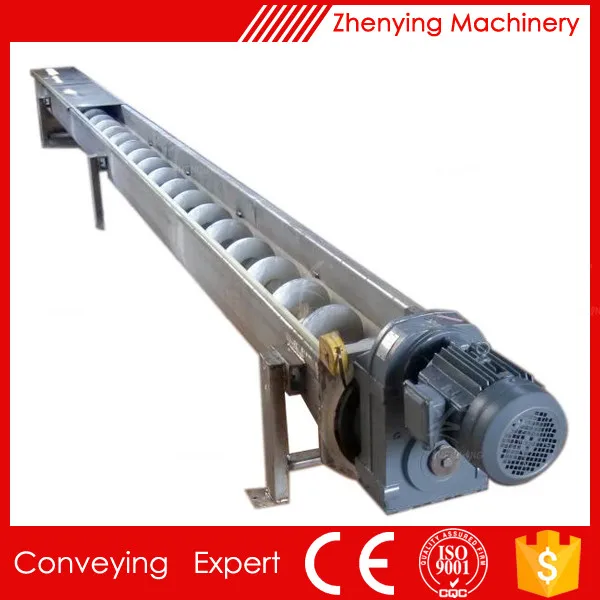

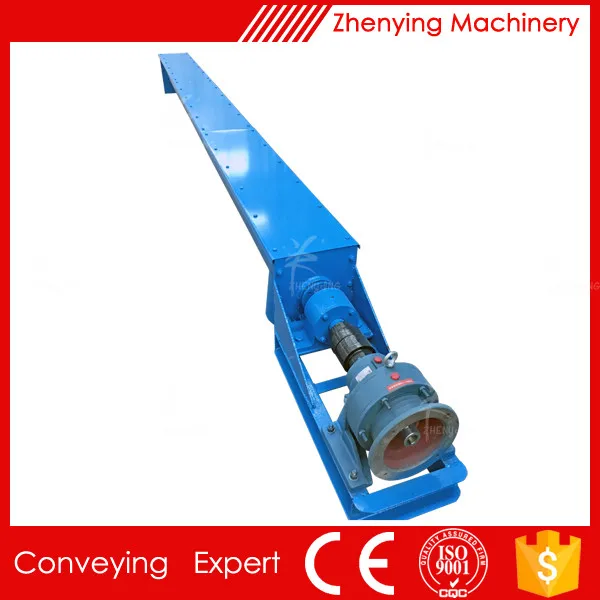

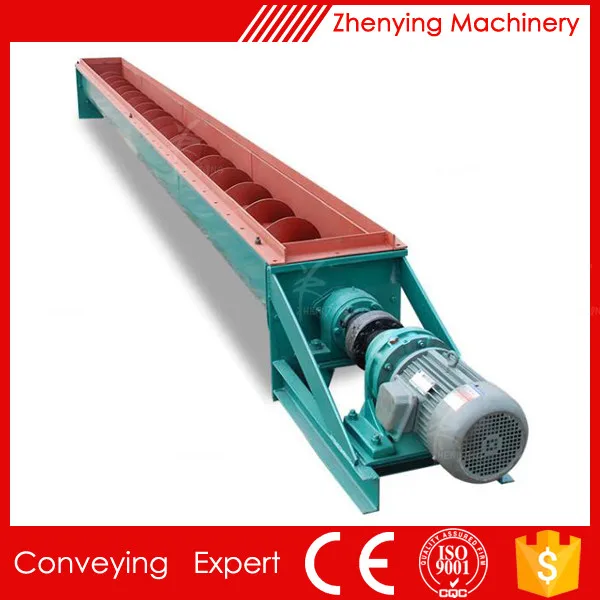

Spiral auger wood chip conveyor
Product Description
Spiral auger wood chip conveyor are of simple, relatively low cost construction compared to other conveyor systems. Powder Handling Productive Auger Conveyor consist of a helical flight fastened around a pipe or solid shaft, mounted within a tubular or U-shaped trough. As the screw rotates,material heaps up in front of the advancing flight and is pushed through the trough.Particles in the heap next to the flight surface are carried part way up the flight surface,and then flow down on the forward-moving side of the heap.Products can be conveyed and elevated at the same time by mounting a screw conveyor at an incline. This is often desirable because it covers two operations with one piece of equipment therefore saving space and reducing downtime,maintenance cost, etc. A standard Electric Screw Conveyor will often operate normally at angles up to 15º with only a small loss in capacity. Beyond that, adjustments and/or modifications are typically necessary. |
| Principle |
Spiral auger wood chip conveyor has been widely used in various departments of the national economy, such as building material, metallurgy, chemical industry, electric power, coal, machinery, light industy, food and the food industry. The horizontal screw conveyor’s working environment temperature is usually - 20 ~ 40 degree, the temperature of the conveying material is commonly - 20 ~ 80 degree. And also is suitable for level and layout of the small Angl.The inclination Angle had better not more than 15 degree |
Technical parameter
| LS type | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 |
| GX type | 200 | 250 | 315 | 400 | 500 | |||
| Screw diameter(mm) | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 |
| Sc Screw pitch(mm) | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 |
| Rotate speed(r/min) | 60 | 50 | 50 | 50 | 50 | 50 | 50 | 45 |
Delivery value (φ=0.33m³/h) | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 |
| Pd1=10m(kw) Power | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 5.1 | 8.6 | 12 |
| Pd1=30m(kw) Power | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 |

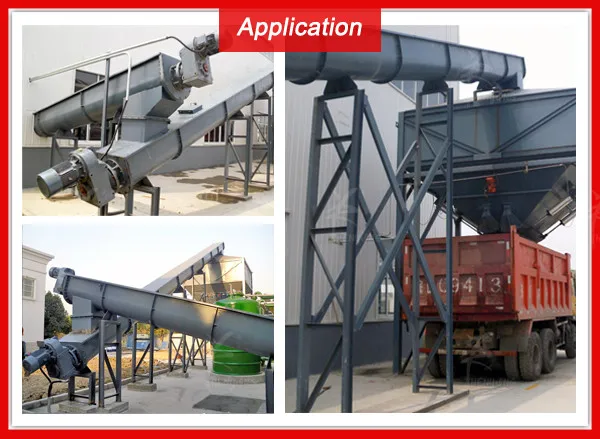

Application
Spiral auger wood chip conveyor is suitable for harbor, mine, grain, freight yard, warehouse and other departments, which is a kind of simple transitions, wide application high efficiency transportation equipment. |
Details

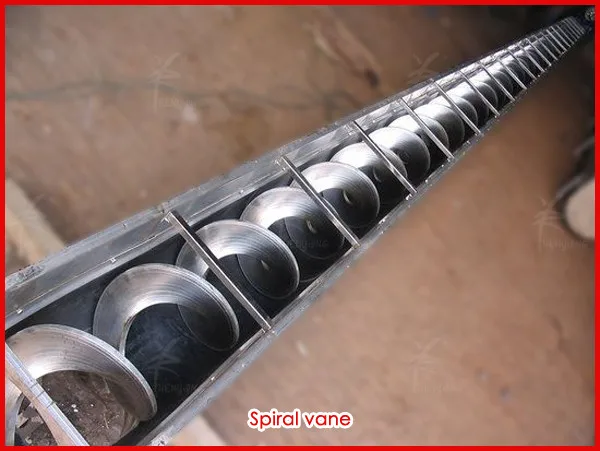

Spiral vane |

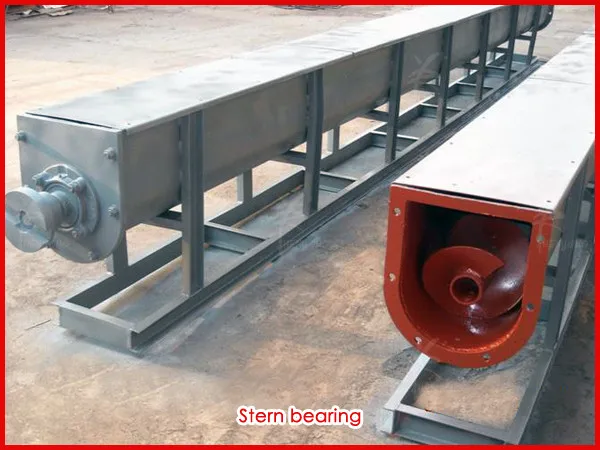

Stern bearing of spiral auger wood chip conveyor |
|
| Worksite of spiral auger wood chip conveyor |
Our Services
| Factory |
Complete producing equipment for reliable quality. |
| Package and delivery of spiral auger wood chip conveyor |
Packing machine use the wooden case reach the shipping standard. |
Why choose us?
1.Pre-sale services: proper construction schemes for those new, special or difficult projects. |
2.Services provided during the sale: |
3. After-sale services: |
Company Information
Xinxiang Zhenying Mechanical Equipment co., LTD. Is specialized in producing screw conveyor. We have passed CE & ISO 9001:2008 certification. Our products are mainly used in food, medicine, chemical industry, mineral industry. Our company's products are exported to all over the world, at least 21 years of industry experience. |
1. Exhibition |
Zhenying Machine take part in exhibition every year, we join the ALL PACK exhibition in Indonesia last year. |
 |
2. Certification |
Our conveyor through the ISO9001:2008, CE certification and patents. |
| 3. Customer visit |
Every year many customers checking machines in our factory, like Korea,Malaysia, United states, Pakistan. |
FAQ
In order to select the suitable spiral auger wood chip conveyor model for you, please kindly confirm the following information. 1.What is the product you will convey? Suah as: metal powder, rubber powder, grain, cement and other bulk material. 2.Length and diameter of pipe of screw feeder you want? Length can be 2 meters or customized. Diameter of pipe usually 108mm,114mm,159mm,250mm. 3.Convey height? According to your work site, it can be designed. 4.Capacity you need? According to your product and conveyor. It can be disigned for 500kg-2000kg. |
| Contact us |
Xinxiang Zhenying Mechanical Equipment Co., Ltd.
T: 86 373 2081968 | F: 86 373 3532117 P: +86 18336079535 (whatsapp) Skype: zmeco-angela004 Email: angela at chinavibratingsieve dot com |
Похожие товары
Лучшие продажи тонкой воздушный фильтр Aspiradora пылесос дома мощный пылесос для сухой и влажной и Воздуходувка 2 в 1 машина для чистки ковров
48,00 $ - 53,00 $
DZ-700/2SA машина для вакуумной упаковки с двойной камерой одобренная CE коммерческая герметизации пищевых
1 450,00 $ - 1 800,00 $
Видеокарта RTX 3080 10 Гб GDDR6X RTX 3080 3090 GDDR6X 320 в наличии
1 580,00 $ - 1 600,00 $
Горячая Распродажа, без ГМО, японская Лапша для быстрого приготовления коньяк Пен, паста феттуccine
0,50 $ - 0,80 $

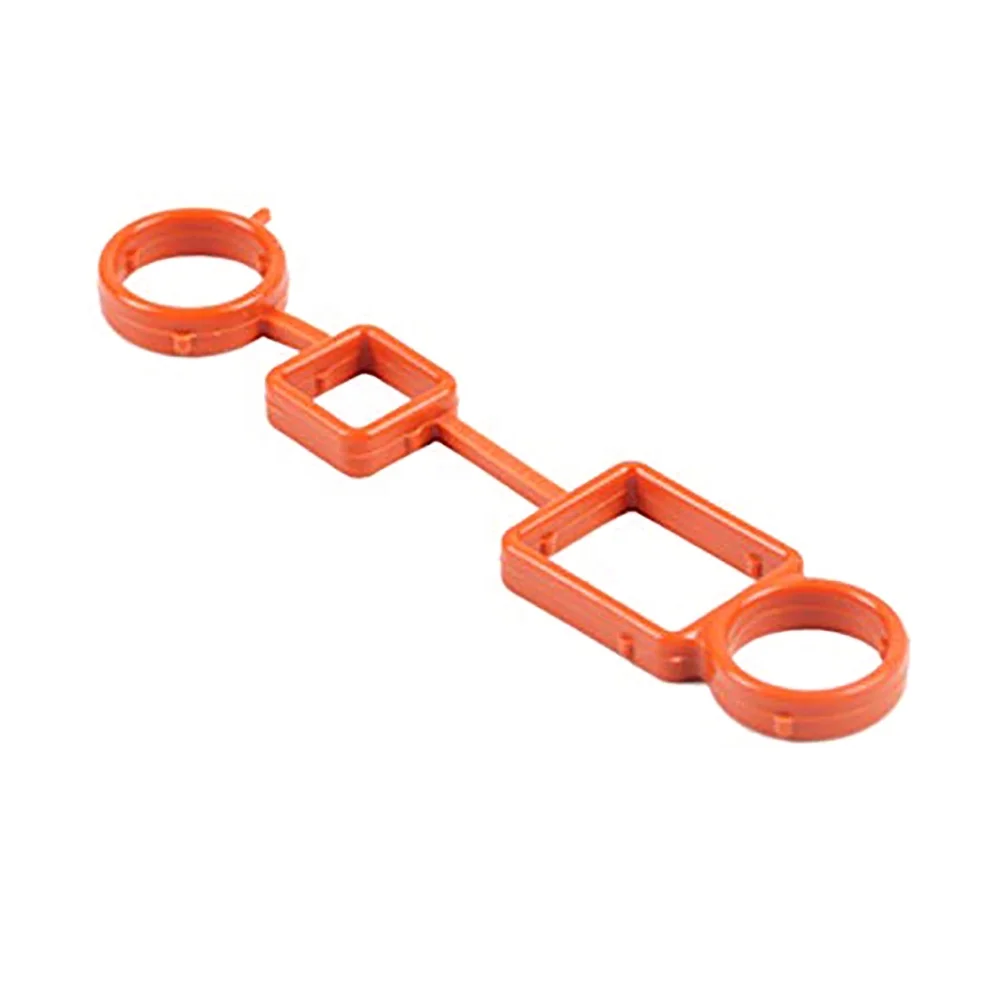

06F103483E уплотнение клапана вентиляционного отверстия коленчатого вала двигателя для Audi A4 VW Eos Passat Jetta Новинка
