FL301080HD EP стандарт с образное крепление для объектива HD и микроскопного камеры

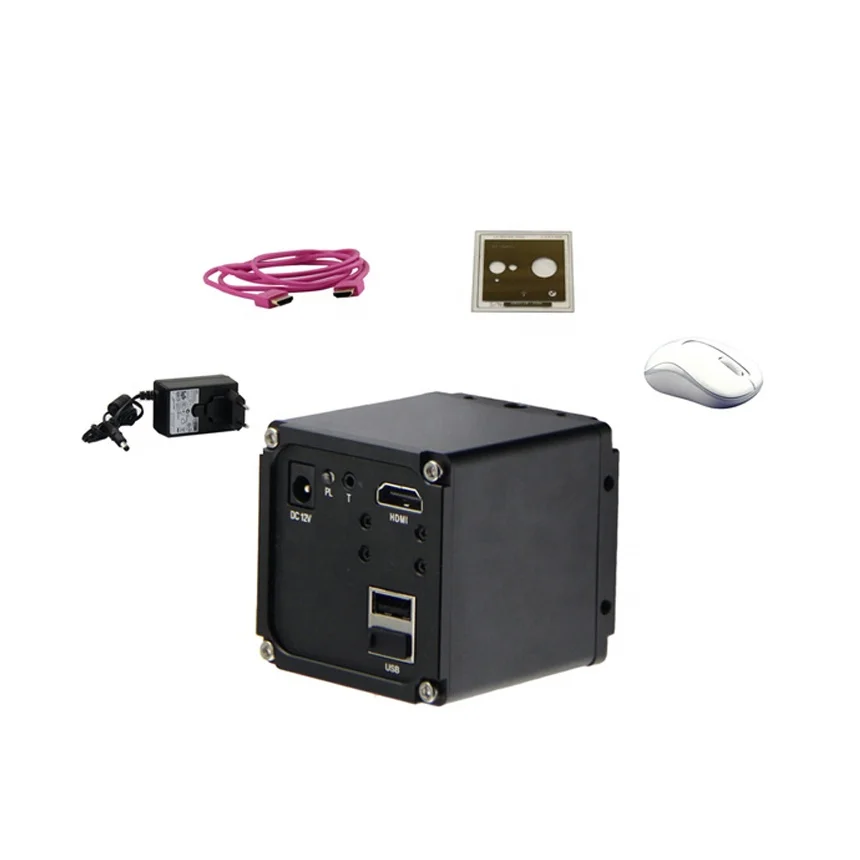

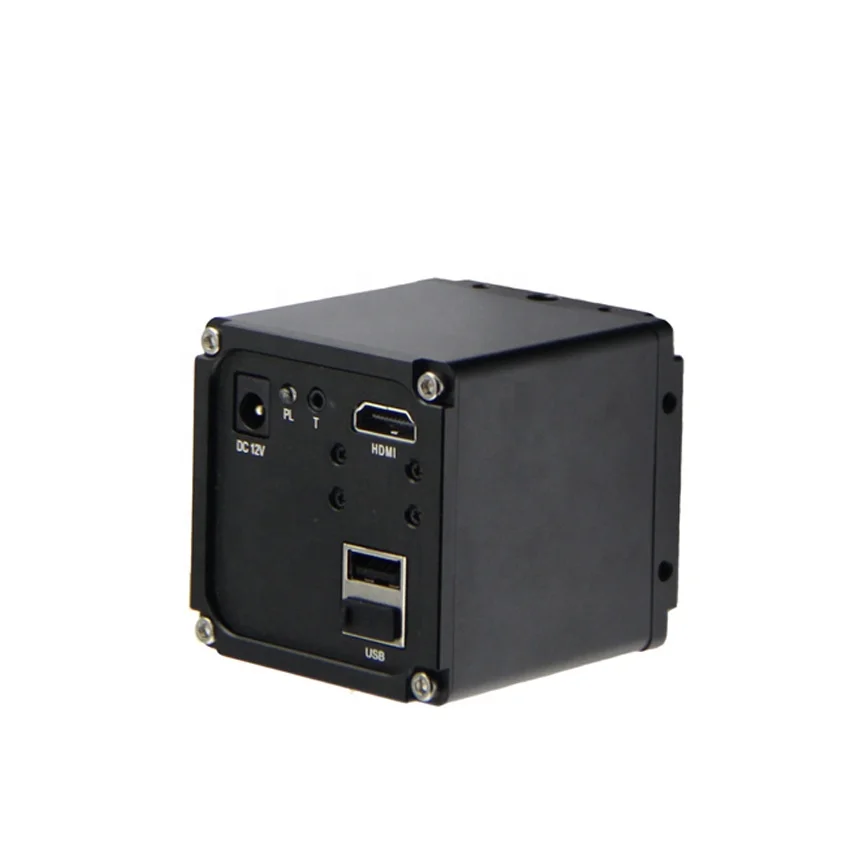

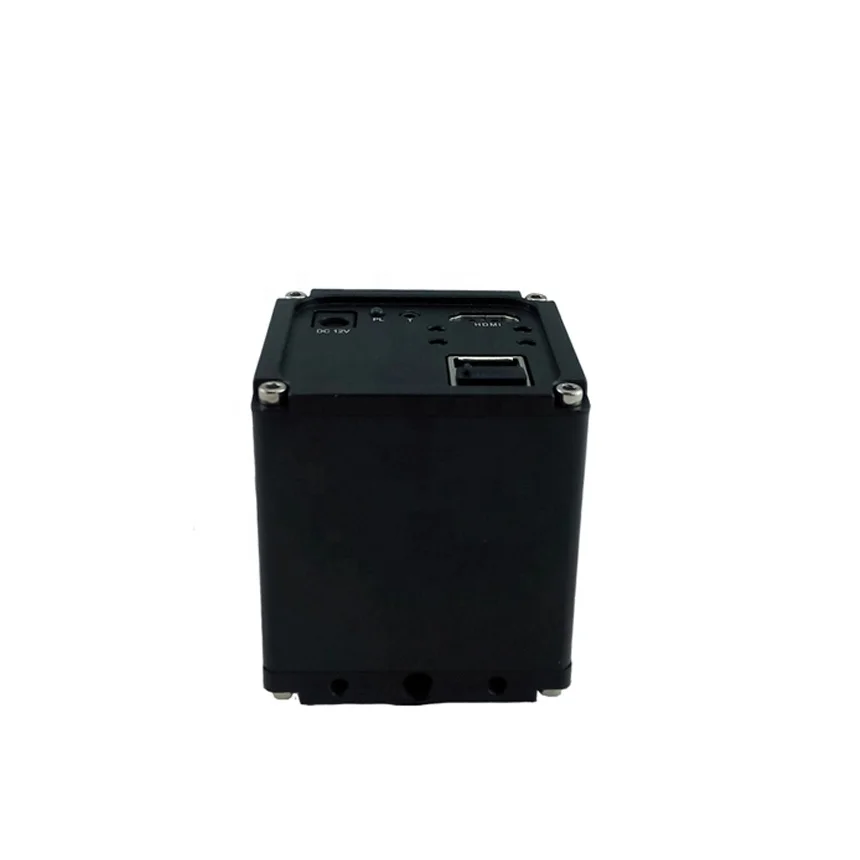

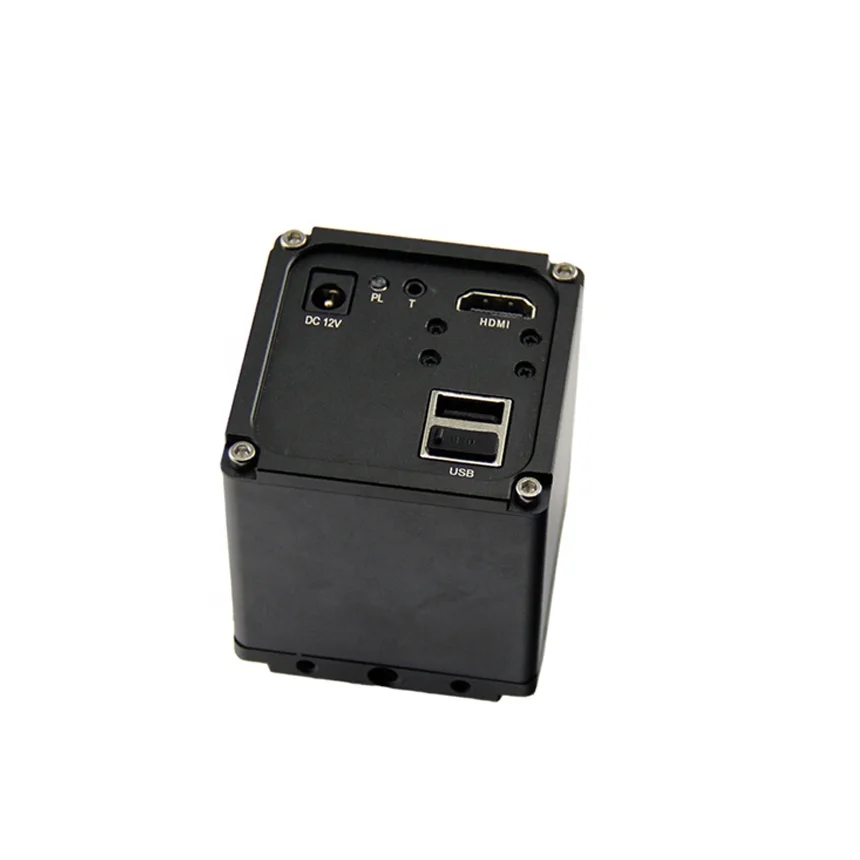

     This is the newest generation Standard C Mount HD Microscope Camera, it possess two calibration mode, one is manual Line calibration , another is Auto Circle calibration. Meantime, it also possess the senior template drawing function, the user can customized the template as their respective requirement. Of course, the imaging quality is better and operate will be more fluency.

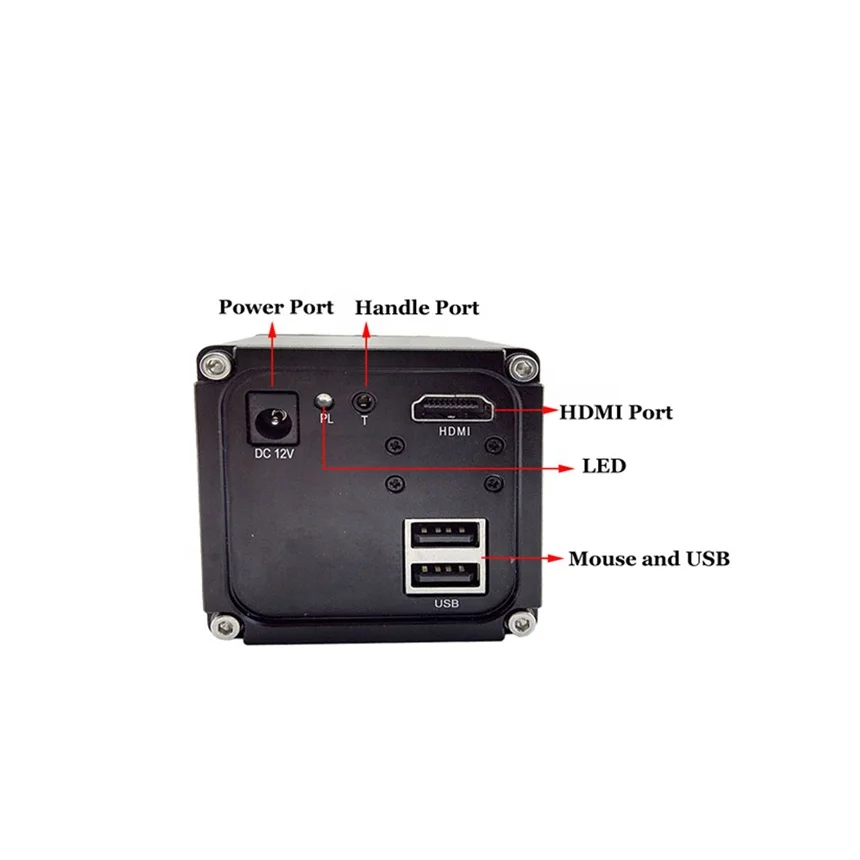

     This Measurement Microscope Digital Camera can be connected to LCD Screen without computer, but the Lcd screen must sopport the resolution 1920*1080, because the camera video is FULL HD mode.

♣ Save Picture

    1) You can save the picture by BMP or JPG Format

    2) Choose the camera whether save the picture with measuring drawing part and measuring result or not. . "YES" mode that keep the measuring result, "NO" mode is only take pictures, measurement result do not save.

♣ This Standard C Mount HD Microscope Camera have two calibrate mode: Circle calibration mode (automatic) and Line calibration (manual), Taking an example of auto calibrate:

    1) Calibration size——custom size—— round (automatic)

     2) Put calibration plate under the lens, and adjust the focal length,  which makes the round on the calibration plate  show clearly (example: 5.0 MM diameter round now)

     3) Under the calibration template select 5.0 MM

      4) Click "+", move the mouse arrow to the center of the round, click the left mouse for automatic calibration.

     5) software will automatically identify round and calibration after about 3 seconds

     6) Renamed on the virtual keyboard after the calibration, click  at the bottom on the soft keyboard , finish calibration

Line calibration (manual) is similar with Circle calibration. But Line calibration (manual) need manual draws the line.

Note:

For a plurality of lens magnification, in the calibration time can one to a plurality of magnification calibration, and save a plurality of different name, next time when replacing the lens magnification, only need to select the corresponding calibration name, there is no need to re calibrate.

♣ Measuring Function instruction of Standard C Mount HD Microscope Camera

♣ Measuring value of number display: Taking an example of circle

     1) You can modify the value of number as following picture: "Copy", "move", "delete", "color", "line width as same as oblique line

    2) "Copy", "move", "delete", "color", "line width as same as oblique line

        For example:  Center: the center coordinates is X: 7.6573, Y: 4.2822, now modified to X: 8 Y: 5

      3) After modifying successfully, a perfect round will movement with the center of the circle position movement, but the radius of the circle, perimeter and area will not change

      Guilin FT-OPTO Co.,Ltd is a new high-tech enterprise which is specialized in high resolution zoom lens, machine vision lens, HDMI camera, LCD monitor, monocular digital microscope, measuring & tools microscope and stereo microscope. Our products are extensively used in the industry of electronic and precise industry dectection , education , laboratory and measuring instrument.

Through years of effort, our company gathered a group of professional sales and technology development personnel. Our products are widely sold in Southeast Asia, Europe and the United States countries, .
We promise to give you the most advanced technology , best products , lower operation cost and most convenient service
