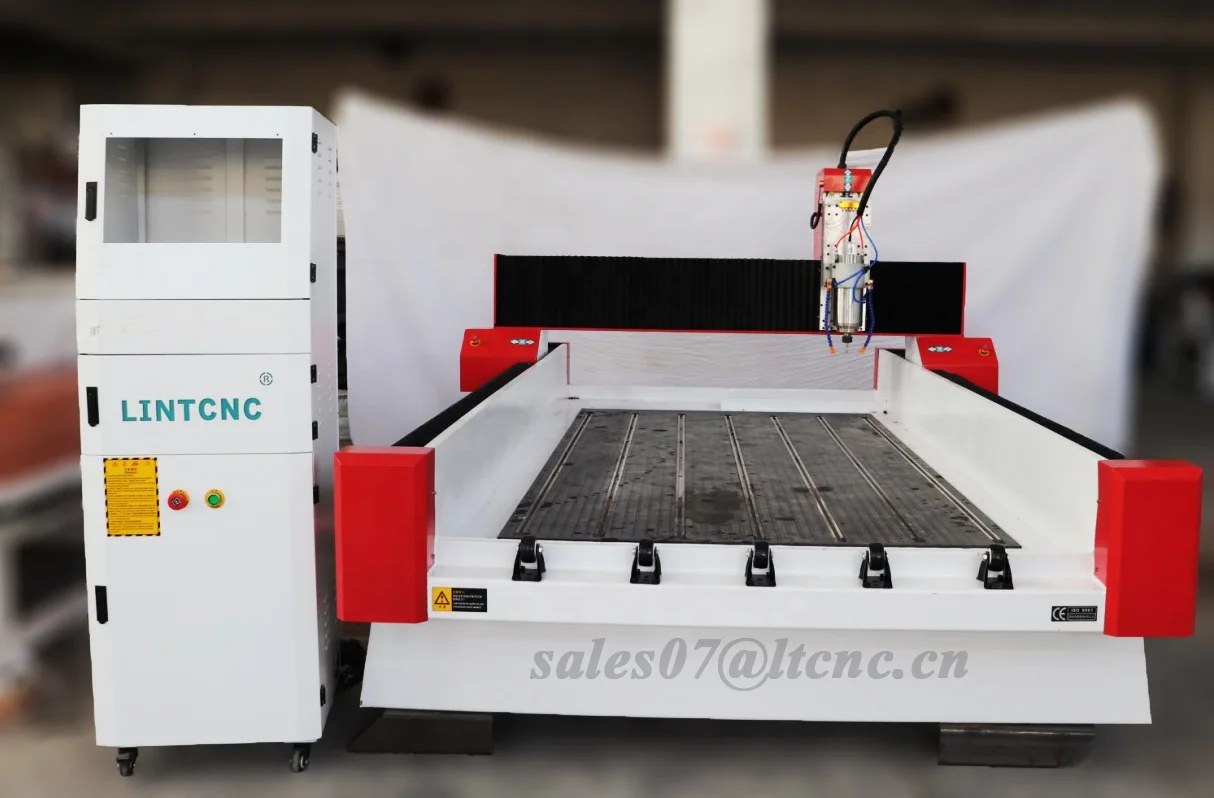

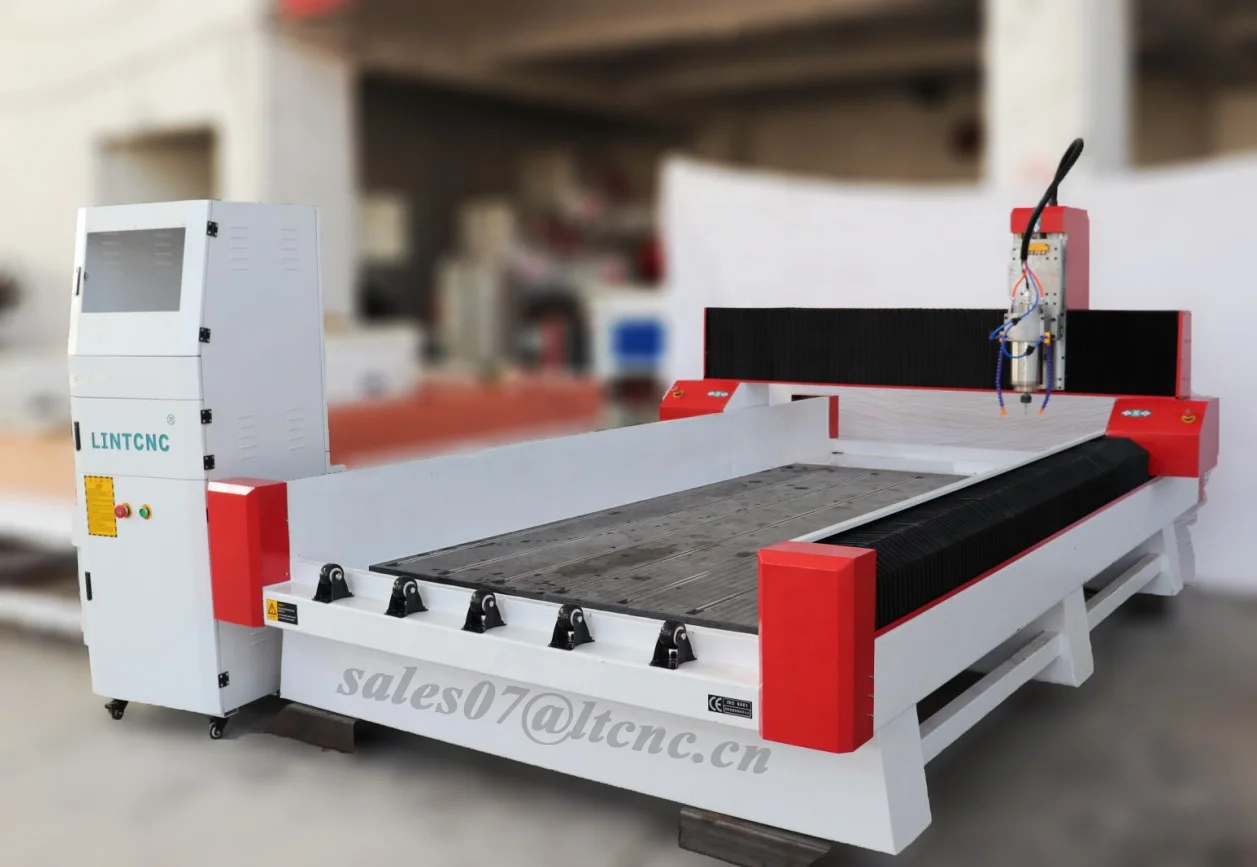

Heavy duty stone CNC Router is at the service of customers who need to do engraving on stone.
overall structure is the most solid for large bearing capacity.
with tool cooling system and water-and -dust proof on three axes,
it is suitable for many kinds of stone carving.
SPECIFICATIONS FOR 1325 stone cutting machine | ||||||
Effective working area | (X=1300mm)*(Y=2500mm) | Spindle collect type | ER25 | |||
Max Feeding Height | 400mm | Voltage | AC220V, 1 phase, 50-60Hz | |||
Machine Body | 8mm thickness welded steel tube, cast iron vertical shafts and steel gantry | Working speed | 0-12000mm/min | |||
Working table | Aluminum T-slot table with PVC | Machine Accuracy | <0.05/300mm | |||
Guide rail | Hiwin linear square guide rail | Control system | Mach3 USB control system | |||
Driving method | Taiwan Gears Rack drive for X Y-axis,lead screw drive for z-axis | Compatible software | Type3/Castmate/Coreldraw/AutoCADand other CAM/CAD software | |||
Motor and driver | Stepper motor(450B) and Leadshine driver(MA860H) | Instruction formate | G code *.u00 *.mmg *.plt | |||

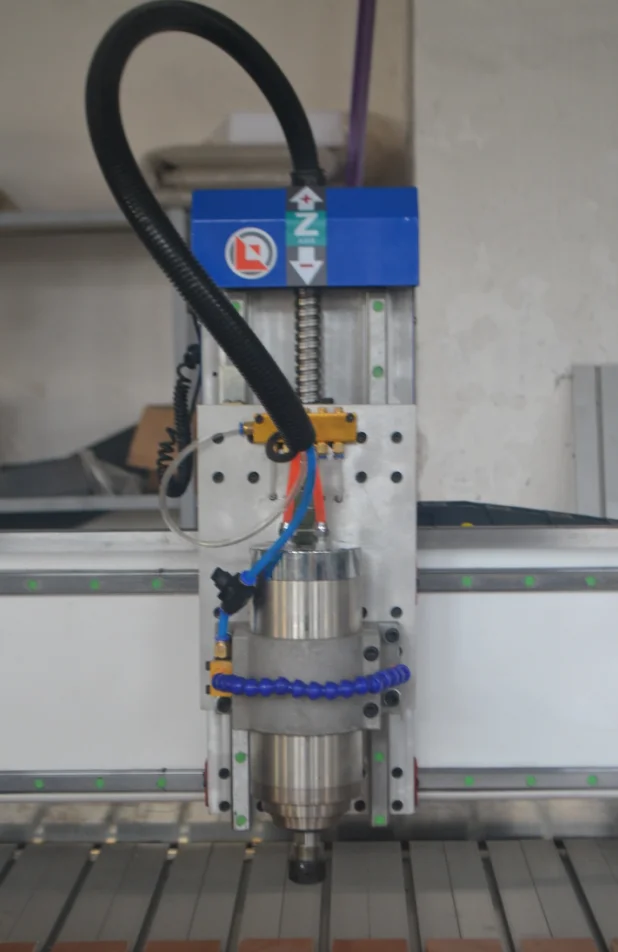

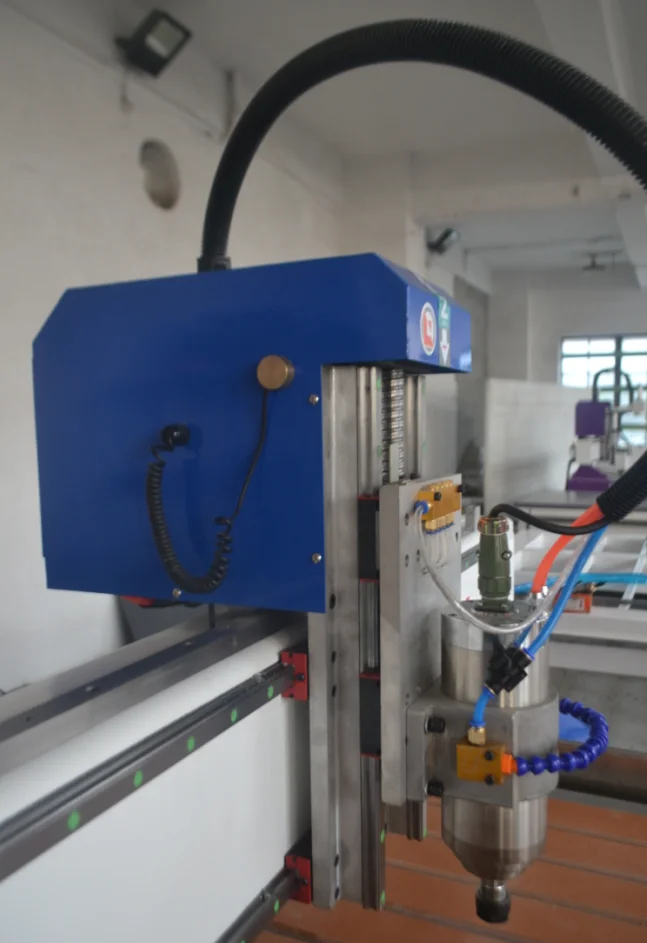

Spindle Motor | 4.5KW water cooling spindle | Working Environment temerature | 0-45℃ | |||
Invert | Fuling invert | Working Environment Humidty | 30%-75% No coagulate water | |||
Spindle speed | 0-24000rpm/min | Control Cabinet | Independent | |||
1.lethe bed uses thick-walled square tube structure with good rigidity and strength that can load heavy materials weighting up to oneton.
2.High-power spindle provides large cutting intensity and high efficiency.
3.Tool cooling system ensures effectively processing effect and improves tool life.
4.Water/dust proff on three axes makes transmission system clean and rust-proff for
good accuracy and longer life.
5.Automatic oiling system can lubricate rails to ensure working accuracy,
effectively extending machine’s lifespan.
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
3. Our warranty is 12 months counting from the date when the Machine arrives at the port of destination.
4. We will supply after service 24 hours,customer can contact us any time.
5.When some problems can’t be solved by customers, our engineer can go to door to help.
Packaging | ||
Size | 350 cm(L) * 220cm (W) * 200 cm(D) | |
Weight | 1500 KGS | |
Packaging Details | The normal package is one plywood case with water-proof materials,very solid and safety packaging,suitable for long-distance transport. | |
1) This is the first time I use this kind of machine, is it easy operate?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, please tell me the max working
area, materials for processing and the thickness for materials processing engraving
or cutting. Then perfect suitable CNC router will be recommended.
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and Skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port
name. There will be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% by T/T before shipping
b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.
