Деревообрабатывающий фрезерный бит TCT
40,00-50,00 $
BWIN Factory Хорошее качество cnc режущие инструменты твердый вольфрам карбид фреза для фрезерования металла
- Категория: >>>
- Поставщик: Shenzhen Bwin Precision Tools Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 60660398533:
Описание и отзывы
Характеристики
Product Description
Product Name | HRC 55 High Speed Finish 4 Flute Square Flat Tupia Long Endmill End |
Material | stainless steel/Steel |
Coating | AITiSiN |
Standard | ISO |
HRC | 55° |
OEM | Supply |
Suitable For | Cooper.Cast Iron.Carbon Steel.Mould steel |
Used | CNC Lathe machinery |
1. Fully enables running at rough machining parameters, resulting in finish surface quality.
2. Excellent performance in machining titanium, stainless steel and high temperature alloys.
3. The coating provides longer tool-life or increased cutting-values.
4. Suitable for all types of steel or metal.
Product Parameters
Item Grade | HRC45 (YG10X ) | HRC55 (YL10.2 & WF25) | HRC60 (Germany K44 &K40) | HRC65 (Sandvik H10F) |
Details | Grain size 0.7um Co10% Flexural strength 3320N/mm2 | Grain size 0.6um Co10% Flexural strength 4000N/mm2 | Grain size 0.5um Co12% Flexural strength 4300N/mm2 | Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
Coating Classifying and Advantage | ||||||||||
Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo | |||||
Characteristic | Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) | |||||
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | ||||||
Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | ||||||
Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | ||||||
Color | Black | Bronze | Bronze and gold | Blue | ||||||
Advantages | High heat stability | Normally cutting | Suitable for heavy cutting, and high hardness cutting | For high precision cutting | ||||||
Suitable for high speed, dry cutting | Suitable for cutting mould steel, stainless steel | Suitable for high hardness cutting, mould steel processing | ||||||||
Most suitable for carbide cutting tools, turning insert | ||||||||||

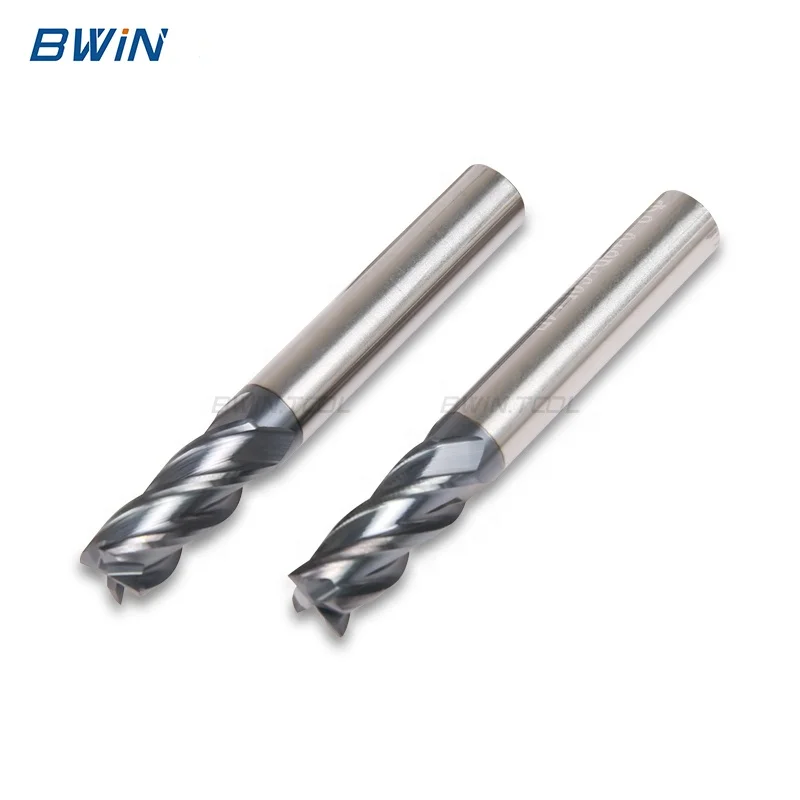

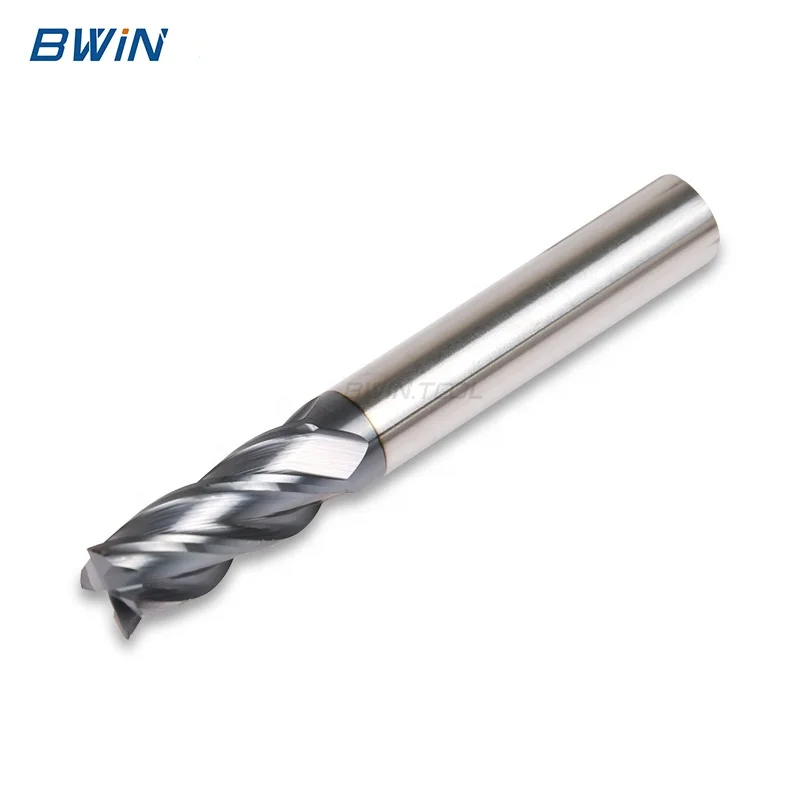

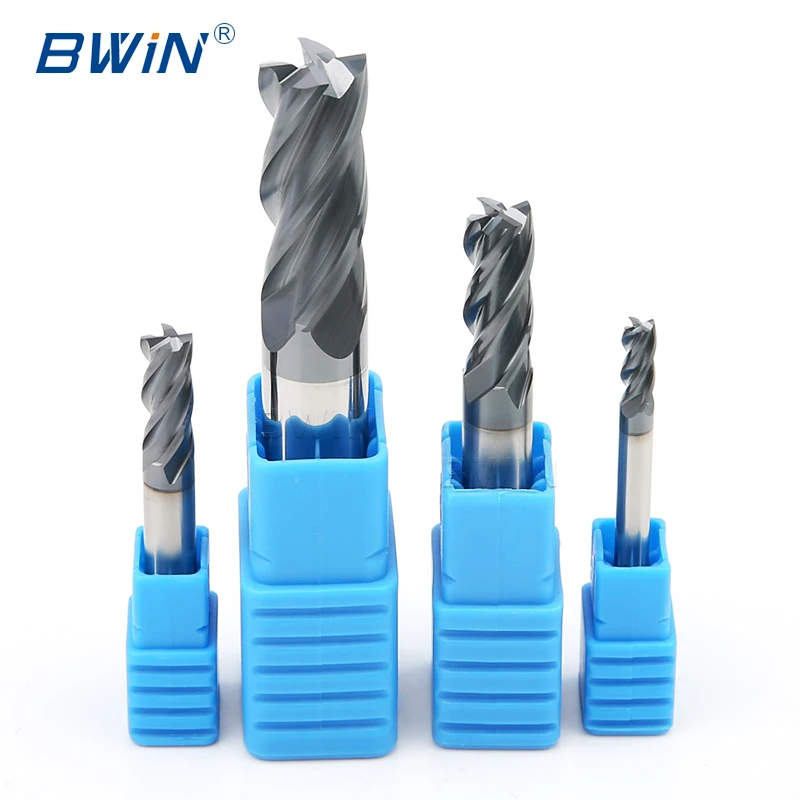

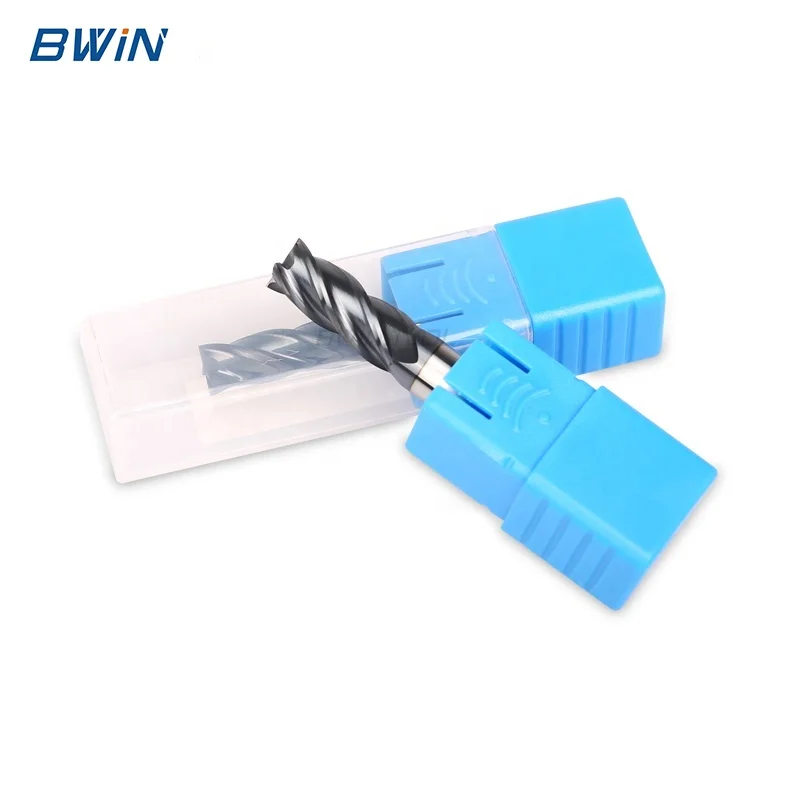

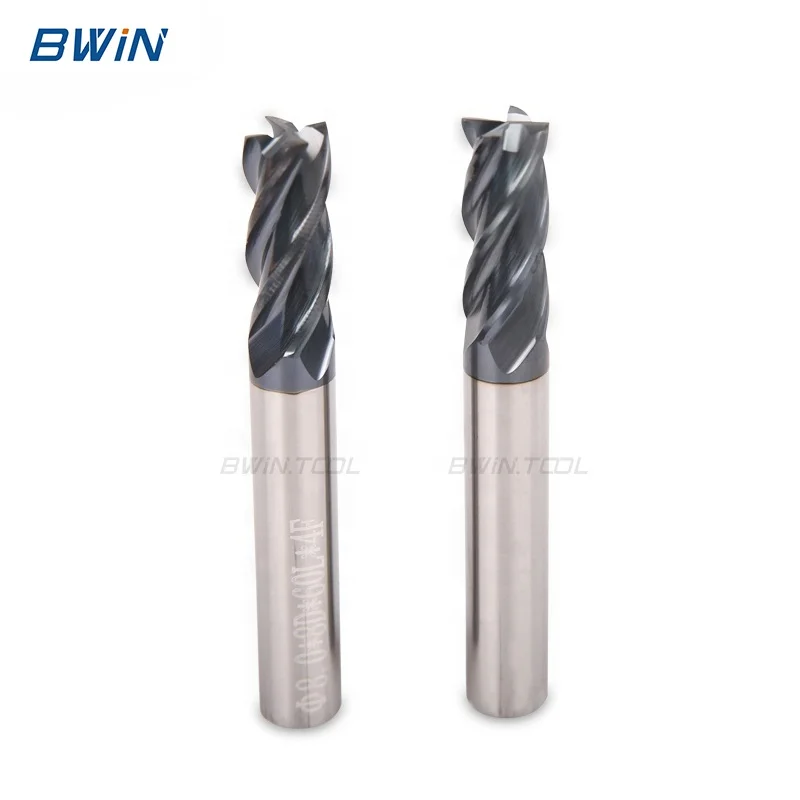

Products Show
Product Detail
1.Bottom groove
Double edged with 35 degree helix angle design, make end mill more wearable.
2.Blade band
Double edged with 35 degree helix angle design, make end mill more wearable.
3.Large chipping space
The cutting can be discharged in time and can be processed efficiently.
4.Chamfering
Chamfering is easy to operate, Handle with chamfering, easier to clamp.
Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
Φ1x3Cx4x50L | 1.0 | 3 | 4 | 50 |
Φ1.5x4Cx4x50L | 1.5 | 4 | 4 | 50 |
Φ2x6Cx4x50L | 2.0 | 6 | 4 | 50 |
Φ2.5x8Cx4x50L | 2.5 | 8 | 4 | 50 |
Φ3x8Cx4x50L | 3.0 | 8 | 4 | 50 |
Φ3.5x10Cx4x50L | 3.5 | 10 | 4 | 50 |
Φ4x10Cx4x50L | 4.0 | 10 | 4 | 50 |
Φ5x13Cx6x50L | 5.0 | 13 | 6 | 50 |
Φ6x15Cx6x50L | 6.0 | 15 | 6 | 50 |
Φ8x20Cx8x60L | 8.0 | 20 | 8 | 60 |
Φ4x20Cx4x75L | 4.0 | 20 | 4 | 75 |
Φ5x20Cx6x75L | 5.0 | 20 | 6 | 75 |
Φ6x20Cx6x75L | 6.0 | 20 | 6 | 75 |
Φ8x25Cx8x75L | 8.0 | 25 | 8 | 75 |
Φ10x25Cx10x75L | 10.0 | 25 | 10 | 75 |
Φ12x30Cx12x75L | 12.0 | 30 | 12 | 75 |
Φ4x25Cx4x100L | 4.0 | 25 | 4 | 100 |
Φ5x25Cx6x100L | 5.0 | 25 | 6 | 100 |
Φ6x30Cx6x100L | 6.0 | 30 | 6 | 100 |
Φ8x35Cx8x100L | 8.0 | 35 | 8 | 100 |
Φ10x40Cx10x100L | 10.0 | 40 | 10 | 100 |
Φ12x45Cx12x100L | 12.0 | 45 | 12 | 100 |
Φ14x40Cx14x100L | 14.0 | 40 | 14 | 100 |
Φ16x40Cx16x100L | 16.0 | 40 | 16 | 100 |
Φ18x40Cx18x100L | 18.0 | 40 | 18 | 100 |
Φ20x45Cx20x100L | 20.0 | 45 | 20 | 100 |
Other Products
Our Company
COMPANY PROFILE
Shenzhen BWiN Precision Tools Co.,Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, BWiN manufacture with integration of R&D, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."
BWiN manufacture has over 1500 square meter factory area and storehouse. We are leading OED&ODM manufacture many years of experience in this filed. BWiN have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. BWiN relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer with more than 10 years experience in this field.
2. How to place an order?
1.Fill your Order List in our online Inquiry System.
2.Directly contact our salesperson by E-mail / Skype / Whats App
2.Directly contact our salesperson by E-mail / Skype / Whats App
We will make a feedback to you ASAP after receive your order list.
3. What is your payment terms?
T/T, Paypal, Western Union, Alibaba assurance for different circumstances.
4. What's your delivery way?
Express delivery, DHL, TNT, FEDEX , EMS, air shipping, sea shipping are available for your request.
5. Do you offer OEM?
Yes, we do. We have laser machine lasering your logo and tool specification on the body of tools. Also, we can print customized on plastic boxes.
6. How about the delivery time?
Usually delivery time is 2~3 days after receiving the advance payment. For the customized product, 7-10 days after receiving the advance payment.
