Тележка с V образным блоком для тяжелых катушек

Тележка с V образным блоком для тяжелых катушек

Категория: >>>
Поставщик: Xinxiang New Leader Machinery Manufacturing Co. Ltd.

Цена:3 350,00 $ - 3 500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

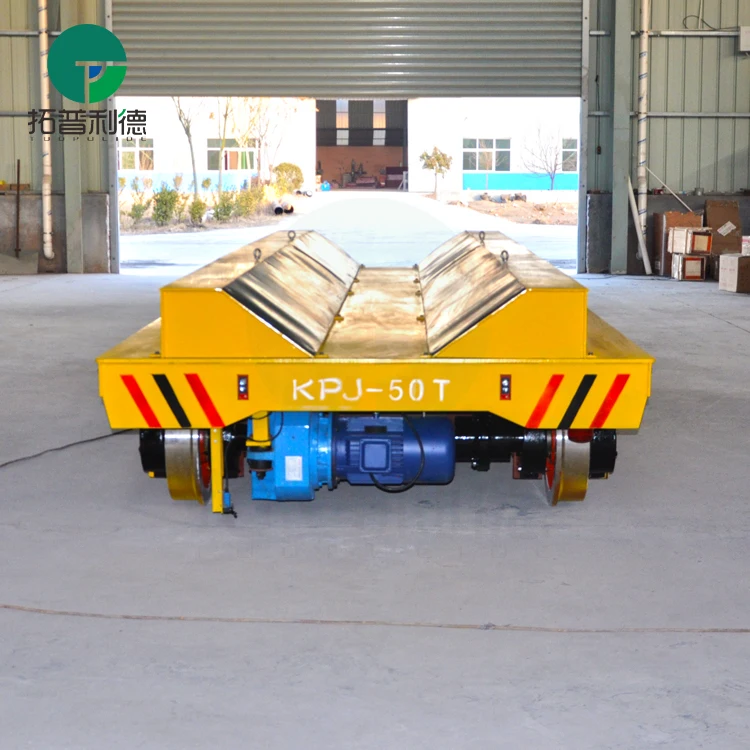

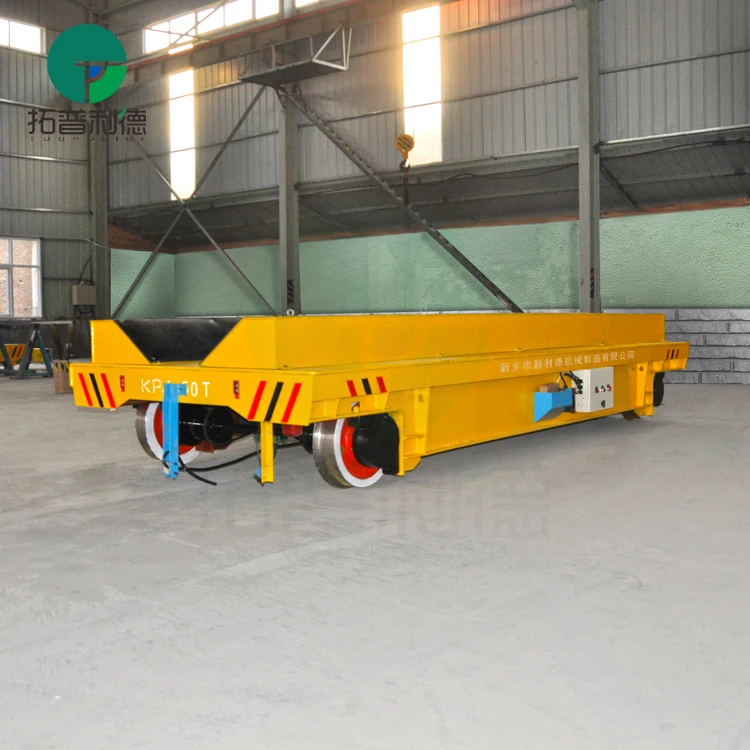

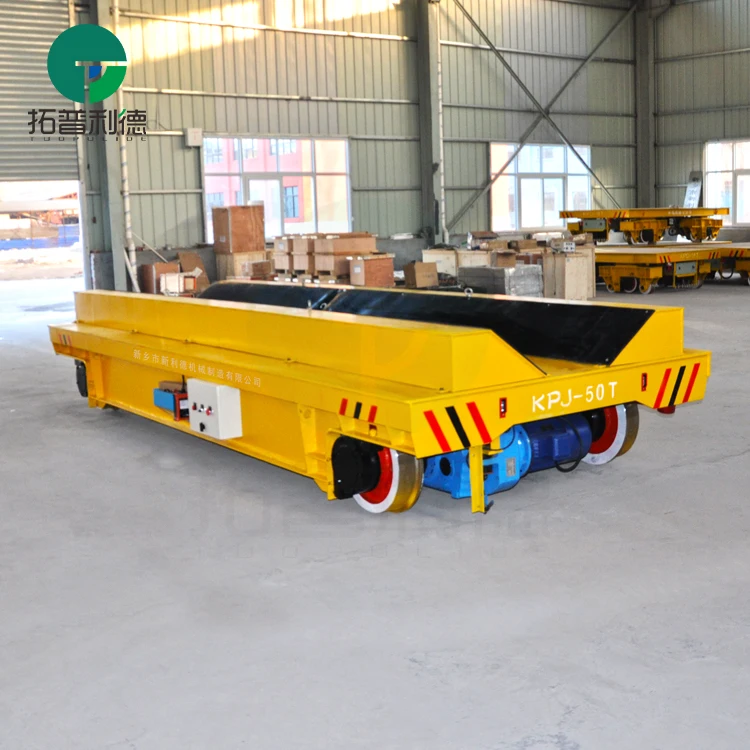

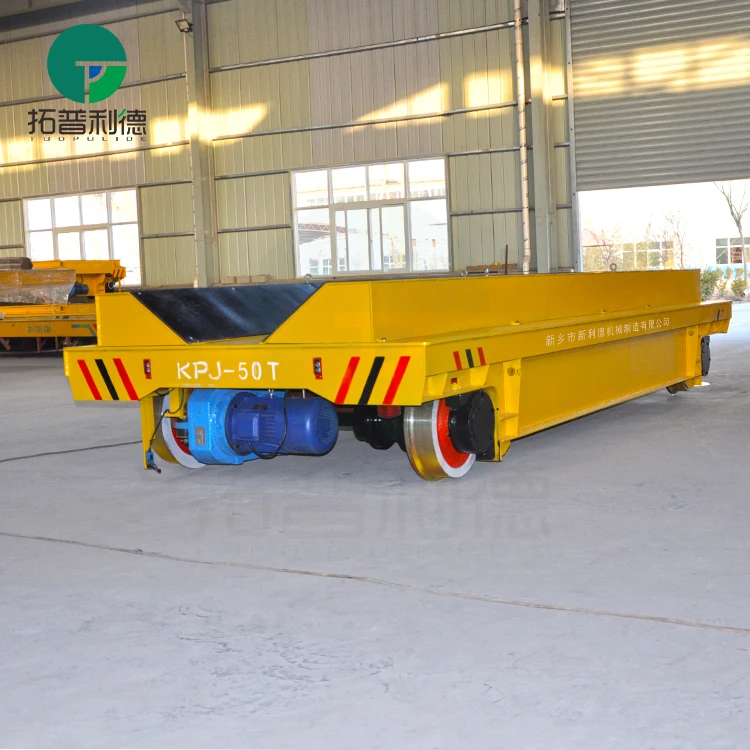

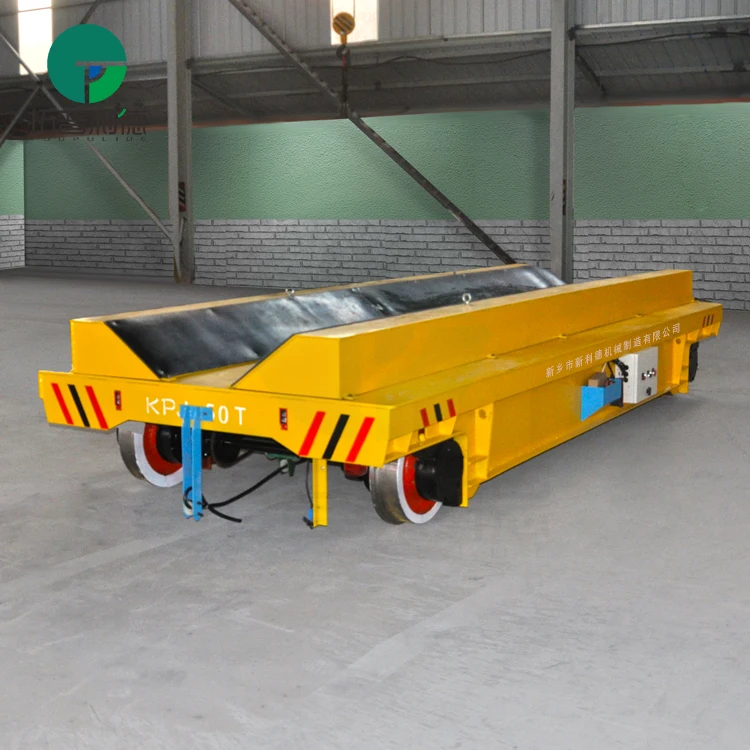

Heavy load coil transfer cable drum rail trolley with V-block

Brief Introduction for cable drum rail trolley

Heavy load coil transfer cable drum rail trolley with V-block, it is a trolley powered by cable drums which is installed at the bottom of the cable drum rail trolley. It is designed for transporting cargoes or equipment from one bay to another in factory, from indoor to outdoor. It has widely applied in the industry transportation field, our company can designed the trolley to meet our customers' demand.

Heavy load coil transfer cable drum rail trolley with V-block

Working Principle of cable drum rail trolley

The cable drum rail trolley is the cable drums powered, the cable drum rail trolley gets power AC 380v through the device of cable reel, and the motor is controlled by the power through AC control system that make the cable drum rail trolley to start, stop, go forward, backward, adjust the speed and so on.

We adopt the magnetic coupling cable reel, it can make sure that there is no force on the cable and the cable can be wound and released evenly. If it is used in short distance transportation, it is a better choice without limited time. Of course, our product includers different power, the proper solution will be recommended to you after learning your requirements.

Heavy load coil transfer cable drum rail trolley with V-block

Advantages of cable drum rail trolley

The cable drum rail trolley can run on the straight railways to carry many material, workpiece, workpiece;

The cable drum rail trolley can be applied in many occasions, such as easy explosion, easy corrasion, high temperature;

AC motor, simple structure, not limited for the using time;

This kinds of trolley is powered by cable drum, so there is not strict requirement for the construction of the railway ,and the running distance should accord to the length of the cable.

Cost is not high, easy to operate and maintenance;

The cable drum rail trolley are customized as per your true demand.

1 (4)

------All customized for you
The hydraulic lifting device can be equipped as per your requirement. As per the transported cargoes, the V frame, U frame, rubber pad, wooden pad, weighing device...can be equipped. As per the working environment, the anti-high temperature, anti-explosion, anti-rust, anti-skid measure can be adopted properly. ...

1 (5)

Parts Showing

Heavy load coil transfer cable drum rail trolley with V-block

Parts Showing of cable drum rail trolley

Trolley Frame

The frame adopts box beam structure according to the crane principle and combined with the design of the trolley. It is with large load capacity, long service lifetime. Besides, not easy deformation and can effectively ensure the smooth of the platform.

Cable Drum, AC motor, three in one reducer

The cable reel power makes the working and operation more neatly and easily; It does not cause any harm to the person.

Adopts European standard three in one reducer, mechanical transmission efficiency, stable operation, low noise, easy installation and maintenance, various flexible shaft rotation

Cast Steel Wheel

The wheel, its material is ZG55, Change conveniently, install easily, the larger capacity cargoes can be transported, the largest capacity can reach to 300T.

Electrical cotrol box, control method and Safety device

There are power source switch, emergency stop switch, alternation switch, indicator light,etc, which can make the operation more safety;

There are pendant control and remote control two methods, certaily, control panel also can be installed as your demands;

Safety device: sound&light aralm, bumper device, automatioc stop device and other safety device as your demands.

Heavy load coil transfer cable drum rail trolley with V-block

Parameter List of cable drum rail trolley

Model		KPJ-2T	KPJ-5T	KPJ-10T	KPJ-20T	KPJ-30T	KPJ-50T	KPJ-100T	KPJ-150T
Rated load (T)		2	5	10	20	30	50	100	150
Table size	length(L)	2000	3500	3600	4000	4500	5500	6500	10000
	Width(W)	1500	2000	2000	2200	2200	2500	2800	3000
	Height(H)	450	450	500	550	600	650	850	1200
Wheel Base (mm)		1200	2500	2600	2800	3200	4200	4900	7000
Rail Inner Gauge (mm)		1200	1435	1435	1435	1435	1435	2000	2000
Wheel Diameter(mm)		Φ270	Φ300	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Wheel Quantity(Nos)		4	4	4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	50	50	75	75
Running speed (m/min)		0-30	0-30	0-25	0-25	0-25	0-20	0-20	0-18
Motor Power (Kw)		0.8	1.5	1.5	2.5	4	5.5	11	15
Max Wheel Load (KN)		14.4	25.8	42.6	77.7	110.4	174	343.8	265.2
Reference Weight (t)		2.5	3.5	4	5.6	6.5	7.8	14.1	26.2
Recommended Rail Model		P15	P18	P18	P24	P38	P43	QU100	QU100

Processing Showing of cable drum rail trolley

cable drum trolley

Application

Heavy load coil transfer cable drum rail trolley with V-block

Application Showing of cable drum rail trolley

The cable drum rail trolley is suitable for various occasions, for example, steel field, forged field, mold field, Heavy Industrial, Light Industrial, paper making field, Construction Machinery maker, Shipyard, Port Cargo Yard, warehouse, assembly line, Spray booth, Air and Space etc.

For material handling, it has been widely used with hot market. Any interests and problems, please contact with us in any time.We will try our best to help you. Hope rich experience can help you well.

cable drum trolley

Heavy load coil transfer cable drum rail trolley with V-block

Our Company

Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacture and sell lifting and handling equipment. We can produce 1-500 ton range of various tonnage of KPD rail low voltage series, KPJ cable reel series, KPC safety sliding line series, KPX battery powered series, BWP rubber wheel transfer cart series, KPT towed cable series, KP non-power type seven series which including turning electric flat car, trackless electric flat car, ladle car, ferry electric flat car, hydraulic lifting electric transfer car, electric winch, rail wheel and so on more than 90 products.
