Best Industrial M2M High speed HSDPA GSM GPRS Modem 3G modem with ethernet port rs232 mini usb support at command

Main Features

1.GSM Modem simcom5215sieres

2.GSM Modem Interface: USB&RS232

3.HSDPA  up to 3.6Mbps for downlink data transfer

4.Function:  SMS /MMS/voice call/data transmission/USSD

5.SMS sending: 600sms/per hour

6.Support: TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3/open at /stk

7.Auto answer function for voice and data collection with the remote device.

8.AT command to control and program

9.Designed for WAP, MMS, SMS, CSD data, fax, and voice applications

10.Support XP/NT/2000/2003/vista /linux operation systems

11.Design for high traffic communicaton

PICS OF MODULE

SIM5215WCDMA/GSM/GPRS/EDGE module TCP/UDP/FTP/HTTP/HTTPS/SMTP/POP3 and MMS

The SIM5215 series is a Multi-Band WCDMA/GSM/GPRS/EDGE module solution which supports WCDMA 384kbps for data transfer.With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/HTTPS/SMTP/POP3 andMMS, the module provides much flexibility and ease of integration for customer’s application.  Its unique camera/video call feature shall add value to security solutions.

It is ideal for a  wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.

General features

* SIM5215A: Dual-Band UMTS/HSDPA 850/1900MHz
       Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* SIM5215E: Dual-Band UMTS/HSDPA 900/2100MHz
       Tri-Band GSM/GPRS/EDGE 850/900/1800MHz

* SIM5215J: Dual-Band UMTS/HSDPA 850(800)/2100MHz
       Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* GPRS multi-slot class 12
* EDGE multi-slot Class 12
* WCDMA 3GPP release 99

* Output power

       - UMTS 1900/850: 0.25W
       - UMTS 2100/900: 0.25W
       - GSM850/GSM900: 2W
       - DCS1800: 1W
       - PCS1900: 1W

* Control Via AT Commands
* Supply voltage range: 3.3V~ 4.2V
* Operation temperature range: -30 °C to +80°C

   Support embedded Script Language
* LUA Script Language

Specifications  for  Data transfer

* WCDMA
         - Max.384Kbps(DL), Max.384Kbps()
* EDGE
         - Max. 236.8Kbps(DL),Max.118Kbps()
* GPRS
         - Max. 85.6Kbps(DL), Max.42.8Kbps()
* CSD
         - GSM data rate 14.4Kbps
         -  WCDMA data rate 57.6Kbps


Specifications for SMS

* Point to point MO and MT
* Text and PDU mode
Specifications for CSD
* Support in GSM and WCDMA
Specifications for Network Identity and Time zone (NITZ)
* Support in GSM and WCDMA
Specifications for video call
* DTMF on H245
* Support standard WCDMA  64kbps(CS) Video call

Other features

* USB Driver for Microsoft Windows 2000/XP/Vista
* USB Driver for Linux 2.6.16
* Firmware update via USB
* MMS
* TCP/IP
* FTP/HTTP/HTTPS/SMTP/POP3
* FOTA
* USB Audio

Interfaces

* USB2.0
* UART
* USIM card
* ADC
* Digital Camera
* GPIO
* I2C
* Micro-SD card

Certifications

SIM5215A     * FCC   * PTCRB   * IC    * ROHS

SIM5215E    * CE   * GCF   * ROHS

Carrier Approvals

SIM5215       * NCC    * Orange

Accessories

1.Power adapter

2.Cable line

3.Antenna

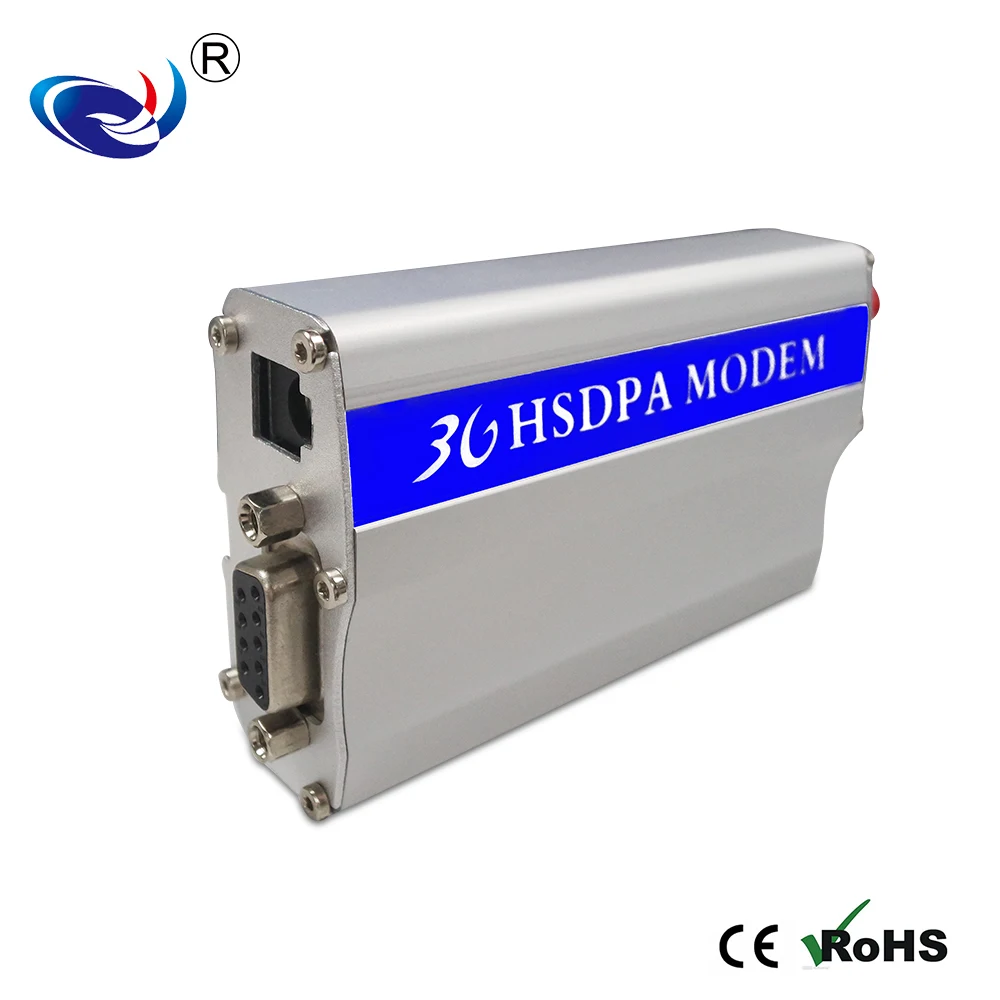

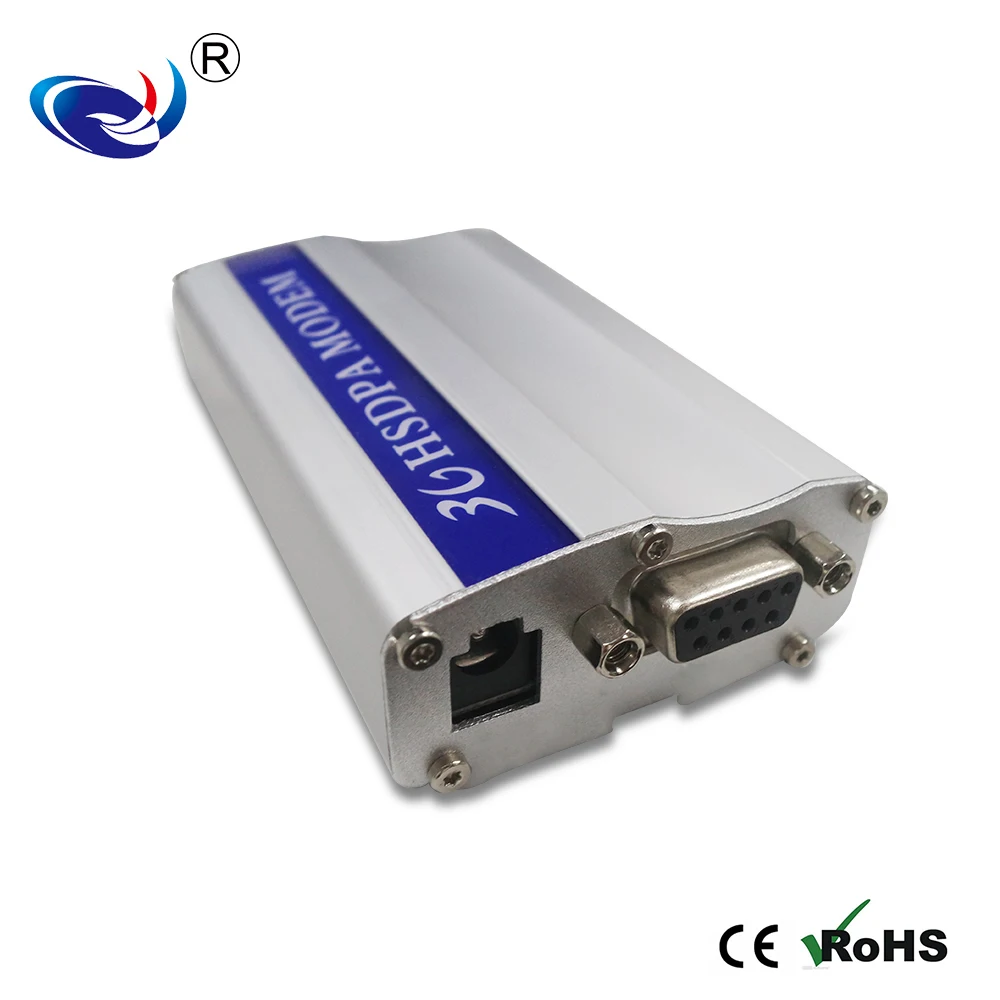

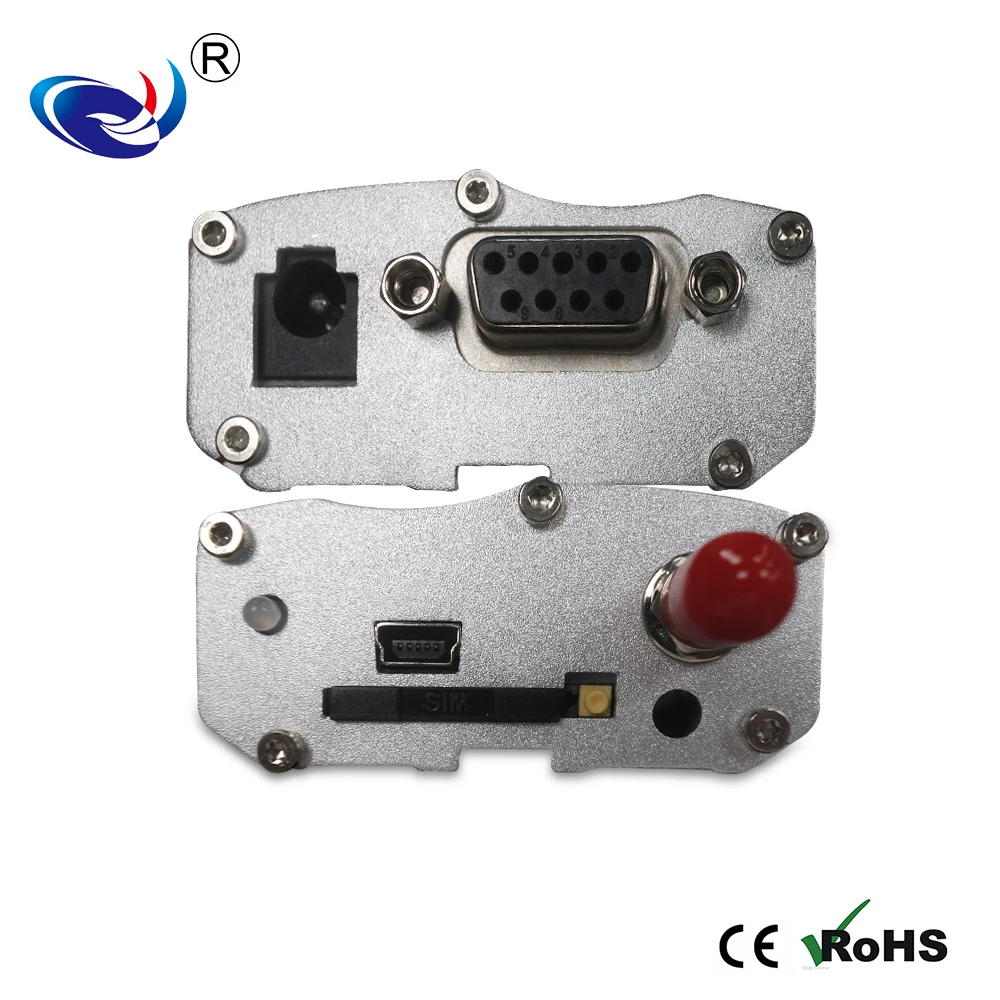

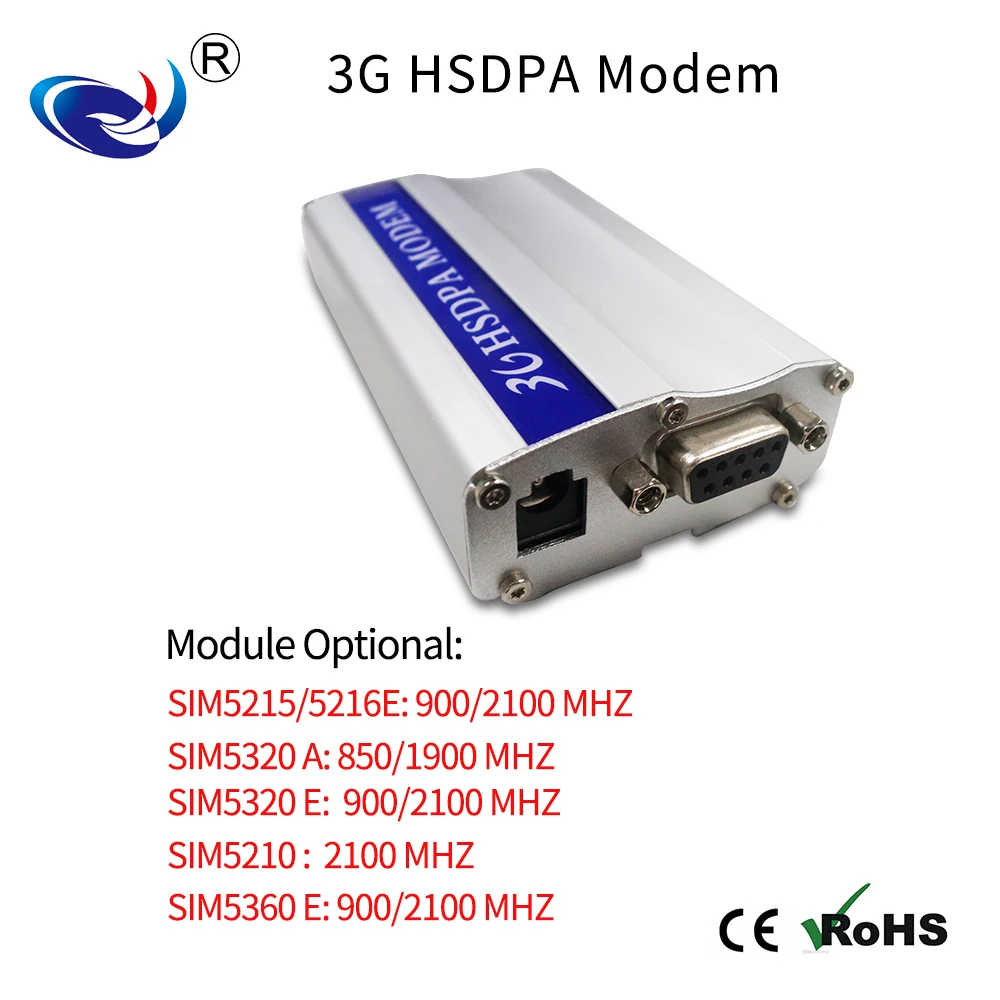

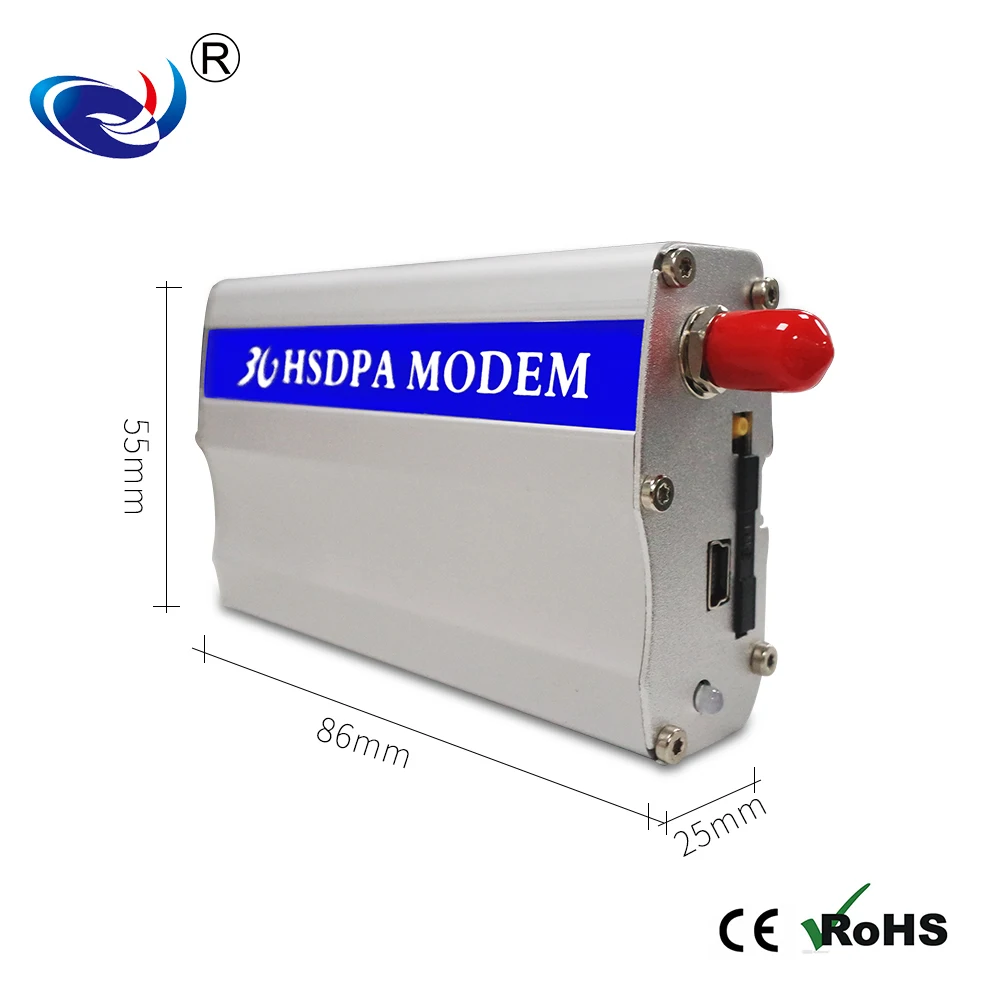

PICS OF 3G MODEM

COMPUTER SYSTEM SUPPORT

The whole set products

Modem application:
