Техническое описание 3528 SMD LED smd uv led
- Категория: Светодиод SMD >>>
- Поставщик: Shenzhen Huanyu Dream Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 60662901169:
Описание и отзывы
Характеристики
Product Description
Model No. | HYZM-SMD3528UV | Power | 0.06W |
Voltage | 3.0~3.4V | Current | 20mA |
Chip Brand | Sanan | Chip Size | 8*12mil |
Wavelength | 390~395nm 395~400nm | Lumens | 30~50mcd |
Lifespan | 50,000 hours | Warranty | 3 years |
Item | Power (W) | Chip Brand | Chip Size(mil) | CCT(K)/WLD（NM） | Voltage (VF) | Current (mA) | Brightness (LM)/（MCD） |
0.06W | Sanan | 8*12 | 2600-20000K | 3.0-3.4V | 20mA | 6-7LM | |
8*15 | 7-9LM | ||||||
0.06W | Sanan | 10*10 | RED 620-625/625-630 | 2.0-2.4V | 20mA | 2-3LM | |
10*10 | Yellow 590-595/595-600 | 2-3LM | |||||
10*10 | Orange 600-605/605-610 | 2-3LM | |||||
8*12 | Green 520-525/525-530 | 3.0-3.4V | 2-3LM | ||||
8*12 | Blue 460-465/465-470 | 1-2LM | |||||
8*12 | Amber/Gold Yellow | 5-6LM | |||||
8*12 | UV 390-400 | 30-50MCD |

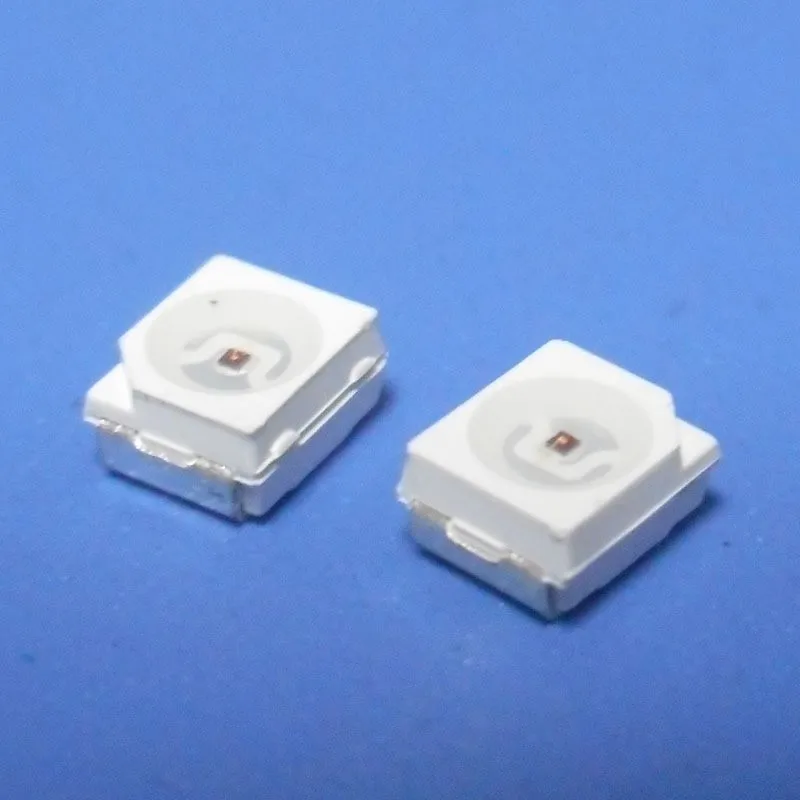

3528 smd led datasheet UV LED 3528

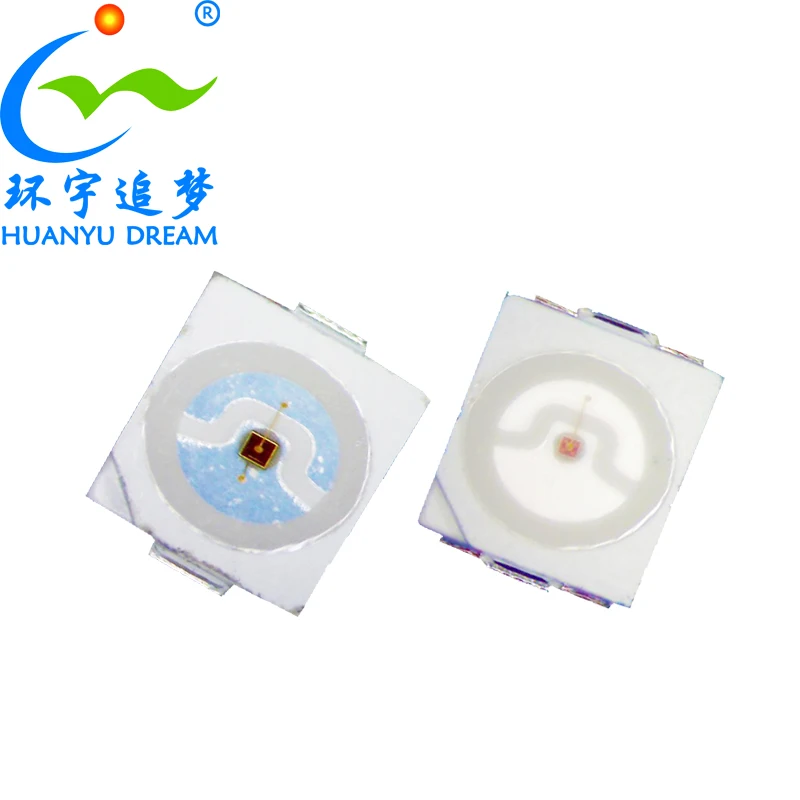

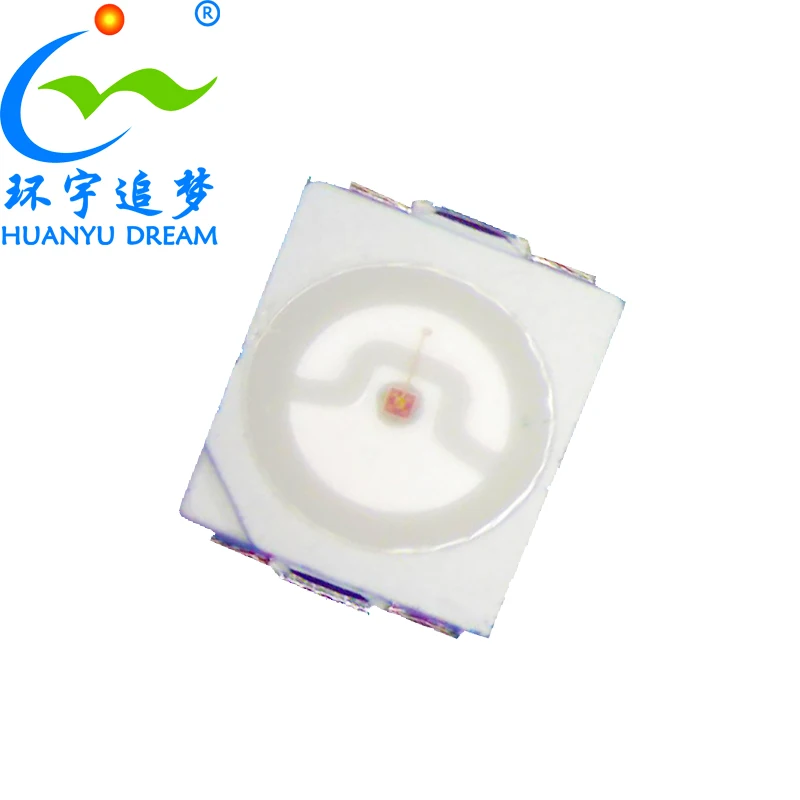

Huanyu Dream manufacture the Purple UV led chip, 3528 smd UV LED, 0.06W 20ma, 3.0~3.4v,Sanan chip, 390~400nm wavelength, 30~50mcd. widely use in Mosquito lamp, nail art lamps, curing light, counterfeit lamp, UV LED Strip etc.
Electrical / Optical characteristics uv led 3528 datasheet
Absolute Maximum Ratings (TA=25ºC) uv led diode, uv led chip, uv led light,smd uv led,uv smd led,uv led uv light
IFP Conditions : 1/10 Duty Cycle, 0.1 msec Pulse Width.
Item | Symbol | Absolute Maximum Rating | Unit |
Forward Current | IF | 20 | mA |
Pulse Forward Current | IFP | 50 | mA |
Reverse Voltage | VR | 5 | V |
Power Dissipation | PD | 350 | mW |
Operating Temperature | Topr | -40ºC To +85ºC | °C |
Storage Temperature | Tstg | -40ºC To +85ºC | °C |
Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering : 350ºC | for 10sec. for 3sec. |
Initial Electrical/Optical Characteristics (TA=25±5ºC)
Symbol | Item | Units | Min. | Typ. | Max. | |
VF | Forward Voltage | V | 3.0 | - | 3.4 | IF=20mA |
IR | Reverse Current | uA | - | - | 5 | VR=5V |
2θ | Viewing Angle | º | - | 120º | - | IF=20mA |
ø | Luminous flux | lm | 1 | - | 2 | IF=20mA |
IV | Light intensity | mcd | 30 | - | 50 | IF=20mA |
WLD | Dominant wavelength | nm | 390 | 395 | 400 | IF=20mA |
Application
Application of 3528 UV LED
3528 smd UV LED widely use in Mosquito lamp, nail art lamps, curing light, counterfeit lamp, UV LED Strip etc.
Except the SMD 3528 UV LED, we also supply SMD2835 UV LED, 5730 UV LED, 5050 UV LED, 1W UV LED and 3W UV LED, welcome contact us to ask detail.
Related Products
Company Information
Certification
Customer Reviews
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
