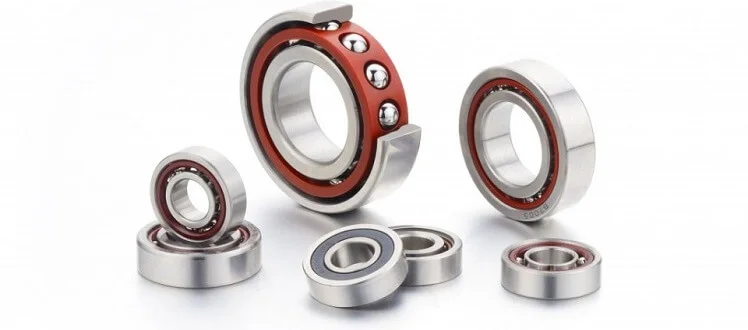

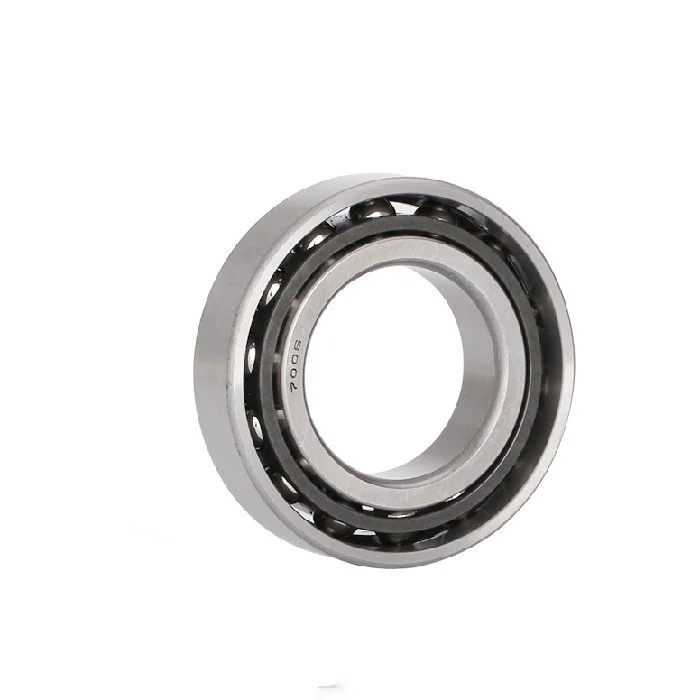

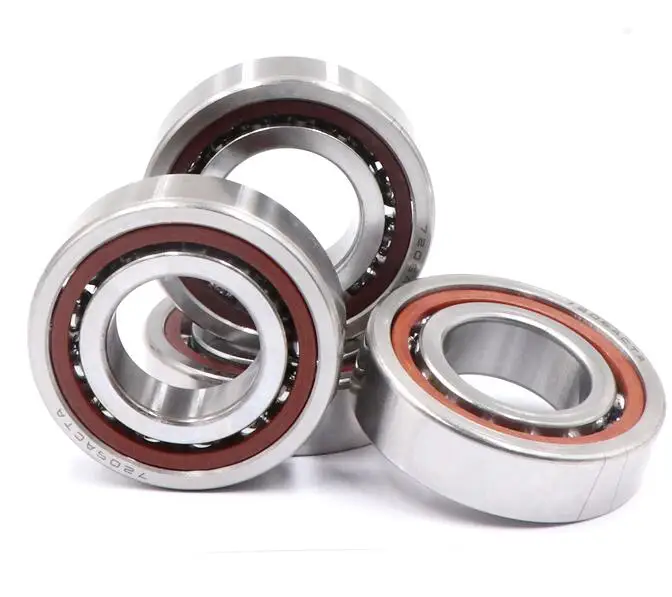

Подшипник шпинделя 25TAC62B шариковый винтовой подшипник 25TAC62BSUC10PN7B для станка с ЧПУ

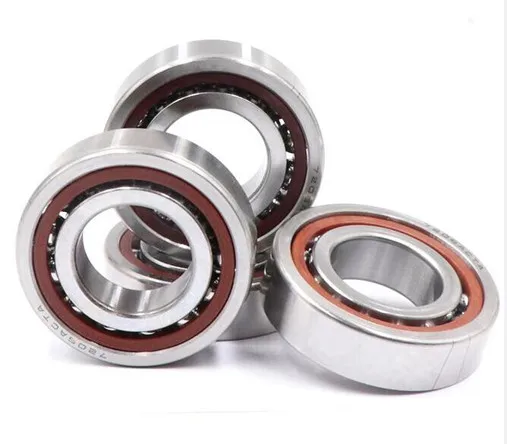

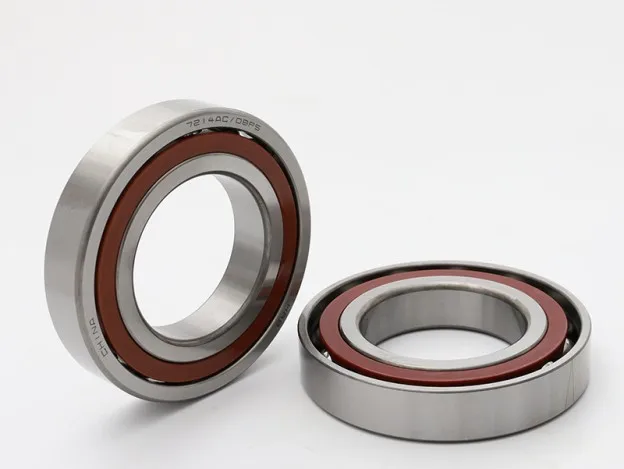

Angular contact ball bearing

 1.Anglular contact ball bearing steel balls and inside and outside the points of contact with the circle attachment radial into a point of view. Contact Angle generally divided into 15 °, 30 °, 40 °, respectively for the letter C, A, B says, japan brand special production contact Angle for 25 ° of these bearings, with the A5 said. Angle contact ball bearing main bear big one-way axial load, the greater the contact Angle, the greater the ability to bear a heavy load. Maintains a material with a steel, brass or engineering plastic, forming a way to have a press or turning, depending on the bearings form or conditions of use different and choose. There are other combined angular contact ball bearing, double row angular contact ball bearing and four-point contact ball bearing.

2.Angle contact ball bearings are widely used in mechanical industry,like in various machinery such as metallurgic machinery,mining machinery,paper making machinery,exile machinery,etc.

Specification

Angular contact thrust ball bearing for ball screw support(machine tool applications)

japan brand ball screw Angle contact ball bearing japan brand 25TAC62BSBC10PN7A  bearing
25---the size of the inner diameter (mm)
TAC---thrust Angle contact ball bearing, the contact Angle is 60 °
62---the size of the outer diameter (mm)
B---internal style
DF---a combination
SU---free combination (single)
DU---free combination (2 column)
DB---back-to-back combination
DF---face to face combination
DT---tied for combination
DBD DFD DTD---3 columns combination
DBB DFF DBT DFT DTT---4 columns combination
C10---standard preloaded
C9---light preloaded | low torque style
PN7A---standard precision (equivalent to ISO4 class)
PN7B---inside outside diameter size difference special control precision (equivalent to ISO4 grade, SU combination special).

Angular contact ball bearing include:
1) Single row angular contact ball bearing
2) Matched angular contact ball bearing
3) Double row angular contact ball bearing
4) Four-point contact ball bearing

Angular contact ball bearings features :
1) Load capacities are higher than deep groove ball bearings of same dimensions;
2) Used for bearing radial-axial combined loads or pure thrust loads;
3) Low operating friction and high limiting speed.

Spindle bearing ball screw bearing for CNC machine

cnc machine spindle bearing ball screw bearing

japan brand angular contact ball bearing for cnc router spindle

Angular contact thrust ball bearing for ball screw support

Machine tool Angular contact ball bearing

CNC machine bearing ball bearing

Screw bearing support bearing motor spindle bearing

 ShuangCheng Bearing Co., Ltd. Specializing in various types of bearings including Deep Groove Ball Bearing,608 Skate baring,Taper roller bearing,Cylindrical roller bearing,Angular contact ball bearing,Thrust ball bearing,Self-aligning ball bearing,linear bearing,Needle roller bearing,Pillow block bearing,Rod End bearing as well as Ceramic bearing,Plastic Bearing,Brand Bearing.

Brand Bearing like japan brand NTN KOYO NMB KG THK TBI PMI ABBA HIWIN et

Our products widely used in Bearing toys(Hand Spinner Fidget Toys),Agricultural,Textile machine,Mining,Printing and packing industries,CNC Router Spindle et

OEM Service is acceptable according to our clients requirements
