Openwrt маршрутизатор atheros qca9887 wifi модуль

Openwrt маршрутизатор atheros qca9887 wifi модуль

Категория: >>>
Поставщик: Shenzhen Gainstrong Technology Co. Ltd.

Цена:8,00 $ - 15,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

The GS-PQD10 is a complete,small 802.11a/n/ac Wi-Fi Solution optimized for low-cost, and highly

integrated AP and consumer electronic devices,the module integrates all Wi-Fi functionality in a package
friendly to low-cost PCB design, requiring only a 5V power supply .
The module based on the QCA9887 which integrates a multi-protocol MAC, PHY, analog-to-digital/
digital-to-analog converters (ADC/DAC), 1x1 radio transceivers, and PCI Express interface in an all-CMOS
device for lowpower consumption and small form-factor applications.It supports 802.11n up to 72.2 Mbps
for 20-MHz and 150 Mbps for 40-MHz channel operations, and IEEE 802.11a data rates.

Applications Stage

● Smart home network equipment

● Wireless WIFI device, unmanned aerial vehicle

● Dual band Router, Industry Controller and so on

Detailed Images

Features:

◆ CPU: QCA9887

◆ EEPROM:32Kbit

◆ Wireless speed: 72.2 Mbps for 20-MHz and 150 Mbps for 40-MHz （802.11n ）

◆ Power supply voltage: 5V

◆ GPIO:17

◆ PCIE:1× PCIE

◆ Antenna:1×external antenna

◆ Supports 20/40/80 MHz at 5 GHz

◆ 1.2 V switching regulator

◆ Support for IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards

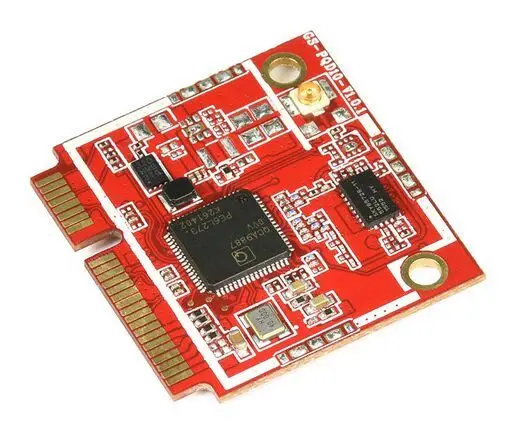

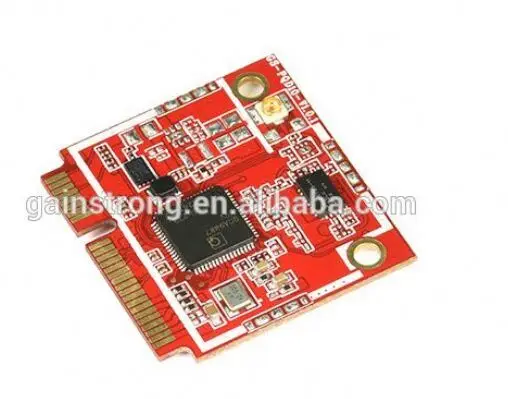

Picture:

Mechanical:

Hardware Overview:

Pins Description :

Electrical Characteristics:

Manufacturing Process Recommendations:

Reference Design Schematic:
