Спортивные модные инвалидов/детскй 4 колесный Электрический трехколесный скутер

Спортивные модные инвалидов/детскй 4 колесный Электрический трехколесный скутер

Категория: >>>
Поставщик: Jinhua Fulong Vehicle Industry Co. Ltd.Jinhua Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

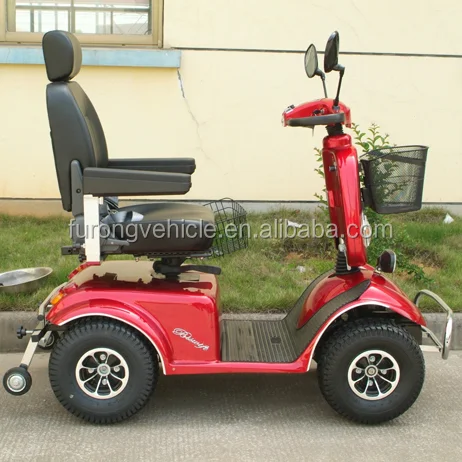

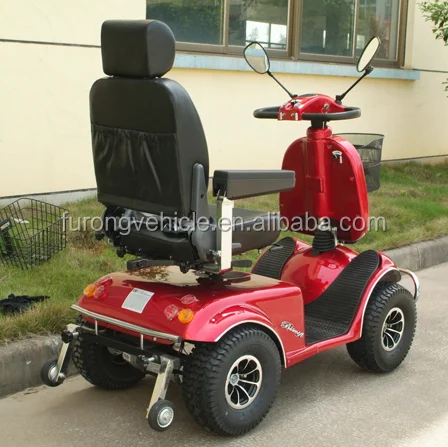

800W four wheel electric mobility scooter for handicapped

Features:

1.Large carry basket.Easy operation, fashionable design.
2.Comfortable Deluxe Captain's style seat.
3. 330lbs user weight capacity. Sturdy and stylish steel tubing.
4.Dual-direction rotation seat. Quick release tiller angle adjustment.
5.Height & width adjustable flip-up armrests.
6.Adjustable headrest height. Comes standard with anti tippers.
7.Offers good performance on indoor and smooth outdoor surfaces.
8.Rear-wheel drive and compact size provide optimum maneuverability and accessibility.

\t Product name	\t FL-A-11
\t Weight capacity	\t 180kgs
\t Battery	\t 12V/55AHx 2pcs (Lead-acid maintenance free battery)
\t Charger	\t AC100-240V50/60HZ 2A; OUTPUT:24V-4A
\t Controller	\t PG S-drive 120A
\t Motor	\t 24V/800W
\t Gearbox	\t 19.75:1 (Transaxle with electromagnetic brake)
\t Total weight	\t Gross weight: 145kgs Net weight (with batteries):135kgs
\t Overall dimension: (L×W×H)	\t 1780x680x1200mm/70.08x26.77x47.24”
\t Body frame dimension: (L×W×H)	\t 1530x 740 x 720mm/48.43 x 24.02 x 24.02”
\t Seat carton dimension: (L×W×H)	\t 630 x 515x 370mm/20.08 x 19.69 x 12.60”
\t Seat carton dimension: (L×W×H)	\t 450x425x520mm/17.72x 16.73x20.47”
\t Front tires	\t Black (Grey) pneumatic tire 15” 6.00-6
\t Rear tires	\t Black (Grey) pneumatic tire 15” 6.00-6
\t Anti-tip wheel	\t 75mm x 25mm/3 x 1"
\t Incline capability	\t 15 degrees
\t Turning radius(min)	\t 1300mm /51.18”
\t Max climb grade	\t 12°±1°
\t Range	\t 55-60km (Max range:60km per full charged)
\t Recharge time	\t 6-8hours
\t Seat	\t Removable, eight azimuth rotation, sliding back and forth, backrest foldable, seat belt
\t Seat height from ground	\t 630-680mm
\t Front wheels center width	\t 490mm
\t Rear wheel center width	\t 570mm
\t Front and rear center distance	\t 915mm
\t Forward speed	\t 9-15km/h (adjustable), Max speed: 15km/h
\t Backward speed	\t 6-10km/h (adjustable)
\t Quantity in Container	\t 20”GP--30PCS, 40”GP--52PCS, 40”HQ----52PCS

Packing & Delivery

Package:

Separated into 2 parts for packing:
(body frame and seat)
Packed by Honeycomb carton box with foam inside and on the outside packing 8 layers export carton + Cane + Iron shelf

Our Company

WELCOME TO "JINHUA FULONG VEHICLE INDUSTRY CO.,LTD"
Jinhua Fulong Vehicle Industry Co.,Ltd developed first mobility scooter and golf carts in 2009 and since then we export our products to all over the world. Fulong products have been perfected throught 8 years of experience and customers feedback.
Our yearly trunover is USD1800000, 45% from Europe, 20% from Australia, New Zealand, 20% from Canada and United States and the rest of 15% from Middle East.
We have approved certification CE, ISO 9001:2000 and TUV 13485.
We also provide 12 months warranty for our overall products
Our 15000 Square meter plant makes it is possible that deliver a 40’ container in 2 weeks.
We are here waiting for you, and wish to establish long business relationship with you.

Our Service

OEM services:
1. put logo on the products.
2. printing logo on the carton box ,if color box ,each item MOQ is 500pcs
3. we can change the accessories according to customer’s request .

After-sale Service:

1. one year warranty under normal use.
2. if the quality problem, please contact us within 24 hours after received of the goods,

we'll solve it immediately.

3. under special circumstances, we'll re-send the spare parts or new products to the customers.
4. keep the best service in the business, we'll get more cooperation with you.
we care from every detail and keep close contact with customers for the process.

our goal is to make customers happy and proud of us!

Certifications

Our products have approved ISO9001:2000, CE certificates.

FAQ

Q: Are you trading company or manufacturer?
A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-7 days for sample order. or it is 15-20 days for container order, it is according to quantity.

Q: Do you provide samples ? is it free or extra?

A: Yes, But you need to pay the sample charge and freight cost.

Q: What is your terms of payment?

A: Payment<=1500USD, 100% in advance. Payment>=1500USD, 30% T/T in advance, balance before shippment.

Q: Warranty?

A: The frame is 3 years, battery, motor with transaxle/electromagnetic brake, controller, other parts all is one year.

If you have another question, pls feel free to contact us as below:

"FULONG MOBILITY SCOOTER"
Portable electric mobility scooter expert

Jinhua Fulong Vehicle Industry Co.,Ltd.

Address: No.528 West Linjiang Road, Jinhua City, Zhejiang Province, China.
Webpage: www.jhfulong.com
WhatsApp: +86-13588040843
Mobile phone: +86-13588040843

Contact: Bill Xu
