Product Description

Product name : Automated fluid dispensing machine
Model No. :JTA-04M
Features and Benefits:
1. Computer Control, Windows OS;
2. CCD visual positioning system;
3. Servo Motor + Ball Screw Driven;
4. In -line design allows easy integration of the dispensing arms into assembly line transfer system, rotary tables and palletizing solutions;
5. X,Y,Z robotic arms repeatability accuracy up to 0.015mm;
6. Visual dispensing patterns, easy programming of dots, stripes arcs, compound arcs and patterns;
7. 35 degree tilt and 360 degree rotation;
8. PCB Heater enhances material flow for underfill applications;
9. Precision Weight Measurement ensures accurate volumetric dispensing;
10. Multiple Valves Available, Pneumatic Jet, Screw Valve, Piezoelectric Jet Valve;
11. Laser Height Detection to calibrate Z axis automatically for component deformation;
12. Suitable for a wide range of applications: SMT, FPI, CCM, selective coating, etc;

Parameters

Model	JTA-04M In Line Automated Fluid Dispensing System
XY/Z speed	Max:1000/500 (mm/s)
X/Y/Z Working Range	X300mmY350mmZ100mm
Workpiece Payload	Y axis 25kgs /Z axis 8kgs
Motion /Drive System	Electro-Motor, Ball Screw, Linear Slide
Repeatability Accuracy	±0.015mm/Axis
Positioning	300,000 Resolution CCD Vision Camera
Dispensing Speed	200dot/s(Pneumatic jet valve) 1000dot/s(Piezoelectric jet valve)
Control Method	Industrial Computer + Motion Controller + LCD Display
Control Software	Kintai Dispensing Control Software ( Windows Based)
Memory Capacity	1000 Programs - Unlimited (Data Storage via USB)
I/O Signals	32 Inputs / 32 Outputs ((extendable)
Material Supply( customized)	Glue Tank(2600ml optional) 5cc/10cc/30CC/50cc Cartridge(optional) 30CC syringe
Dispensing Valve	Pneumatic Jet Valve/ Piezoelectric Jet Valve(optional) Vacuum Valve / Screw Valve/ Needle Valve(optional) Nozzle Heat Control Function (optional) Needle Cleaning System(alcohol + Cleaning Cloth Wiper ) optional
Laser Height Measurement	Automatic Laser Height ( precision: 0.001mm) Detection & Z Axis Height Calibration Optional
Low Fluid Sensor/ Warning	Optional
CAD Import	DXF Format
Patterns	Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting
Power Supply	AC220V,50/60Hz,1Kw
Air Pressure	0.5-0.7Mpa,0.2m³/h
Working Temperature	5-40°C
Relative Humidity	20-90% (no condensation)
Dimensions (W x D x H) mm	L1055W1335H2120mm
Weight	1100Kg
Communication Protocol of Upper-Lower Computers	Customized
Conveyor System	1 Conveyor belt, 2 segment Conveyor Height: 1000±25mm Transfer Speed: 0.6m/s Transfer Payload: 2kg
Standard	CE Approved

Available Dispensed Material:
UV glue, instant glue,silica gel, hot melt adhesive, red glue, silver glue, AB glue, EPOXY resin, COB black glue, white glue, conductive glue, thermal paste, solder paste, transparent paint, etc.

Application Area of automatic glue dispenser:

1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.

Advantage of automatic glue dispenser

Dispensing robots automate most fluid assembly processes ensuring fast and repeatable deposits without mess, waste or error. For making repeat dots, beads, arcs and circles with any fluid, adhesive or paste. Easy to setup and run and these systems are supplied complete.

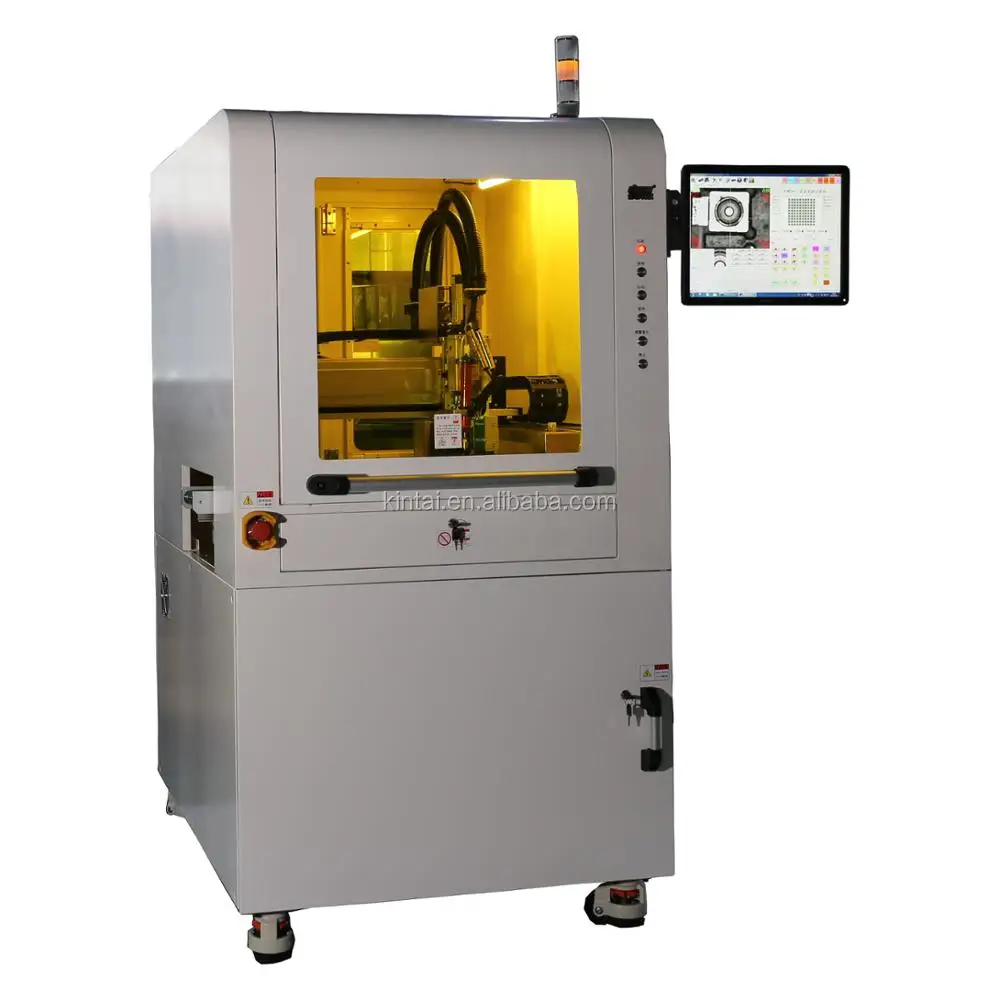

Automated fluid dispensing machine.jpg

Automated fluid dispensing machine

Packaging & Shipping

Packaging: Strong woodend case, 1 set/ case
Delivery: about 5-7 days after down payment

Our Services

1. English User manual or operation video are provided
2.24 hours technical support by email or calling.
3.Warranty: 1 year free for spare parts, free technical support always
4.Free training to make sure user know how to use the machine well
5. OEM/ODM accept .
