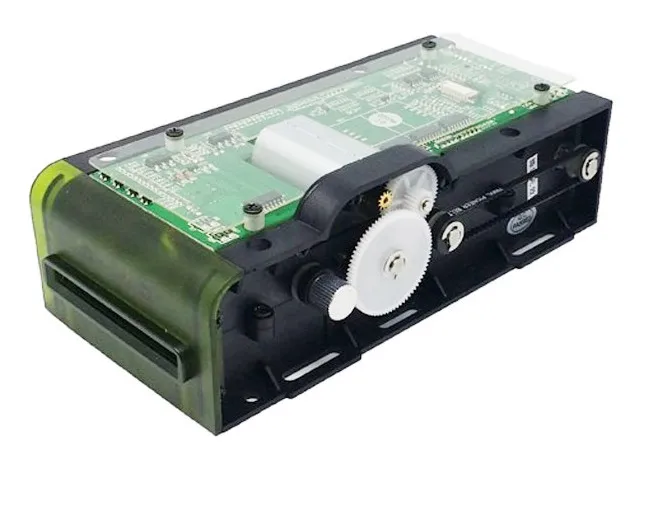

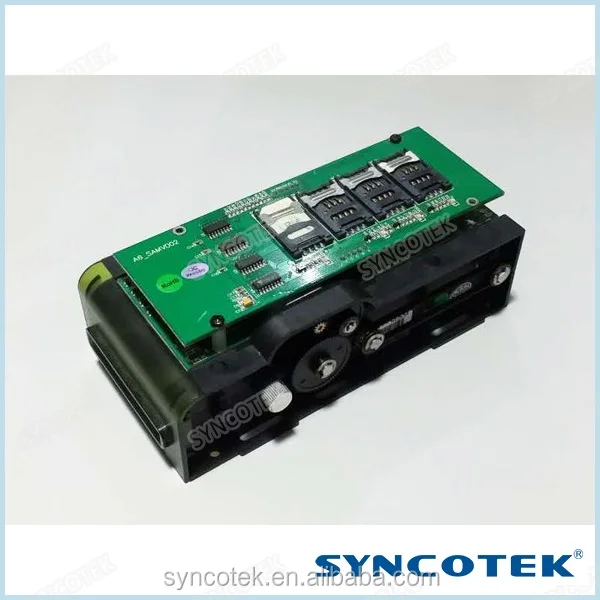

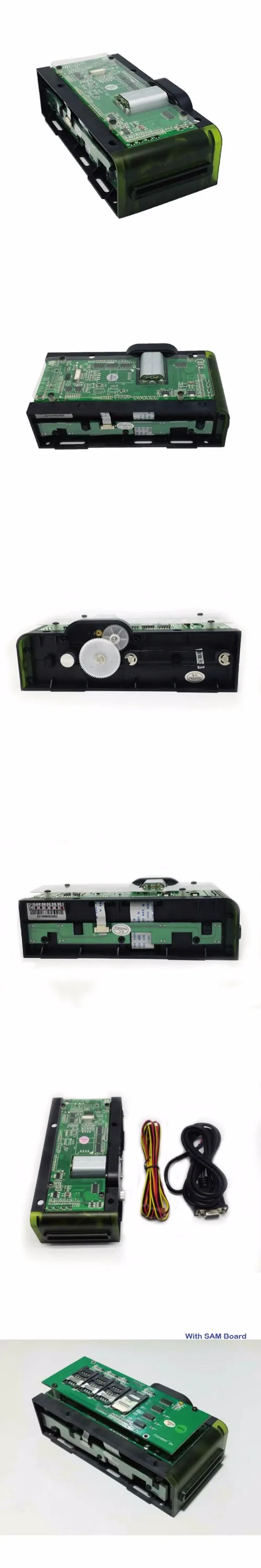

EMV Kiosk ATM Machine Motorized Magnetic Chip Card Reader
Product Description
What is the Overview of EMV Kiosk ATM Machine Motorized Magnetic Chip Card Reader ?
SK-AR6 series motorized card reader/writer supports RF/IC card R/W and magnetic card R, which is a product created from many years of technology and experience accumulation and the market demand.
SK-AR6 is designed based on the development concept that integrates multiple functions. Careful material selection, rational structure, and stable circuit design make it a highly reliable product, meanwhile, its bezel is designed with a user-friendly LED; all these enable A6 to better meet the market requirements for motorized card reader/writer.
What is the key features of EMV Kiosk ATM Machine Motorized Magnetic Chip Card Reader ?
1.EMV and PBOC certified
2.Supports ISO7810/7811 magnetic card reading only
3.Supports ISO7816-2 contact IC card reading/writing
4.Supports ISO14443-A Type A/B card reading/writing
5.Jitter card-in function: effectively precludes unauthorized card reading
6.Protruding bezel: for anti-theft is available
7.Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside
8.Independent sensor design: makes reader maintenance easy
9.Dustproof sensor lens: prevents sensor from dust and/or the other foreign materials
10.Mechanical shutter for protection against dust and/or the other foreign materials in the bezel position: enhances the reliability of the card reader
11.Four-set driving wheels: ensure the card transmission stability and liability and prevent card jam or block
12.One group of driving wheels in front of mag-head: enables automatic re-reading, which increases success rate of card reading
13.Card detecting function: automatically handles abnormal cards (broken card, incomplete card, etc.) and is able to eject card in case of power failure
14.Self-balancing mag-head reading function: provides stable reading and easy maintenance
15.High-performance plastic materials: ensure reading precision and product consistency
What is the detailed specification of EMV Kiosk ATM Machine Motorized Magnetic Chip Card Reader ?
EMV Kiosk ATM Machine Motorized Magnetic Chip Card Reader SK-AR6 | ||
Physical Characteristics | In conformity with ISO 7810 /7811 | |
Card Size | In conformity with ISO 7810ID-1 | |
Embossing Card | In conformity with ISO 7811-1 /-3 | |
Recording Format | In conformity with ISO 7811-2 /-4 /-5 /-6 | |
Recording Capacity | Track 1 (IATA) | Max. of 79 characters (6 bits + 1 parity) |
Track 2 (ABA) | Max. of 40 characters (4 bits + 1 parity) | |
Track 3 (MINTS) | Max. of 107 characters (4 bits + 1 parity) | |
Recording Method | Dual-frequency phase-coherent method | |
Height of Warped Card | ≤ 2mm | |
Magnetic Coercivity | 24k~320k A/m (300~4000 Oe)+/-10% | |
Card Supported | 86L x 55W mm (0.76mm standard card) | |
Anti-theft Function | By protruding bezel and jitter card-in pattern. | |
Communication Method | RS232 /USB/PSAM (optional) | |
Operating Conditions | Power Supply | DC12V±5%, 2A |
Quiescent Current | 100mA | |
Default Baud Rate | 9600BPS/sec. | |
Service Life | Magnetic Head | 800,000 passes min. |
IC Contact | 500,000 passes min. | |
Operation /Storage Environment | Operation Temperature / Humidity | 0°C to 50°C, 0 to 90% RH without condensation |
Storage Temperature / Humidity | -25°C to 80°C, 0 to 90% RH without condensation | |
Net Weight | Approx. 390g | |
Dimension | C/R Dimension | 161L x 85W x 54H mm (with flat bezel) |
Package Dimension | 245L x 137W x 93H mm | |

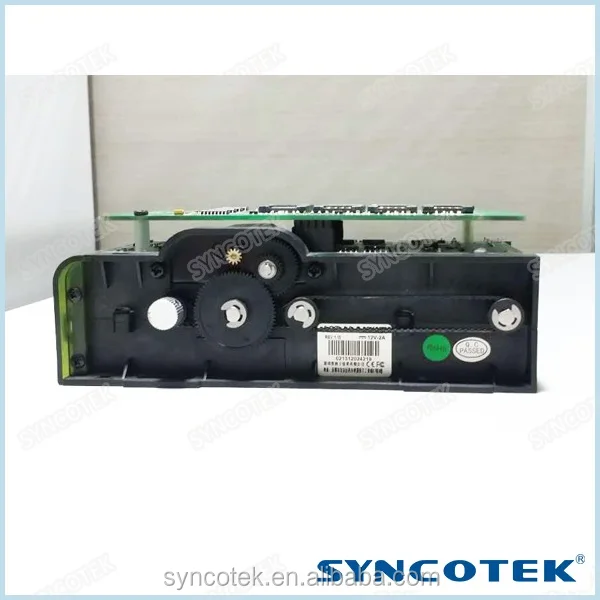

The Structure and Card Stop Position of EMV Kiosk ATM Machine Motorized Magnetic Chip Card Reader :
What is the Dimensions of EMV Kiosk ATM Machine Motorized Magnetic Chip Card Reader ?
Related Products

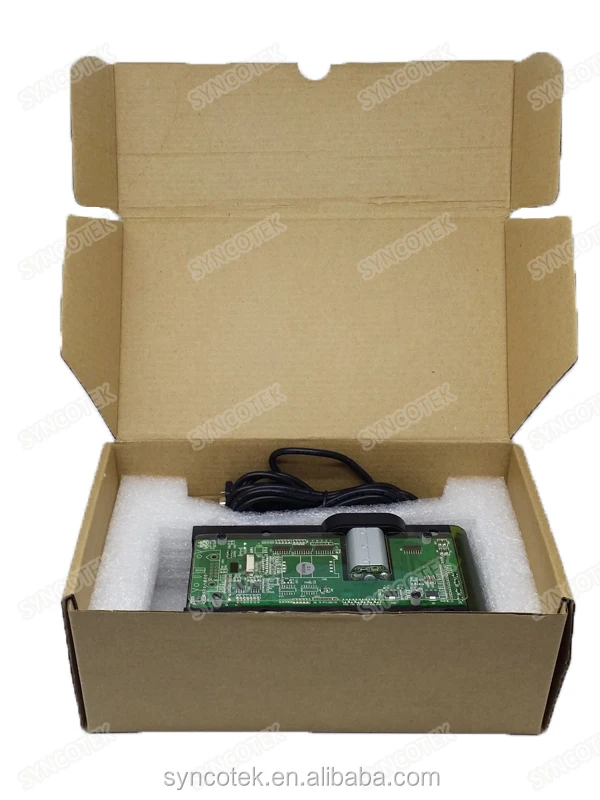

Packaging & Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Trade Terms
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our Services
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. SYNCO has super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
Our Certifications:
Company Information
Shenzhen Syncotek Technology Co., Ltd. is a global E-Payment Hardware Solution Provider (HSP), especially in printers and card readers. Founded in 2004, we always adhere to the business principle of Quality First and Customer Foremost. Our main
products include POS printers, Mobile printers, Panel printers, Kiosk printers, magnetic card readers and RFID card readers.
SYNCOTEK sticks to trustworthy cooperation, creative spirit, positive action, customer
concept and strives to realize our value together.
Contact Chris
 | Chris Zhu | |
| Office Number | +86 755 8651 8680 | |
| Cell/WhatsApp | +86 150 1792 4947 | |
| ChrisZhu08 | ||
| Skype | Chris.Syncotek | |
Buying Guide:
Please include the basic information of your project in your inquiry, so we can recommend the right device for you.
1. Card Type: IC, Magnetic, RFID or...?
2. Motor insert or manual insert?
3. Interface: USB, RS232 or...?
4. Read Only or Read/Write?
...
Let's help each other.
Похожие товары

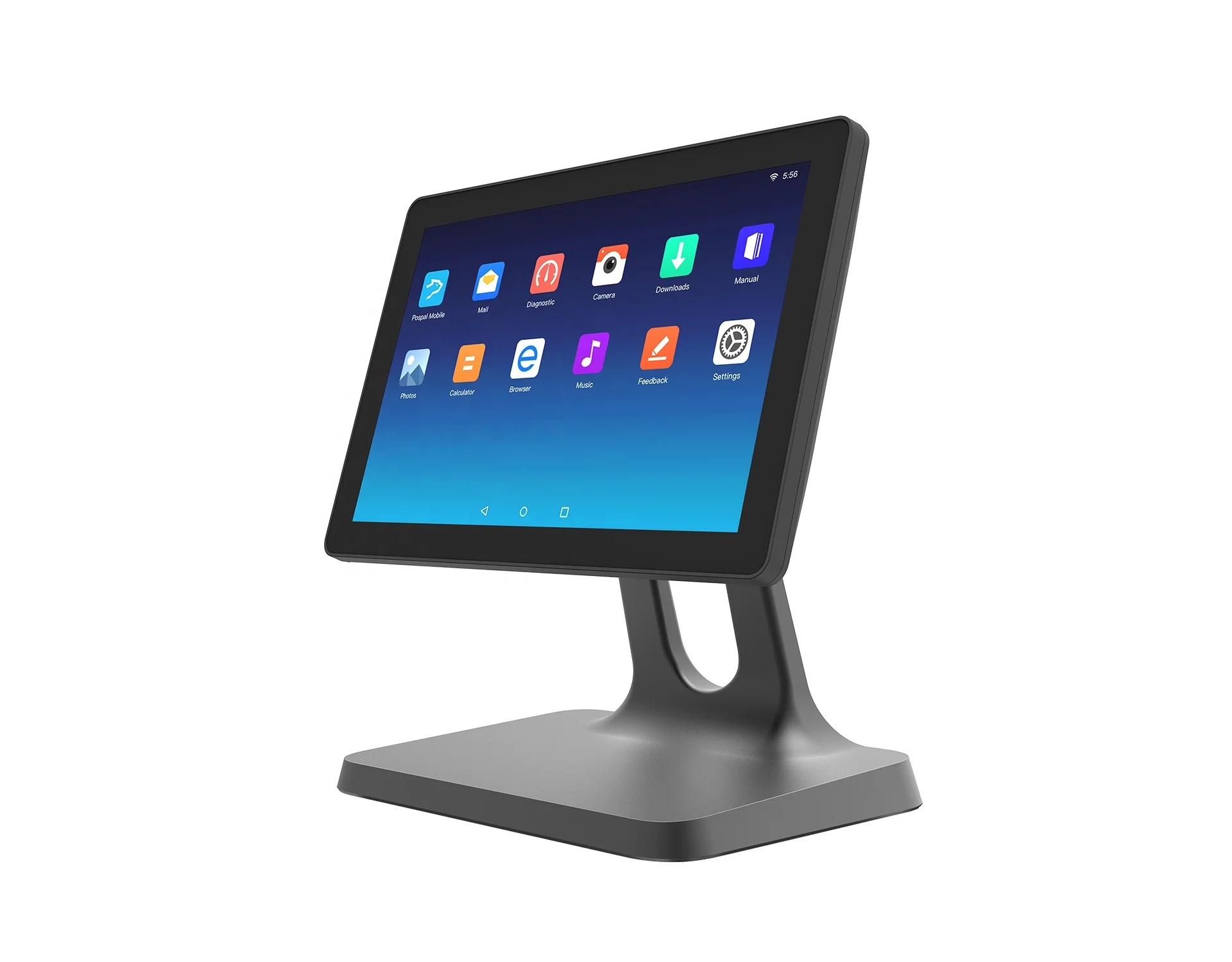

Elanda конкурентоспособная цена 10 1 дюймовый сенсорный экран Android 11 0
189,00 $ - 219,00 $
Все в одном Точка продаж POS-терминал с емкостным сенсорным экраном 15 6 дюйма и встроенным термопринтером 80
260,00 $ - 280,00 $
Индивидуальная система управления очередью 32 дюйма, изогнутый киоск самообслуживания, nfc/rfid считыватель карт, сканер, киоск очереди
799,00 $ - 1 099,00 $
Китай, выдача сим-карт и самообслуживание, кассовый киоск, производитель
2 900,00 $ - 3 000,00 $
Тонкий сенсорный POS-терминал все в одном оптовый диспенсер наличных денег предоплата наличными и самовывоз электронный цифровой аппарат для
1 550,00 $ - 1 650,00 $

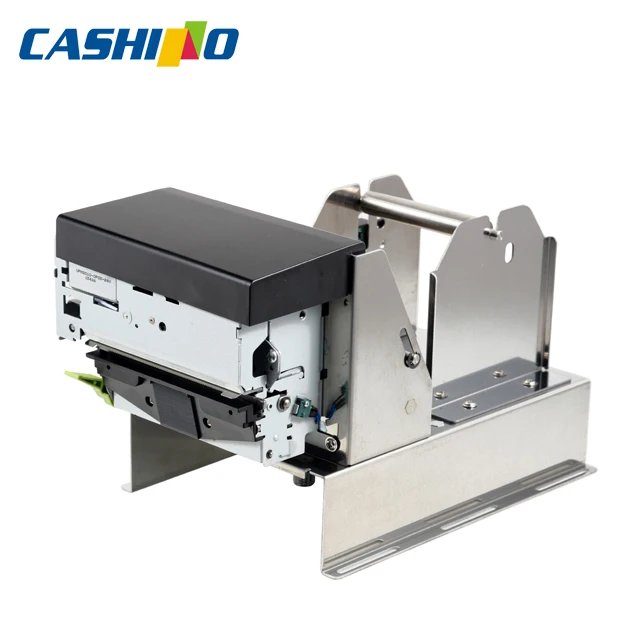

31 кашино 80 мм термальный принтер киоска в кабине & киоск KP-532 с авто-резак для pos
