2400 Вт 110 В 220 ультразвуковой генератор шайбы волны с цифровым дисплеем
16 403,22-24 887,64 ₽
28 кГц регулировка частоты ультразвуковой генератор высокой мощности 2400 Вт
- Категория: Cleaning Equipment Parts >>>
- Поставщик: Beijing Quanxin Ultrasonic Co. Ltd.Beijing Ltd.
Сохранить в закладки 60678521578:
Описание и отзывы
Характеристики
28KHZ Frequency Adjustment Ultrasonic Generator High Power 2400w
Product Description
Pls Note:the price and time of transaction information is ony for reference.
| Main Technology Reference of Ultrasonic Generator |
- Working volt: 220V(±10%) or 110V(±10%)
- Working current:Please notice that equipment can not work long time under the current which is greater than the rated current.
| Ultrasonic power | 300W | 600W | 900W | 1000W | 1200W | 1500W | 1800W | 2000W | 2400W |
| Working current | 1A | 2.5A | 3.5A | 3.7A | 4.5A | 5-5.5A | 6-6.5A | 6.5-7A | 8-8.5A |
- Working Environment temperature: 0-40C°
- Relative humidity: 40%–90%
- Working frequency: 28KHz(40KHz,80 KHz,135KHz, etc)
- Time control: 0—59 minutes 59 seconds
- Range of power control: 0-100% digital control and adjustment of 16 grades
- Internal overtemperature protect: 65 C°
- Outer size: L x W x H = 360*30
| Some Application of Ultrasonic Generator |
Ultrasonic Vibration Generator is the main parts of ultrasonic cleaning syste,which is for cleaning Electronic workshop,industrial and mining enterprises,laboratories,hospitals,glass shop,jewelry shop,mobile phone repair shop,family and so on
| Some Feactures of Ultrasonic Generator |
- Timer Function:set working time from 0-60 mins according to the cleaning objects.
- sweep frequency tracking function:achieved sweep frquency cleaning and automatic frequency tracking.
- Display working time.frquency.current by digital.More intuitive and convenient for data observation.
- With over-voltage,over-current and overheating protect function,which prevent tube and plate from burning,reduced damage to the generator.
- Effective power output which is as high as 98% above.
- External PLC control switch.the remote control ultrasonic cleaning machine.
- Ultrasonic power,time and frequency can be Continuous adjustable.
- Constant and stable ultrasonic power output.
| The Specification of Ultrasonic Vibration Generator |
| Type | Frequency | Power |
| QCG2400 | 17khz-45khz | 2400w |

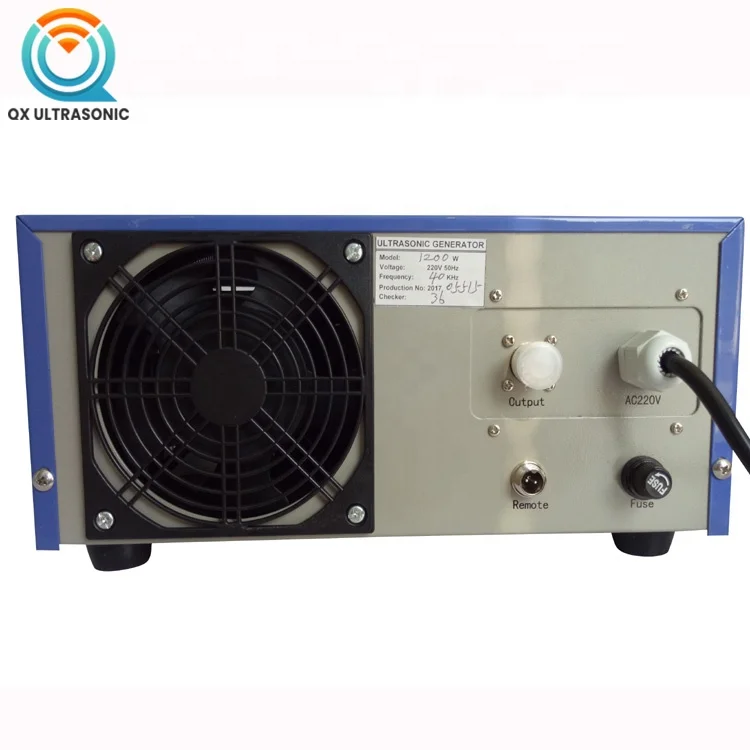

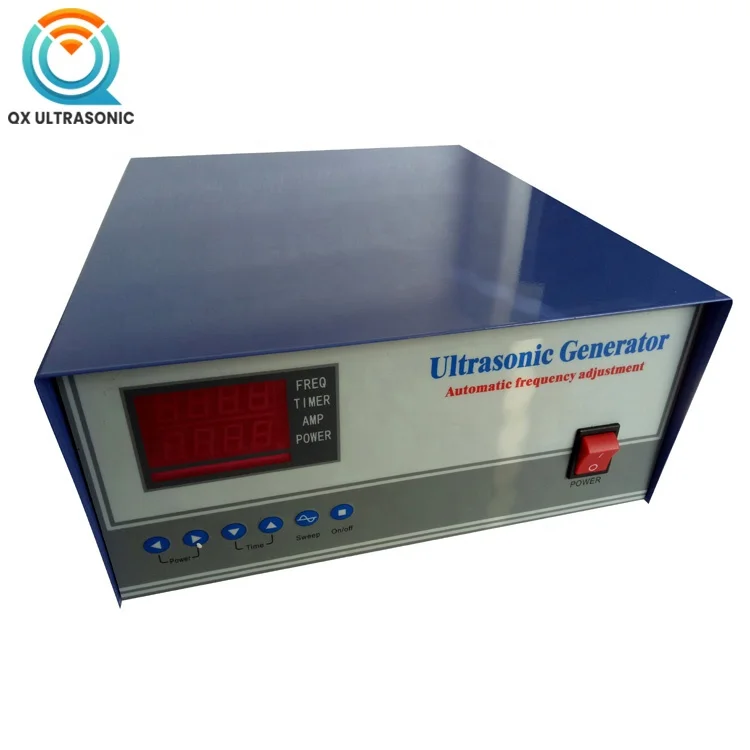

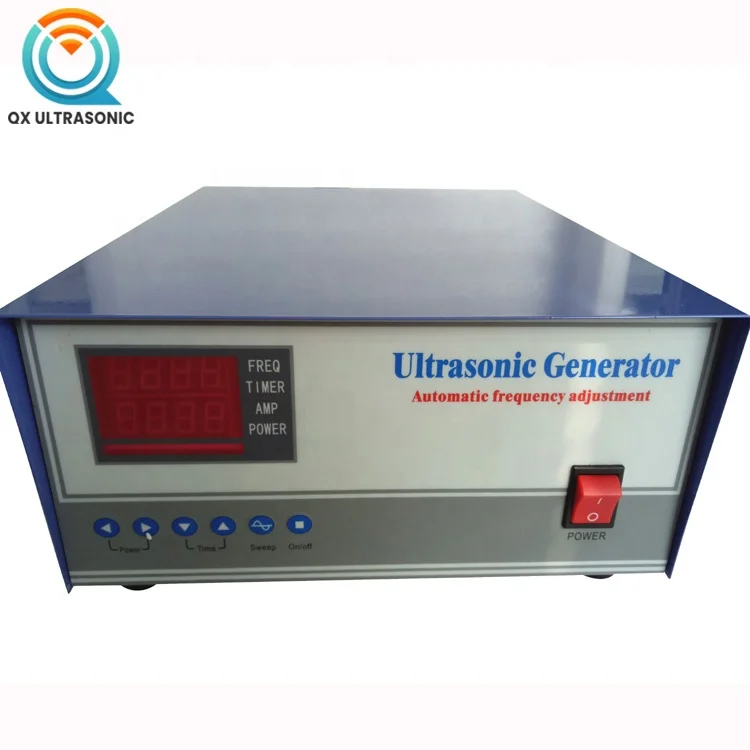

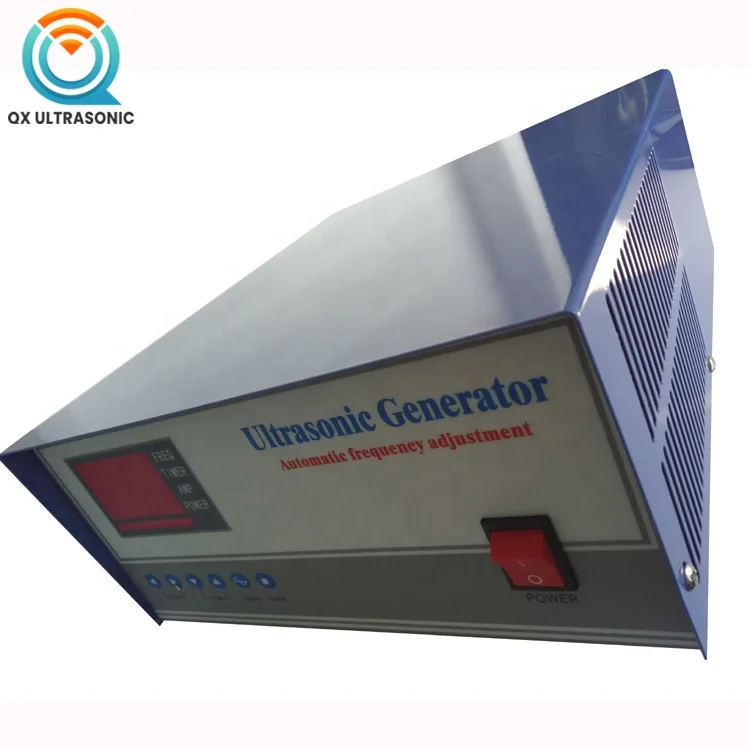

Product Picture
| Ultrasonic Vibration Generator Showing |

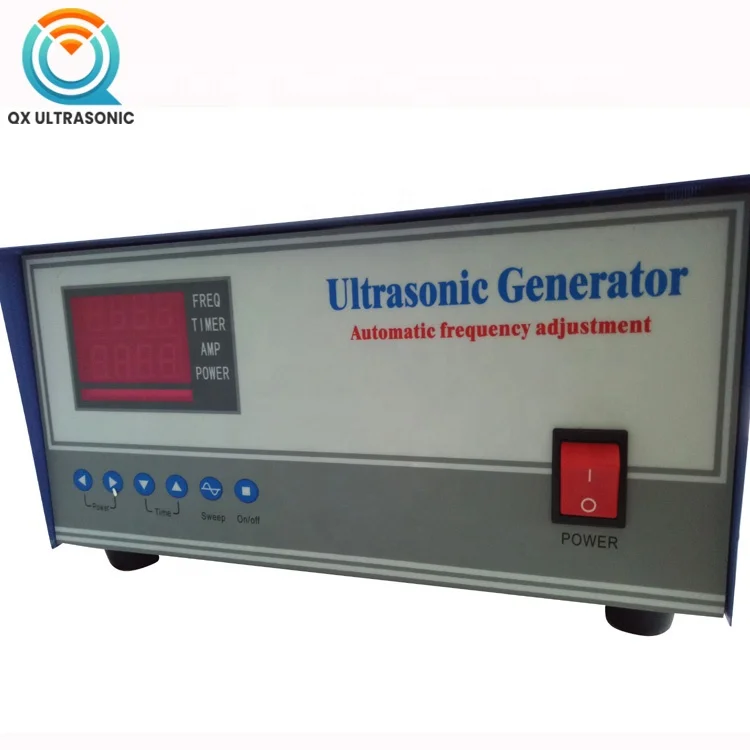

Digital Ultrasonic Vibration Generator |
♥ If you are interested in our product,
♥ Pls just feel free to send us your inquiry.
♥ We wil try our best to quote the competitive price for you!----- Contact Us Now
♥♥♥ Remark: We will supply the required suitable voltage as need.
| Ultrasonic Vibration Generator Application |
| Related Ultrasonic Vibration Generator |
| Some Common Technical Problem of Ultrasonic Generator |
| ♥ The ultrasonic generator can't power on under no-load condition |
| ♥ After installed, we can not power on until lay cleaning fluid |
| ♥ Ultrasonic transducer has two lugs.The positive one lay in the middle of two pieces of ceramic.The native one near lower metal column. Please do not make wrong when wiring. |
| ♥ The larger side with screw hole in ceramic transducer which has a function of vibration,can be stuck in the bottom of cleaning machine. And please make sure the cleaning machine is safely grounding |
| ♥ The ceramic transducer should be pasted in the bottom of cleaning machine using transducer specialized glue or use AB glue stick. but the effect is a bit poor, or use epoxy resin with proportion of 10:4. |
| ♥ The working circuit board voltage is 600V.The voltage output to the transducer is 1100 v.Please ensure the cleaning machine is safely grounding. Please make sure leakage protect switch assembled on the power supply in order to ensure safety. |
♥♥♥Get More Free Technical Informations How to Build High Quality Ultrasonic Cleaner.
| You May Also Need Ultrasonic Transducer to Match with Ultrasonic Generator |
Our Services
Packaging & Shipping
The goods will be shipped within two days as required package.
Company Information
FAQ
- QWhat is the MOQ ?
- A1pcs as you need.
- QWhen will you send out the goods after receiving the order?
- ABased on the order quantity,the goods will be sent out within 2-7 days
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes,of course. but you need to tell us asap.but If your order has been done in our production line, we can not change.
Wealth of experience. - Q
- AProfessional sercive.choose us,you will do the trade more easily.
- QGood Service.
- AExcellent team to offer the efficient and professional reply.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur production quality follow CQC.CE and Rosh,We have more 10 years experience of QC team. We have strictly quality control system in our production process.and 4 times inspection for each finished product before package.Third part inspection accepxable.
Похожие товары

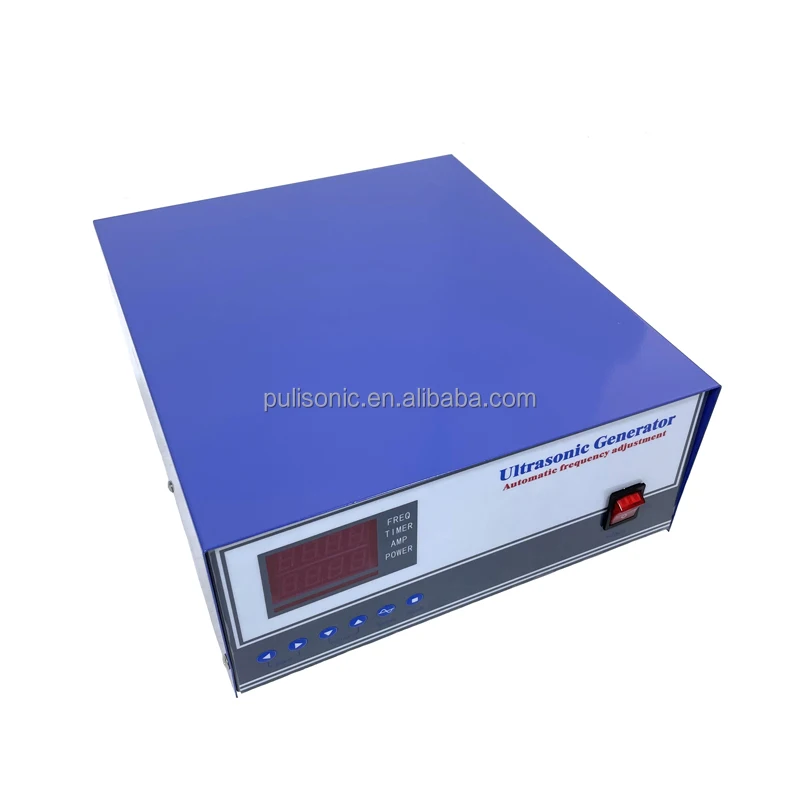

Ультразвуковой генератор импульсного дегазового генератора
271 501,44-328 064,24 ₽

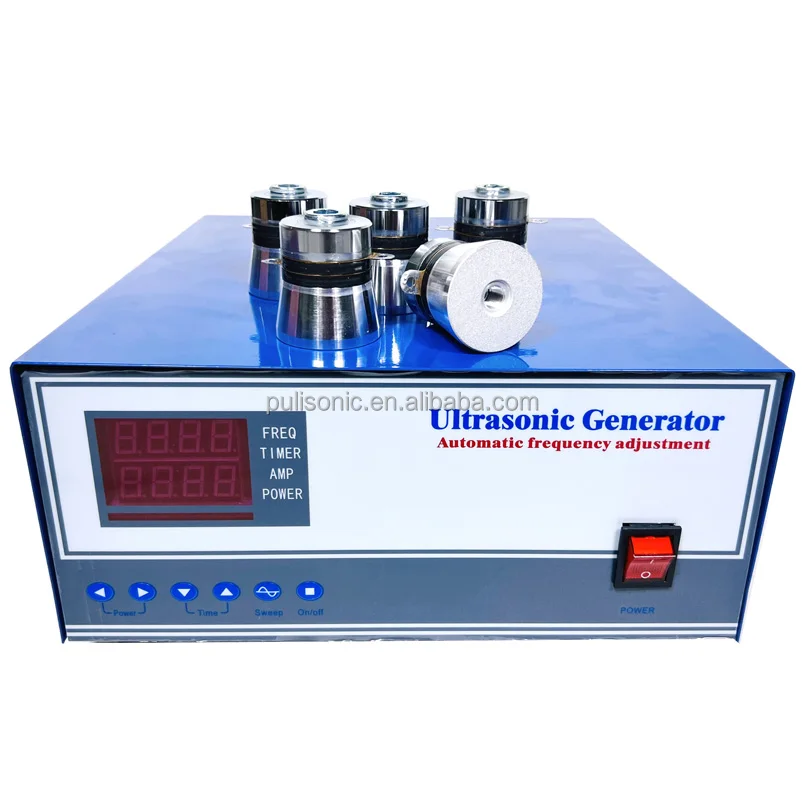

33 кГц импульсный ультразвуковой генератор 1200 ватт Выходная мощность генератора для устройства очистки
13 575,08-19 796,98 ₽

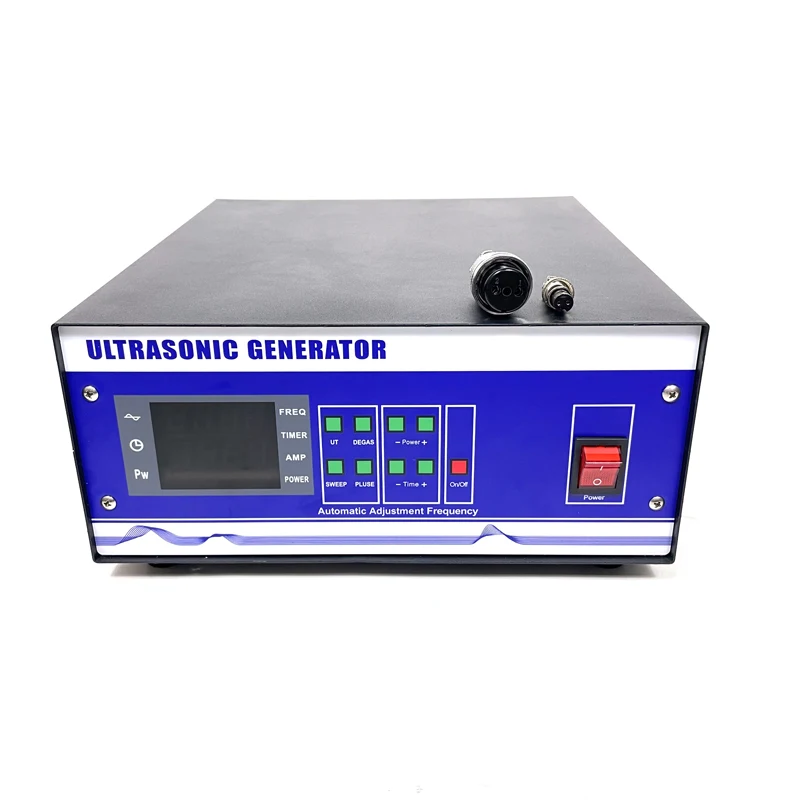

Ультразвуковой генератор частоты 300W-3000W мощность и частота регулируемый ультразвуковой очиститель
10 181,31-15 271,96 ₽
Ультразвуковой генератор импульсной мощности 40 кГц 3000 Вт ультразвуковой для электролизной машины очистки пресс-форм
15 837,59-20 362,61 ₽

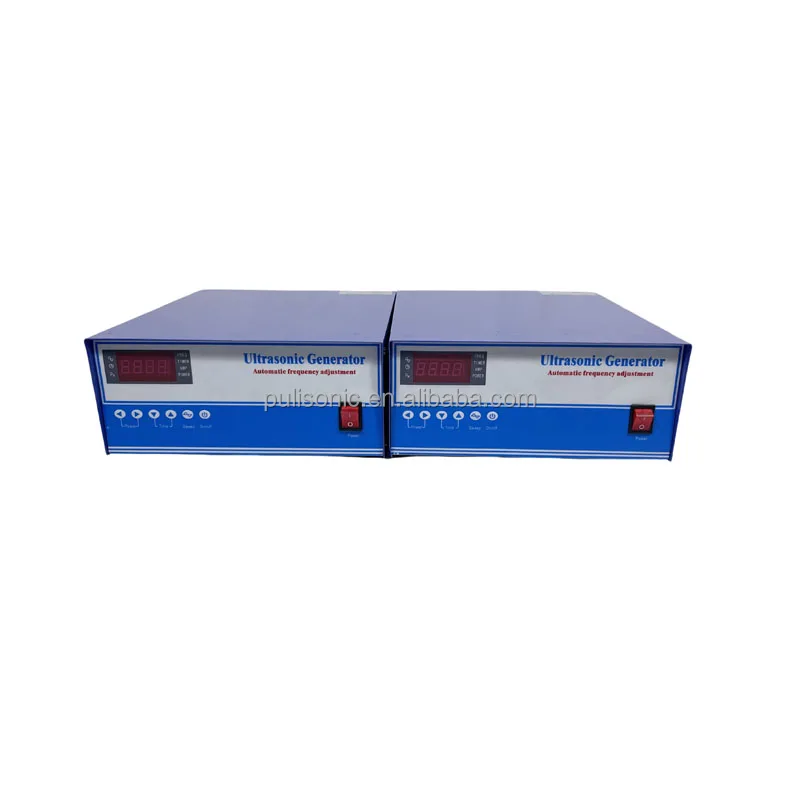

1000 Вт генератор ультразвуковой 20 кГц Регулируемый преобразователь мощности
31 562,05-35 068,94 ₽

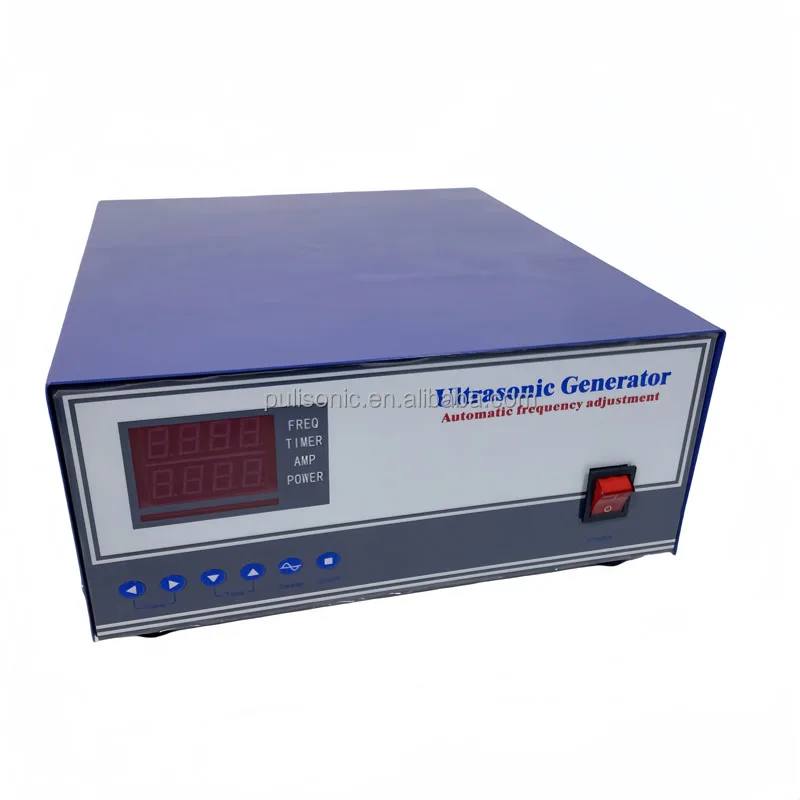

Китайский Генератор завод Ультразвуковой Цифровой инвертор генератор промышленный высокочастотный ультразвуковой
39 593,96-42 987,73 ₽

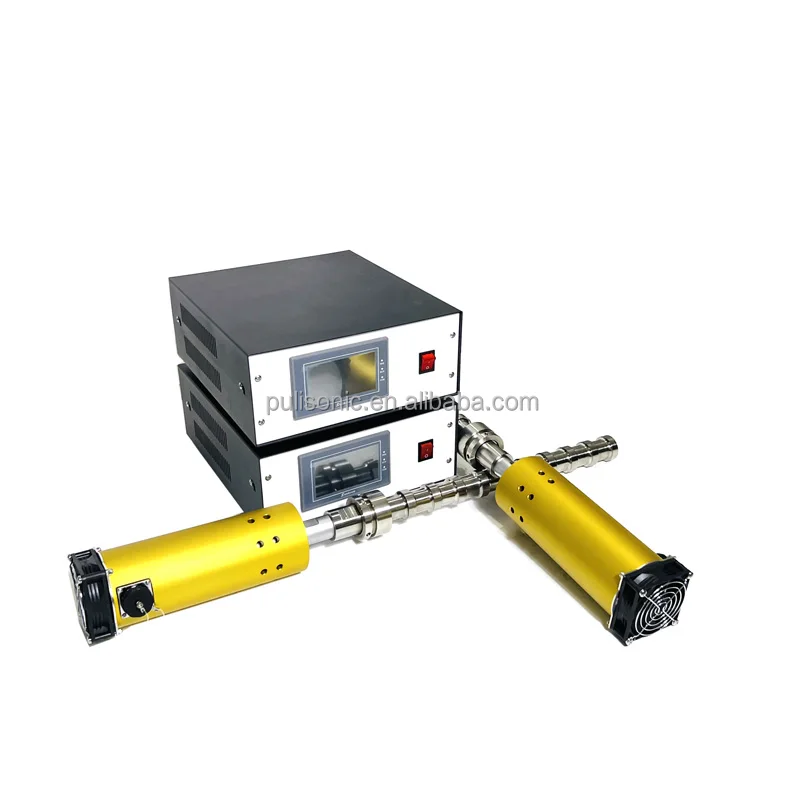

Ультразвуковой эмульгирующий смесительный гомогенизатор диспергирующее оборудование для масляной наноэмульсии
