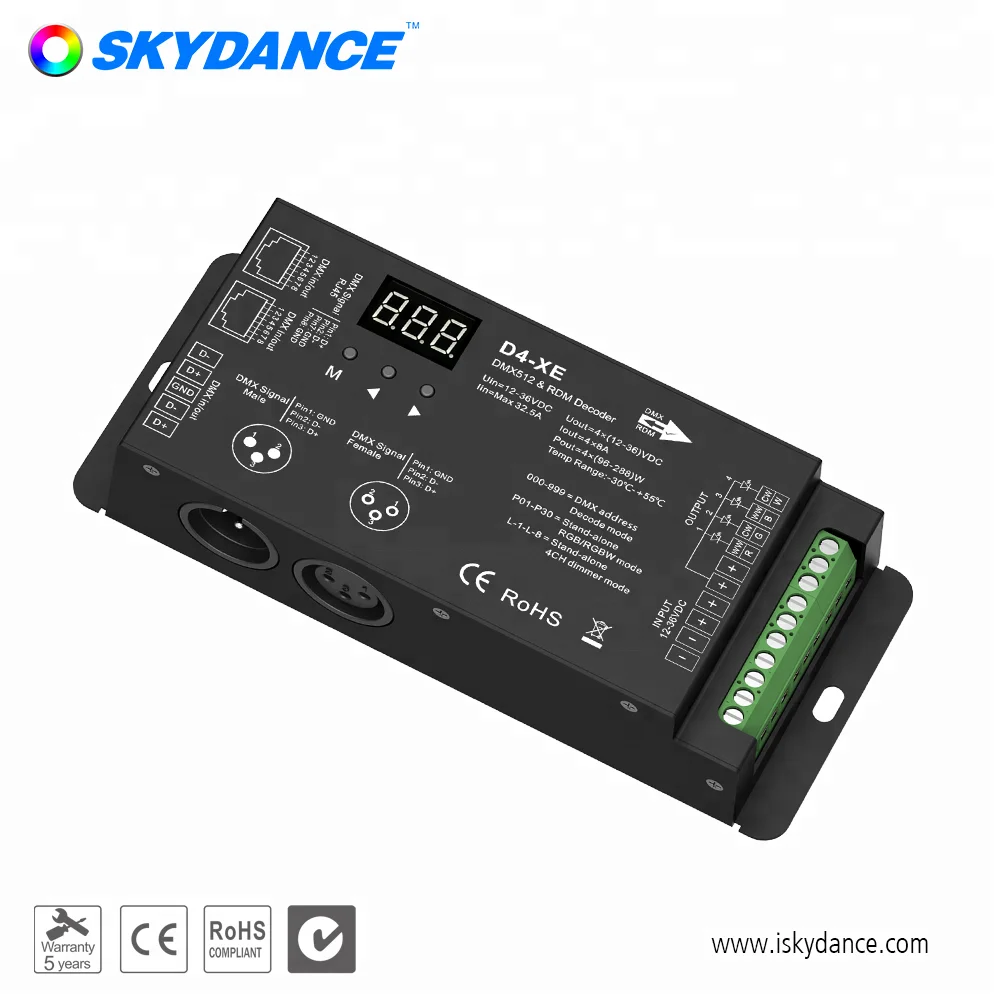

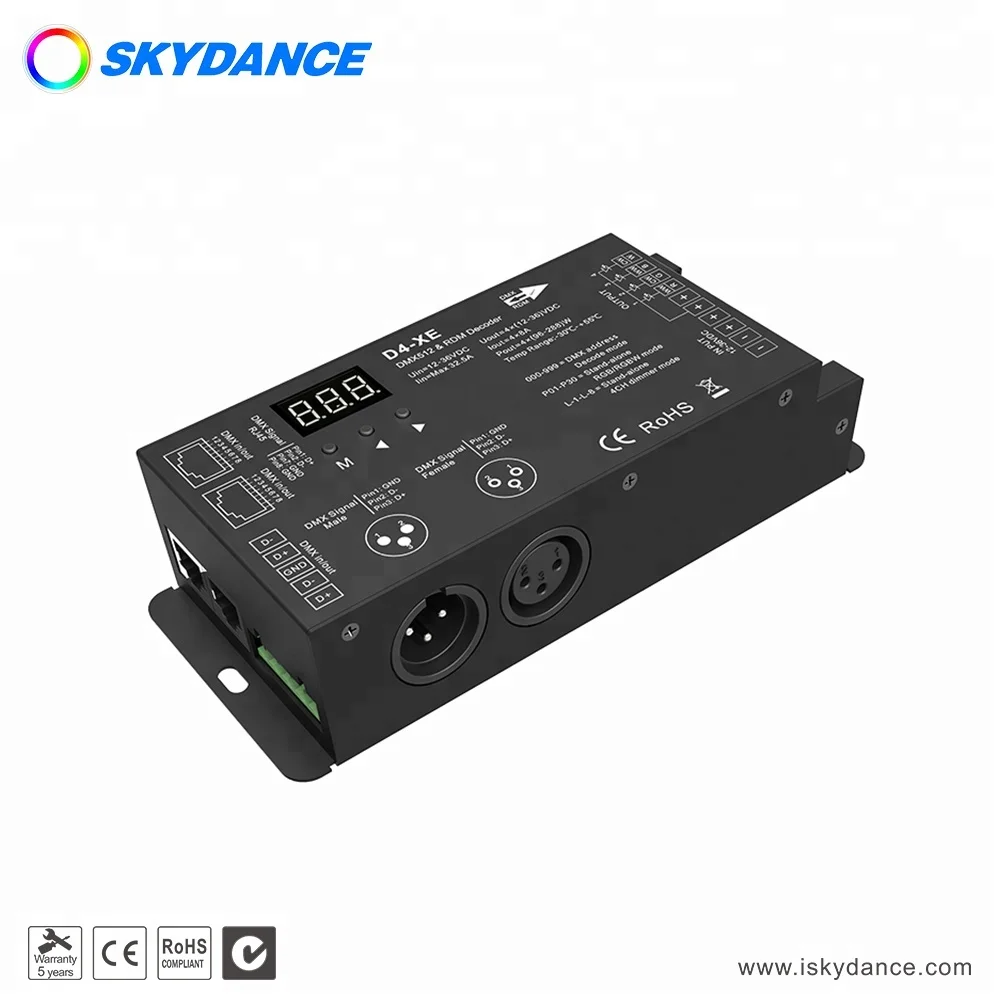

Skydance D4 XE 4 канала постоянное напряжение DMX512 RDM декодер dmx контроллер

Technical parameter

● Input voltage: 12-36VDC
● Input signal: DMX512
● Output type: PWM constant voltage
● Output current: 4CH,8A/CH
● Output power: 4 x (96-288)W
● Decode number: 1/2/4 DMX Channel
● Dimming range: 0-100%
● Working temperature: -30℃~55℃

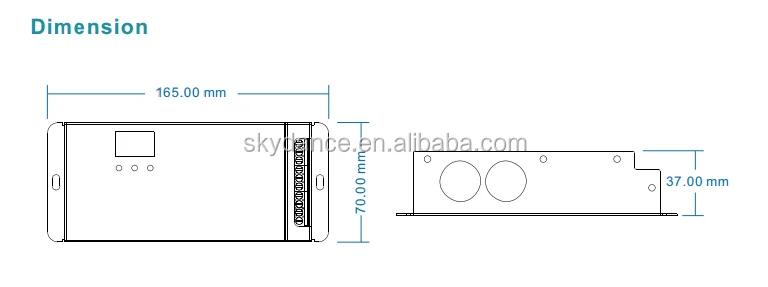

● Dimension: L65×W70×H37mm
● Weight: 150g

Summary

● 4 channel PWM constant voltage / constant current DMX decoder with digital display.

● DMX decode mode / Stand-alone RGB/RGBW mode / Stand-alone 4 channel dimmer mode.

● DMX address display, set DMX address freely.

● Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols.

● RDM bi-directional communication function, can realize intercommunication between DMX master and decoder. for example, you can set DMX decoder address by DMX master console.

● Under stand-alone RGB/RGBW controller mode, have 30 mode, include static color, jump, flash, gradual change style, adjustable speed and brightness.

● Under stand-alone 4 channel dimmer mode, each channel adjust brightness independently, and save up to 8 groups brightness.

● 1/2/4 DMX channel decode optional.

● High or low PWM frequency optional.

● Log or linear dimming curve optional.

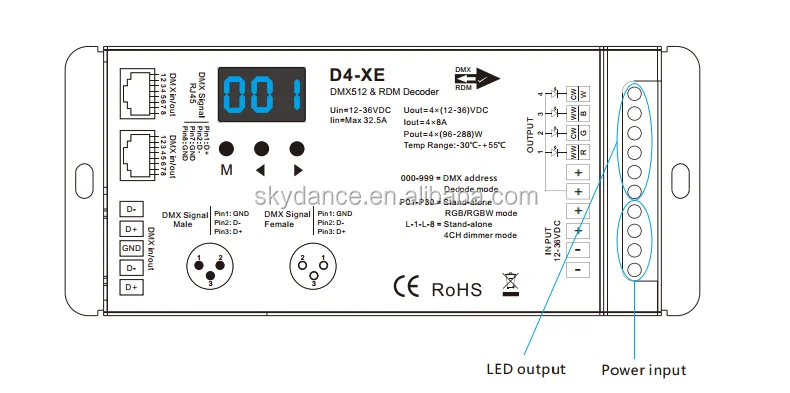

● Three kinds of DMX signal input method, have XLR3 and RJ45 port.

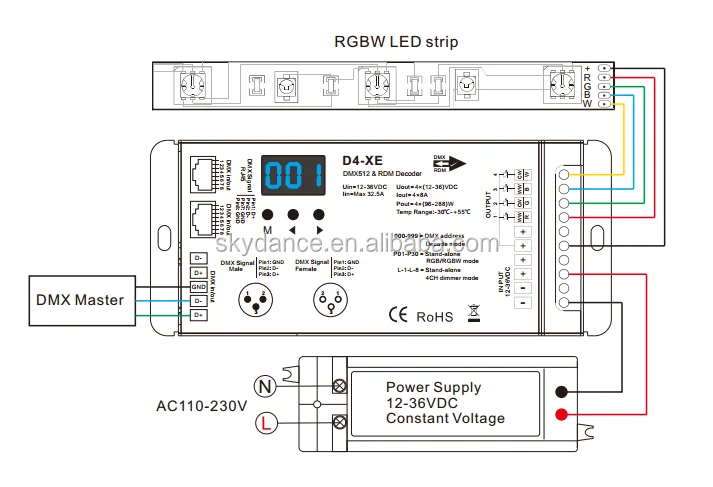

Power supply select guide

For D4-XE, LED power supply voltage and power select :

● 12V lamp, Input 12V power supply, each channel can load 0~96W,

● 24V lamp, Input 24V power supply, each channel can load 0~192W,

● 36V lamp, Input 36V power supply, each channel can load 0~288W,

The power supply power must larger than load power 20%.

Operation

System parameter setting

● Long press M and ◀ key for 2s, prepare for setup system parameter: decode mode, output PWM frequence, output brightness curve, automatic blank screen. short press M key to switch four item.

● Decode mode: short press ◀ or ▶ key to switch one-channel decode("d-1"), two-channel decode("d-2") or four-channel decode("d-4").

● Output PWM frequence: short press ◀ or ▶ key to switch 500Hz("F-L") or 2KHz("F-H").

● Output brightness curve: short press ◀ or ▶ key to switch linear curve("C-L") or logarithmic curve("C-E").

● Automatic blank screen: short press ◀ or ▶ key to switch enable ("bon") or disable("boF") automatic blank screen.

● Long press M key for 2s or timeout 10s, quit system parameter setting.

Safety information

1. The product shall be installed and serviced by a qualified person.

2. This product is non-waterproof.Please avoid the sun and rain.

3. Goodheat dissipation will prolong the working life of the LED driver, please ensure good ventitation.

4. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.

5. If a fault accurs please return the product to your supplier.Do not attmept to fix this product by yourself.

Warranty agreement

1. 5-year warranty

●The warranty is for free repair or replacement and covers manufacturing faults only.

●Do not include fees of on site maintenance and consumumable parts.

2. Limited warranty

●Artificial damage caused by improper use, such as improper accessories, improper installation, did not follow the instructions, error using or negligence.

●Any damages caused by force majeure, such as natural disaster, abnormal voltage.

●The normal use of products caused by aging, wear and tear, but it does not affect the normal use.
