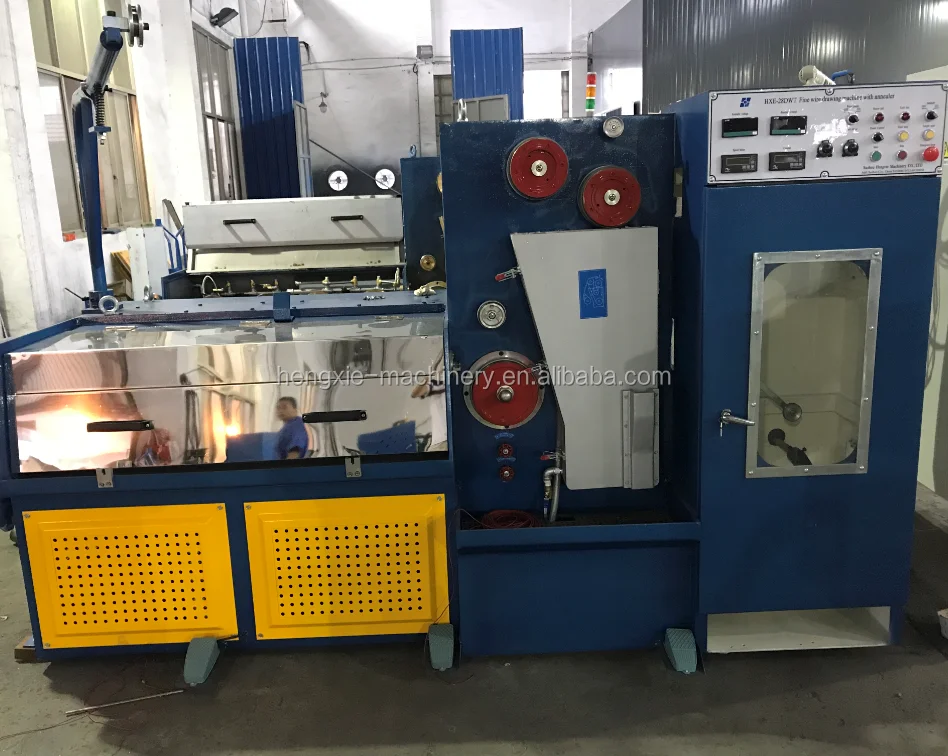

HXE-28DWT Copper wire drawing machine with annealer

I. Quick details

     HXE-28DWT Copper wire drawing machine with annealing machine is used to draw and annealing single bare copper wire from 1.1-1.6mm to 0.1-0.32mm.

II. Main Technical parameters

1. Usage: Copper wire drawing and annealing

2. Inlet diameter: 1.1-1.6mm

3. Outlet diameter: 0.1-0.32mm

4. Max. mechanical speed: 1500m/min.

5. Dies: 28 dies

6. Slip ratio: 13%, Finished capstan slip ratio: 8%

7. Main motor: AC 3 Phase 18.5KW, Inverter control

8. Take up motor: AC 3 Phase 3.7KW, Inverter control

9. Take up capacity: 50kg for diameter 300mm iron spool (Customize)

10. Spool size: Diameter 300mm/Max (Customize)

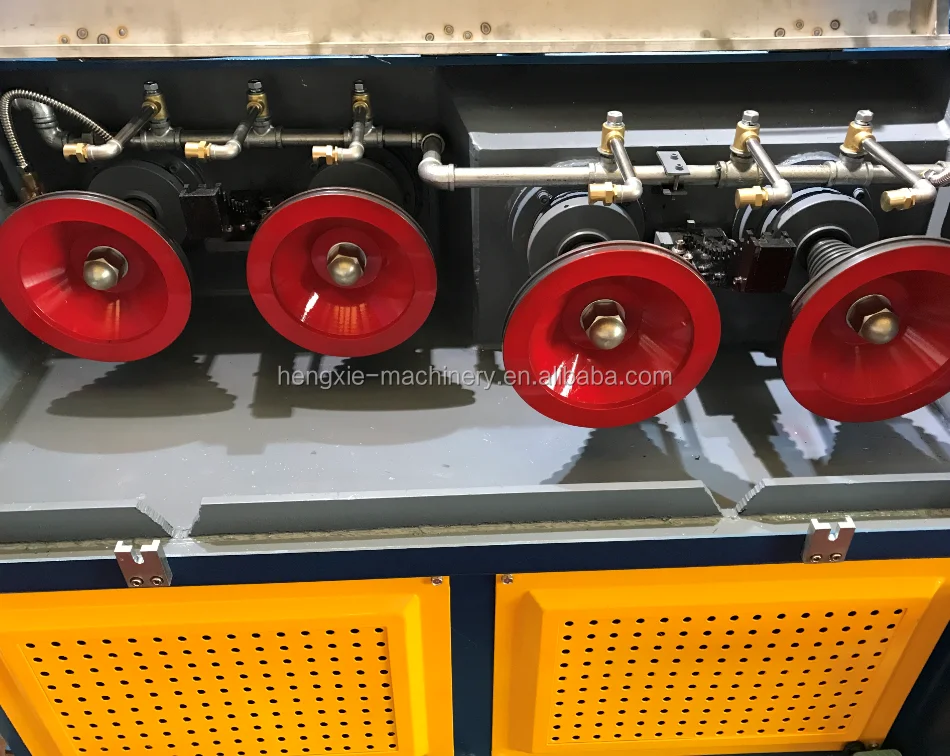

11. Capstans: Ceramic plasma, Drawing capstan 316mm, Final capstan 268mm

12. Capstan lubrication: Water pipe spray

13. Traversing: 110W synchronous motor,transmission by timing belts.

14. Brake: 20KG-M Electromagnetic brake

15. Air pressure: 4-6kg/cm2

16. Annealing pulley: Diameter 120mm

17. Annealing volt: 50V

18. Annealing current: 300A

19. Annealing motor power: 15KVA

20. Power source: (customize)

21. Tension control: Annealer & Spooler Tension control by Swing arms, Air pressure auto adjust.

22. Tension control: Weight balance

23. Machine dimension(L*W*H): 3500mm*1600mm*2500mm, Machine weight:3200kg

III. Components

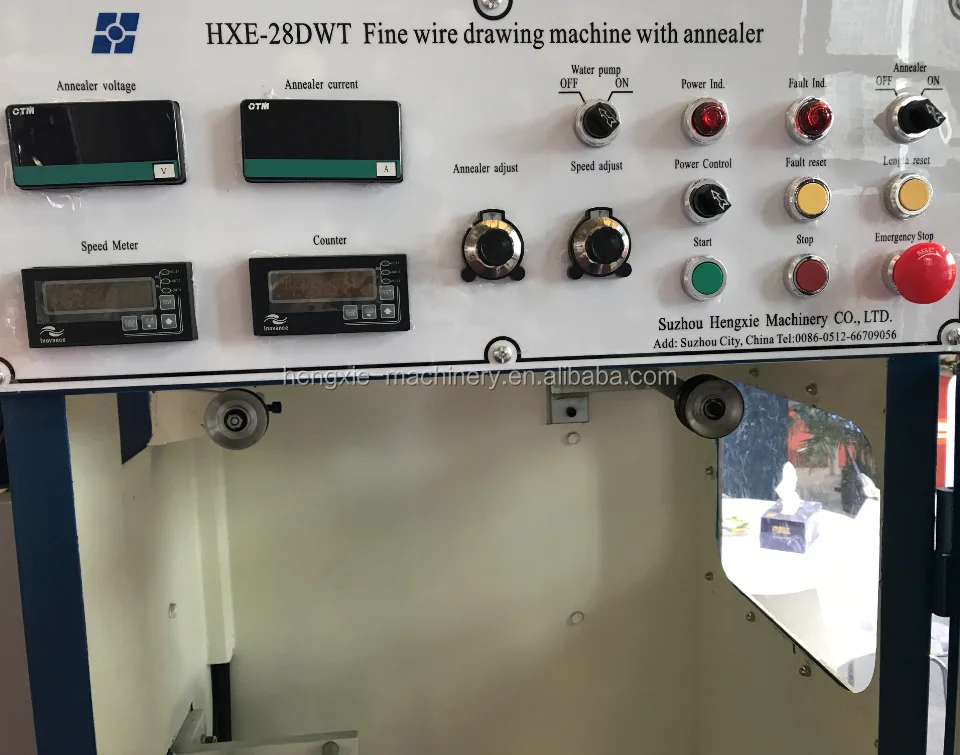

IV. Machine structure

     Annealing method is DC Three section annealing, there are three contact capstans, as Pre-Heating, Annealing and Drying. For drawing machine part, there is belts that connection from the Fix-speed capstan to the Annealer machine to achieve the transmission, as keep same speed.

Connect the Up capstan and Down capstan with Positive and Negative power, to make the wire in a short circuit, to achieve the heating.

There is annealing plate to auto track and adjust the speed and annealing voltage.

To achieve fast coolant to make the wire soft(Annealing), the Down capstan is immersed into the coolant water(There is a water tank in the bottom of the Annealer machine), coolant water is 0.5% emulsion. With the Pump to pump the coolant water through all pipes and valves, half sealed annealing door. Adjust the valves to adjust the coolant water in certain height.

To make sure the wire no oxidation, in the annealing protection pipe has steam (Buyer self will prepare Steam generator).

In the drying section, has a blowing device (Require two Tungsten dies, Buyer self prepare), by compressed air (Buyer self prepare Air compressor) to blow the water on the surface of the wire.

Lubrication oil concentration of mix with water 2-3%.
