Высокоскоростная автоматическая двухкамерная упаковочная машина для взвешивания гранул соли и кофе HS240K 2
- Категория: >>>
- Поставщик: Guangzhou Huasheng Packaging Machinery Manufacturing Co. Ltd.
Сохранить в закладки 60682777856:
Описание и отзывы
Характеристики
Products Description
Feature
1. Auto feeding, measuring, filling, bag-making, sealing, cutting, counting capacity and printing embossing codes.
2. In the original traditional mechanical movement update for pneumatic work, energy saving, clean and convenient, simple maintenance, stable performance.
3.Automatic photocell tracking , which keep the precise bag length and will stop automatically if it is out of film.
4. Automatic PLC system, Touch screen, Easy to operate
4. Automatic PLC system, Touch screen, Easy to operate
Name | Granule packing machine | Granule packing machine | |
Model | HS240K-NEW | HS240BK-NEW | |
Dosing Method | Volume cups | Volume cups | |
Measure range | 1-50ml | 1-100ml | |
Packing speed | 30-60 bags/min | 35-75 bags/min | |
Bag size range | L 40-150mm ; W 15-100mm | ||
Bag Style | 3- side/4 side sealing sachet | back sealing/stick sachet | |
Film thickness | 0.05-0.1mm | ||
Film material | Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper | ||
Drive method | Electricity | ||
Control style | PLC control system+English/Chinese screen | ||
Power | Main motor 370W, Heating power 720W | ||
Power supply | AC220V Single phase 50Hz/ AC380V Three phases 50Hz | ||
Air consumption | 0.3 cbm/min, 0.8 Mpa | ||
Dimension | 750X670X1600 mm | ||
Machine weight | 250kg | 260kg | |

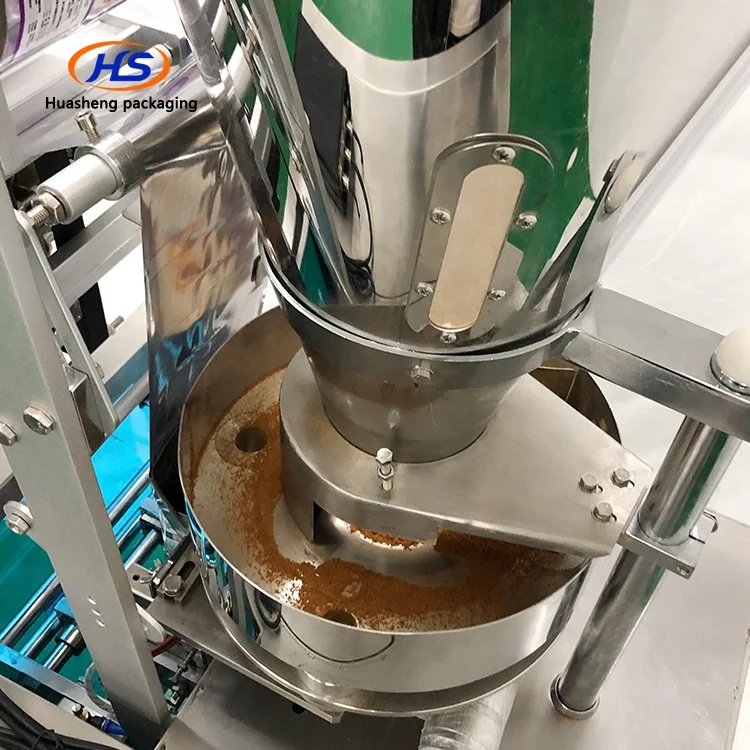

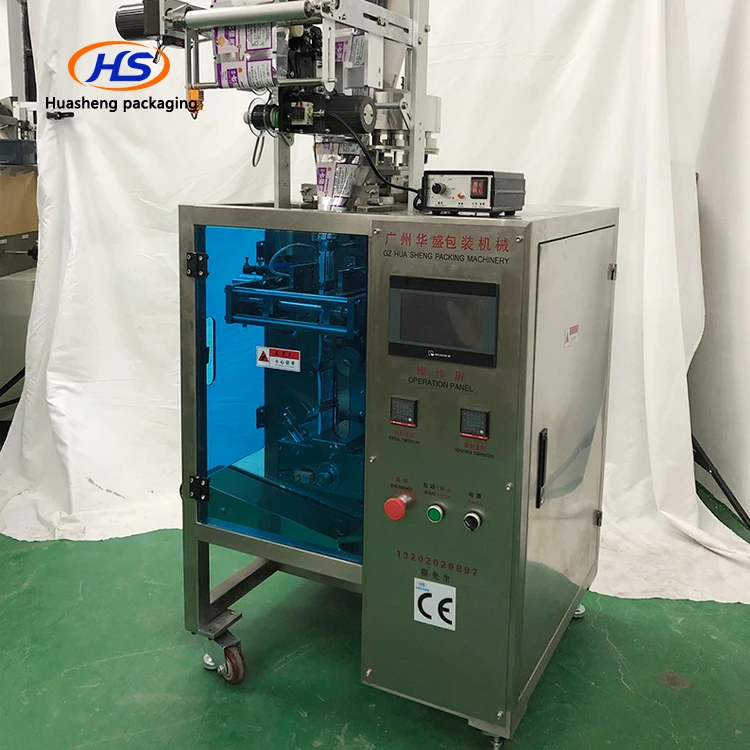

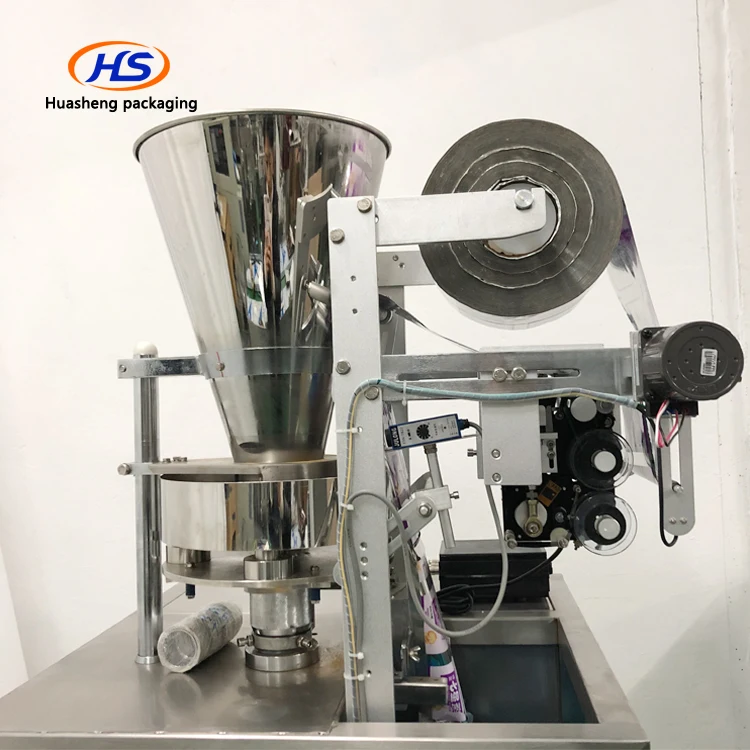

Machine details:
1. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
2. Photocell sensor x 2pcs equipped for tracking the colormark designed on the bag material, so
make sure the logo designing at same position on each bag.
3. Air compressor is the power source and compressed air is the working medium.
4. Straight line easy tearing cut & Emboss code as FREE options.
3. Air compressor is the power source and compressed air is the working medium.
4. Straight line easy tearing cut & Emboss code as FREE options.
Product Applications
Application:
Suitable ofr packing granule and some powder with good fluidity, such as sugar, salt, juice powder, cereal, coffee, rice, beans, peanuts, seeds, grain etc.
Bag Type
3- side sealing sachet
4-side sealing sachet
Back sealing stick
Back sealing sachet
Recommend Products
About us
Company introduction:
Guangzhou Huasheng Packaging Machinery Manufacturing Co.,ltd is professional factory for manufacturing automatic packing machine and filling machine. With more than 10 years of experience in packing machinery industry, we had developed several product series, such as granule VFFS machine, Powder VFFS machine, Liquid VFFS machine and irregular product VFFS machine.
We also had implemented a strict and complete quality control system, which ensures that each product can meet customer’s quality requirements. Besides, all of our products have been strictly inspected before shipment. And under this quality system, we are and we will always keep developing and producing new products for customers all around the world.
We also had implemented a strict and complete quality control system, which ensures that each product can meet customer’s quality requirements. Besides, all of our products have been strictly inspected before shipment. And under this quality system, we are and we will always keep developing and producing new products for customers all around the world.
Your Success, Our Glory: Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Our service
Pre-sale service
1. Inquiry and consulting support.
2. Our Sample machine for client's product test.
3. View our Factory.
Other terms & condition:
1. Production time: 10-35 days after deposit and confirming details;
2. Payment term: 30% prepayment and 70% before delivery;
3. Payment method: T/T bank or Ali online order
After-sale service
1. Warranty period: 12month since on board date but no more than 13monthes.
2. Warranty range don't include damageable parts like heating tube, thermo-couple, temperature controller, photocell and blade;
3. Factory would provide all parts on the machine during the whole machine running time.
4. When needs go abroad to do on door service, buyer would be in charge of Visa, round tickets, living &commodity & traffic cost, salary USD120/day.
5. Manufacturer will provide machine testing video/ sample tear video /sample close view pictures, if need inspection report, inspection fee would be charged by buyer.
6. Online tech support: Wechat/ Whatsapp /Email/QQ
1. Inquiry and consulting support.
2. Our Sample machine for client's product test.
3. View our Factory.
Other terms & condition:
1. Production time: 10-35 days after deposit and confirming details;
2. Payment term: 30% prepayment and 70% before delivery;
3. Payment method: T/T bank or Ali online order
After-sale service
1. Warranty period: 12month since on board date but no more than 13monthes.
2. Warranty range don't include damageable parts like heating tube, thermo-couple, temperature controller, photocell and blade;
3. Factory would provide all parts on the machine during the whole machine running time.
4. When needs go abroad to do on door service, buyer would be in charge of Visa, round tickets, living &commodity & traffic cost, salary USD120/day.
5. Manufacturer will provide machine testing video/ sample tear video /sample close view pictures, if need inspection report, inspection fee would be charged by buyer.
6. Online tech support: Wechat/ Whatsapp /Email/QQ
Packing & Delivery
Shippment:
1. Upon receipt of payment , delivery date will be in 10-30 working days
2. First, the machine will be wrapped by the pretective film;
3. Then, put the machine into wooden box
4. Loading the box into the truck by forklift, delivery By Air, by Sea or by Express
5. Shipment cost will depend on the destination, ship way and the weight of the goods
2. First, the machine will be wrapped by the pretective film;
3. Then, put the machine into wooden box
4. Loading the box into the truck by forklift, delivery By Air, by Sea or by Express
5. Shipment cost will depend on the destination, ship way and the weight of the goods
FAQ
Q:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD120/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the material film?
Yes, we can offer you the plastic/paper roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q:Can I visit your factory?
Sure, Our factory address : NO.2 Pingbu Avenue West, Huadu District, Guangzhou, China 510800
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD120/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the material film?
Yes, we can offer you the plastic/paper roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q:Can I visit your factory?
Sure, Our factory address : NO.2 Pingbu Avenue West, Huadu District, Guangzhou, China 510800
