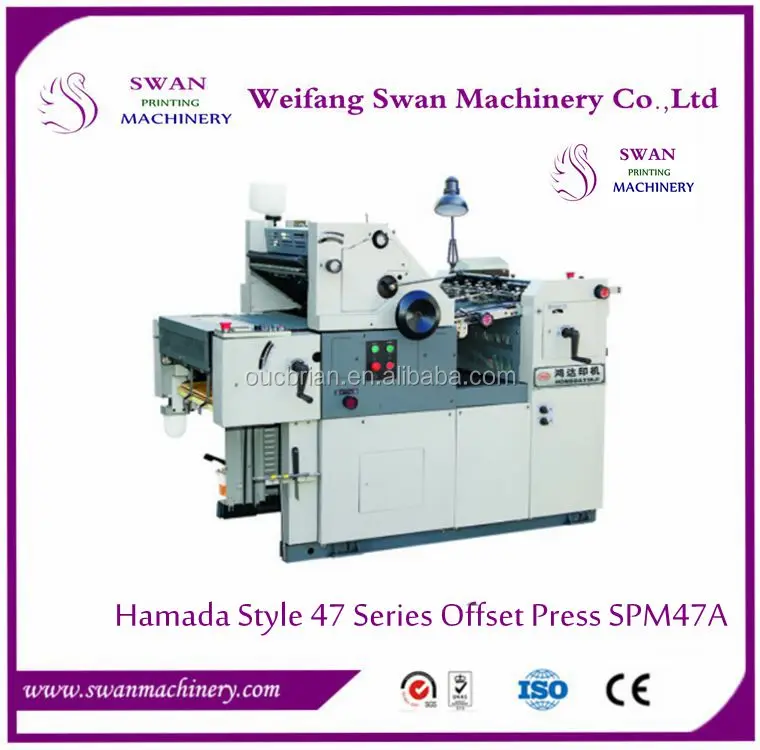

Билл в книжном стиле 2 цвета офсетная печатная машина

Билл в книжном стиле 2 цвета офсетная печатная машина

Категория: Offset Printers >>>
Поставщик: Weifang Swan Machinery Co. Ltd.Weifang Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

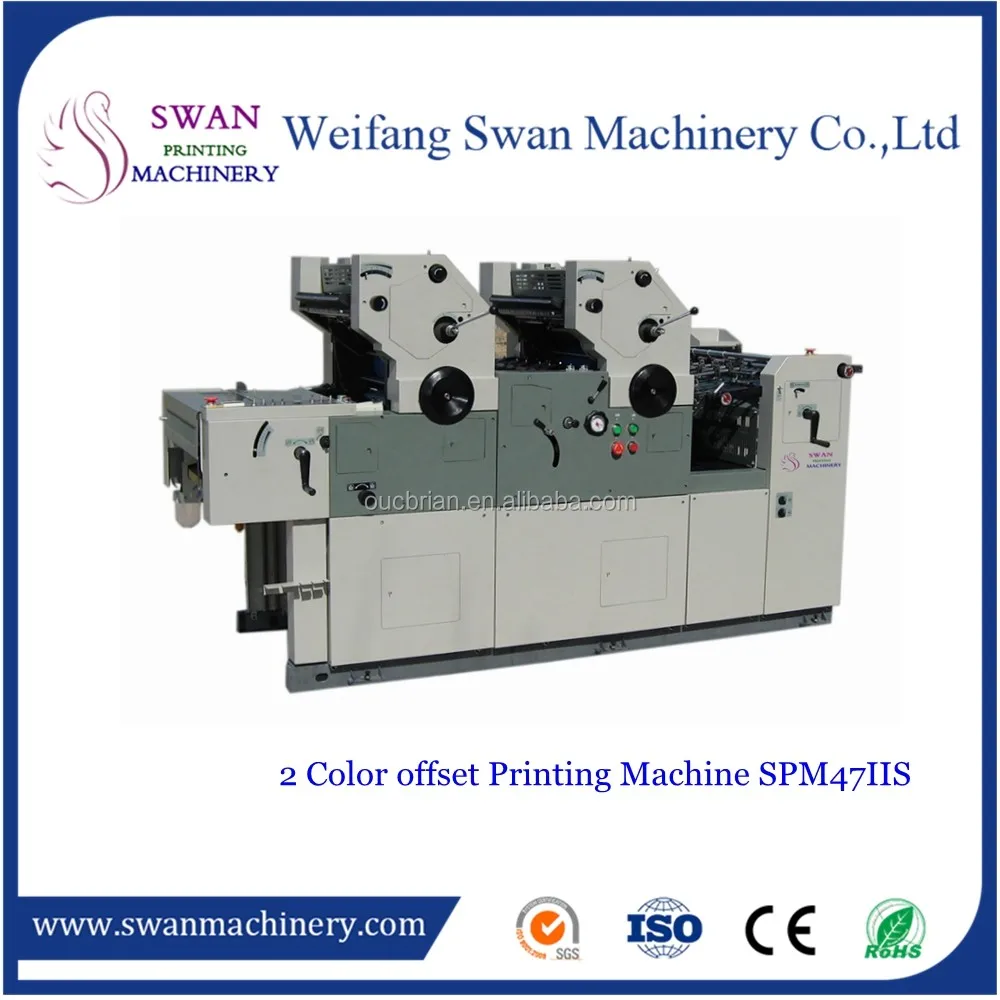

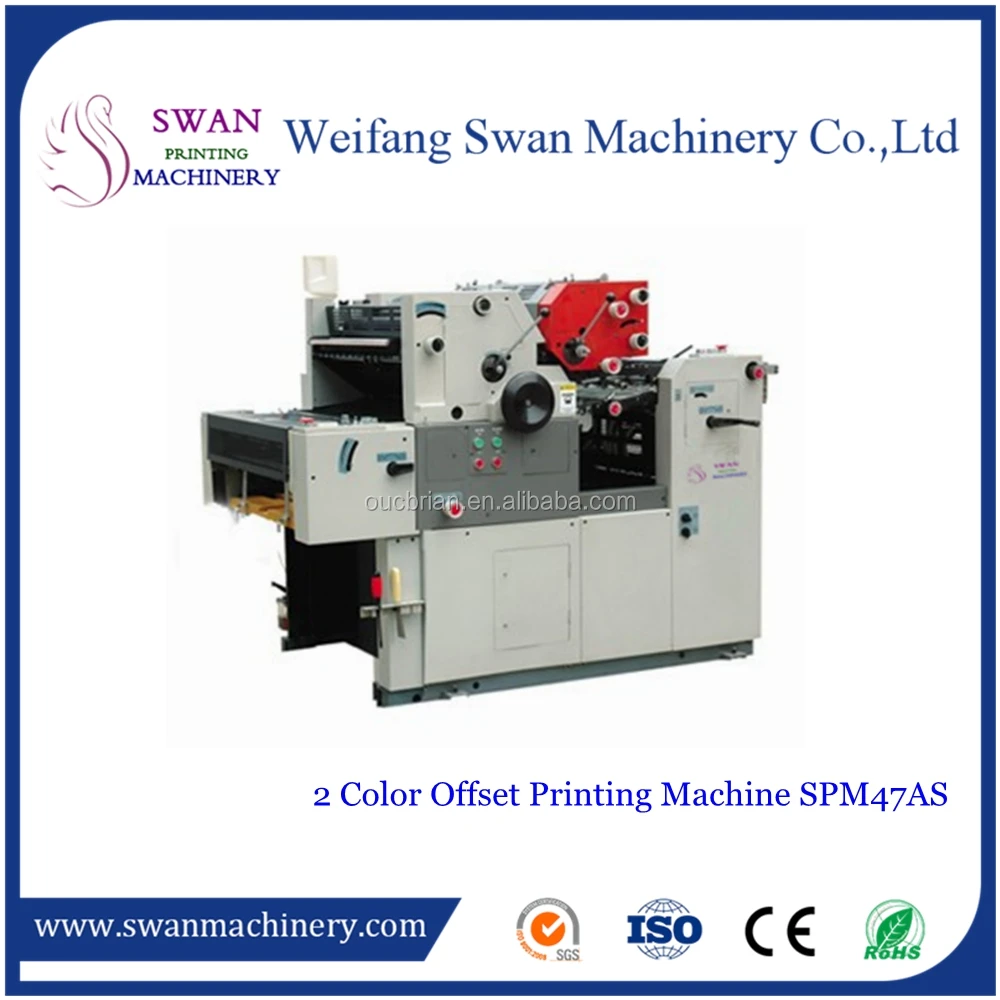

bill book hamada style 2 color offset printing machine heidelberg

hamada style receipt book printing press numbering machine

Offset Printing Machine. Finish printing ,numbering Perforating in one pass.

Use for offset and coated paper 250g ,self-adhesive papers ,booklets,envelopes,bills.NCR Recipt, Business inovice,Carbonless bills,Checking list,Keeping books, Cheques

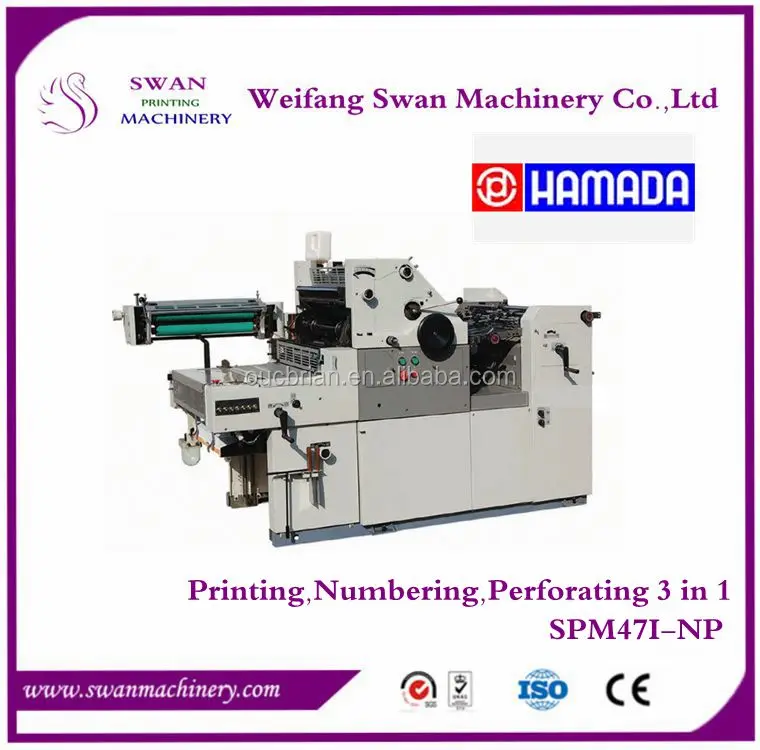

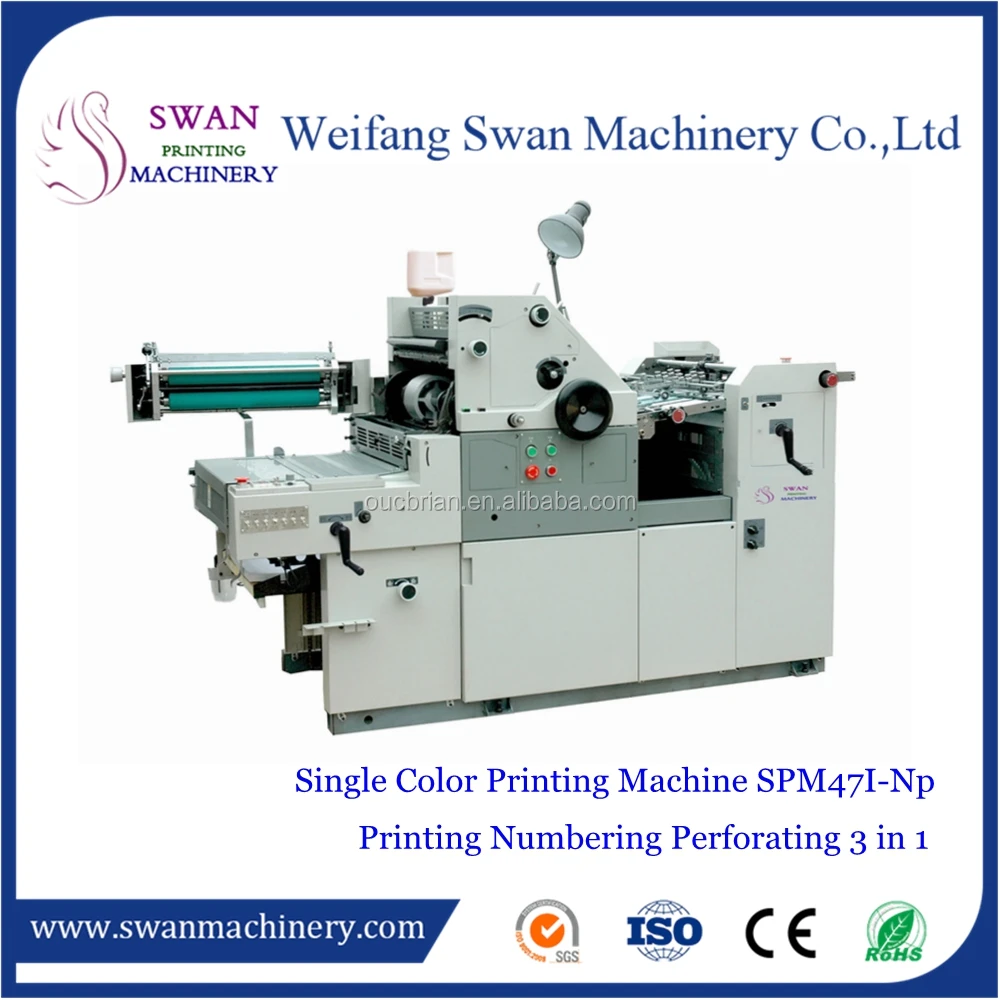

Model for choice: SPM47II-NP, 56II-NP, 62II-NP.

Video link:

https://www.youtube.com/watch?v=UIALHN2eLFM

Model No.	SPM47II-NP	SPM56II-NP	SPM62II-NP
Max. printing size	454×345mm	544×380mm	605×440mm
Max. sheet Size	470×365mm	560×390mm	620×450mm
Min. sheet size	90×140mm	200×148mm	180×260mm
Paper Type	17-250g/m2			28g-250g/m2
Ink Roller for NP	Model I：Main machine system 10 roller, ink form rollers: 2pcs Model II: Main machine system14 roller, ink form rollers: 3pcs			Main machine system14 roller, ink form rollers: 3pcs
Number of dampening rollers	4 pieces (1 form rollers)			5pieces (2 form rollers)
Registration mechanism	Roll type side lay
Speed	2000-8000 sheets/hr			2000-6500 sheets/hr
Minimum space between codes	Vertical code: vertical 71mm horizontal 48mm, Horizontal code: vertical 47mm horizontal 60mm, Gripper edge 25mm
Motor power	Main motor：0.75KW/220V Air pump motor：0.55KW/220V	Main motor：0.75KW/220V Air pump motor：0.55KW/220V	Main motor：1.5KW/380V Air pump motor：0.55KW/380V×2set

Main Features

1. Easy operation:Water feeding ,ink feeding and impression are all operated by one switch dividedly.The impressing roller on/off is controlled by electric eye accurately and reliably.
2. Precise location:Front guide,side-pulled-guide,feed-table tune-up,plate tune-up,ensure locating precision of paper sheets and perfect printing results.
3. Separating damping from inking:Damping system is separated from inking system.It can adjust damping and inking flexibly,which can content the request of different prints for water and ink
4. Presetting counter:It adopts electromagnetic presetting counter.If the printing of presetting finish,the input stop automatically.
5. Overlap detection:It can exclude the trouble such as overlap and non-stoped printing.
6. Circuit control:The whole machine is controlled by PLC Pomputer,with the function of stoping printing automatically when paper blocked.

More Details

Detailed Images

Machine Parts

Name: Omron Converter

Brand: Omron

Original: Japan

Statable working.Life long gurantee.

Main Parts

Name: ultrosonic Sensor
Smart photoelectric detection Double sheet ，zero Sheet detecting,ensure the feeder running more smoothly.

Machine Parts

Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Features

Name: Machine feeder

The best workmanship, hardness Process.Gap bridge with precise processing Japanese paper feeding belt

Our Service

Pre-Sales Service

* Our Sales Department 24 hours online.

* Give our best recommendtions.

* Arrange you to View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Spare parts send to you in 4 Days.

Packing & Delivery

Packaging
Size	2100(L) × 1000(W) × 1450(H)mm
Weight	800KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	2200x1820x1720mm two packages
Weight	9.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
