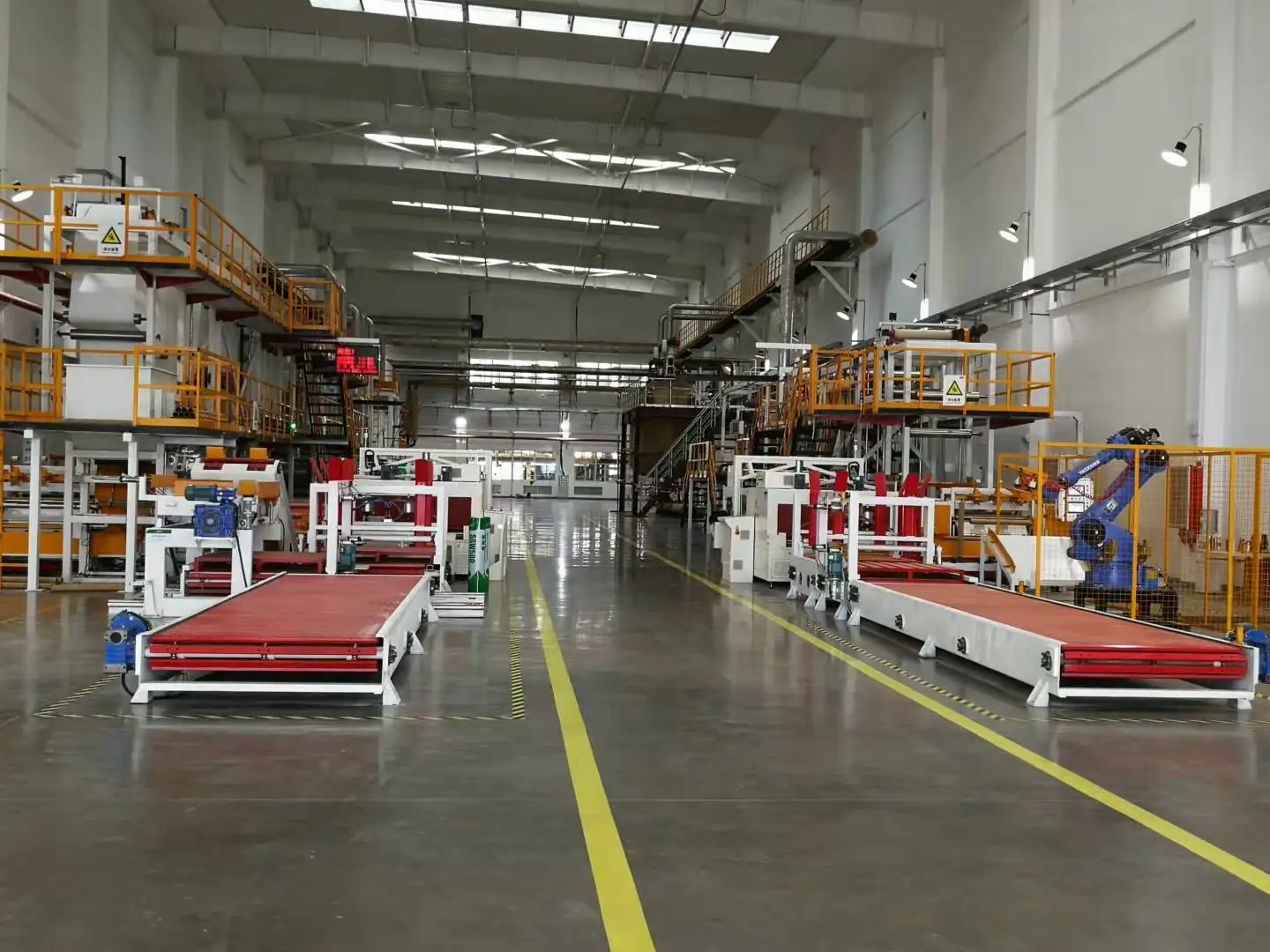

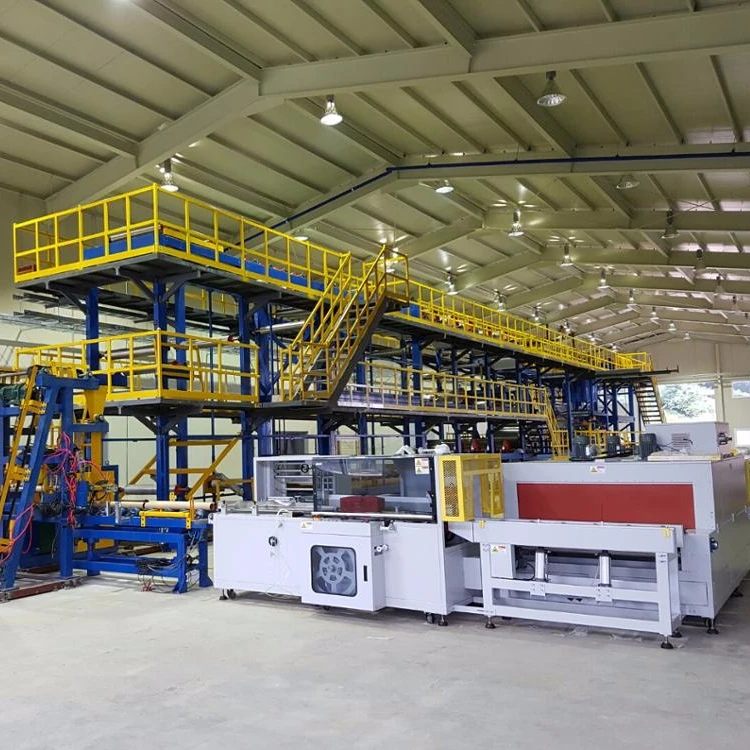

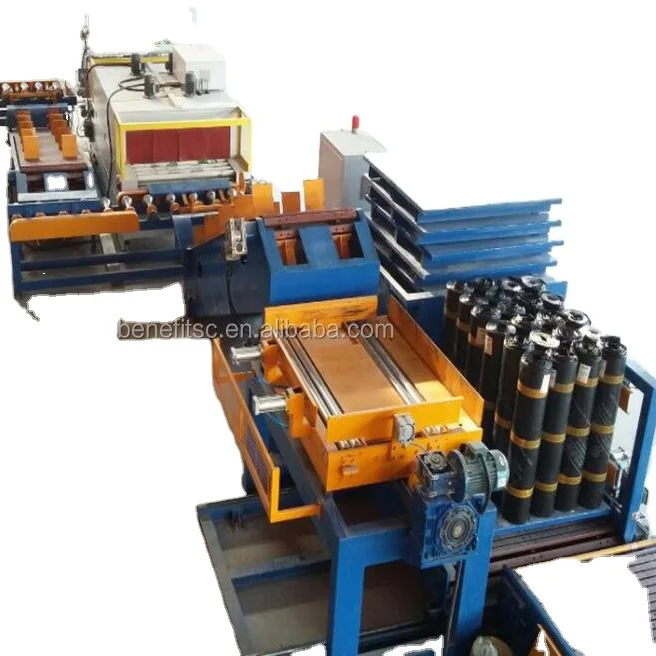

Битумная SBS водонепроницаемая мембранная производственная линия/машина 5 миллионов

Битумная SBS водонепроницаемая мембранная производственная линия/машина 5 миллионов

Категория: Other Construction Material Making Machinery >>>
Поставщик: Changzhou Benefit Waterproof Equipment Co. Ltd.

Цена:30 837 845,00 ₽ - 31 059 700,00 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Bitumen Membrane Production Process

The production process of waterproof roll is to heat the asphalt by heat conduction oil furnace and melt it.After mixed modification of asphalt, rubber powder, waste oil, resin and talc powder, it will be imported into the production line, and then the tire base will be formed..Asphalt modified waterproof material made from front and back composite pefilm or rock particles. The material is formed from the tread base to the cooling, and automatically adjusted by tension, towed to the roll-felt machine, rolled into finished material.

Scale	3-15 million m2 various modified waterproof membrane annually,base on 8hr/shift,2shift/day,250days/year
Base material	Polyester, fiberglass,compound
Modifiers	SBS/APP
Surfacing	Sand ,schist,PE film,aluminum foil
Thickness	2-5mm
Linear speed	5-65m/min
Fuel consumption	1,250,000kcal/h,thermal efficiency≥73%
Membrane length	10m/roll
Membrane wide	1000mm
Unwinder Diameter	1500mm(Max)
Winder Diameter	380mm(max)
Line length	length about 62m,height about 6m	Scale

Main Features

1)Reasonable structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

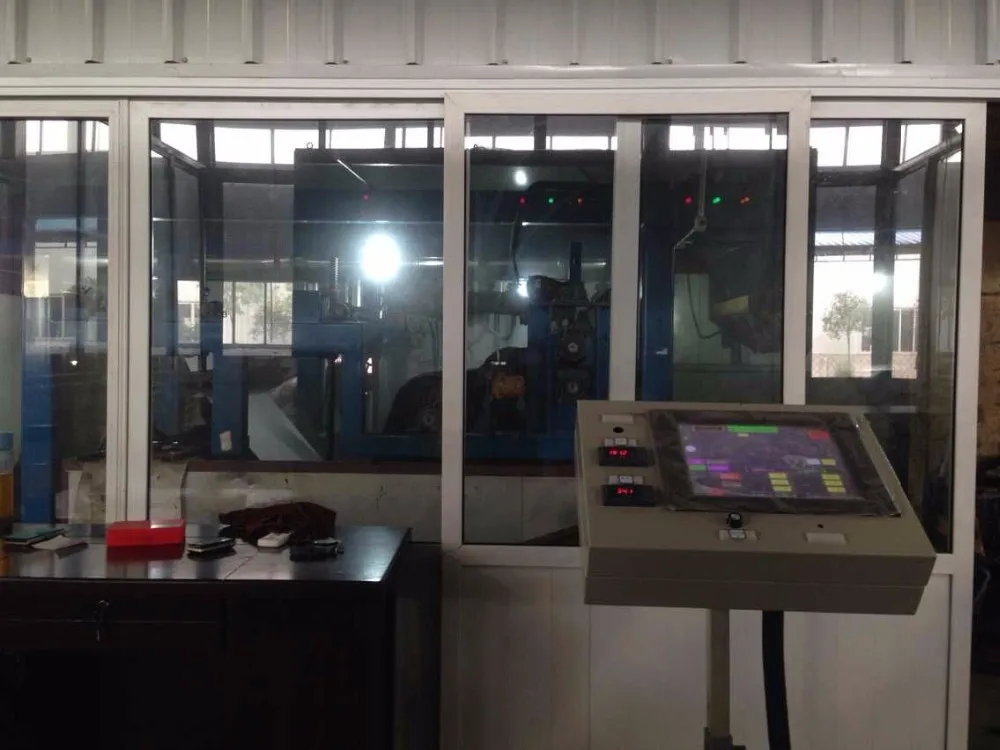

3) PLC control the opening and closing.

4) Running in a high automatization and intellectualization

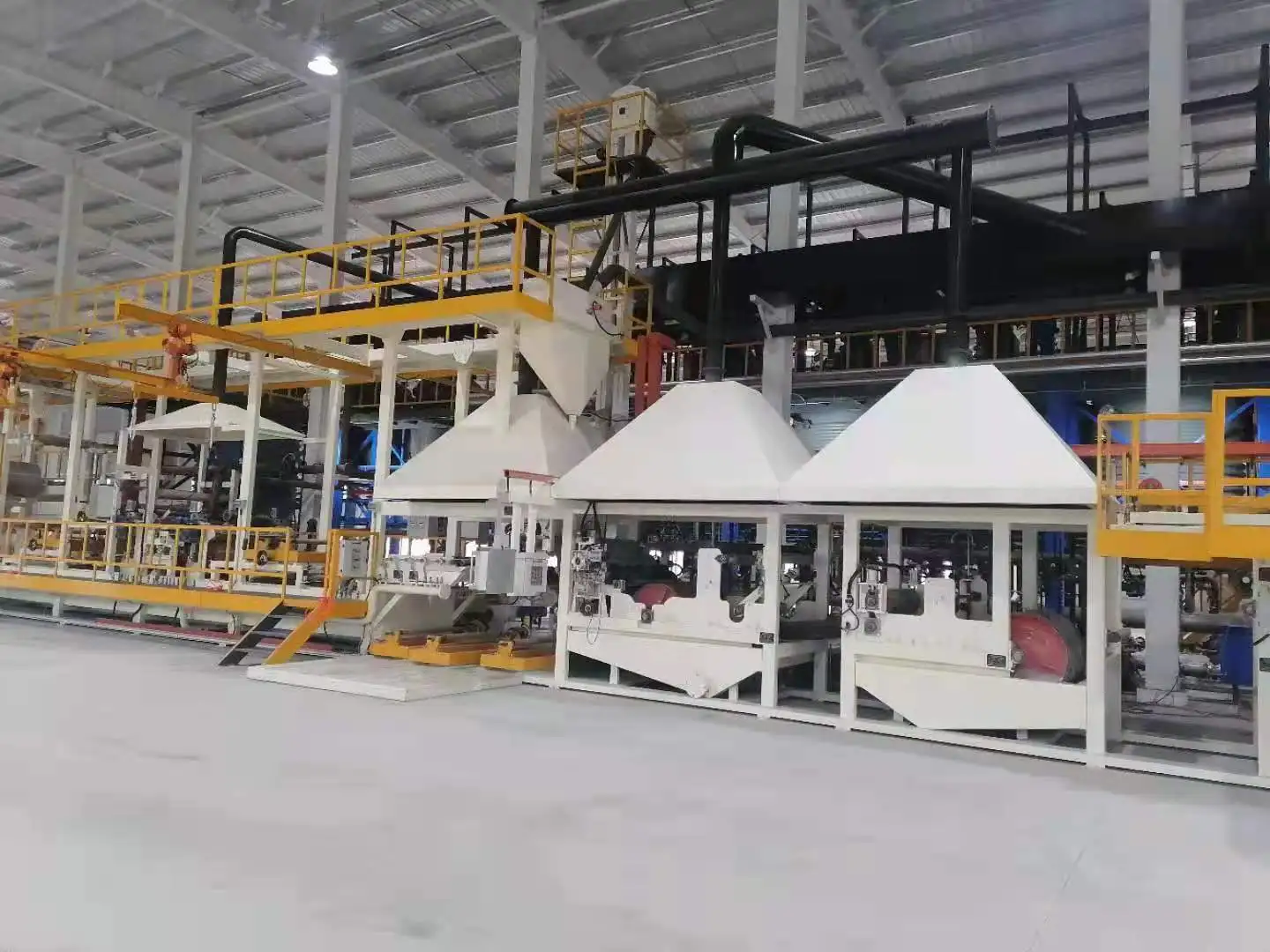

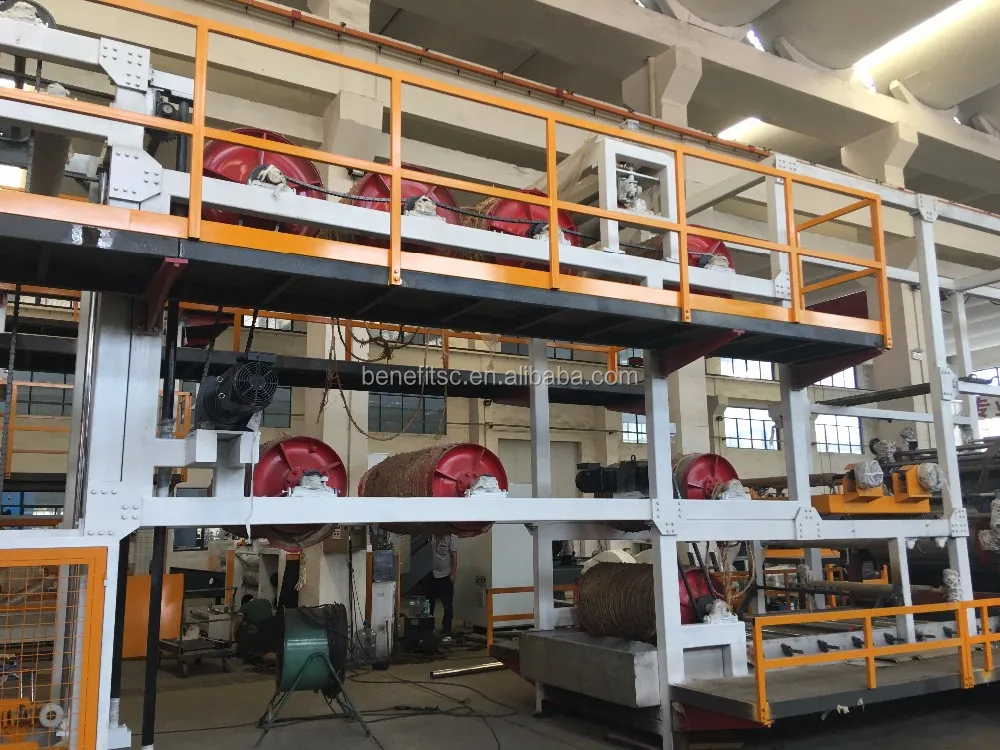

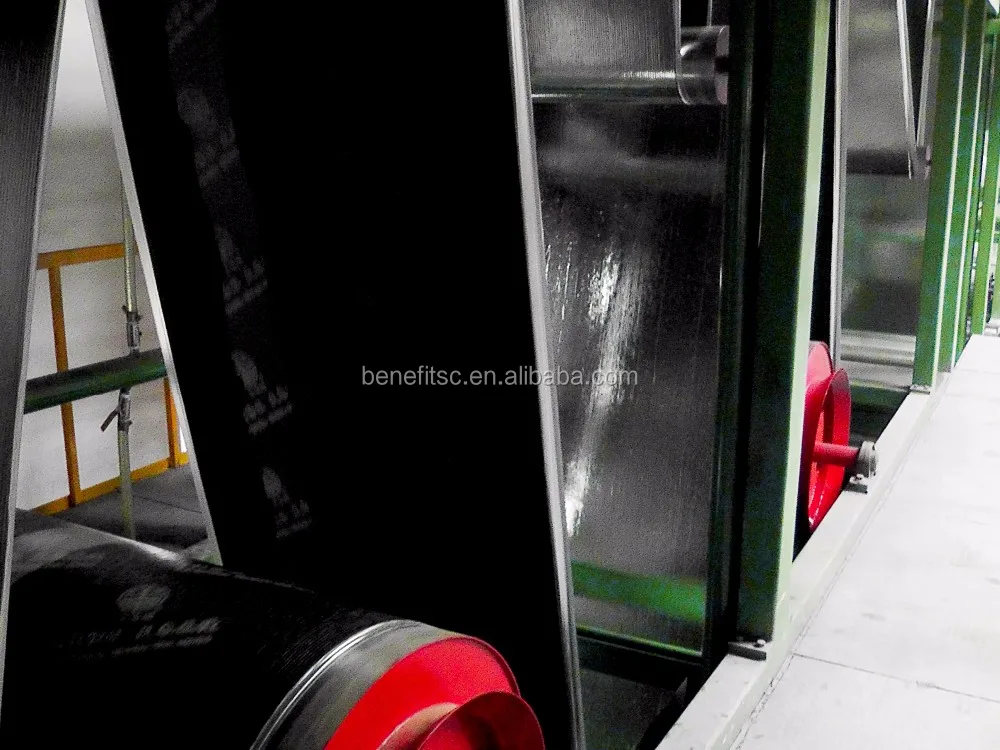

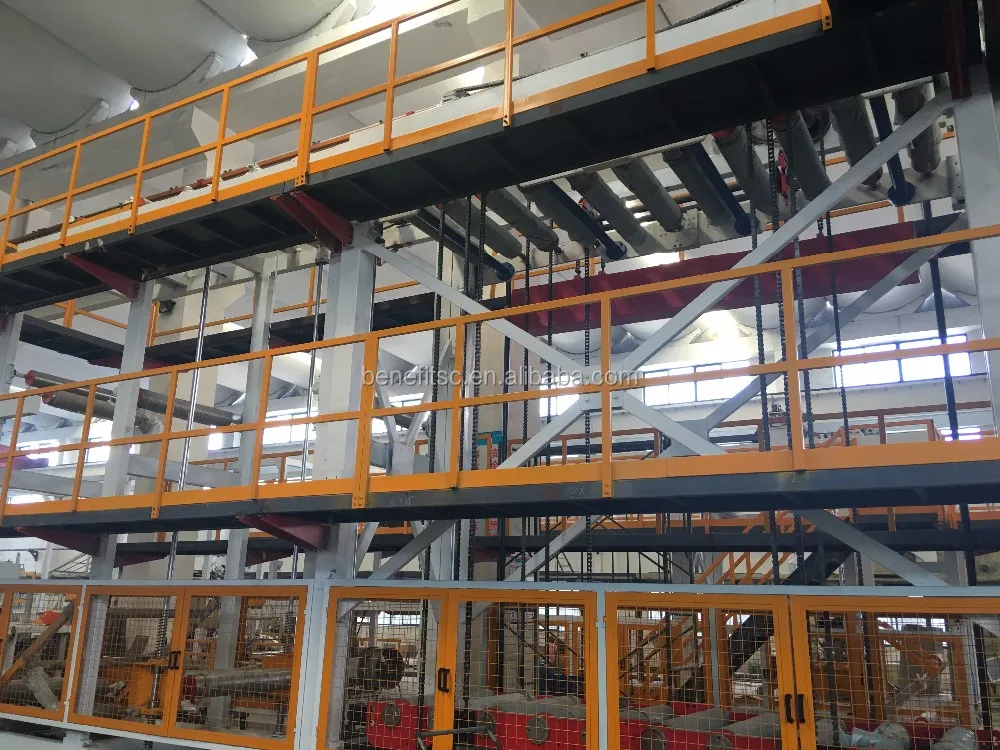

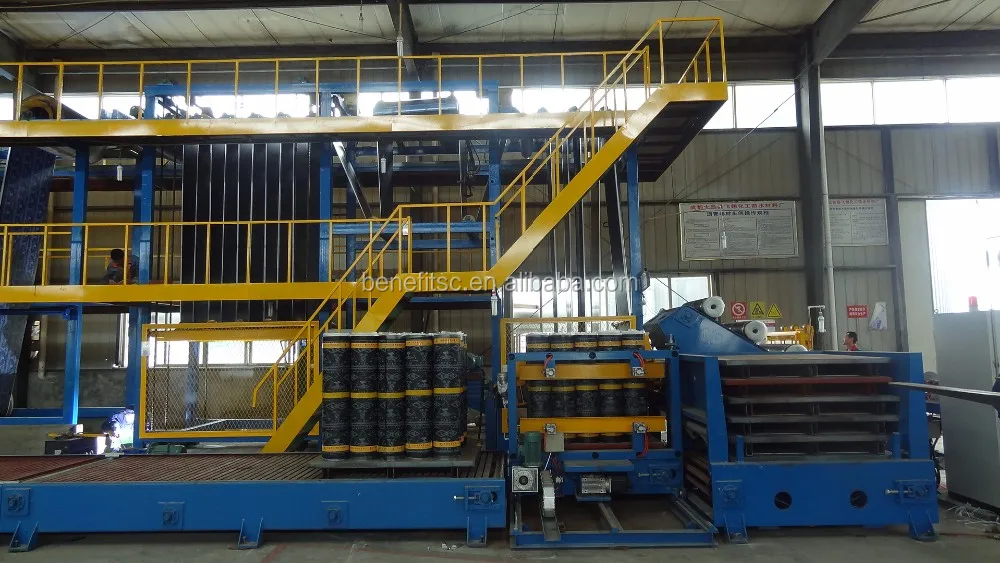

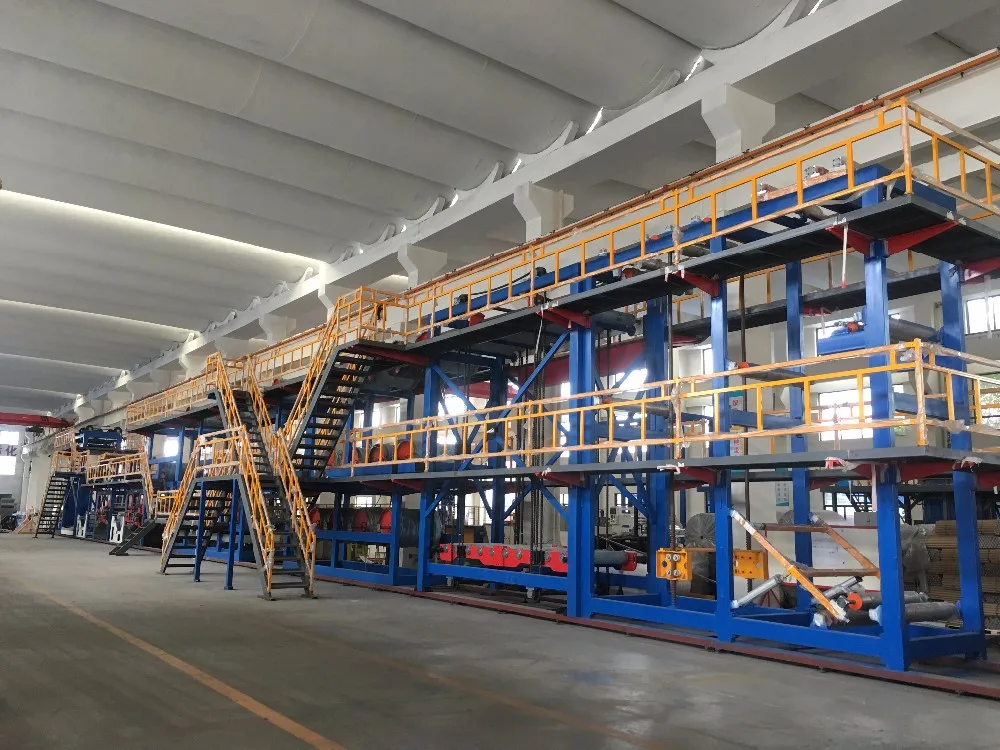

Membrane Formed Production Line

A system device after forming ,roll extrusion,film and sand to produce the required coil type of membrane

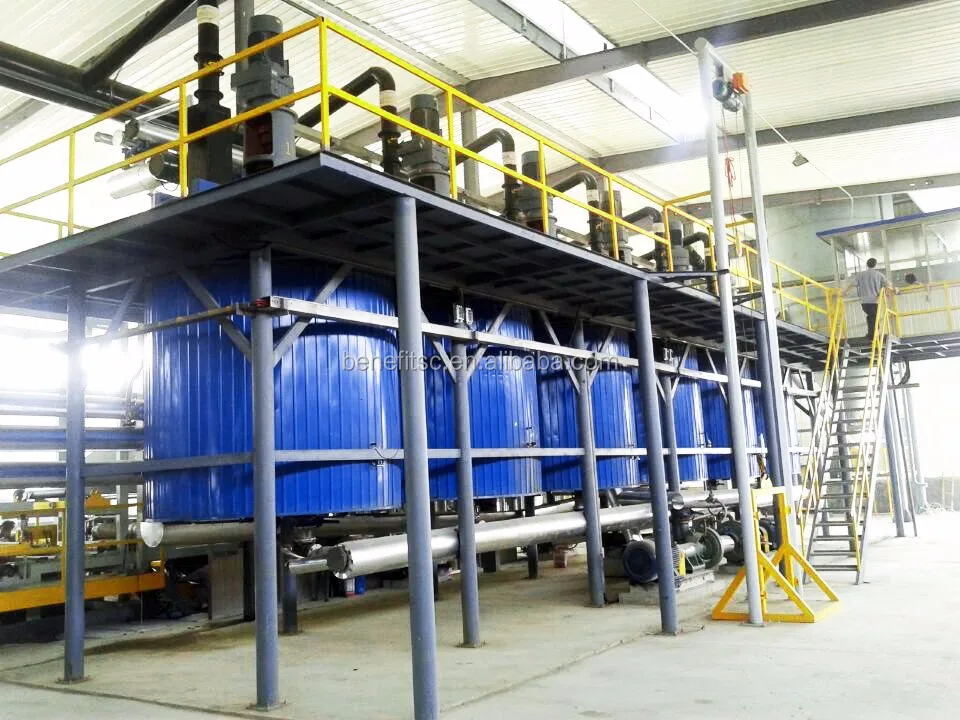

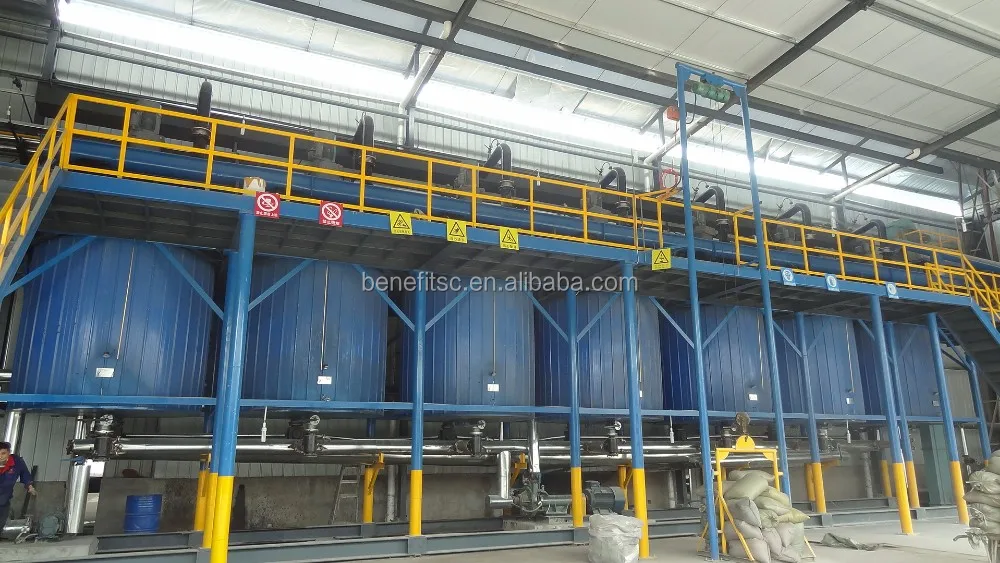

Membrane Mixing system

The raw material,stone powder,powder,heavy oil,ration by a certain proportion,through the high temperature mixing to form of required waterproof amterial type.

Water cooled system

By cooling water tray and cooling roller in the production molding system,to lower the temperature of the finished products

Boiler system

By means of the boiler combustion(oil,nature gas,coal) or electric heating system,heating the circulation conducting oi,control the temperature of the heat conduction oil

Environment device

By cooling water tray and cooling roller in the production molding system,to lower the temperature of the finished products.

Detailed Images

Machine Parts

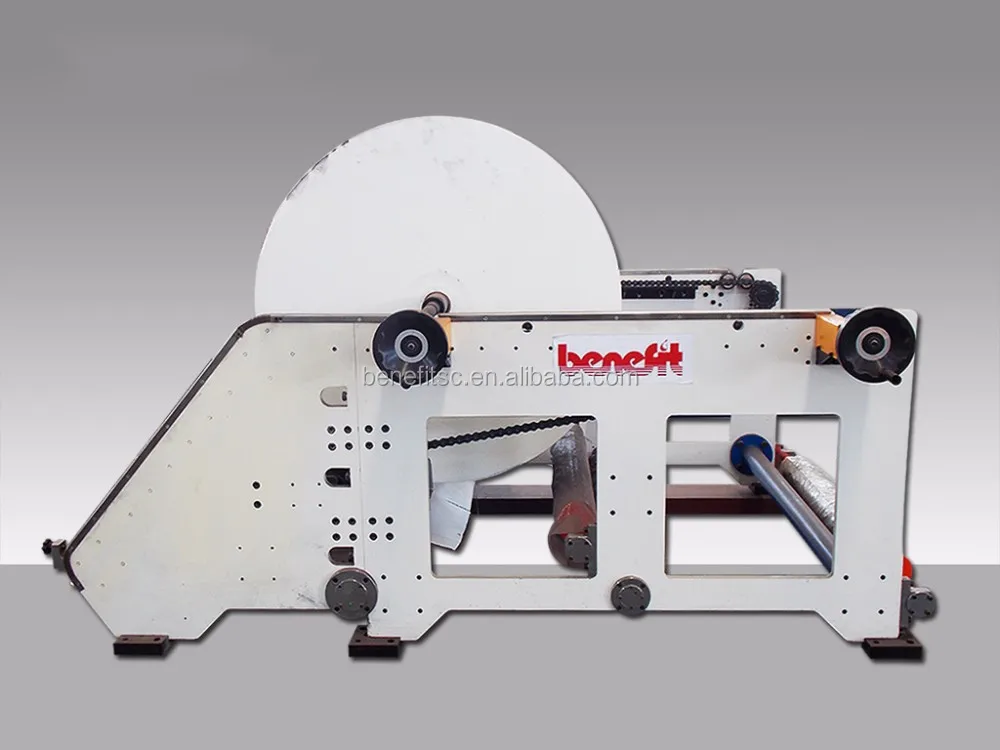

Name: Rewinding machine

Main Features

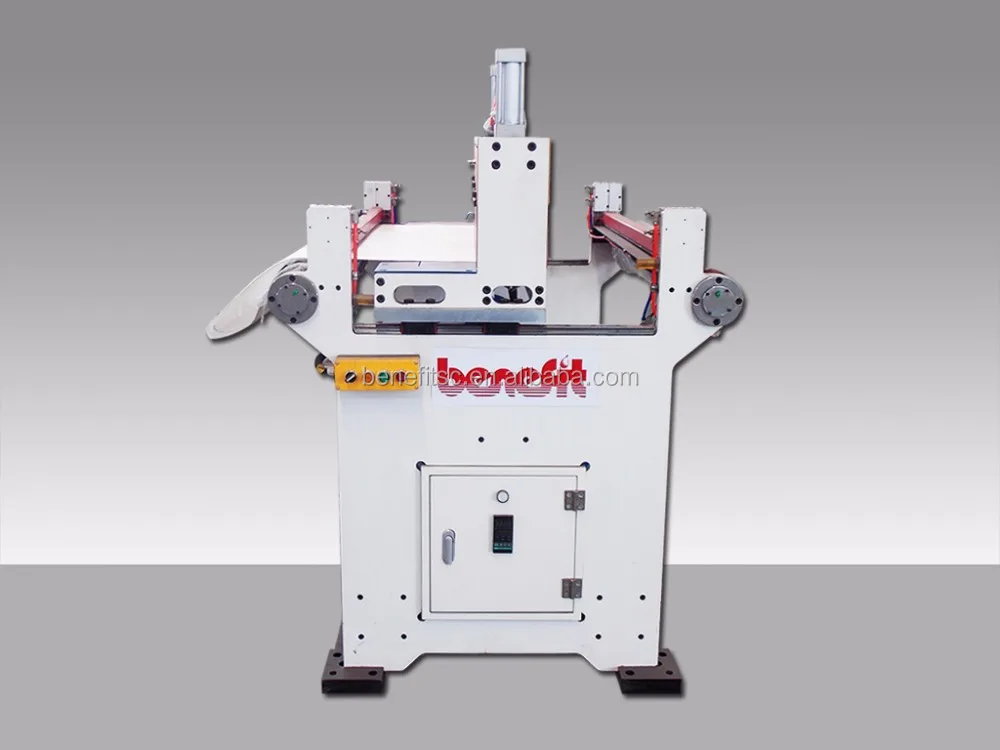

Name: Polyester Splicing Machine

Machine Parts

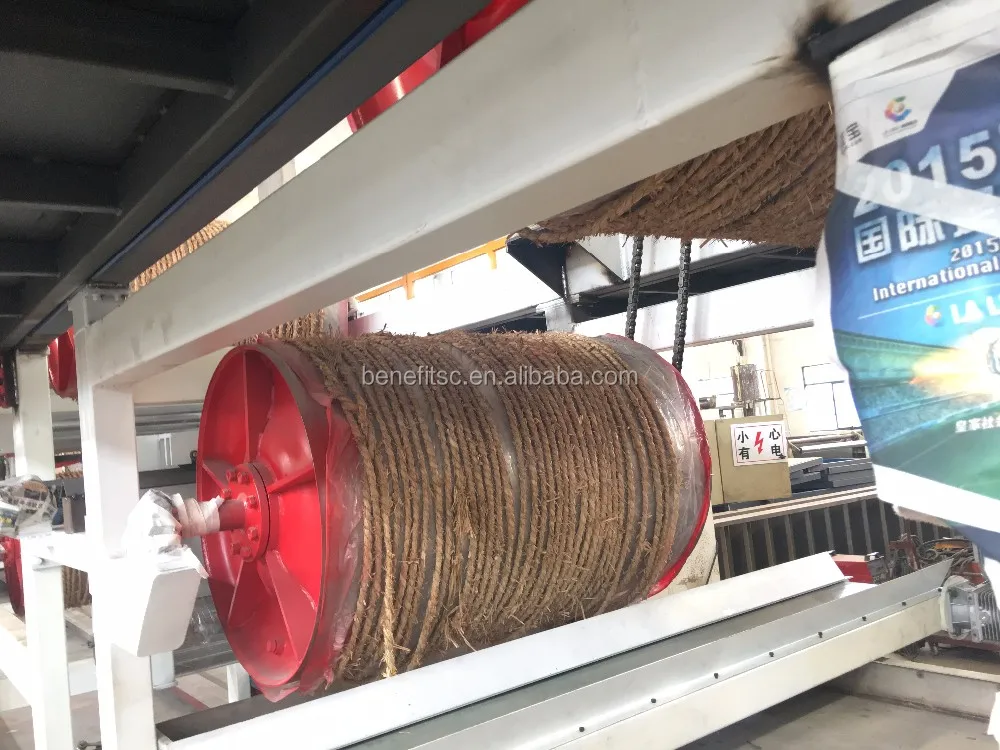

Name: Coating machine

Main Features

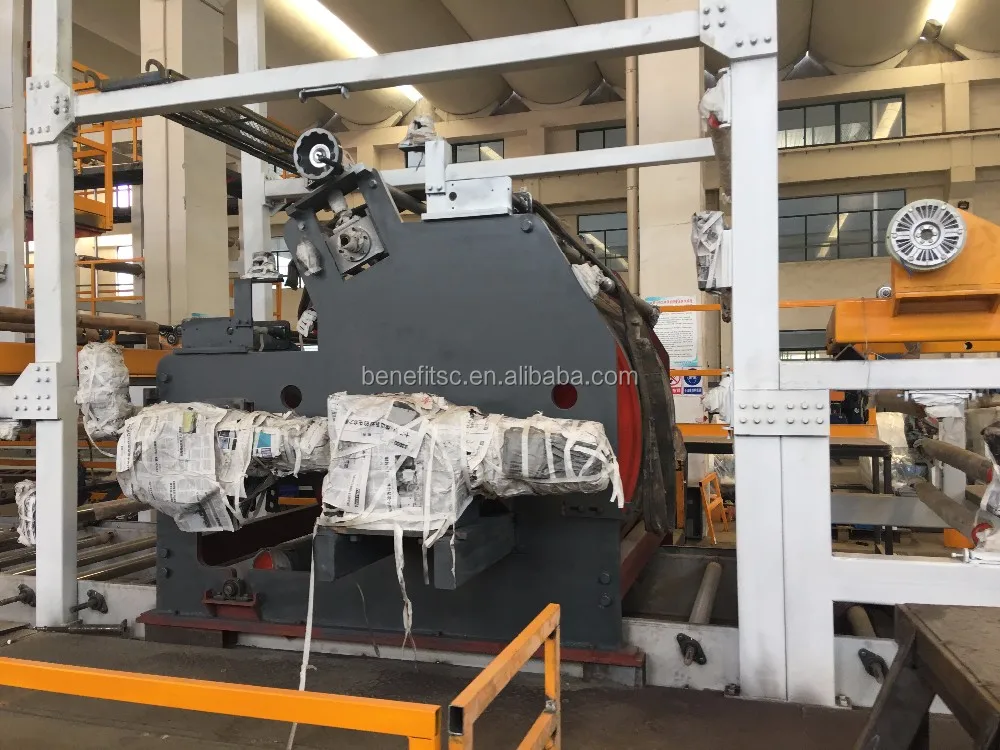

Name: Deviation machine

Bitumen membrane type produced by our machine

1. Both sides with PE flim

2. One side with PE flim,one side with snad ,schist,Alum foil

3.Embossing and smooth

4.Self-adhesive

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

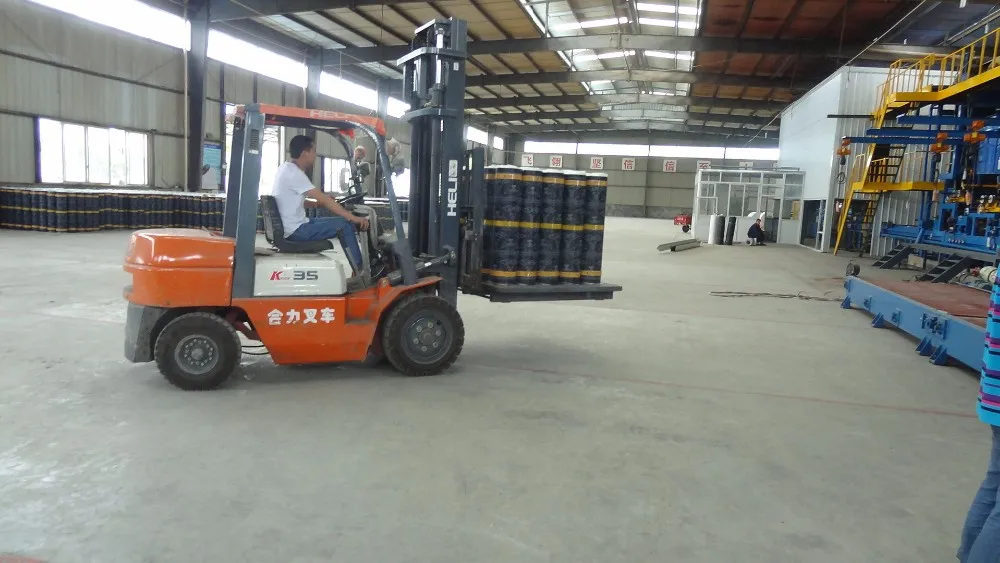

Packing & Delivery

Our Company

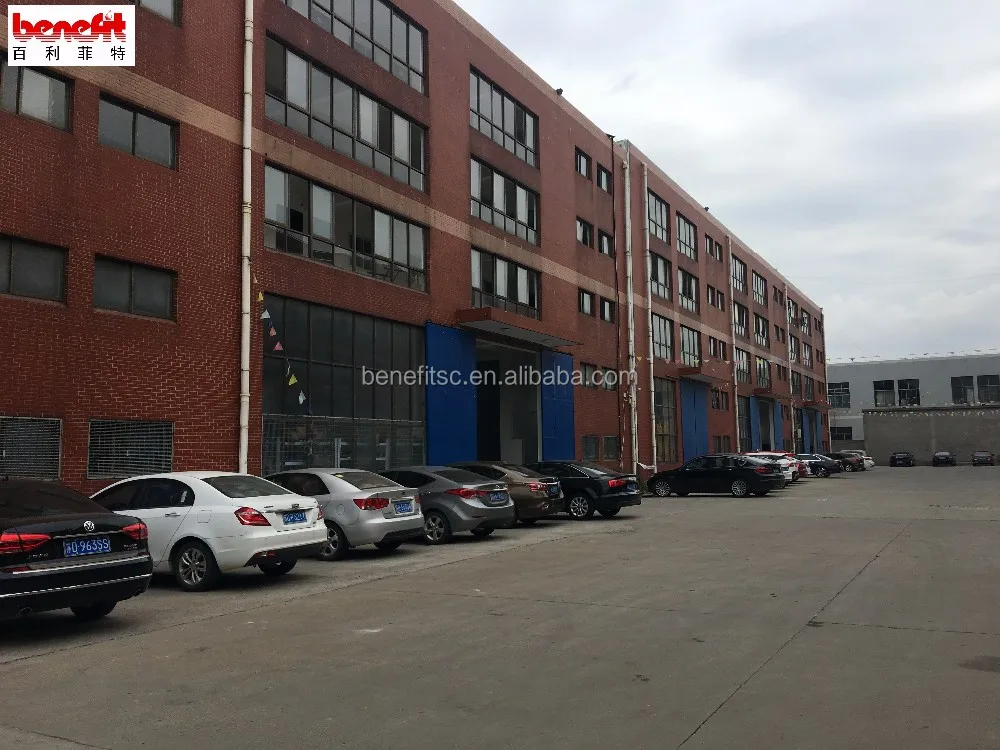

Changzhou Benefit Waterproof Equipment Co.ltd

Changzhou Benefit Waterproof Equipment Co.,Ltd,established in 1990, is a professional manufacturer which is specialized in researching, producing, marketing and service waterproof equipment.

As a private-owned enterprise, Our company is a famous supplier in the line of waterproof equipment in China, also an important supplier in the international markets. We have developed various kinds of advanced waterproof equipment plants, and got many national patents. The factory is strictly in accordance with international quality system to ensure product quality. Our factory pursues the enterprise culture of sincere, realistic and innovation, adheres to the service goal of honesty,customer oriented and win-win situation. We are looking forward to cooperating with you.

FAQ

1.Are you trading company or manufacturer?

We are manufacturer,we have a 8000 sqm factory in Changzhou.

2.Do you have quality certificate?

Of course,we have CE,ISO.ect.

3.Can you provide after-sale service?

Yes,After sale service number works in 24 hours,making sure the machine problem can be solved in soonest time.

4.What the MOQ and your payment terms?

We usually accept 30% T/T before produce,70%T/T before shipment,MOQ is 1 set.

5.Is it available to add our logos on the machine?

Yes,it is available,please provide us your logo.

6.How long is your machine warranty and your lead time?

Usually guarantee 12 months,if something spares are wrong ,we could send you accessories,and normally our lead time is about 90 days after you pay for deposit.
