25KHz 100W Ultrasound Cleaning Transducer Piezo Electric Sensor Ultrasonic Piezoelectric Ceramic Transducers
Products Description
Ultrasonic transducer also called ultrasonic vibrator, which can convert high frequency electrical energy into mechanical energy effectively. Ultrasonic cleaning transducer is the core component of ultrasonic cleaning machine. It consists of a radiation head, an electrode sheet, a rear metal cover, a pre-stressed screw (screw), a piezoelectric wafer, and an insulating tube. The characteristics of transducers depend on material selection and manufacturing process.
Main Features:
1: High mechanical Q value.
2: High transfer efficiency.
3: High quality piezoelectric ceramic material with good heat resistence.
4: Large range of working temperature.
5: Lower resonant Impedance.
6: Large amplitude,high vibration speed.
7: Clean and tidy appearance,without corrosion,deformation and scratch.
8: Frequency and static capacitance keep more consistency.
9: High output power.
10: ight with bolt ,be easy to install,reliable .
2: High transfer efficiency.
3: High quality piezoelectric ceramic material with good heat resistence.
4: Large range of working temperature.
5: Lower resonant Impedance.
6: Large amplitude,high vibration speed.
7: Clean and tidy appearance,without corrosion,deformation and scratch.
8: Frequency and static capacitance keep more consistency.
9: High output power.
10: ight with bolt ,be easy to install,reliable .
Application:
•According to the application industries, they are divided into industry, agriculture, transportation, life.
•According to the realized functions, it is divided into ultrasonic welding, ultrasonic cleaning, ultrasonic detection,
detection, monitoring, telemetry, remote control, etc
•According to the realized functions, it is divided into ultrasonic welding, ultrasonic cleaning, ultrasonic detection,
detection, monitoring, telemetry, remote control, etc
We can customize all specifications of Non-standard Ultrasonic Transducer according to your requirement.
Product Picture
Product Paramenters
28K/100W P4 Ultrasonic Transducer
Type：QXCT-28100T-68HSP4
Static Capacity(pF)(±10%)：6600
Resonance Impedance(Ω)：10-20Ω
Length(mm)：68mm
Frequency(KHz)：28K
Input Power(W)：100W
Piezoceramics size：45*15*5(pzt4)
Radiating Diameter：67mm
Weight：624g/pcs
Cmplete in specifications we firmly believe that "a suitable one for you!" |
& If you are interested in our product,
& Pls just feel free to send us your inquiry.
& We wil try our best to quote the competitive price for you!----- Contact Us Now
Product Application
Get More Informations How to Bond Uitasonic transducer Pls Contact Us Now
Recommend Products
♥ More Informations How to Connect with Ultrasonic Transducer with Ultrasonic Generator to Build High Quality Ultrasonic Cleaner. Pls Contact Us Now
Packaging & Shipping
Company Profile
FAQ
1: Are you manufacturer or trading company?
We are professional manufacturer. All the core components (ultrasonic transducer, ultrasonic generator) are made by ourselves.
2:Delivery time ?
Standard products can be delivered in 7 working days. Customized machines depend on the design.
3:Warranty ?
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we' ll provide free spare
parts or repairing service.
4:Do you provide trial cleaning service?
Yes, you're welcome to send the work pieces for trial cleaning. We'll send you video and report after testing . It's free service.
5: Which ultrasonic frequency and ultrasonic power are suitable for our work piece?
Please contact us and provide details as specific as you can. Information includes:the size, material, weight and dirt of your work piece and cleaning tank dimension etc.
2:Delivery time ?
Standard products can be delivered in 7 working days. Customized machines depend on the design.
3:Warranty ?
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we' ll provide free spare
parts or repairing service.
4:Do you provide trial cleaning service?
Yes, you're welcome to send the work pieces for trial cleaning. We'll send you video and report after testing . It's free service.
5: Which ultrasonic frequency and ultrasonic power are suitable for our work piece?
Please contact us and provide details as specific as you can. Information includes:the size, material, weight and dirt of your work piece and cleaning tank dimension etc.
Похожие товары

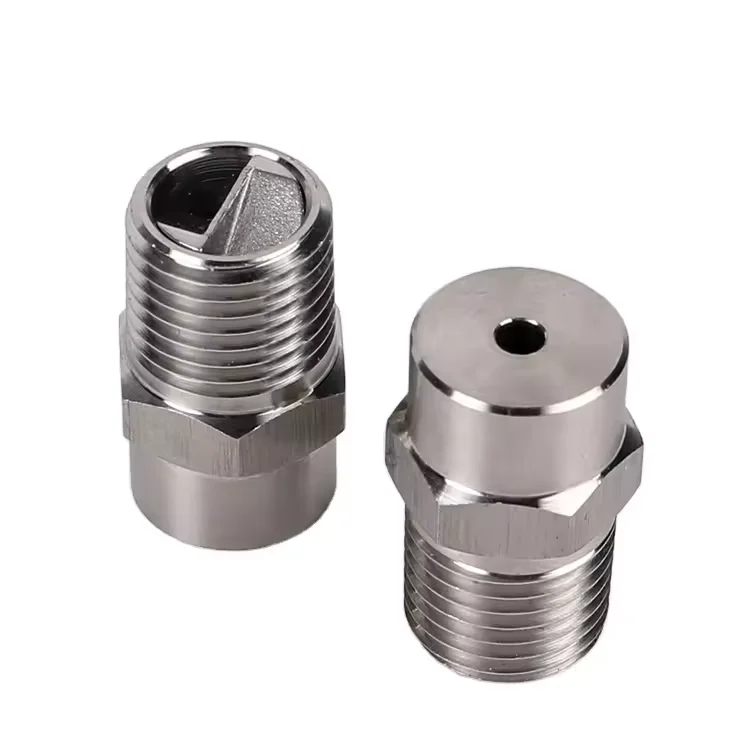

Нержавеющая сталь SS/латунь/ПВХ пластиковая вода спрей мойка для очистки от пыли контроль струйная твердая/полная/полая конусная насадка

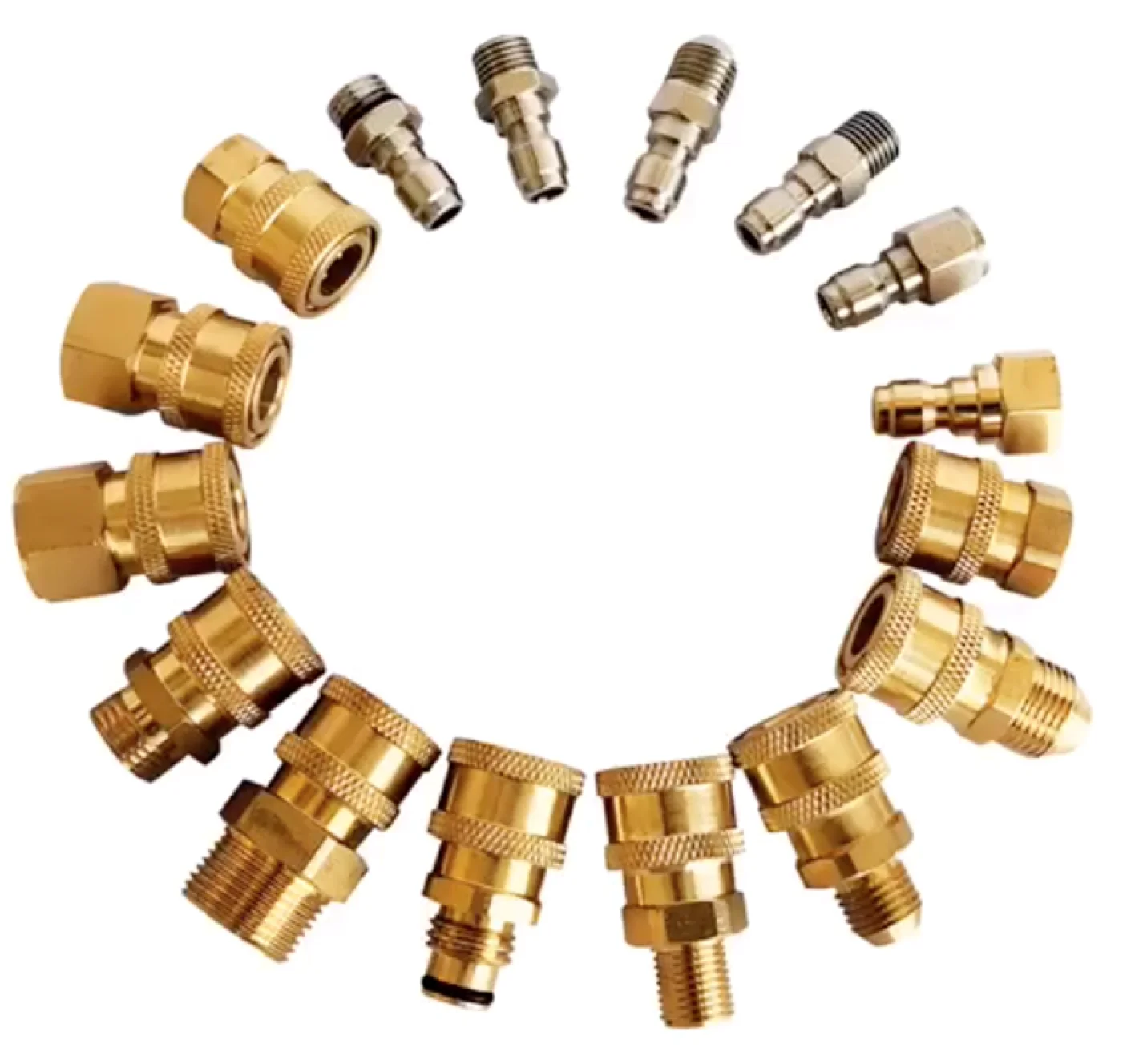

Аксессуары для мойки под давлением медные переходные
75,49-123,29 ₽

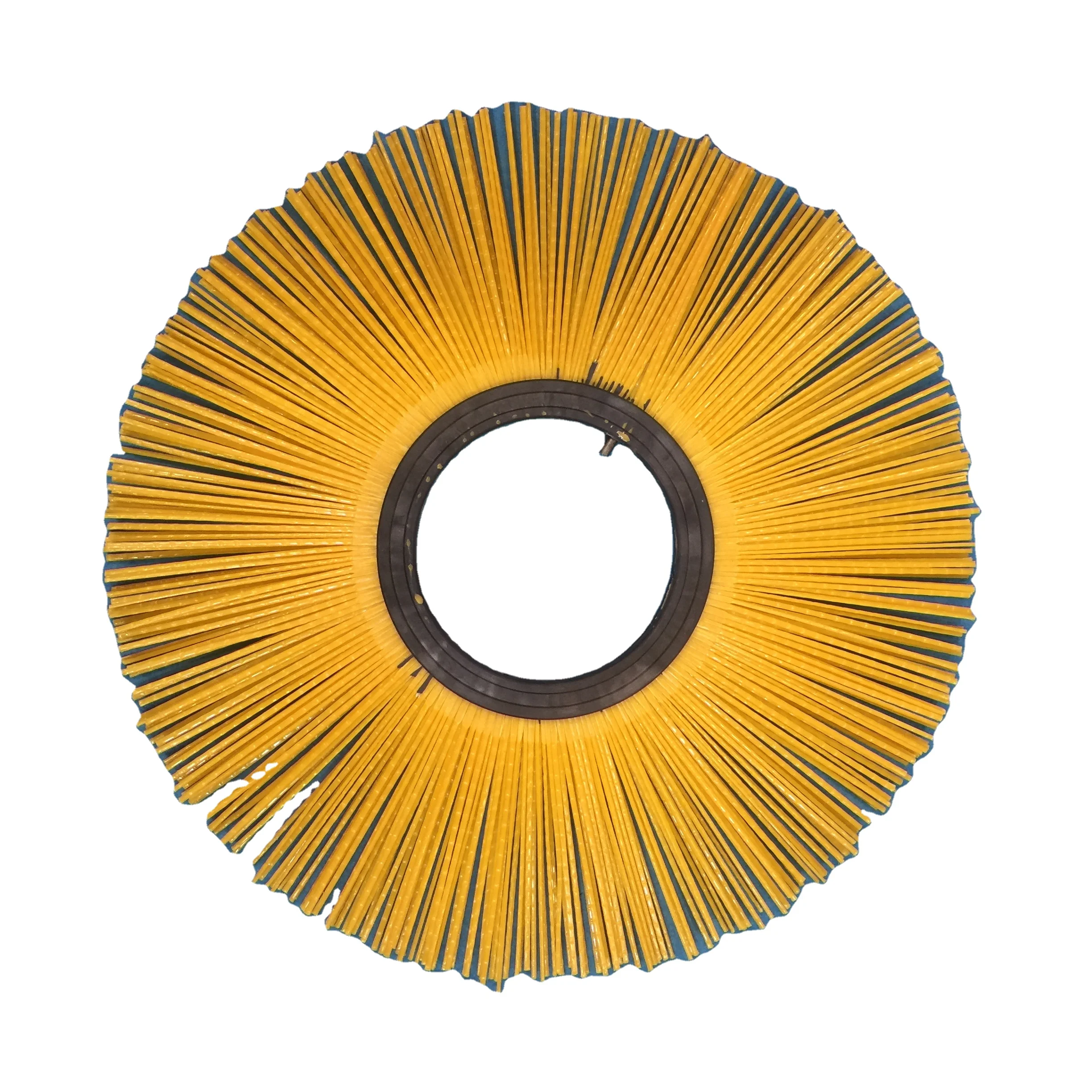

Щетки для уборки дороги 120 * детали оборудования 550 промышленные пластиковые кольца вафли щетка удаления пыли метлы снега
2021 новый дизайн установка для мытья под давлением турбо насадка 7000psi сверхвысокого давления роторная сплава сердечника
11 951,31-14 970,59 ₽

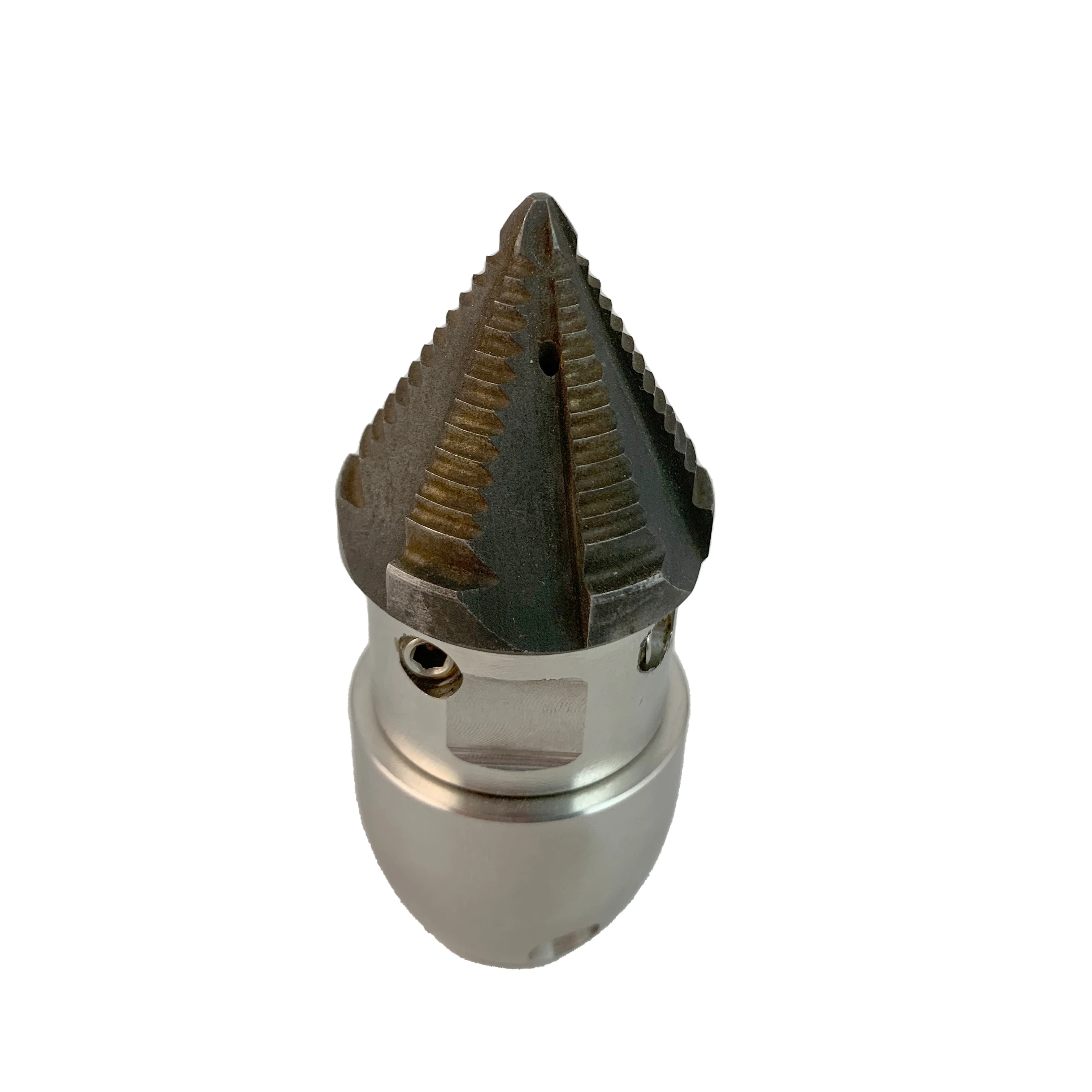

Сопло для промывки труб высокого давления 300
