G.weike LF3015GA 1500 Вт немецкая машина для лазерной резки IPG

Описание и отзывы

Характеристики

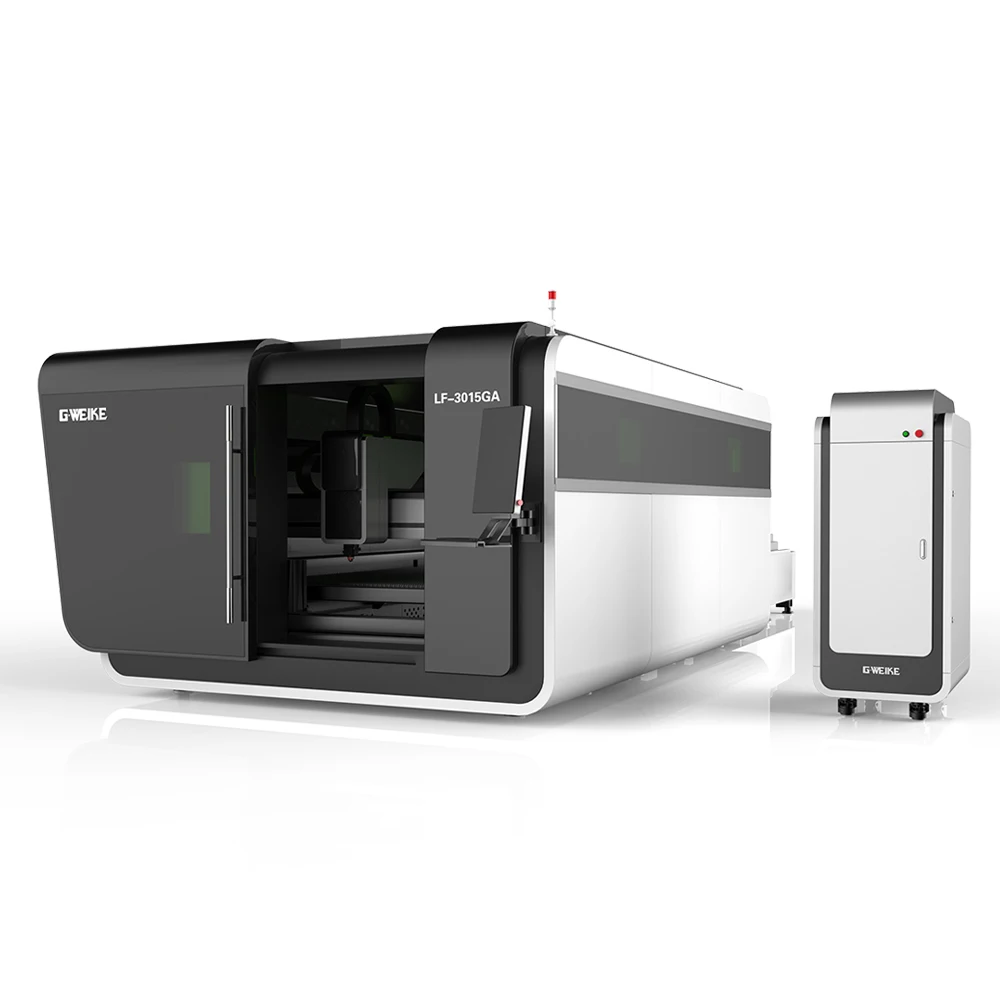

G.weike LF3015GA 1500w German IPG fiber laser source cutting machine

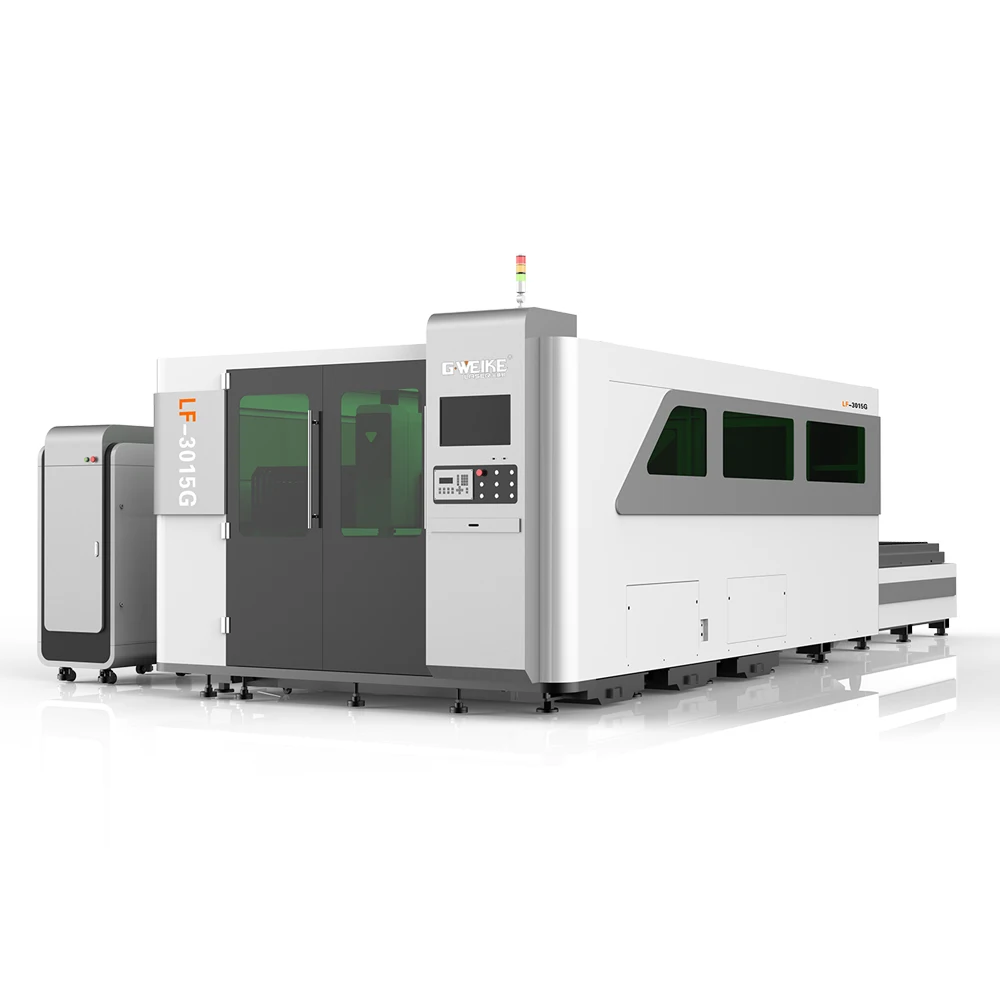

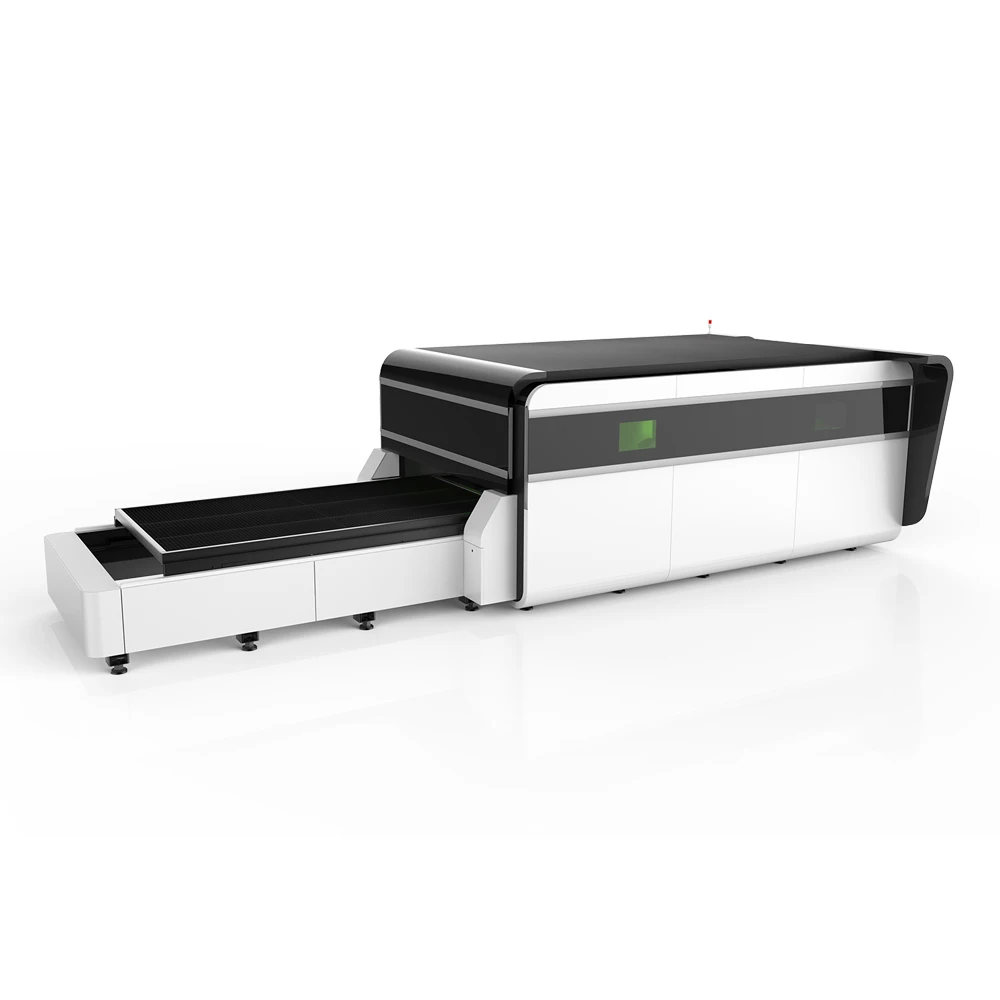

fiber laser cutting machine Picture

1.  metal laser cutting machine 1000w 1500w 2000w 3000w 4000w IPG NLIGHT RAYCUS Fiber laser cutting

2.  this fiber cutting machine suitable for laser cutting stainless steel , carbon steel , inox , aluminum , copper , brass , alloy steel , cutting thickness from thin metal to 20mm .

3. sliver gold laser cutting machine with the working area 3000×1500 mm

4. fiber  cutter machine with the best quality in China

g.weike lc6090 1500w laser cutting machine with IPG laser source made in Germany

Fiber Laser Cutting Machine Application Industry

sheet metal cutting machine is applied for metal cutting, electrical switch manufacturing, elevator manufacturing, household electrical appliance manufacturing, cooking utensils, tools machining , such as a variety of machinery manufacturing and processing industry.

g.weike lc6090 1500w laser cutting machine with IPG laser source made in Germany

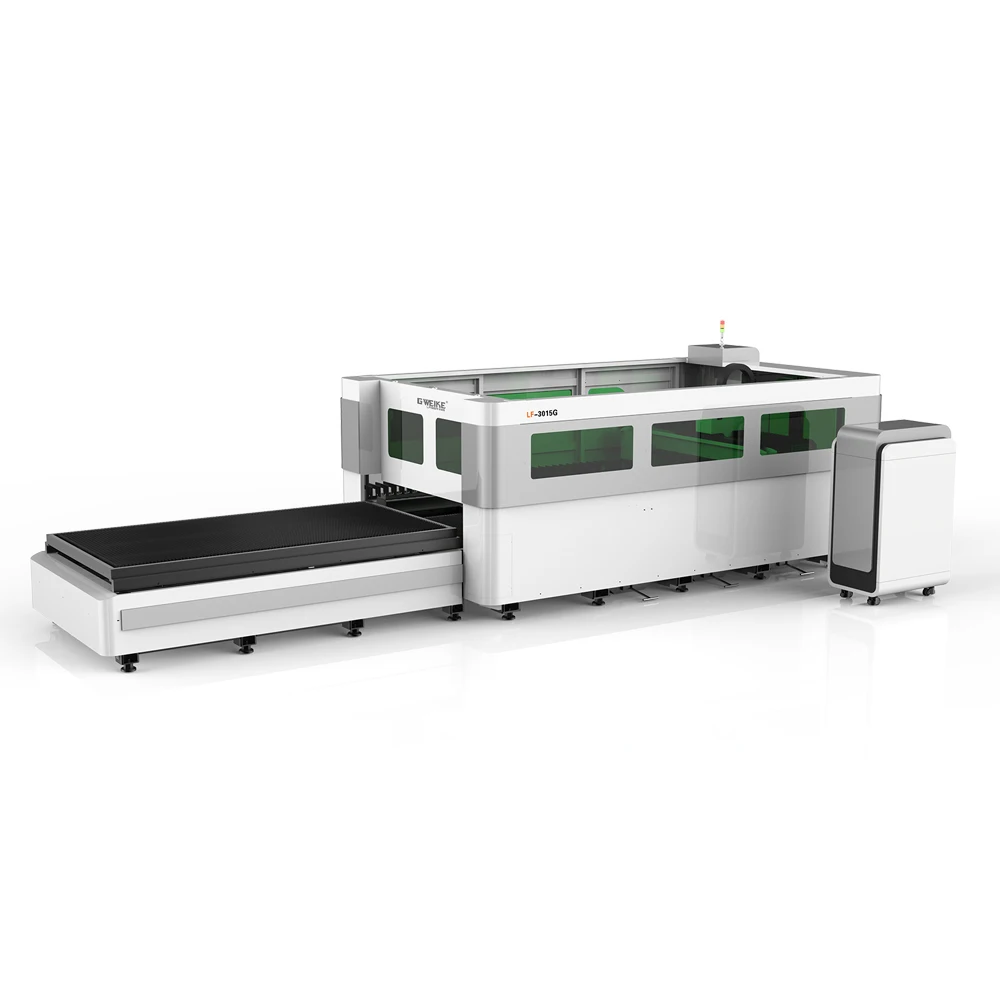

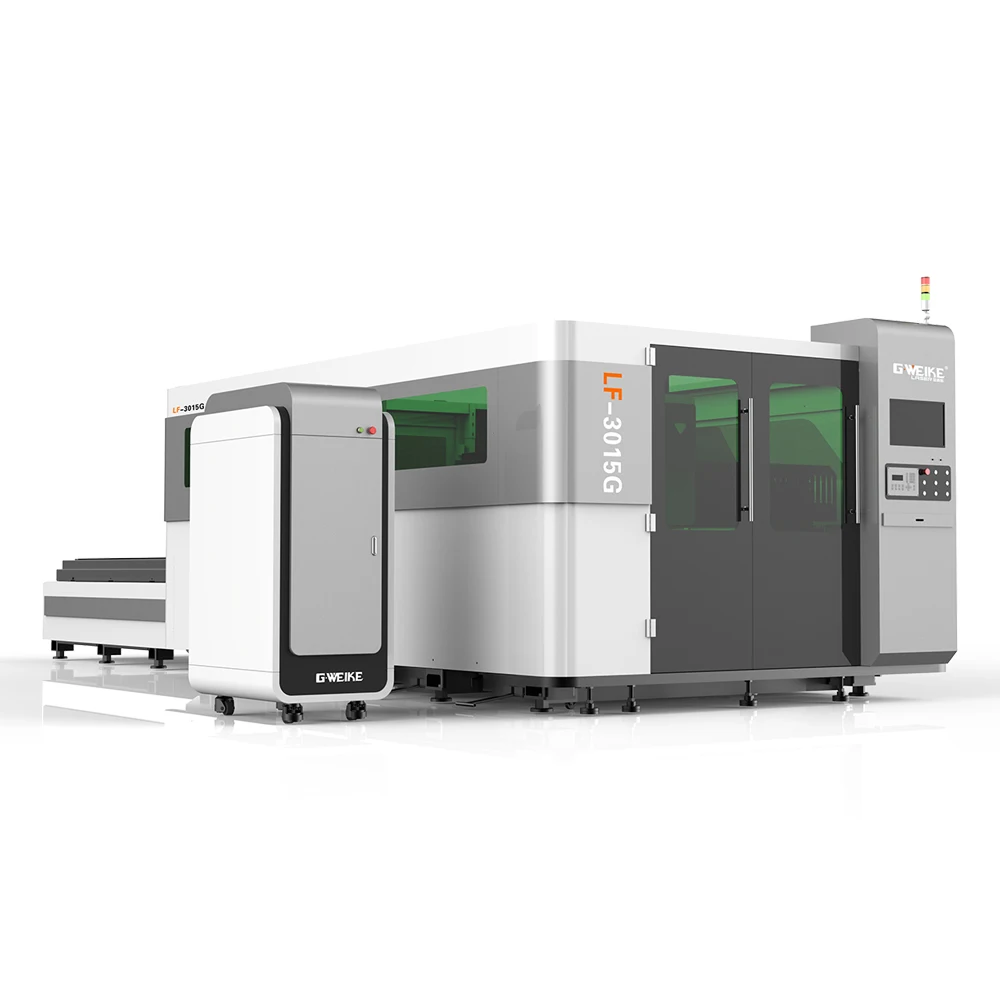

Model: LF3015G

Laser power: 1000W/2000W(optional)

Volume: 46.8CBM

Weight: 7500kg

Table height: 900mm

Dimension: 7900*2950*1900mm

Working size: 3000*1500mm

Repeated positioning precision: ±0.03mm

Max. Running Speed: 120m/min

Max. Acceleration: 1.5G

Driving mode: Precision Dual-drive Gear

Specified voltage and frequency: 380V 50Hz

CNC pipe laser cutting machine Applicable materials

cutting steel machine is professional for cutting a variety of sheet metal, has best quality to cut 0.5-6mm carbon steel, 0.5-5mm stainless steel, ( the max cutting thickness is 3mm if you use N2, and 5mm if you use O2) it also could cut galvanized sheet, electrolytic plate, siliciun steel and other metal materials.

CNC laser cutting machine LF3015C Configuration

1.Swiss Raytool laser head,with automatic focus height follower.

2.IPG fiber laser generator.

3.Japan Yaskawa servo motor system.

4.Taiwan HIWIN linear guide rail.

5.Cypcut controlling system.

6.Germany Atlanta double driver rack gear.

7.Germany Neugart reducer.

g.weike lc6090 1500w laser cutting machine with IPG laser source made in Germany

Aluminum cutting machine quality control

Each aluminum frame cutting machine has passed the strictly quality control, inculding the purchased parts and parts made in G.WEIKE, Only we have the double column milling machine and the laser interferometer to make sure the machine high accuracy and long term use.

g.weike lc6090 1500w laser cutting machine with IPG laser source made in Germany

1000W fiber Laser cutting machine package & shipping

1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool

2.Fumigation wooden box

3.Whole film packaging machine

4.Wooden box at the bottom of a solid iron socket for easy handling

G.WEIKE LASER SERVICE

1.  we will send you the instruction and manuals etc, and Online guide you

2.  Come to our factory to train.

3. We dispatch engineers to your country.

Why choose G.WEIKE ?

1. G.WEIKE is the earlier laser machine company, we set up company at 2002. we are the largest laser machine company in North of  China, with large market share.

2. All sets machine test equipments to make sure the machine quality and high precision.

3. 3 years warranty

If you are interested in our company and machines ,welcome to contact me freely.
