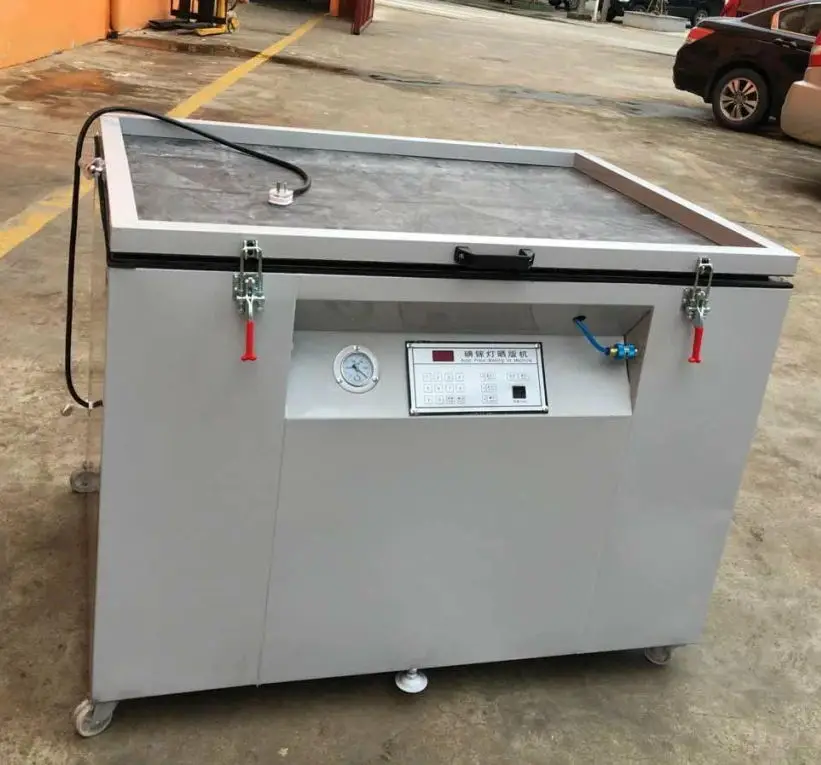

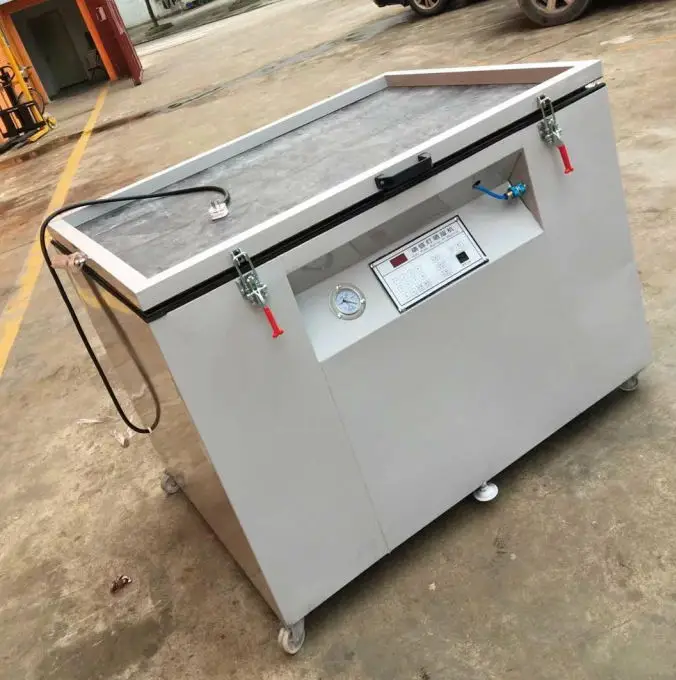

Блок вакуумной экспозиции для трафаретной

Vacuum Exposure Unit for Screen Printing instruction:

1  Vacuum device: With 1.2L vacuum pump, pumping super-fast, can make the screen frame stability in short time.  Instant suction.

2   Rubber: With Taiwan blanket thickness 1.2MM, tough and durable. Two

sides blanket, durable, normal can use 2-3 years is unbreakable.

3 Exposure Machine glass: Thickness 9.2mm, Ensure countertops endurance, body iron thick, thick 1.2MM

4   Exposure machine door: With automatic capping shutter, inner with cool device, can emit the power of light to increase the life of the lamp and achieve the best effect.

5   Machine iron plate: Adapt 1.2mm thick iron plate. Body of machine thicker.

6  Imported reflectors, reflective sheeting like a diamond surface so that the lamp can be refracted to the four corners and ensure uniform light intensity.

7   Cool device: Inner with cool system, can emit the hot of the lamp so that increase the use age of the lamp to achieve the best effect.

8   Light source: Lamp using professional iodine gallium lamp, that is particular durable with spectral stability, low power consumption, short time to exposure.

Vacuum Exposure Unit for Screen Printing Parameter:

Voltage: 220V (+-5%) 50HZ

Whole machine power: 2.75KW

Lamp power: 2KW

Electricity Current: 50A

Max exposure Area: 800x 1100mm

Machine dimension: 900x 1200x 850mm

Vacuum Pump: 1.2L

Weight: 150kgs

Vacuum Exposure Unit for Screen Printing Advantage:

1  Have a uniform light intensity, the amount of light irradiation angle and exposure time scientific control, light source wavelength stability, high vacuum, etc., suitable for high-density lines. Proofing outlets and high-density lines of exposure.

2 Production of high-precision halftone printing premise is the pursuit of perfection, especially particularly important for high line version, ceramic flower paper, electronics, precision industries, such as printing plate automatic precision exposure unit is the use of advanced design, combined screen manufacturing practice painstakingly created a new generation of products, it is the first choice for sophisticated network version produced.

3 Working Theory: the use of rubber gaskets in contact with the glass to form a sealed chamber, the use of vacuum will be printed in close contact with the original timing and scoring flux, select the appropriate exposure time or exposure, exposure to the plate surface, thereby. complete the copy process
