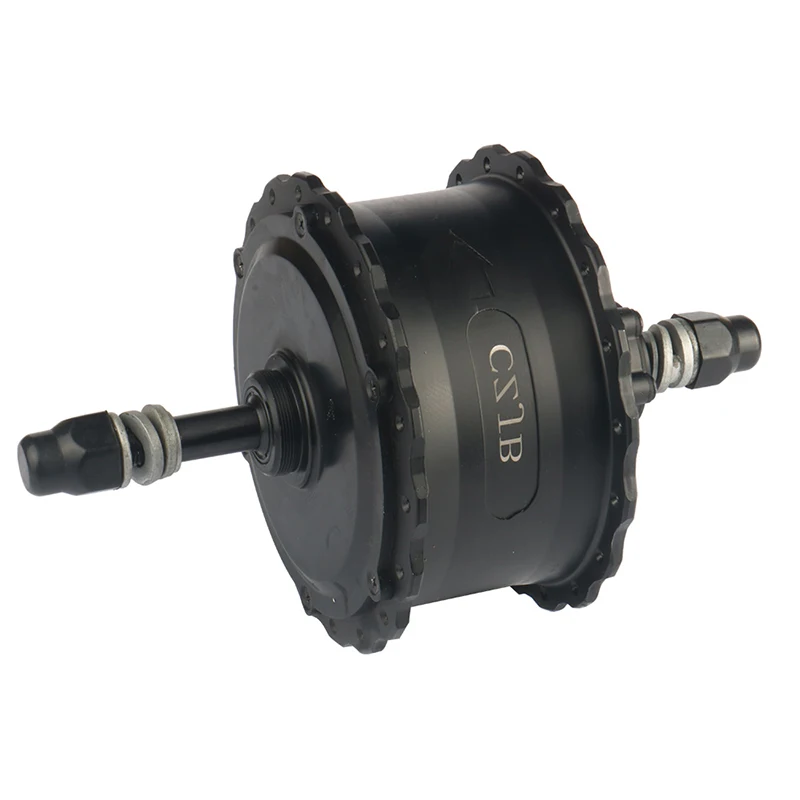

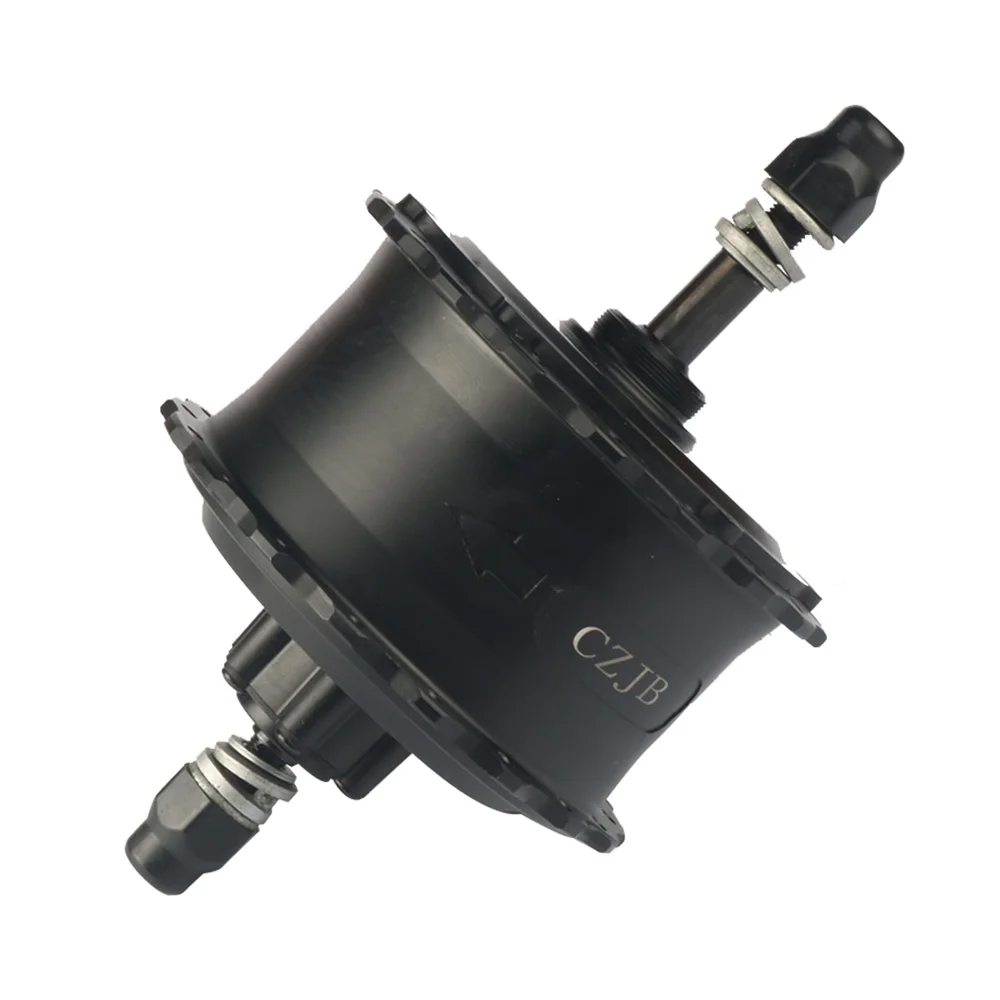

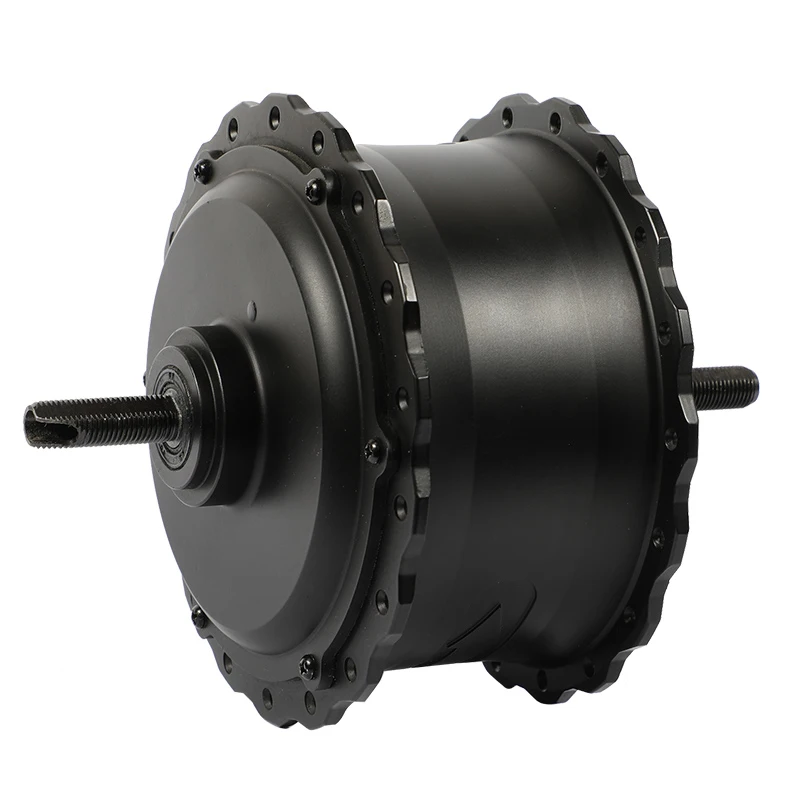

CZJB 110CS Снежный велосипед 750 Вт электрический велосипедный мотор для заднего колеса
- Категория: >>>
- Поставщик: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Сохранить в закладки 60693732793:
Описание и отзывы
Характеристики
Products Paramenters

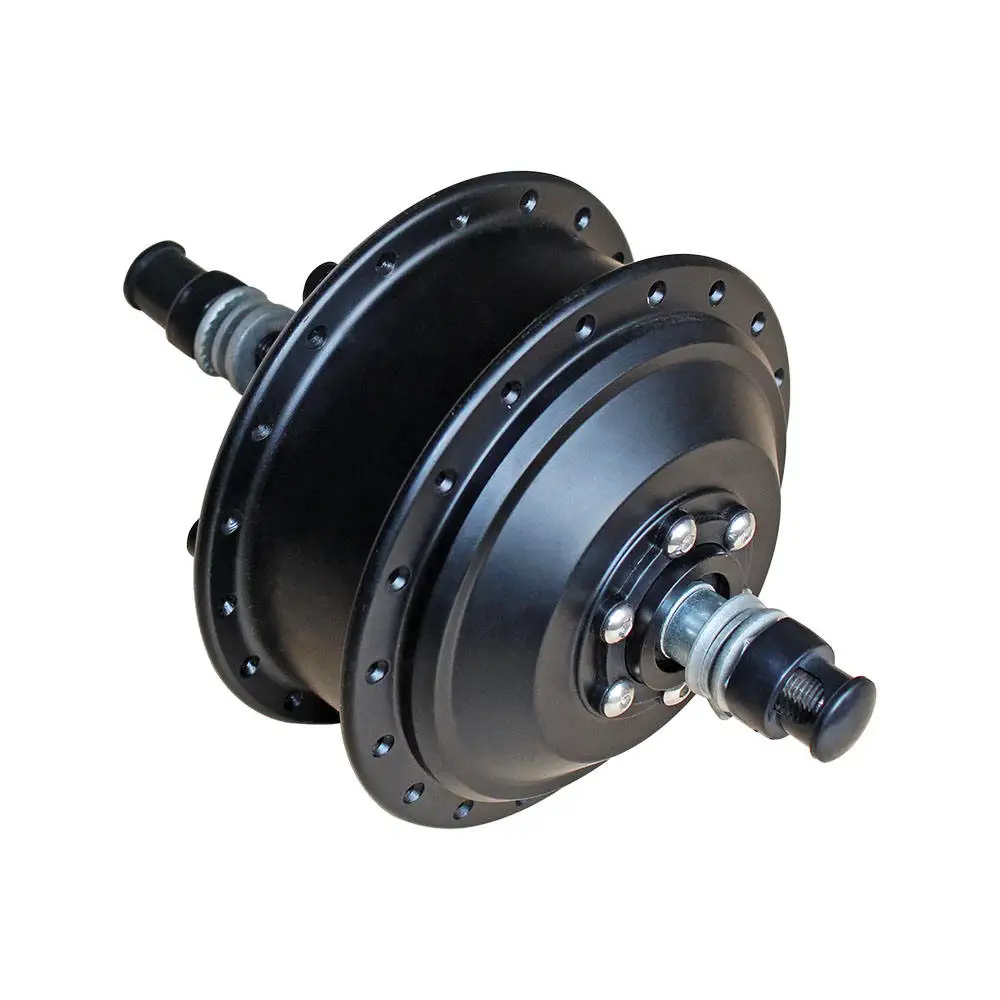

110CS rear electric fat bike hub motor | ||
Rated Voltage(V) | 36/48v | |
Rated Power(W) | 250-750 | |
Rated Speed(km/h) | 25-45 | |
Temperature(℃) | -20～45 | |
Rated Efficiency(%) | ≥82 | |
Color | Matt Black | |
Wheel Size | 16"-29" | |
Redution Ration | 350w1:5/500w1:5.2/750w1:5.8 | |
Weight（kg） | 4-4.5 | |
Open Size(mm) | 170-195 | |
Cable Location | Shaft Center left/ Right | |
Spoke Specification | 36H*12g/13g | |
Brake Type | V /Disc Brake | |
Noise(db) | ≤55db | |
Waterproof Grade | IP65 | |
Product Advantages
A1:High temperature resistant, pure copper coil, exquisite workmanship and exquisite workmanship.
A2:Vacuum dipping paint can improve insulation, reduce vibration, noise and temperature rise, etc. The effect is remarkable, and the service life of products.
A3:Our magnets are made of 38H, with a high temperature resistance of 120 degrees, placed in a 110 ℃ high temperaturebox, constant temperature for 2 hours, demagnetization rate ≤ 2.6%.
A2:Reduce the gear friction to ensure low noise and strong powerunder load. Applicable models: 75Q, 75T, 75T2, 90T, 90TQ, 90T2, 90TZ,105C,105CQ,105C2,105CZ.
Details Images
6-7s multispeed freewheel

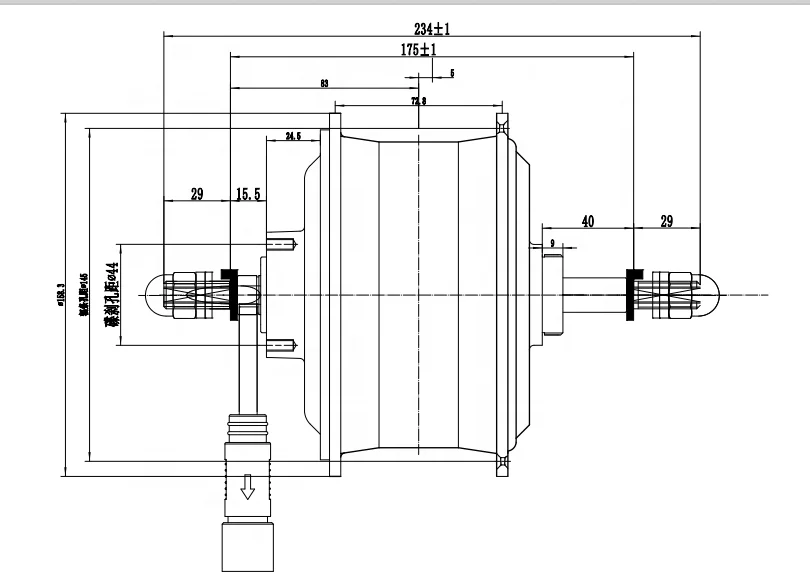

dropout can do 170-195mm
assemble 4.0 wheel
fat bike motor can assemble 20-26"*4.0 wheel
About us
*E-bike hub motor manufacturer
*support e-bike system customization
*16 years professional experience of e-bike gear motor
*continuous R&D
*ODM&OEM
*ISO9001,CE,ROHS,SGS,UKCA,
*Western America Service Center
*support e-bike system customization
*16 years professional experience of e-bike gear motor
*continuous R&D
*ODM&OEM
*ISO9001,CE,ROHS,SGS,UKCA,
*Western America Service Center
Partner
1. Q: What are your terms of packing?
A: Generally, Packaging with foam and makar carton for ebike motors which is suitable for shipping container.
A: Generally, Packaging with foam and makar carton for ebike motors which is suitable for shipping container.
2. Q. What is your terms of payment ?
A: T/T 30% as deposit, and 70% before delivery. 100% for sample.We'll show you the photos or video of the products
and packages before you pay the balance. Or you can come to have a check of it.
A: T/T 30% as deposit, and 70% before delivery. 100% for sample.We'll show you the photos or video of the products
and packages before you pay the balance. Or you can come to have a check of it.
3. Q: Do you test all your goods before delivery?
A: Yes, all products will be tested before delivery.
A: Yes, all products will be tested before delivery.
4. Q: Could you print customer’s logo and information on motors?
A:Yes, OEM and ODM is available for ebike motor.
A:Yes, OEM and ODM is available for ebike motor.
5. Q: Do you accept sample order?
A:Yes, Sample order is available and sample delivery by express such as FedEx, DHL.
A:Yes, Sample order is available and sample delivery by express such as FedEx, DHL.
6. Q: How long is your lead time ?
A:Sample order for e-bike motor is within 15 working days
Sample order for E-bike conversion kit is about 25-30 working days
7. Q: How to confirm the conversion kit fit my bicycle?
The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
8. Q: How do you make our business long-term and good relationship?
A: First we keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’benefit;Second we respect each customer. We sincerely do business and make friends with them.
9. Q: Can we have a recheck of products before delivery?
A: Yes, you can let you
A:Sample order for e-bike motor is within 15 working days
Sample order for E-bike conversion kit is about 25-30 working days
7. Q: How to confirm the conversion kit fit my bicycle?
The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
8. Q: How do you make our business long-term and good relationship?
A: First we keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’benefit;Second we respect each customer. We sincerely do business and make friends with them.
9. Q: Can we have a recheck of products before delivery?
A: Yes, you can let you
10.Q:How do you guarantee the quality of the products?
Jiabo, which is a factory with complete after-sale service system. We promise 2 years' warranty. First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight.
Jiabo, which is a factory with complete after-sale service system. We promise 2 years' warranty. First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight.
Похожие товары
Только $34 250 Вт Электрический велосипед бесщеточный редуктор серебристый двигатель переднего колеса v тормоз в наличии
3 549,68 ₽ - 3 882,47 ₽

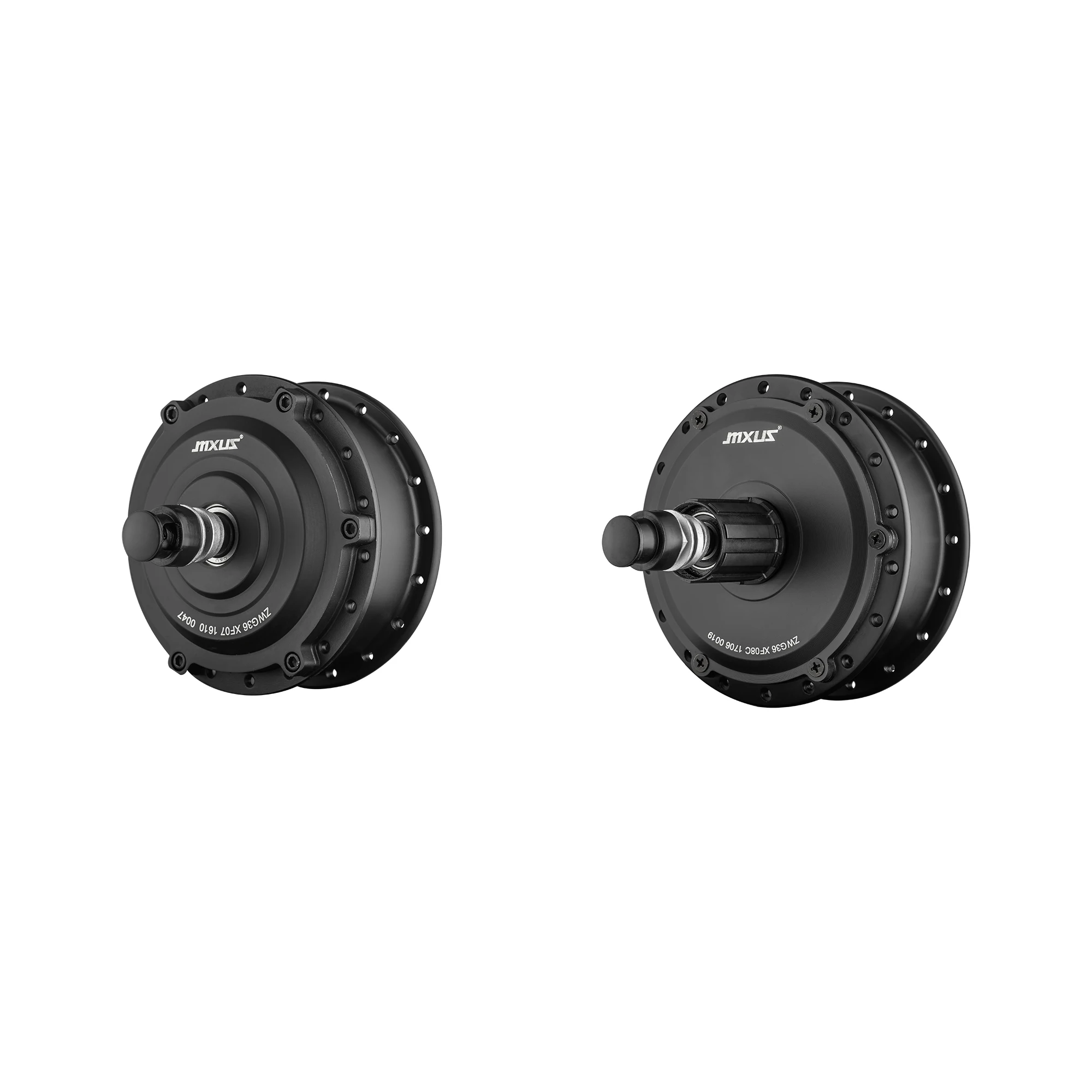

Mxus factory лучшее качество 250 Вт/350 Вт 16/20/24/26/28 дюймов бесщеточный Электрический велосипедный двигатель
5 324,52 ₽ - 6 655,65 ₽
Электровелосипед 36 В 250 Вт бесщеточный редукторный мотор для электровелосипеда
1 089,67 ₽ - 4 953,02 ₽

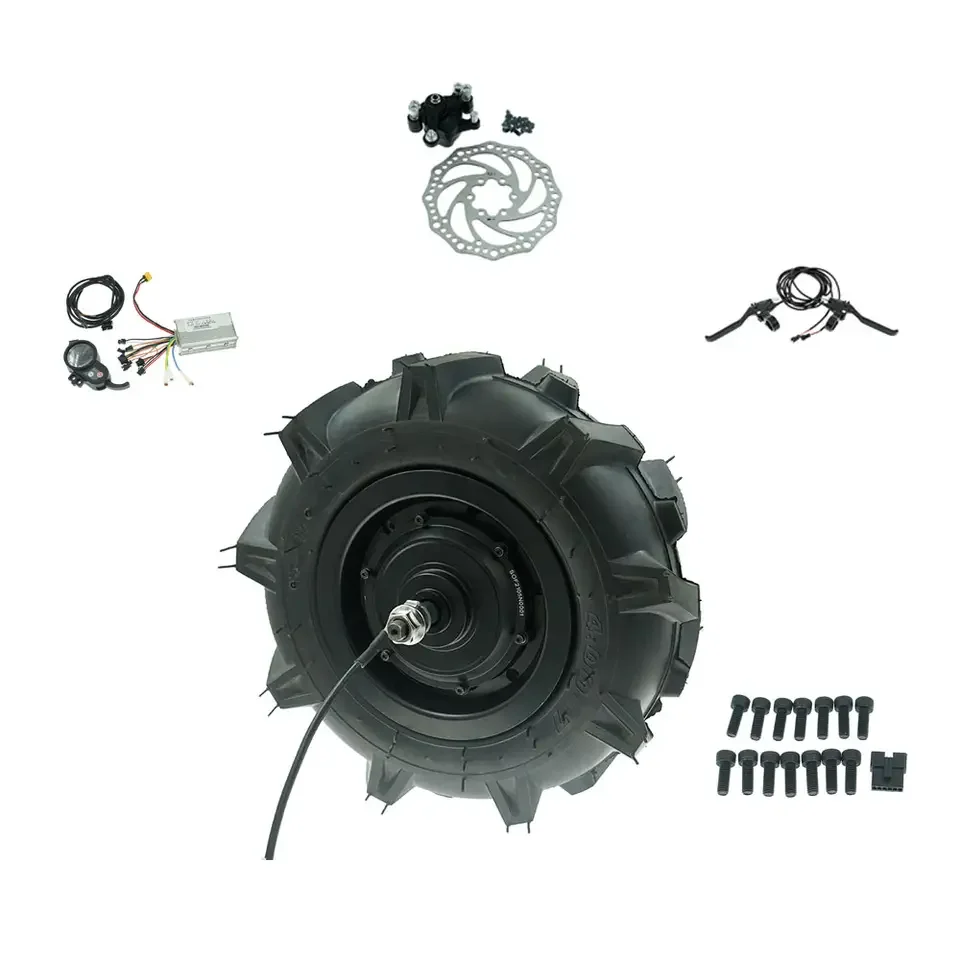

Новые 14-дюймовые низкоскоростные с высоким крутящим моментом 6-10 км/ч 48 В 750 Вт комплекты ступиц тачки
Bafang новейший 36 В/48 В 250 Вт умный Средний привод Магнитный центральный двигатель комплект для emtb Электрический горный велосипед
58 885,80 ₽ - 63 288,47 ₽

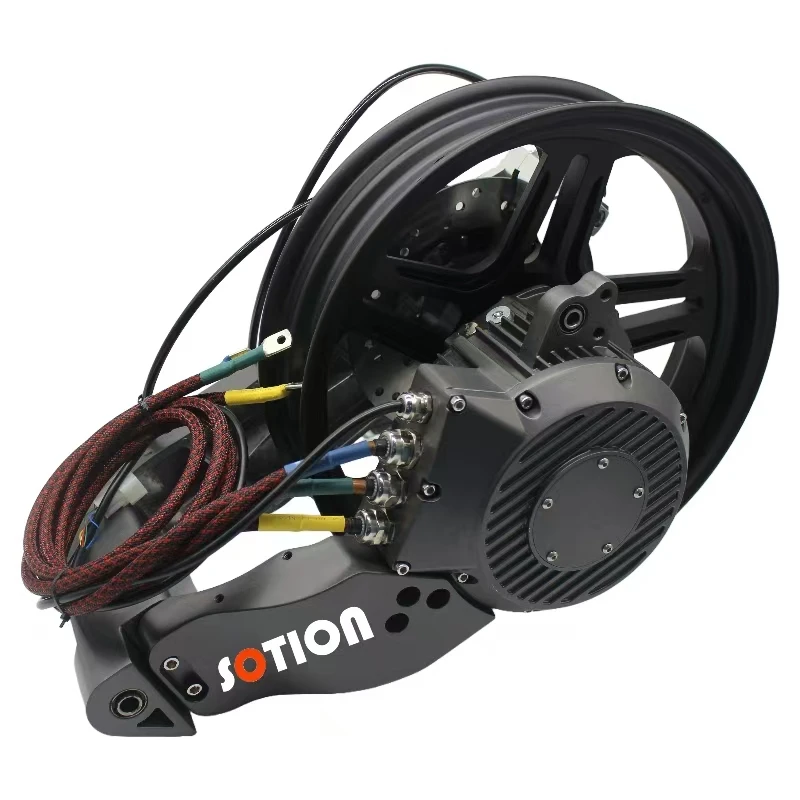

FW28 SOTION редуктор боковой 5950 RPMM двигатель 14-дюймовый колесный поворотный рычаг для электрического велосипеда
44 371,00 ₽ - 49 917,38 ₽

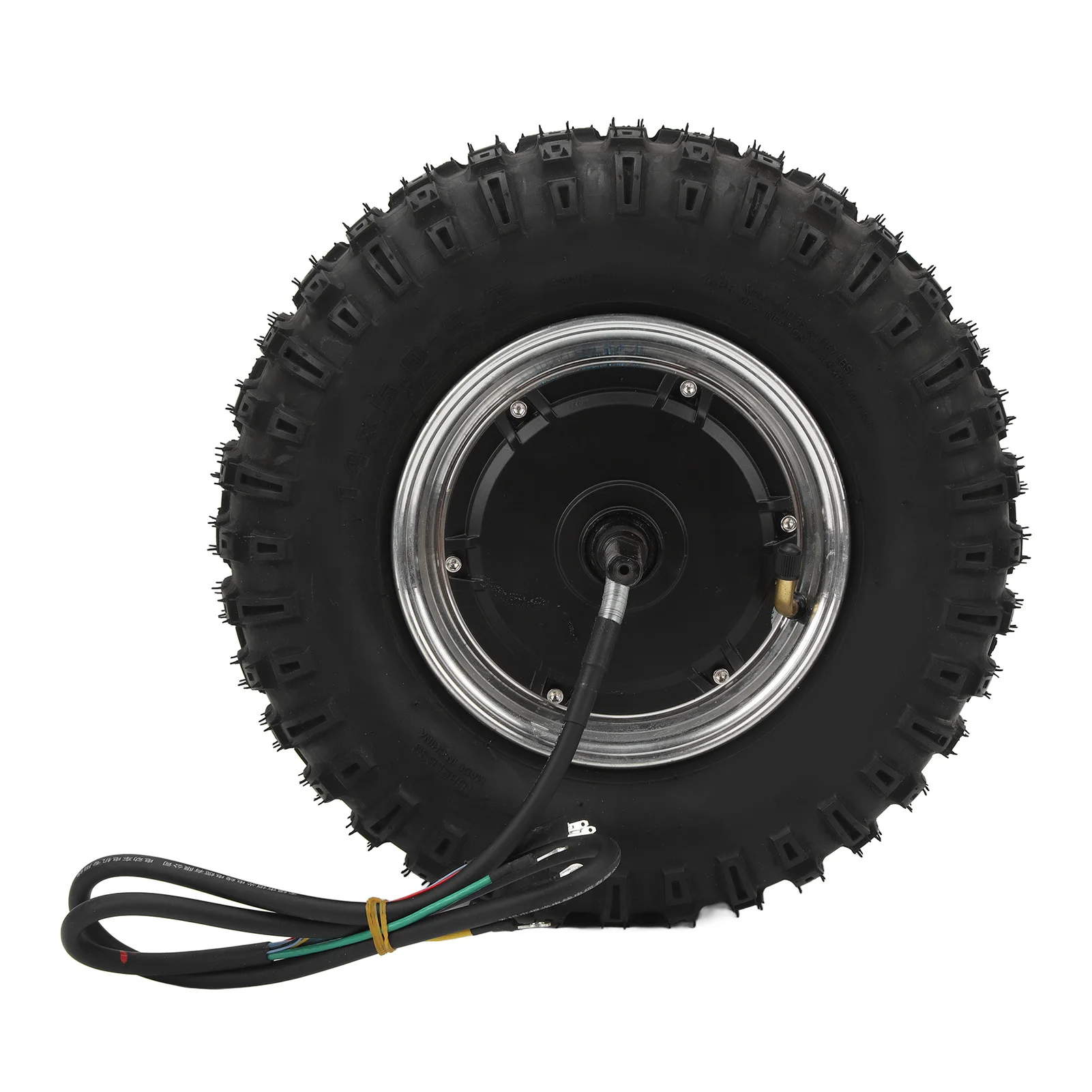

14 дюймов 500 Вт-4000 Вт высокая скорость 120 км/ч бесщеточный бесредукторный Мотор Ступицы вилка размер 137 мм задний привод ступицы двигателя
