FSTB KSD314 big current thermostat heating applications for electric heater parts

Product Description

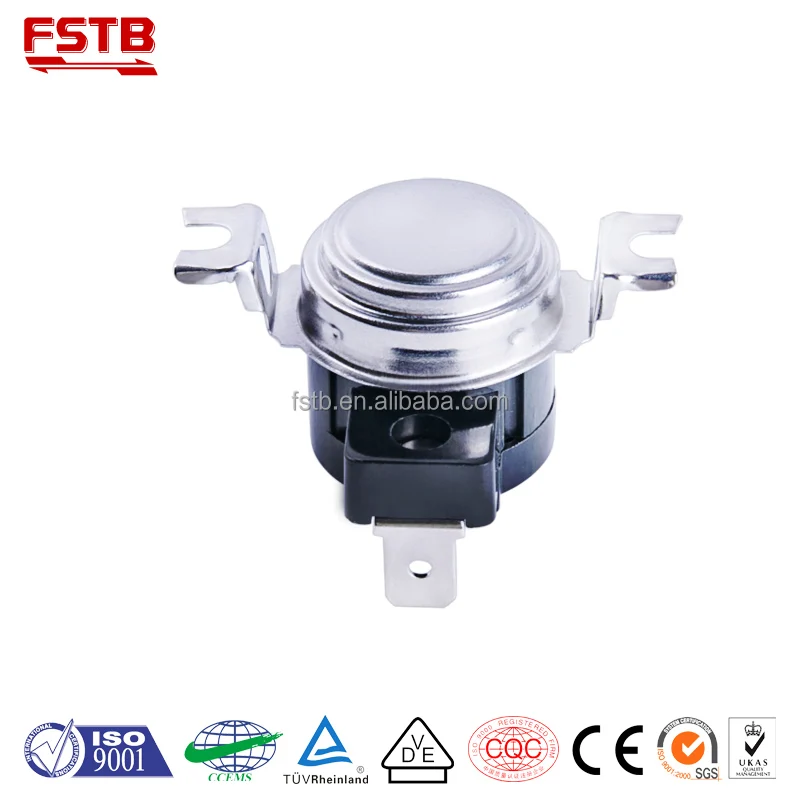

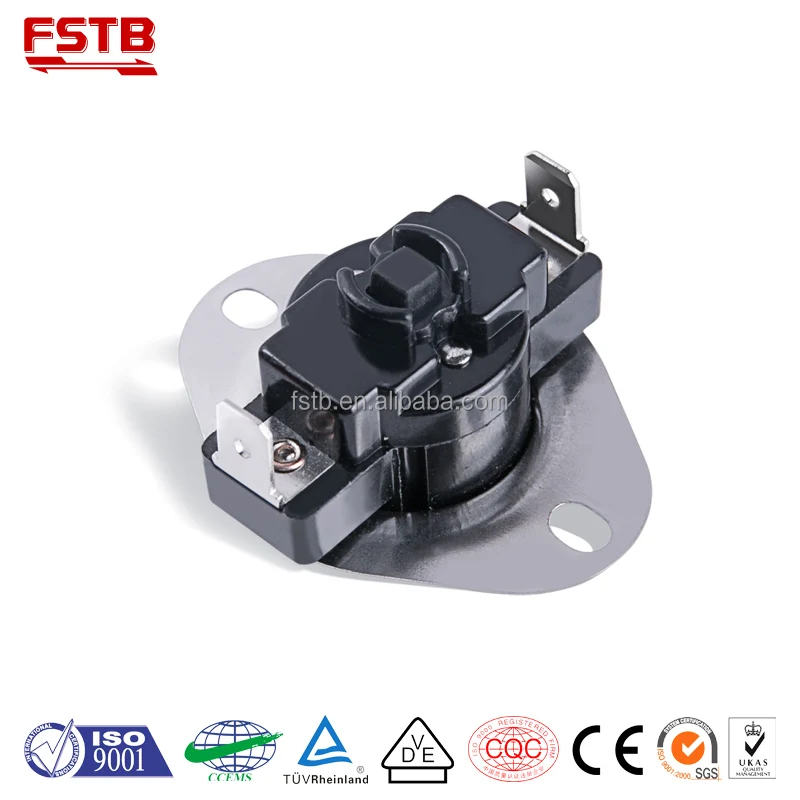

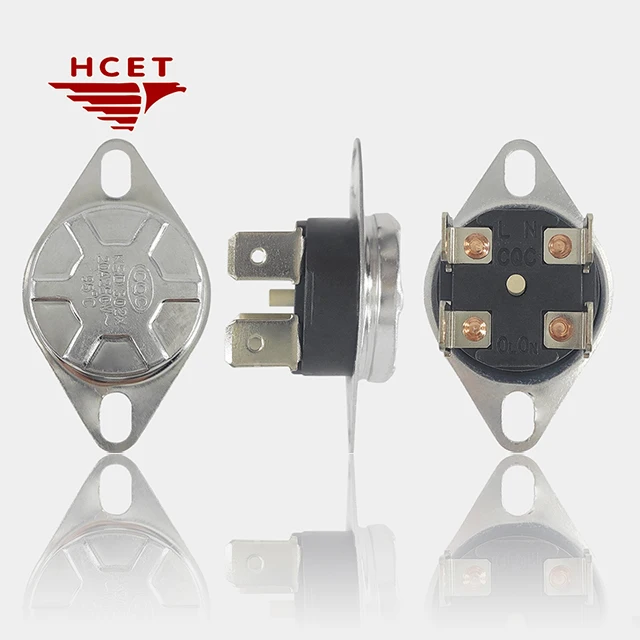

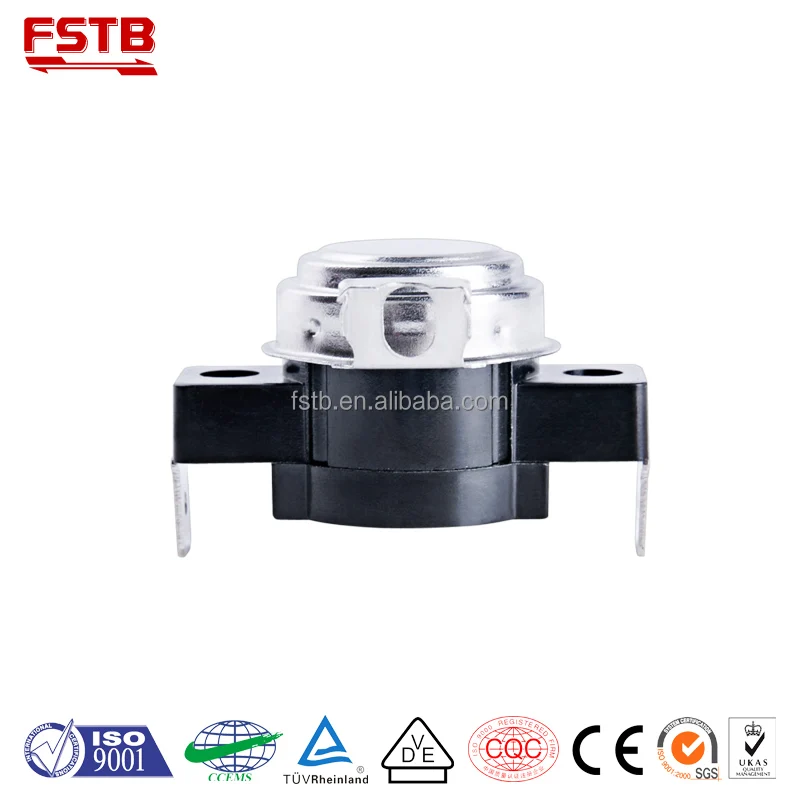

KSD314 series snap-action thermostat is a kind of hermetically sealed bimetal thermal protector(3/4" disc). Working under resistive load, it has high loading capacity, and its max current could reach 45A. This series is suitable for high-duty electric appliances as temperature control or overheat protection.

KSD314 thermostat is divided into 6 sub-series according to different structures and applications, they are KSD314-V, KSD314-Q, KSD314-R, KSD314-U, KSD314-T and KSD314-F.

Technical Parameter of Sub-series:

Sub-series	Action type	Switch structure	Rating	Max. OT	Life cycles
KSD314-V	Automatic reset	SPST,Normal close or Normal open	250V 45A 125V 45A	140°C	10,000
KSD314-V	Automatic reset	SPST,Normal close or Normal open	250V 25A 125V 25A	180°C	100,000
KSD314-Q	Dual temperature automatic reset	SPSTNormal close	250V 45A 125V 45A	140°C	10,000
KSD314-Q	Dual temperature automatic reset	SPSTNormal close	250V 25A 125V 25A	180°C	100,000
KSD314-R	Manual reset	SPST,Normal close	250V 45A 125V 45A	140°C	10,000
KSD314-U	One shot type	SPST,Normal close	250V 45A 125V 45A	140°C	100,000
KSD314-T	Electrical self hold (Voltage maintain type)	SPST,Normal close	250V 45A 125V 45A	140°C	10,000
KSD314-T	Electrical self hold (Voltage maintain type)	SPST,Normal close	250V 25A 125V 25A	180°C	10,000
KSD314-Q	Automatic reset	SPDT	250V 25A 125V 25A	180°C	100,000

Resistance between terminals:below 50 mΩ

Max temperature of different OT
OT≤50	OT:51~100	OT:101~145	OT:146~180
100(L)130(S)	140(L)170(S)	185(L)215(S)	205(L)235(S)

L:Long term

S: Less than 15 min

Installation and Direction for Use:

Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.

The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.

When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.

If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. Moreover, cautious measures should be taken to prevent liquids getting into/onto the thermostat’s insulation parts.

The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.

Liquids must be kept out of the thermostat’s inner part! The base must avid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.
