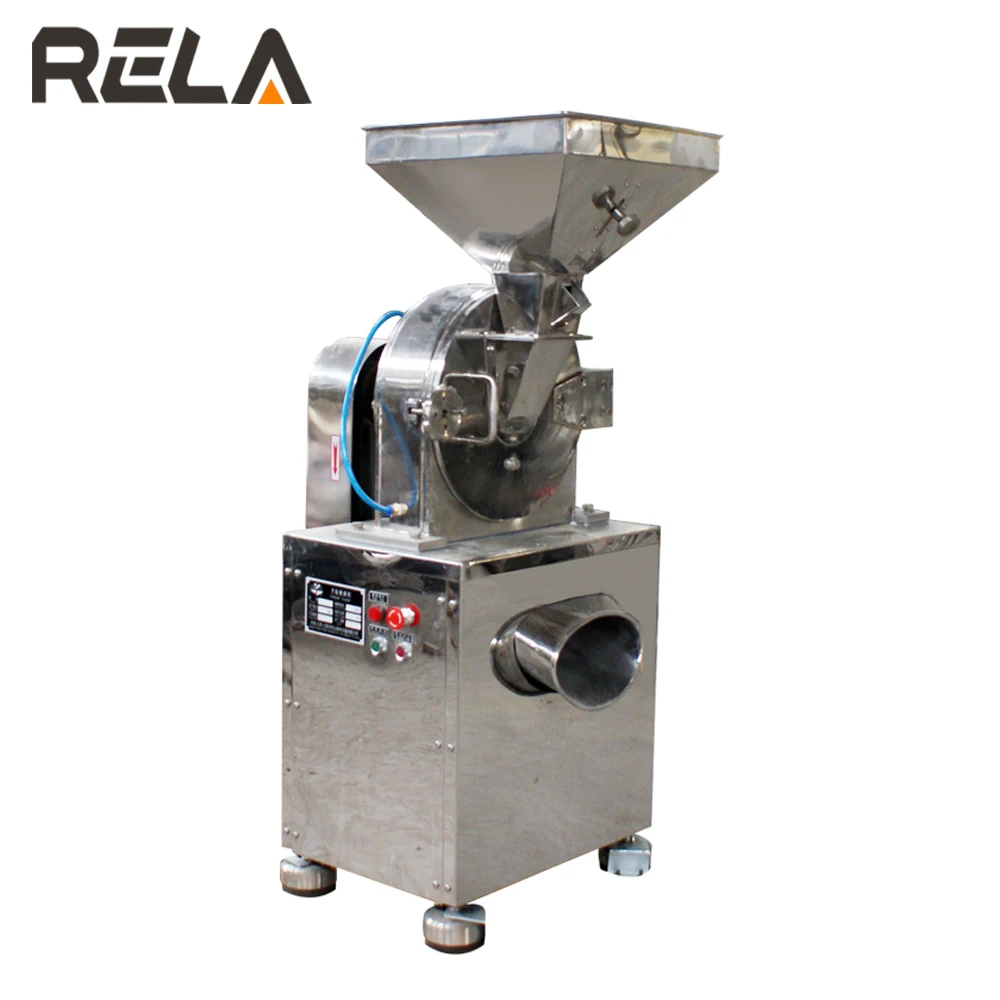

Универсальная мельница для муки маниоки

Универсальная мельница для муки маниоки

Категория: >>>
Поставщик: Wuxi Rela Pharma Machinery Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Product Application

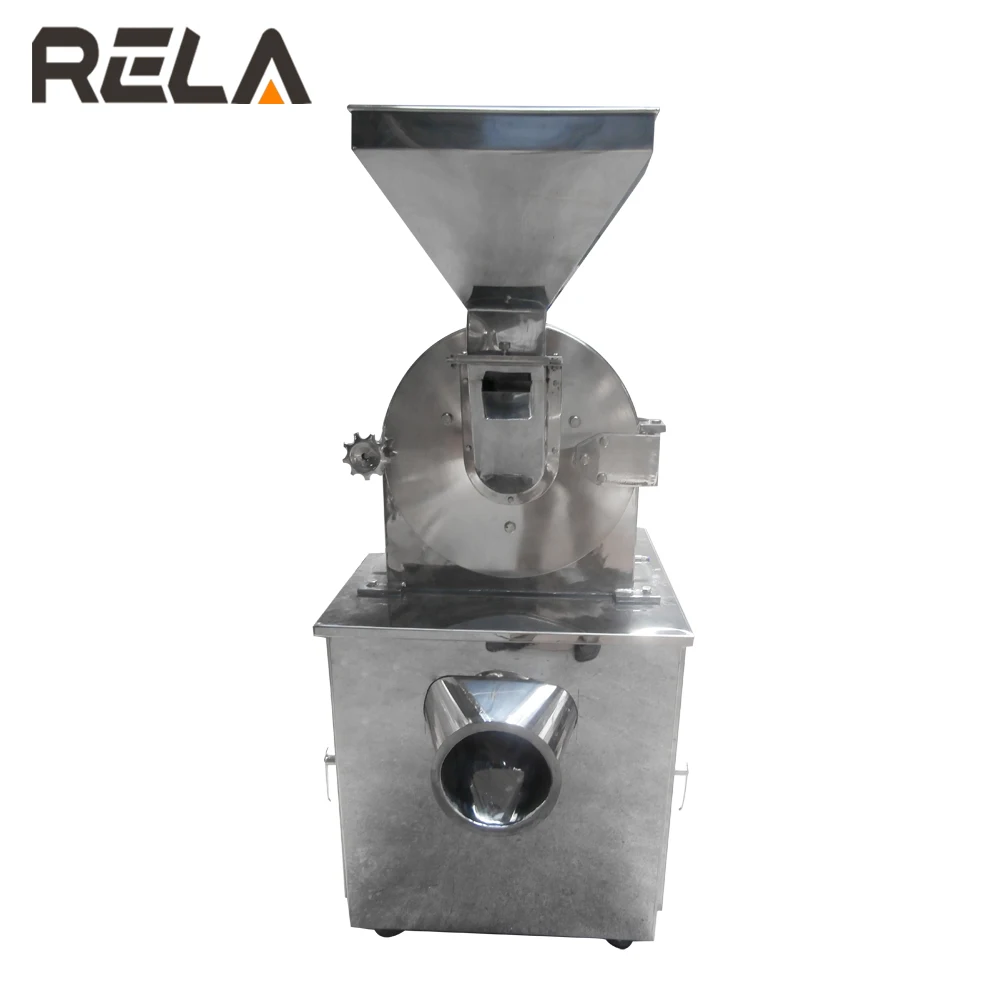

SUS304 Universal Cassava Flour Hammer Mill is a multifunctional fine powder grinder. It can grind powder at 20-120mesh. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. such as sugar, salt, crystal material; chili, pepper, pimento, coriander, cumin, cinnamon, cardamom, star anise, celery seed, ginger, licorice; rice, chaff, corn, sweet potato bran, cocoa bean, coffee, etc. .

Working Principle

There are a disc with several moving tools as a rotor and serrated liners as stator. The big raw material, being fed into the crushing chamber through a hopper, is sheared, cut, impacted into small size by the rotor and stator. The crushed product goes out automatically via a sieve and discharged from the outlet port.
It is designed according to cGMP standard and made of stainless steel. With the features of simple structure, easy cleaning, low noise, etc.．

\t\t\t\t\t\t\t\t\tTechnical Parameter \t\t\t\t\t\t\t

\t Model	\t Capacity (kg/h)	\t Rotary Speed (rpm)	\t Input size (mm)	\t Output size (mm)	\t Power (KW)	\t Weight (kg)
\t LFJ-180	\t 5-30	\t 5500	\t <10	\t 12-120	\t 2.2	\t 100
\t LFJ-20B	\t 20-150	\t 5300	\t <10	\t 12-120	\t 4	\t 160
\t LFJ-30B	\t 30-300	\t 4500	\t <10	\t 12-120	\t 5.5	\t 250
\t LFJ-40B	\t 40-800	\t 3800	\t <10	\t 12-120	\t 7.5	\t 450
\t LFJ-60B	\t 80-1200	\t 3000	\t <10	\t 12-120	\t 22	\t 800
\t LFJ-80B	\t 150-2000	\t 2100	\t <10	\t 12-120	\t 30	\t 1200
\t LFJ-100B	\t 300-3000	\t 1600	\t <10	\t 12-120	\t 45	\t 1600

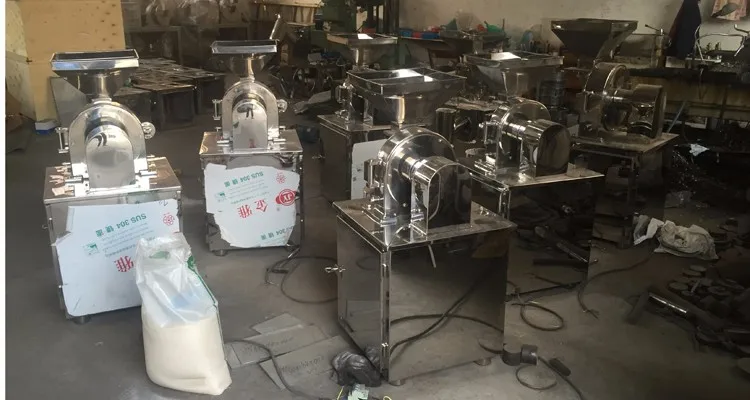

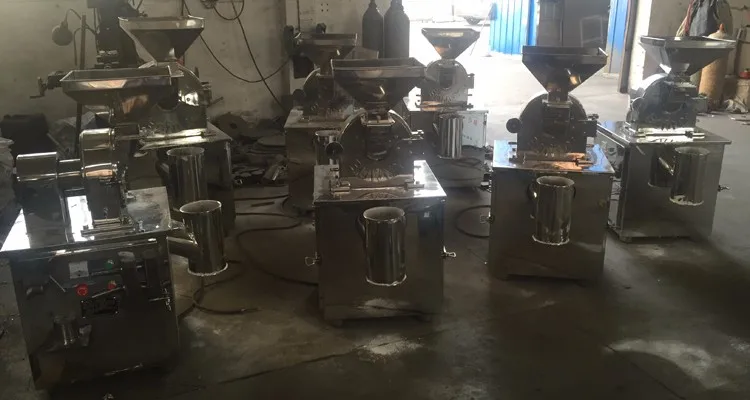

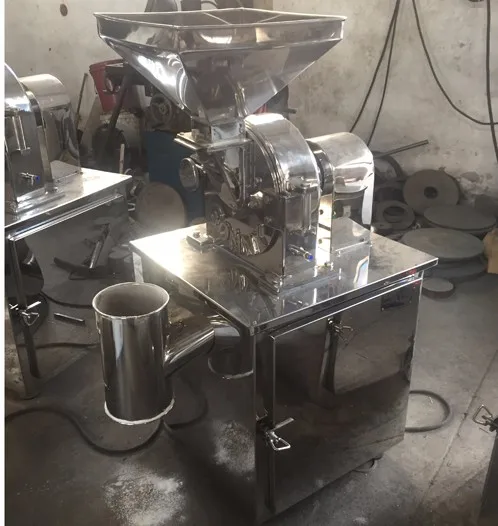

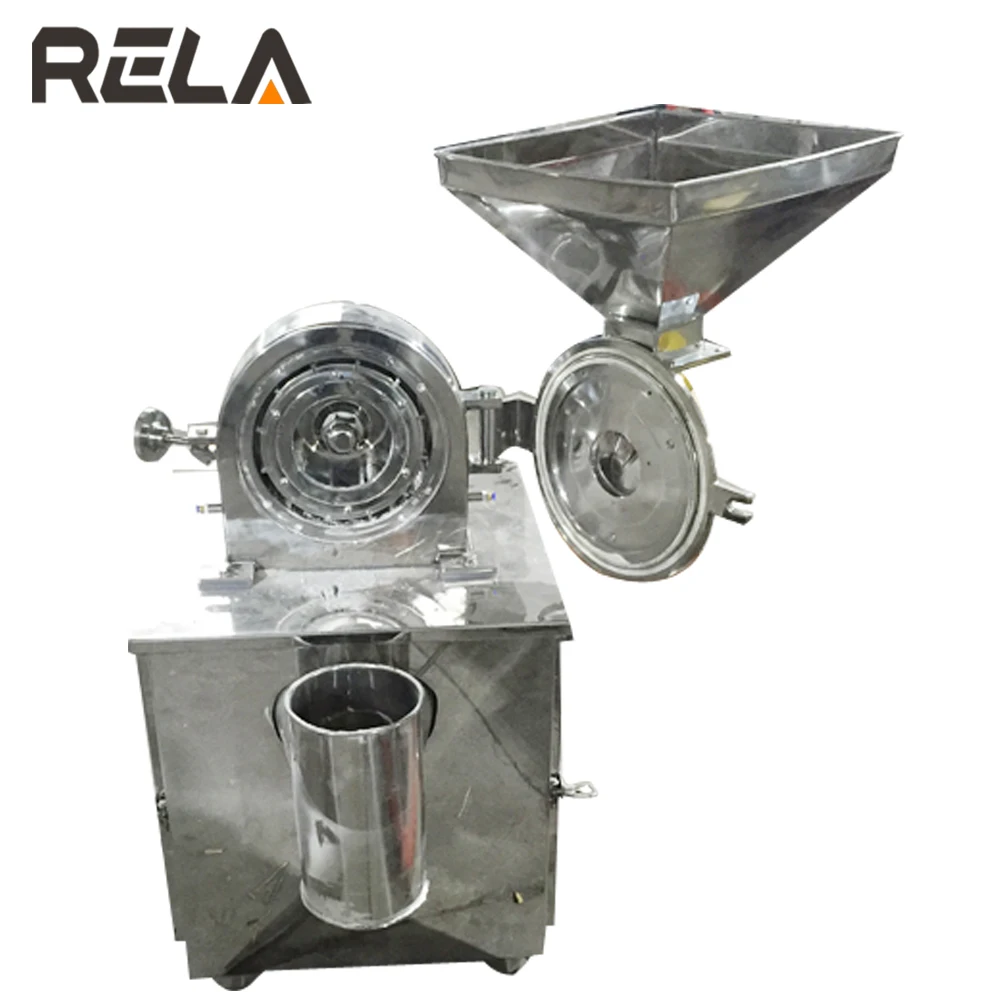

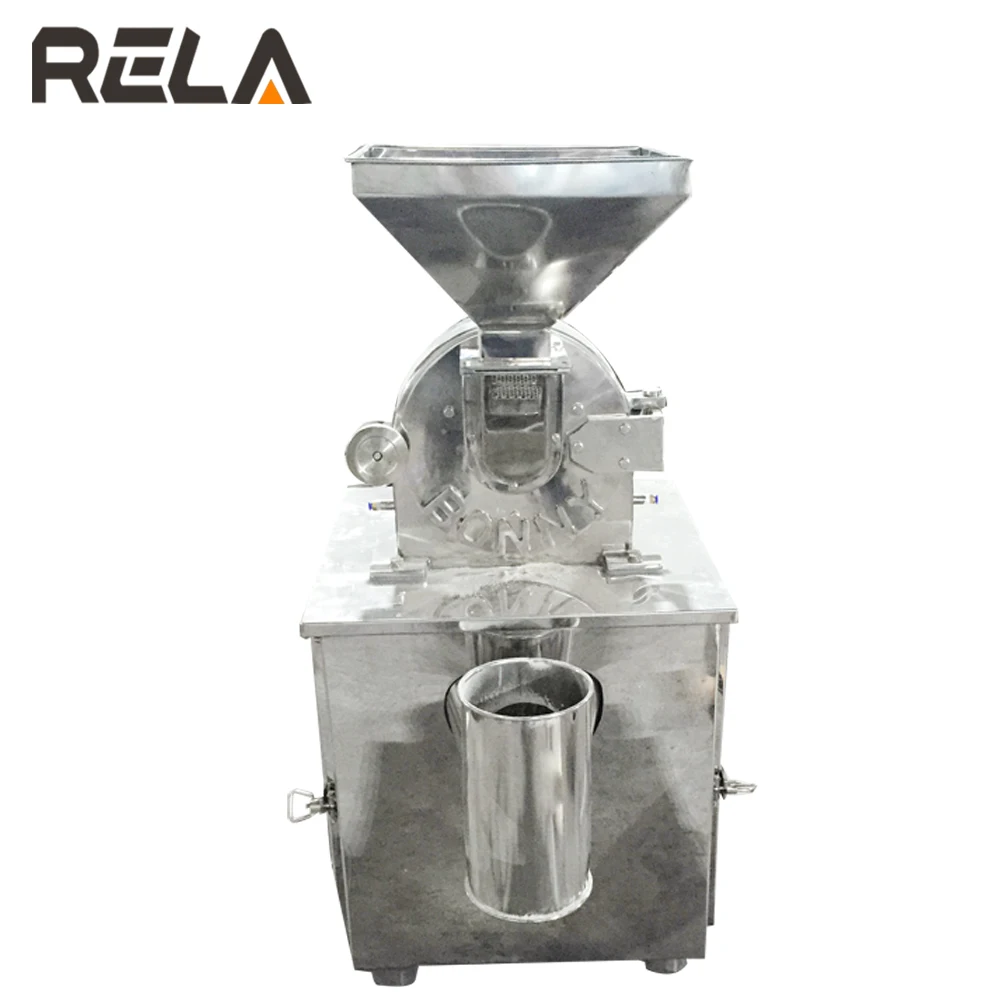

Detailed Images

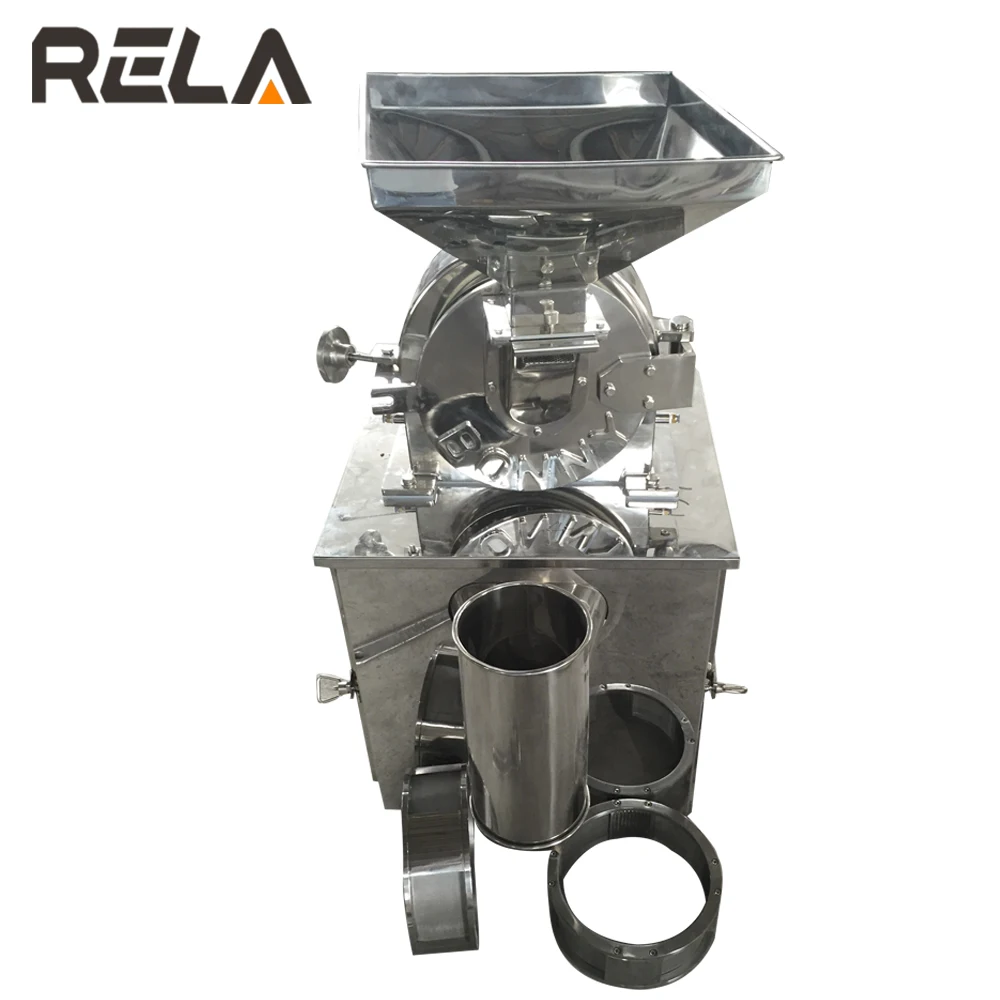

PS: we have 6 Types of Rotor & Stator for your choice according to different products.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Introduce the product to the customer in detail, answer the question raised by customer carefully.
* Make plans for choice according to the needs and special requirements from customer.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide technical support
* Provide spare parts with cost price.
* Establish long-term and friendly relationship

Packing & Delivery

\t Packaging
\t ize	\t Depends on the model
\t Weight	\t Depends on the model
\t Packaging Details	\t -Pre-pack by Plastic Film -Plywood Case If the machine is too big to be packed, we will pack the naked machine into container directly and fasten them.
