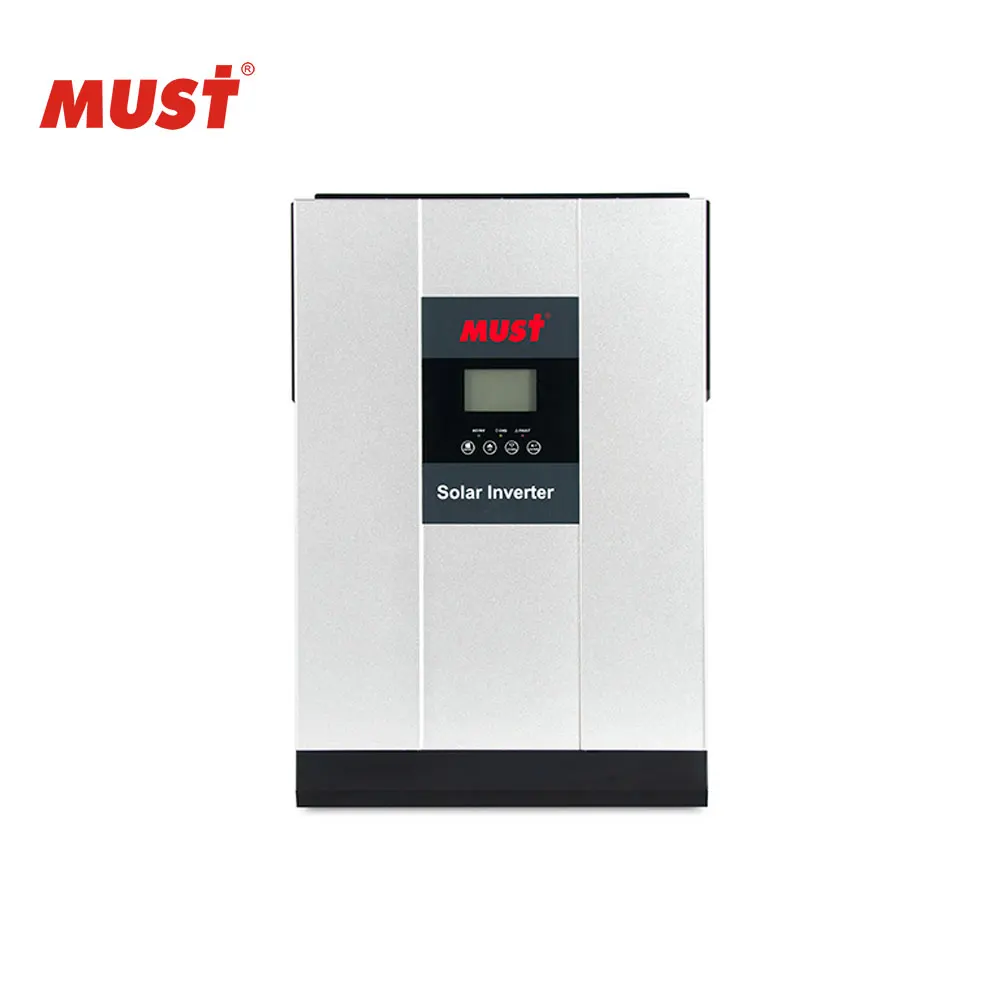

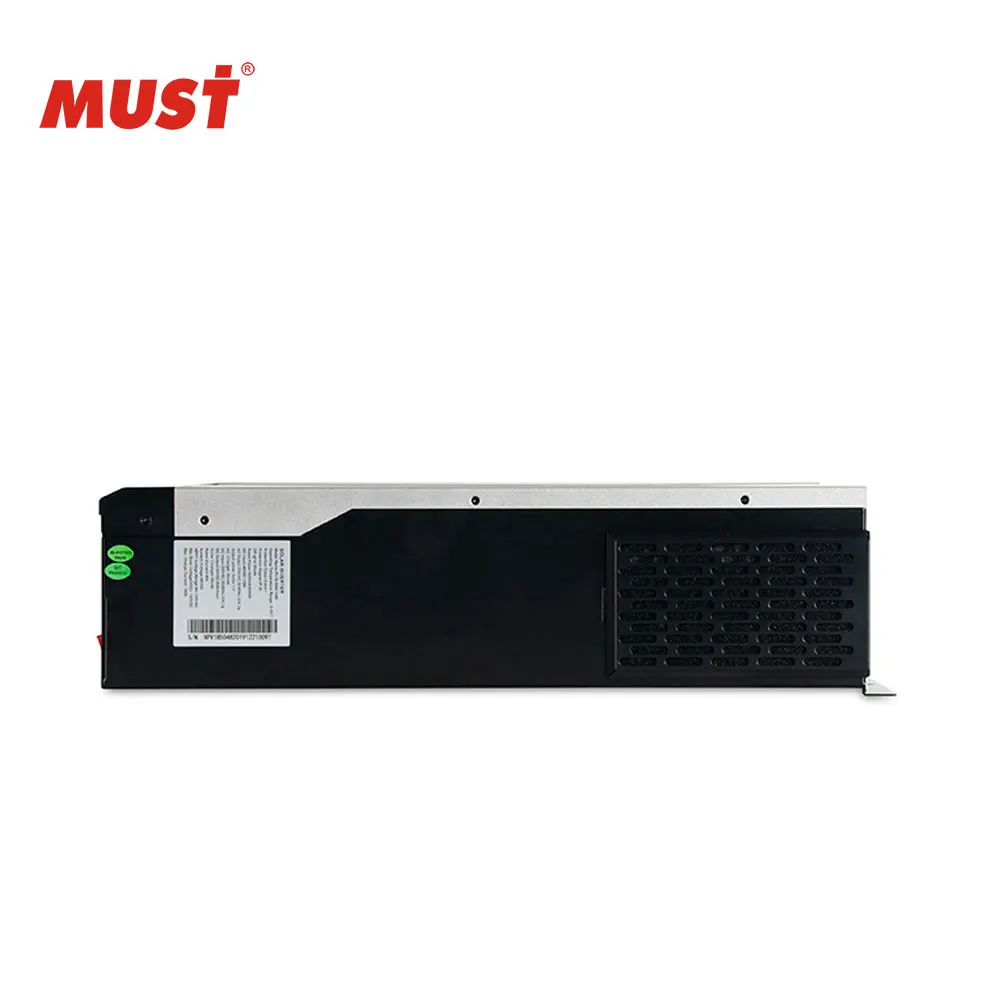

Автономный Гибридный солнечный инвертор 3kVA 3000VA 2400W 24V 60A MPPT контроллер
208,00 $ - 235,04 $
Сертификат CE эксперт в автономном гибридном солнечном инверторе 2kva 3kva 4kva
- Категория: Солнечные инверторы >>>
- Поставщик: Shenzhen Must Power Limited
Сохранить в закладки 60695489799:
Описание и отзывы
Характеристики
CE certificated Expert on off grid Hybrid 2kva 3kva 4kva 5kva solar inverter
Product Description
1.The features of pure sine wave inverter
. Pure sine wave inverter
. Selectable input voltage range for home appliances and personal computers
. Selectable charging current based on applications
. Configurable AC/Solar input priority via LCD setting
. Compatible to mains voltage or generator power

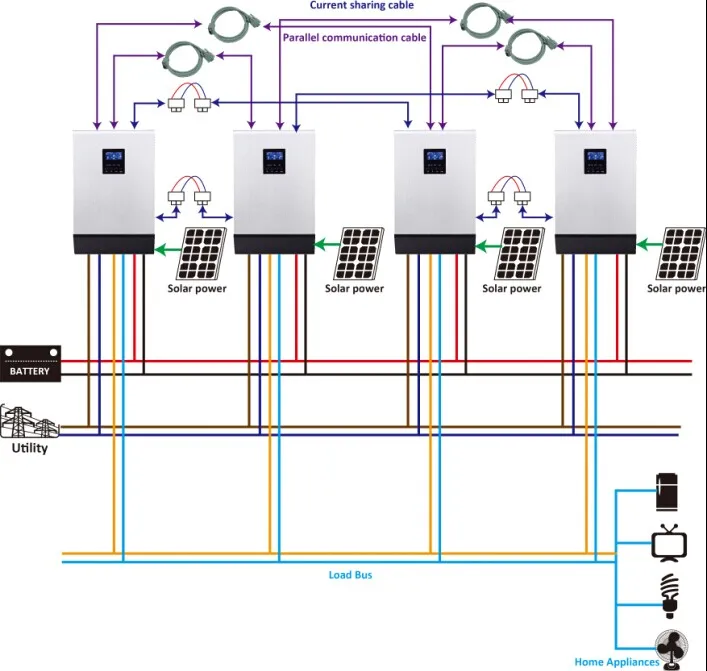

. Parallel operation with up to 4 units only available for PV18-4K/5K
. Auto restart while AC is recovering
. Overload and short circuit protection
. Smart battery charger design for optimized battery performance
. Cold start function
2.The specifications of pure sine wave inverter PV1800
| MODEL | PV18-1K | PV18-2K | PV18-3K | PV18-4K | PV18-5K | |
| Default Battery System Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | |
| INVERTER OUTPUT | Reted Power | 1000VA/ 800W | 2000VA/ 1600W | 3000VA/ 2400W | 4000VA/ 3200W | 5000VA/ 4000W |
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||||
| Inverter Efficiency (Peak) | 90% | 93% | ||||
| Transfer Time | 10ms(For Personal Computers) 20ms(For Home Appliances) | |||||
| AC INPUT | Voltage | 230VAC | ||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | Nominal voltage | 12VDC | 24VDC | 48VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | |||
| Overcharge Protection | 15VDC | 30VDC | 60VDC | |||
| SOLAR CHARGER & AC CHARGER | Maximum PV Array Open Circuit Voltage | 30VDC | 60VDC | 105VDC | ||
| Standby Power Consumption | 1W | 2W | 2W | |||
| Maximum Solar Charge Current | 50A | 50A | 50A | |||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | |||
| Maximum Charge Current | 50A | 110A | ||||
| MECHANICAL SPECIFICATIONS | Dimension,WxHxD(mm) | 240×316×95 | 272×355×100 | 297.5×468×125 | ||
| Net Weight(kg) | 5 | 6.4 | 6.9 | 9.8 | ||
| OTHER | Humidity | 5% to 95% Relativ Humidity (Non-condensing) | ||||
| Operating Temperature | 0℃-55℃ | |||||
| Storage Temperature | -15℃-60℃ | |||||
3.What is pure sine wave inverter?
Solar pv inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

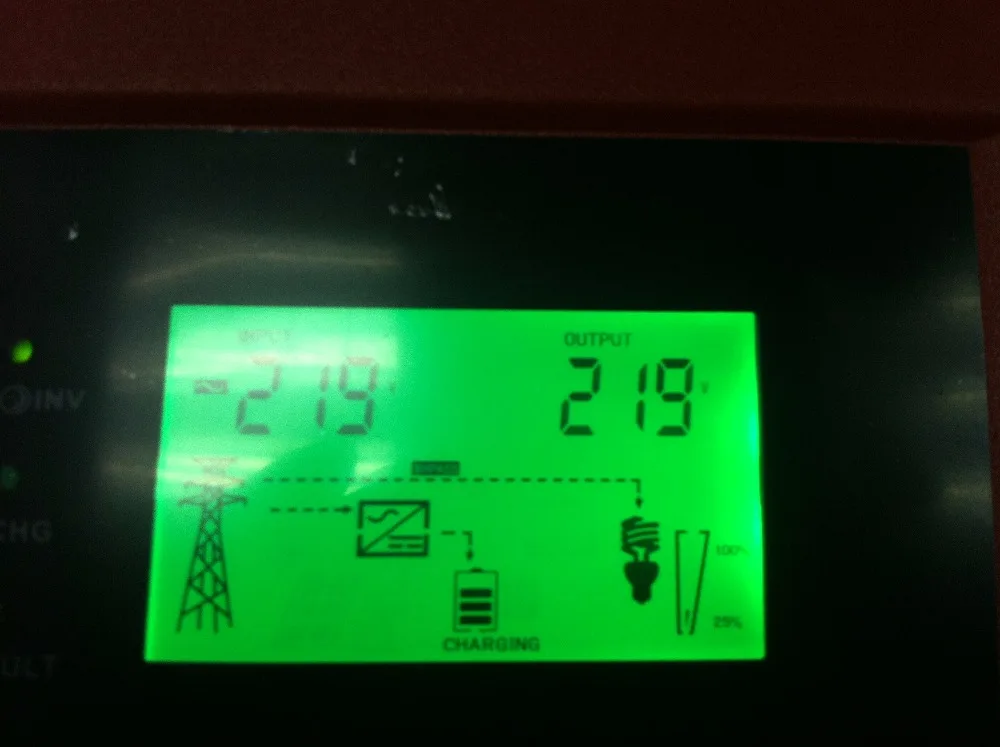

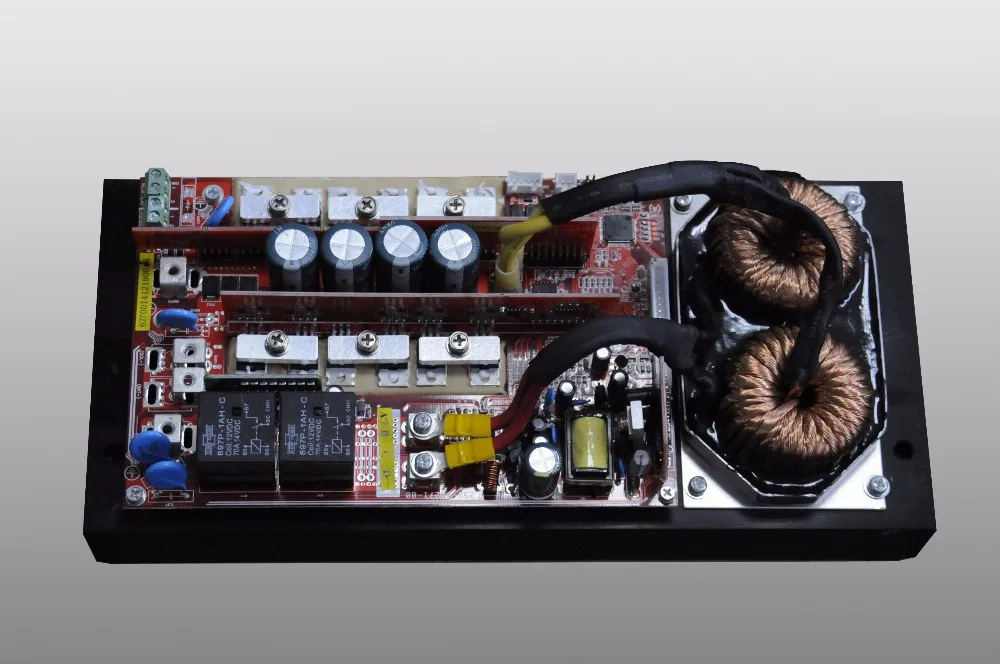

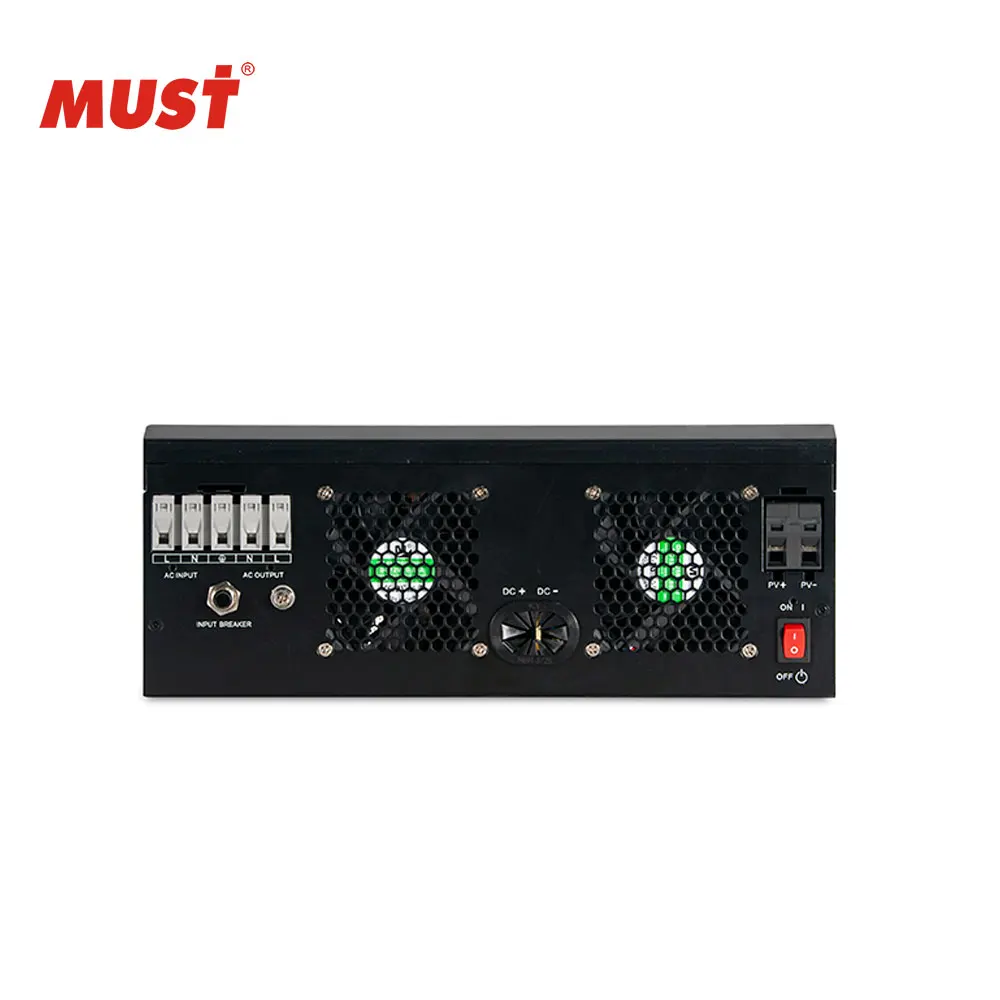

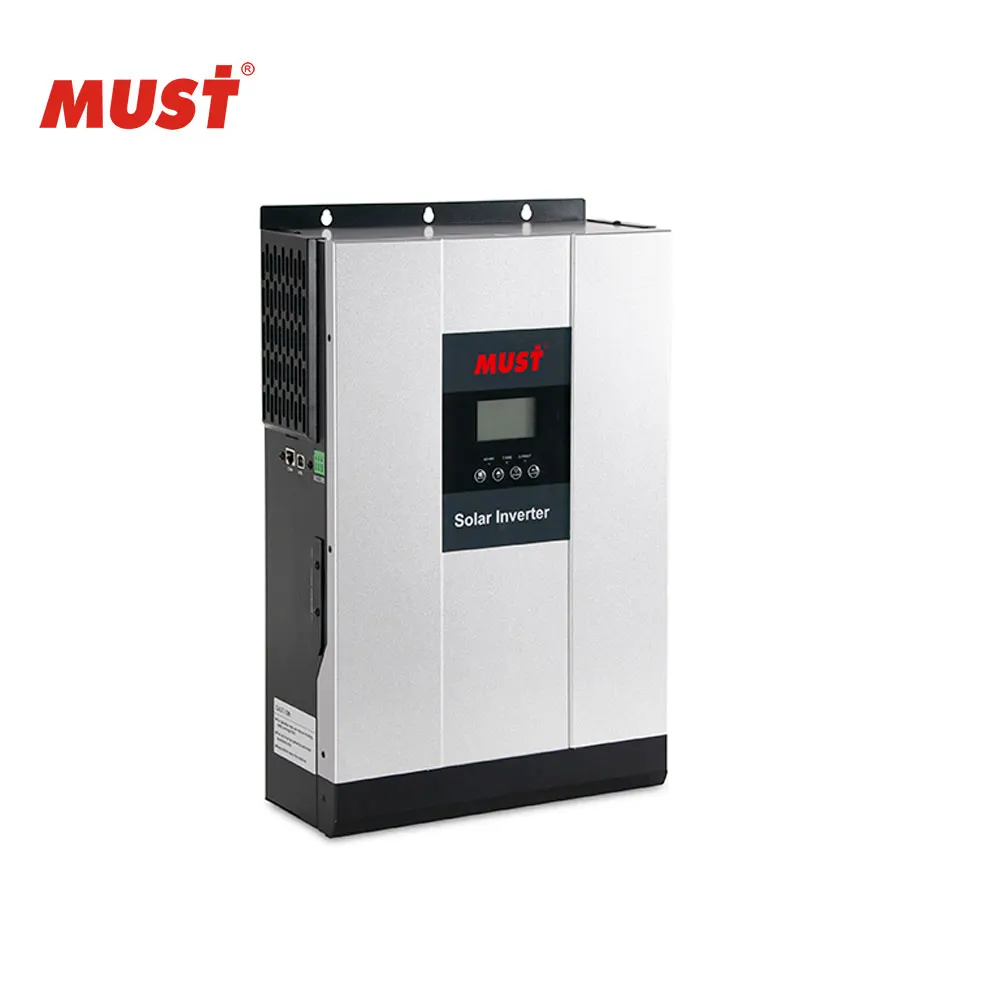

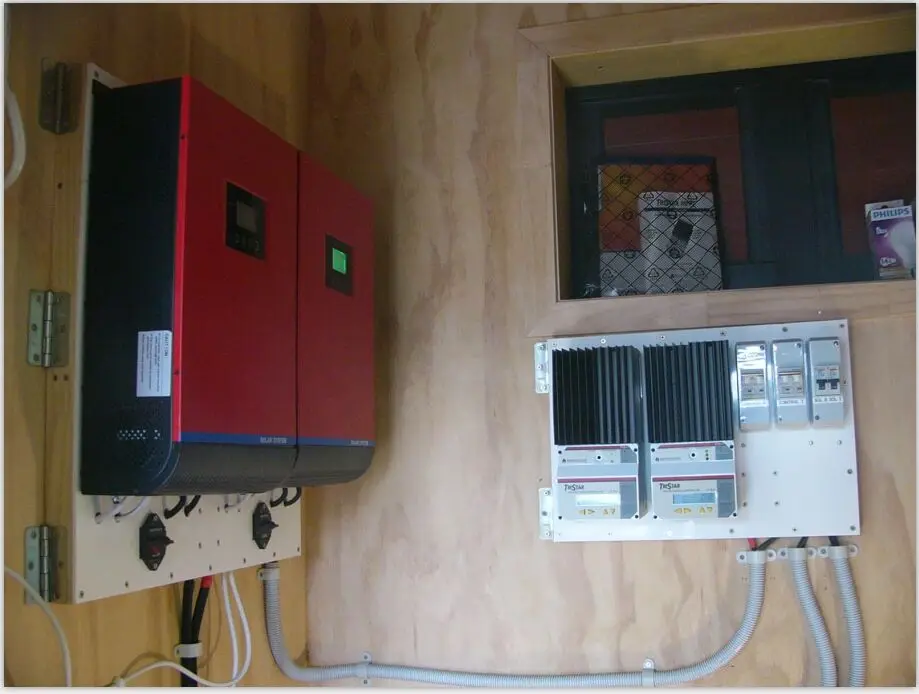

4. pure sine wave inverter PV1800series pictures
Item: CE certificated high frequency 2kva, 3kva, 4kva,5kva 24vdc 48vdc 220vac home solar power systems pure sine wave inverter
Packaging & Shipping
1. Cartons or wooden box OR According to customer's need
2. 15-20workdays for order under 2,000pcs, Sample order 7 days
3. Payment: TT or Wester Union
Our Services
1.OEM service is welcome
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respested
5.Necessary test and certification can be obtained as your request
Warranty :
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.

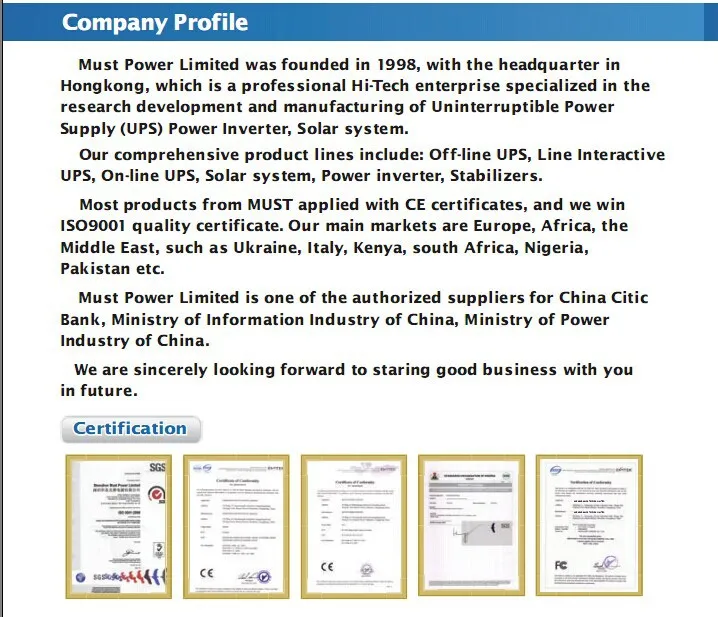

Company Information
5.Must energy
![CK)56ZMOS3ML]WU~VOTQ57.png](http://sc02.alicdn.com/kf/HTB1vndMJXXXXXa3aXXX760XFXXXq/200574837/HTB1vndMJXXXXXa3aXXX760XFXXXq.png)

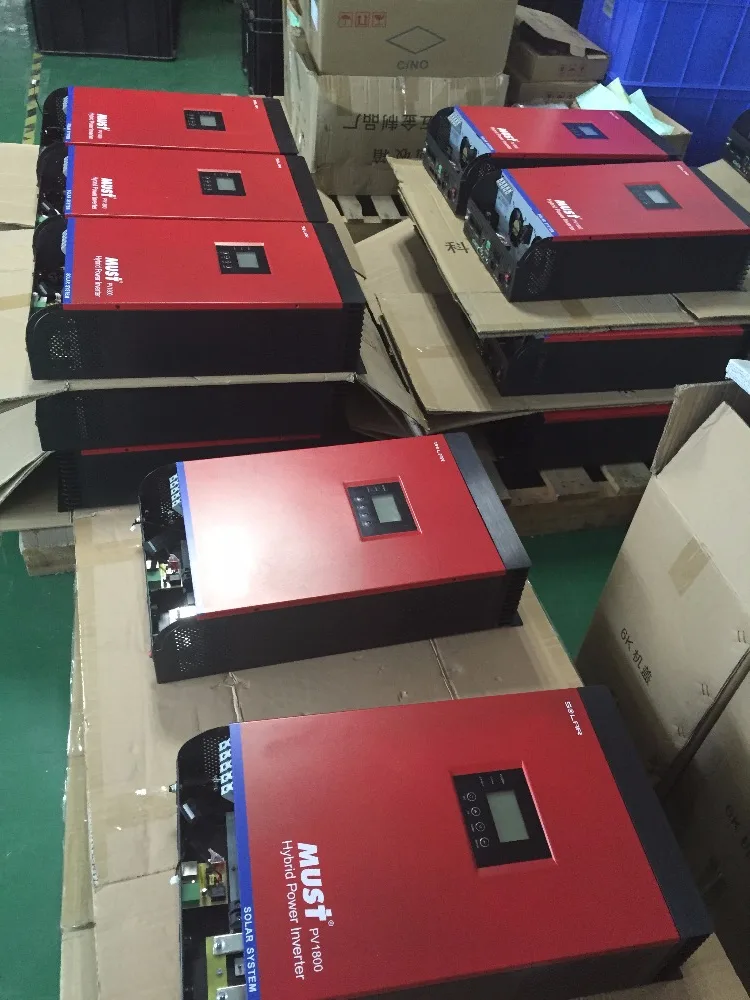

6. Production line

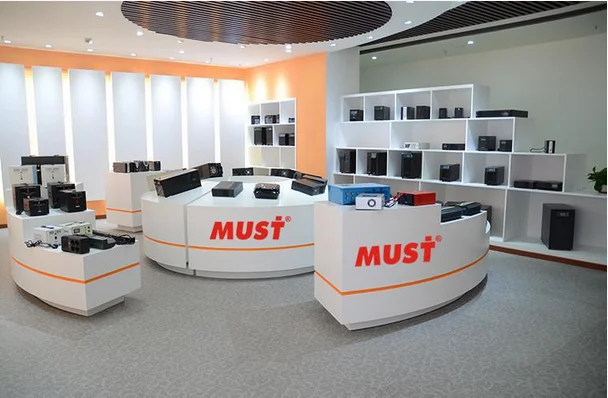

7.Show room
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Samples and OEM
Samples are Available for Testing and Market Test. OEM is welcomed for us.
Want to know more about our Company, Products, Price, Packing, Shipping and
any discount? Dear Friend, Let's Inquiry NOW !!!!!
Похожие товары

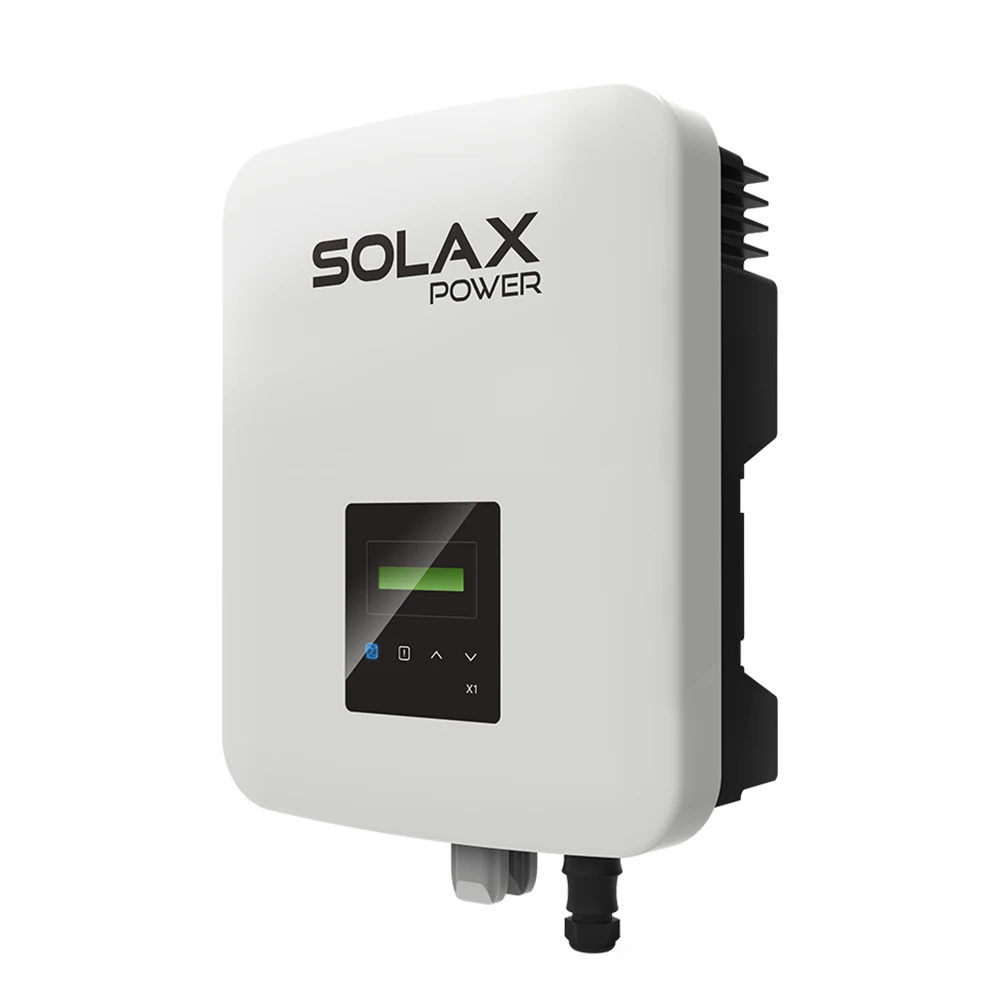

Solax солнечный инвертор 220 В 230 в 5000 Вт Mppt солнечный инвертор X1 BOOST X1-5.0T
4 кВт 5 6 8 9 инвертор для солнечной системы трехфазный 380 В
553,00 $ - 600,00 $

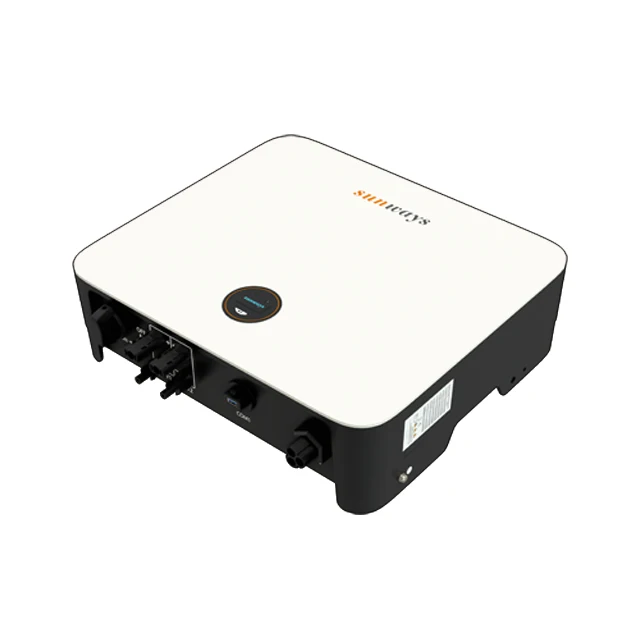

Солнечный инвертор Sunways однофазный 3 кВт 6 4 2

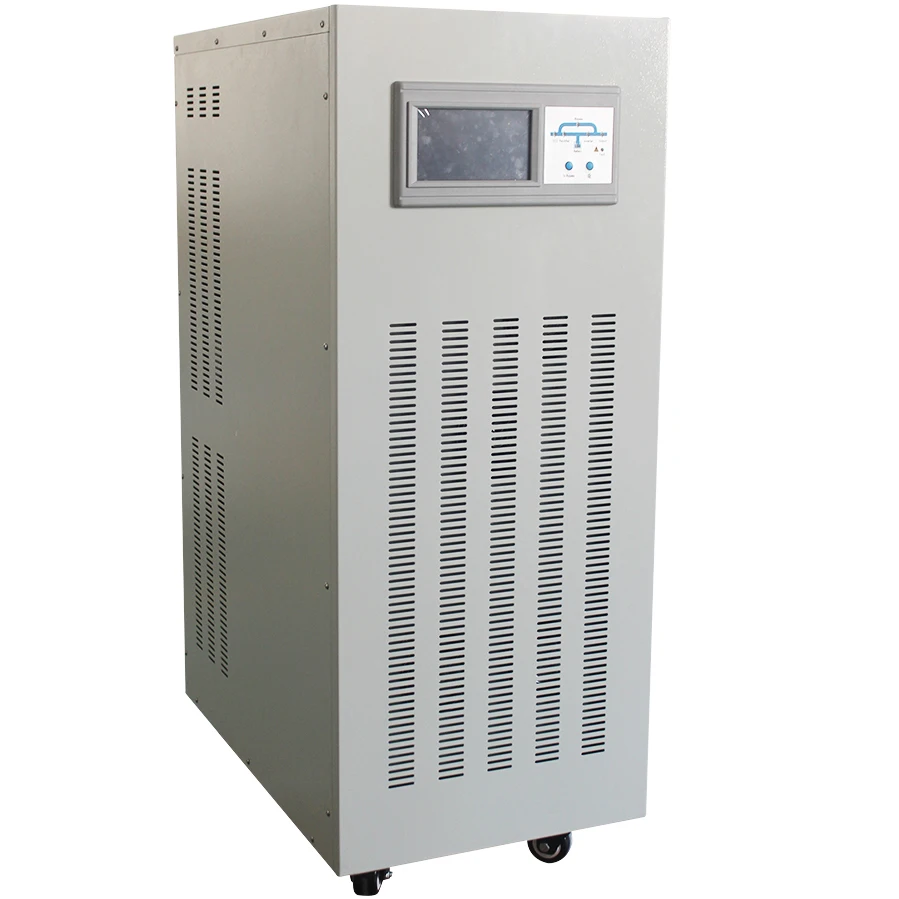

Инвертор 15 кВА 20 30 40 50 ква 60 80 100 трехфазный инвертор постоянного тока на 3-фазный
1 170,00 $

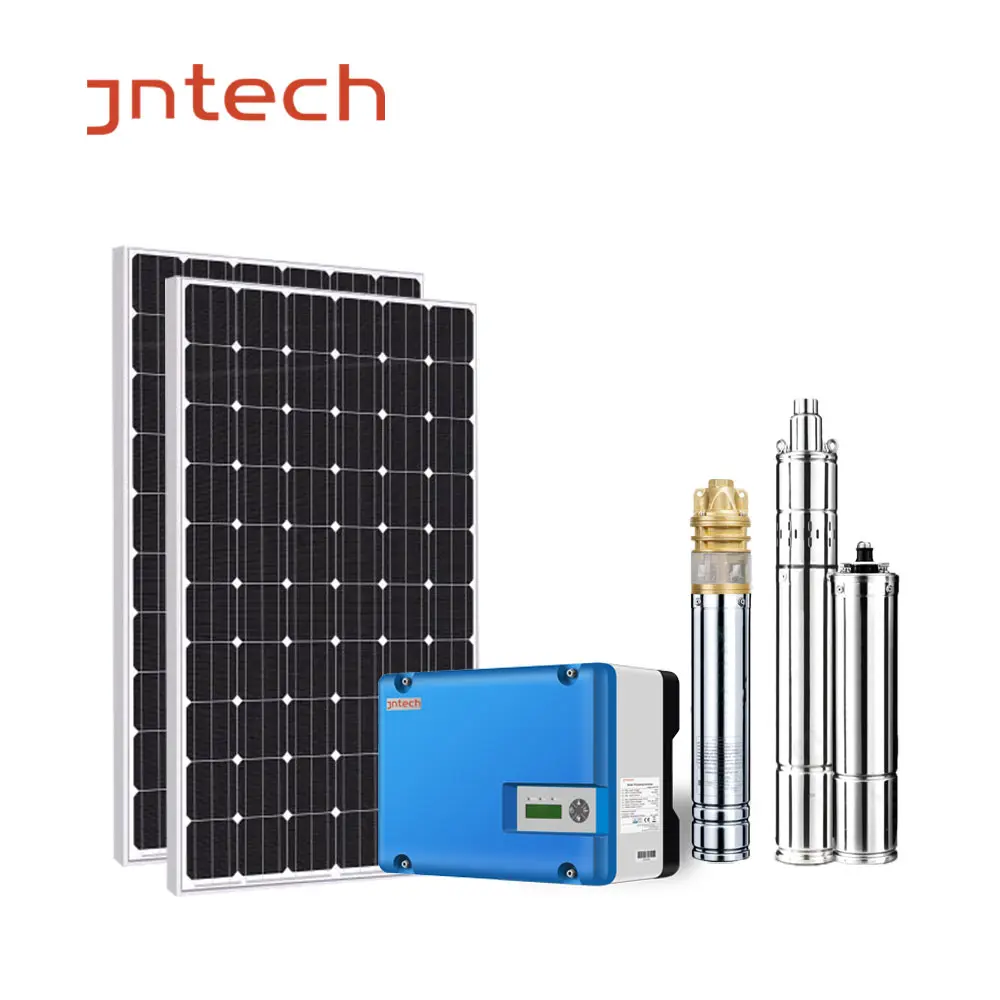

Безвентиляторная система солнечного насоса для сельскохозяйственного орошения Мини Погружной Солнечный водяной насос 2.2kW

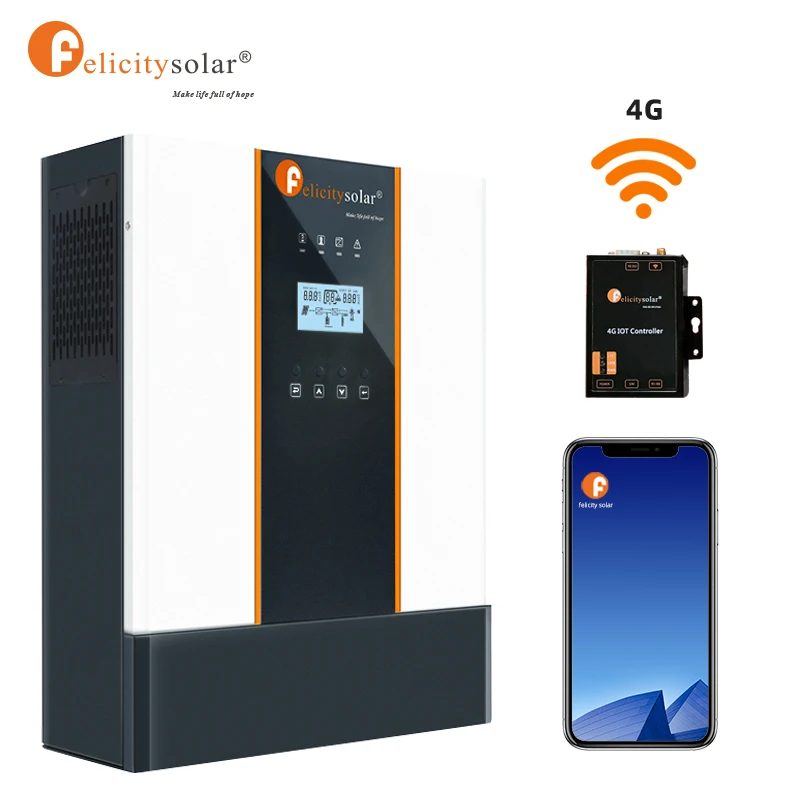

Инвертор Growatt off grid inverter SPF 3000 5000 TL HVM с Mppt, однофазный PV солнечный инвертор 3 кВт 5 кВт
545,00 $ - 593,00 $

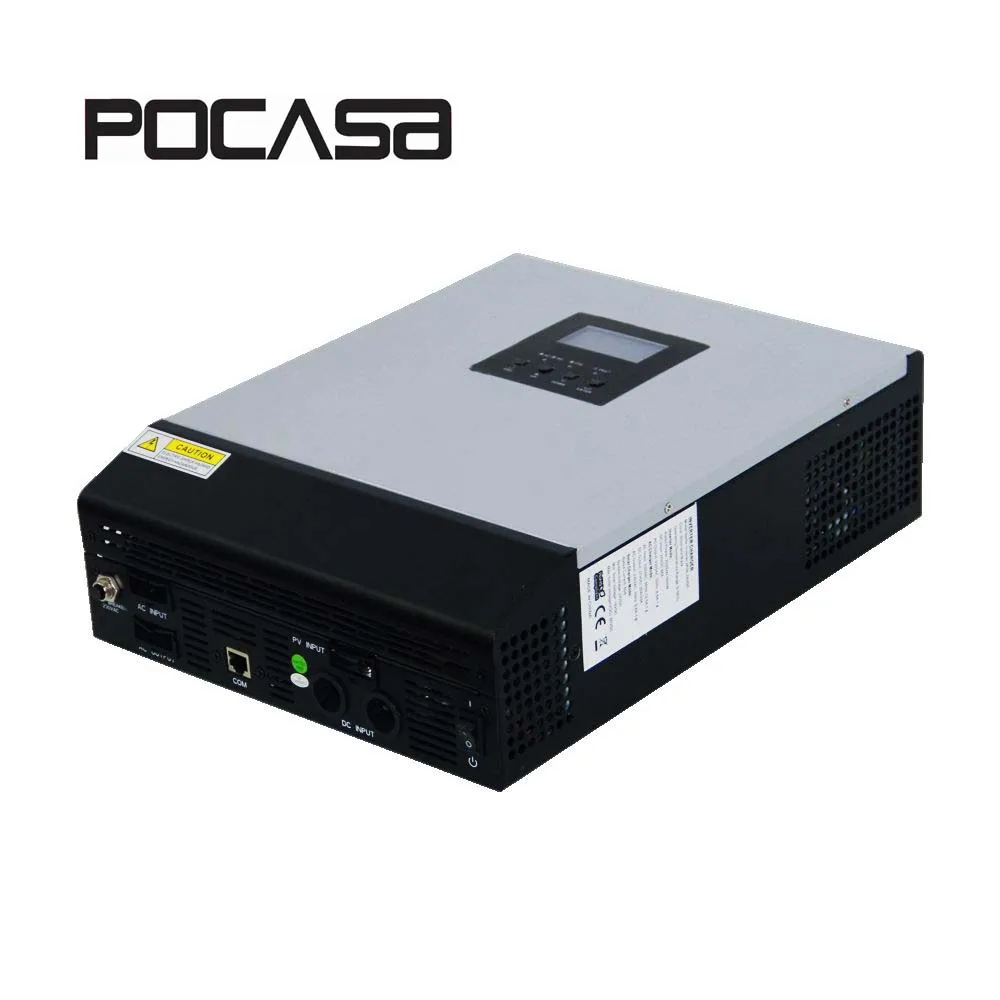

Неэлектрифицированный Гибридный mpp солнечный инвертор 3 кВт 5 немодулированный синусоидальный автономный для
