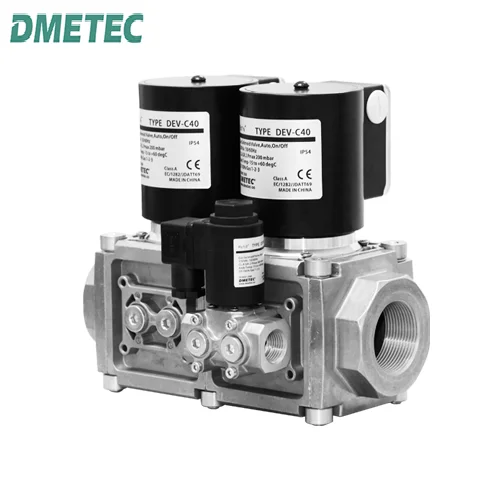

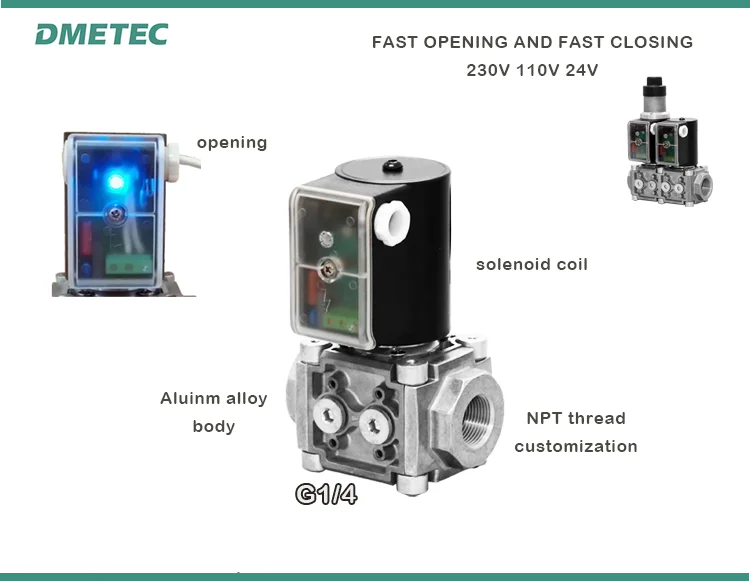

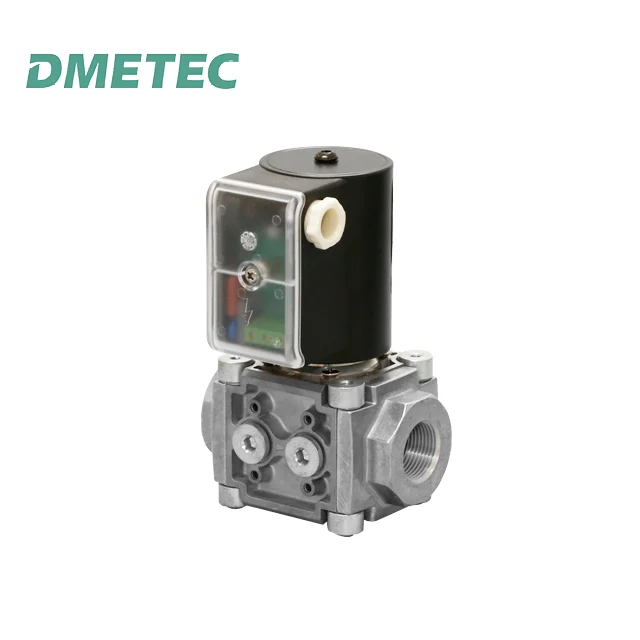

DN20 (3/4 ') высокое давление газовый электромагнитный клапан Быстрое открытие 24V 230V для сжиженного нефтяного газа с природным газом совмещать в сборе

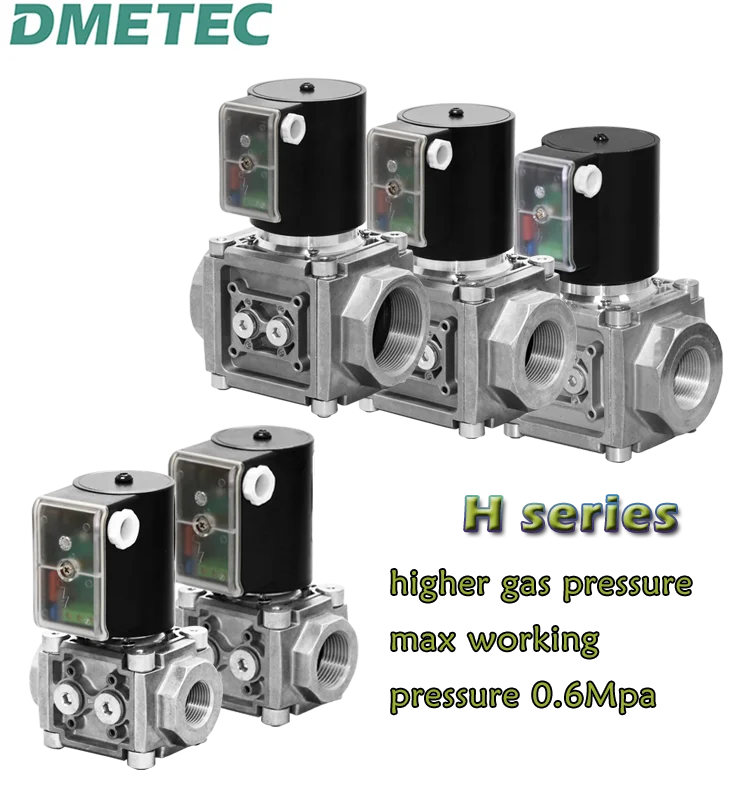

Fuel higher gas pressure solenoid valves are widely applied to the safe transportation of fuel gases so as to start the supply of gases or cut it off upon emergency.

The mediums of gases applicable are: natural gases, methane, liquefied petroleum gas etc.

Under pressure of 4000-6000 mbar or below, quick opening and quick closing with Direct acting ,can be opened and closed automatically. Use the energy saving design, the power at working state is less than half of its’ initial start.

 Adopt the company invention patent one item, and several appearance and utility model patent.

Operation and installation

Normally closed type, after the power is energized, it will open quickly, and when the power is off, it will be shut down immediately.

By-pass ports are set on both sides of the valves, with diameter of G¼”

TECHINCAL FEATURES

Opening Time: less than 1 second

Closing Time: less than 1 second

Numbers of operations: 20 per minute

Max working Pressure:4000- 6000mbar

By-pass ports are set on both sides of the valves, with diameter of  G¼”

Inside filter net

Protection: IP54

Sealing material: chemigum

Body material: aluminum alloy

Pressure steel spring AISI 302

The ambient temperature: -15℃- 60℃

Coil temperature: 65℃

Standards and certification

To achieve Grade A standard

According to standards EN161

According to European Gas Standards

CE Certification

Electrical code

Voltage: 50-60Hz, 230Vac,110Vac,24Vdc (other voltage can be customized).

Coils to Class F, 360°rotation, suitable for permanent excitation.

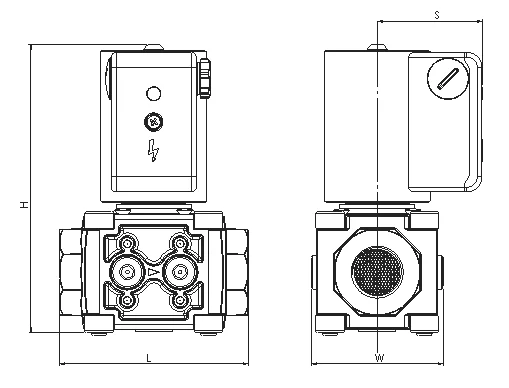

"DEV-H" Installation dimension

   Installation dimensions

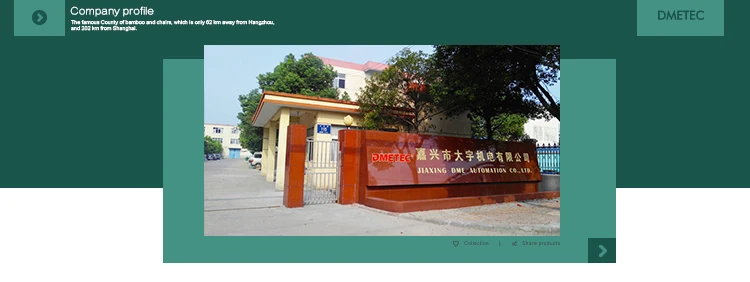

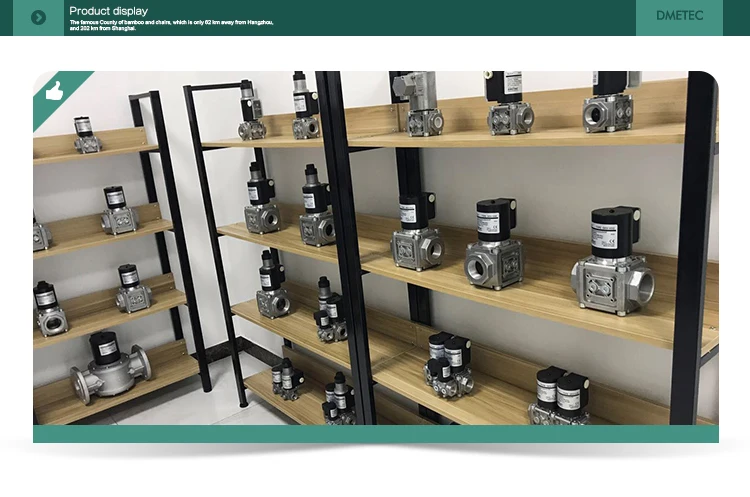

JIAXING D METEC LTD is located in the city of Jiaxing, Zhejiang Province of China, being a moderm enterprise integrating the R&D, production and sales functions, being a
