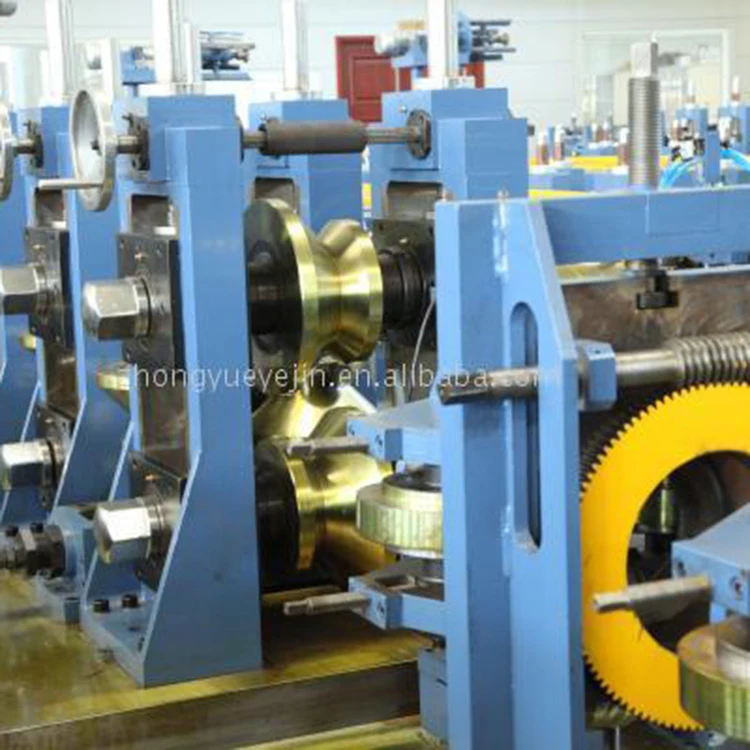

Factory supply CE/ISO certified automatic spiral pipe forming machine/iron making machine
- Категория: >>>
- Поставщик: Zhangjiagang Zhongyue Metallurgy Equipment Technology Co. Ltd.
Сохранить в закладки 60695746306:
Описание и отзывы
Характеристики
Product Description

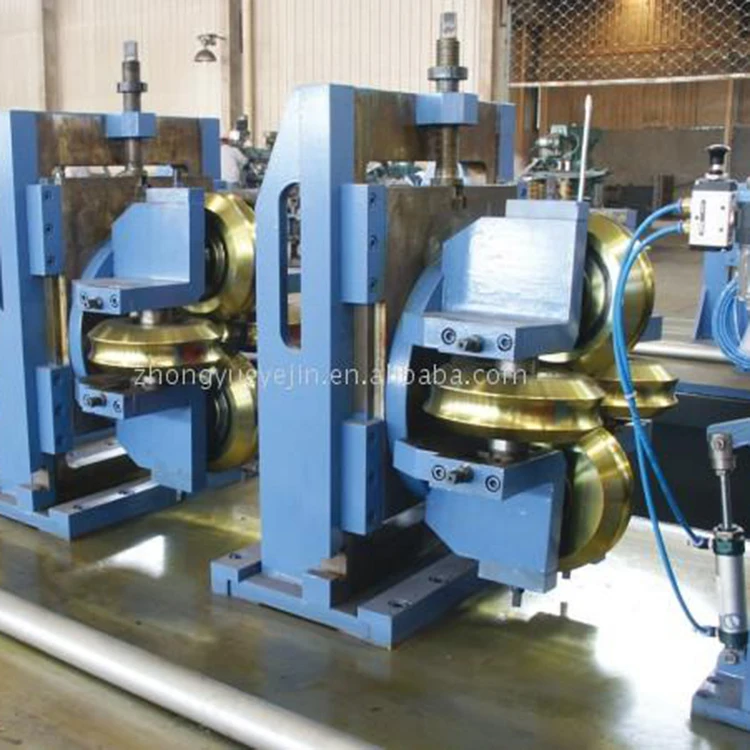

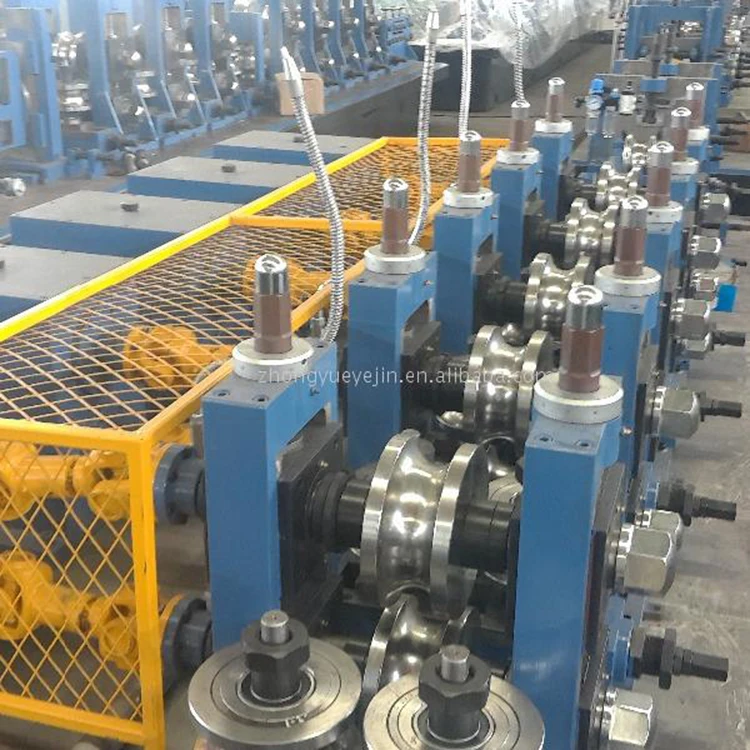

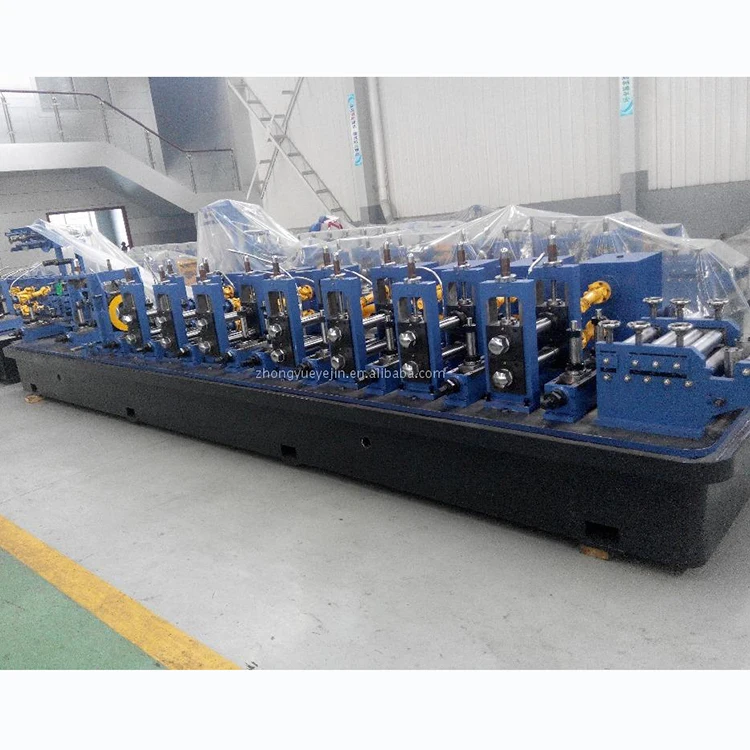

Tube forming machine specification
1. pipe O.D(round):76.2 mm-168mm
2. Wall thickness:2.0mm-6.0mm
3. length:4-12m
4. Speed:60 m/min
Basic necessaries for the Buyer:
| Steel strips | material | Low-carbon steel, low alloy steel:,σs≤345mpa,σb≤610mpa |
| I.D | Φ450~Φ508mm | |
| O.D | Φ600~1600mm | |
| Width | 280~530mm | |
| Thickness | 2.0-6.0mm | |
| Maximum.weight | ≤6000KGS |
Accordingly to the market demands. We are given the standard models as blew, and this is for your reference
only, the production range and main technical can be adjustable suppose your company have special requirement.
| Tube forming machine Specification | |||
| Mill Model | OD range (mm) | Thickness range(mm) | Line Speed(m/min) |
| ZY-16 |
7.6-16 | 0.3-1.0 | 120 |
| ZY-20 | 10-25.4 | 0.3-1.5 | 120 |
| ZY-32 | 12.7-38.1 | 0.6-1.8 | 120 |
| ZY-45 | 16-50.8 | 0.7-2.0 | 110 |
| ZY-50 | 20-63.5 | 0.8-3.0 | 90 |
| ZY-60 | 25.4-76.2 | 1.0-3.2 | 80 |
| ZY-76 | 31.8-88.9 | 1.2-3.75 | 80 |
| ZY-89 | 33.4-101.6 | 1.2-4.5 | 75 |
| ZY-125 | 50.8-130 | 2.0-5.0 | 60 |
| ZY-165 | 76.2-168 | 2.0-6.0 | 50 |
| ZY-219 | 88.9-219 | 2.0-8.0 | 50 |
| ZY-273 | 89-273 | 3.0-12.0 | 40 |
| ZY-325 | 89-325 | 3.0-12.7 | 40 |
| ZY-406 | 114-406 | 4.0-16.0 | 40 |
| ZY-508 | 219-508 | 4.0-19.1 | 40 |
| ZY-610 | 273-610 | 4.0-19.1 | 40 |
| ZY-660 | 273-660 | 4.0-22 | 40 |
Related Products ![automatic spiral tube forming machine]()
![automatic spiral tube forming machine]()
![automatic spiral tube forming machine]()
![automatic spiral tube forming machine]()

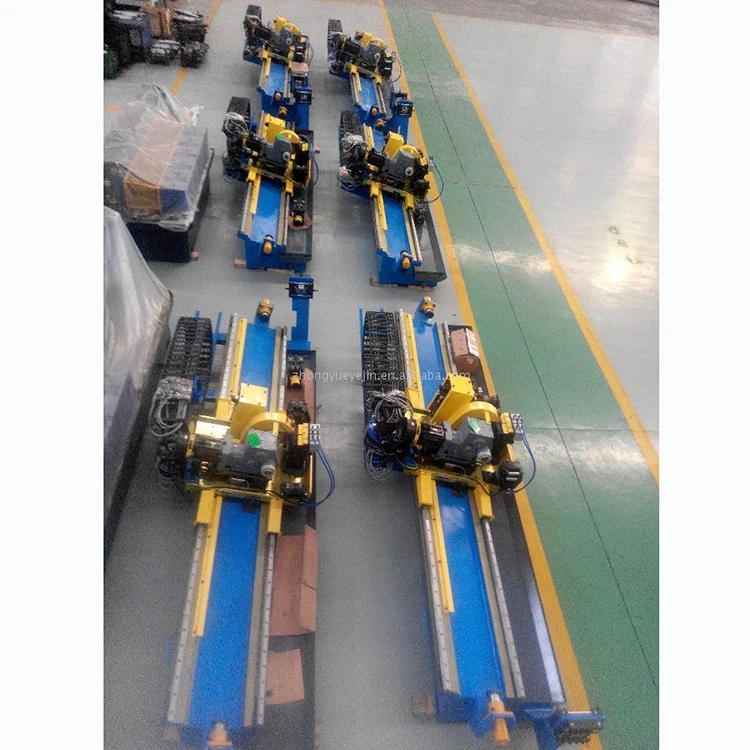

COLD SAW FOR TUBE MILL
TUBE LINE
STEEL TUBE FORMING MACHINE
STEEL PIPE PRODUCTION LINE
Company Information
Zhangjiagang Zhongyue Metallurgy Equipment Technology Co., Ltd is located in Xiangshan Road,Jingang Town, Zhangjiagang City, Jiangsu Province, China. With the registered capital of RMB20,000,000 yuan, the company specialize in manufacturing high-frequency precision welded pipe lines, H-Beam steel pipe line, slitting machine, cold roll forming machine, cold rolling machine, angle steel machine, cold cutting saw machine etc.. At present, the annual production capacity is more than 150 sets.
The company products are widely applied in the industries of welded pipe manufacturing, sportsproducts, fitness equipment,medical apparatus and instruments, children’s goods, furniture, household electrical appliances, vehicles, ship building, petroleum transportation and power station etc..
