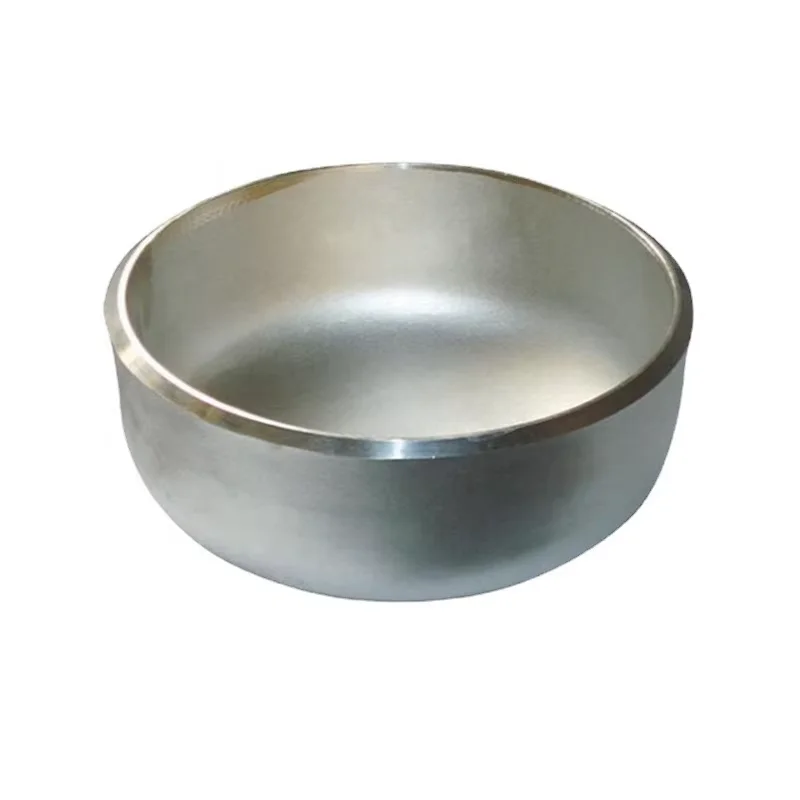

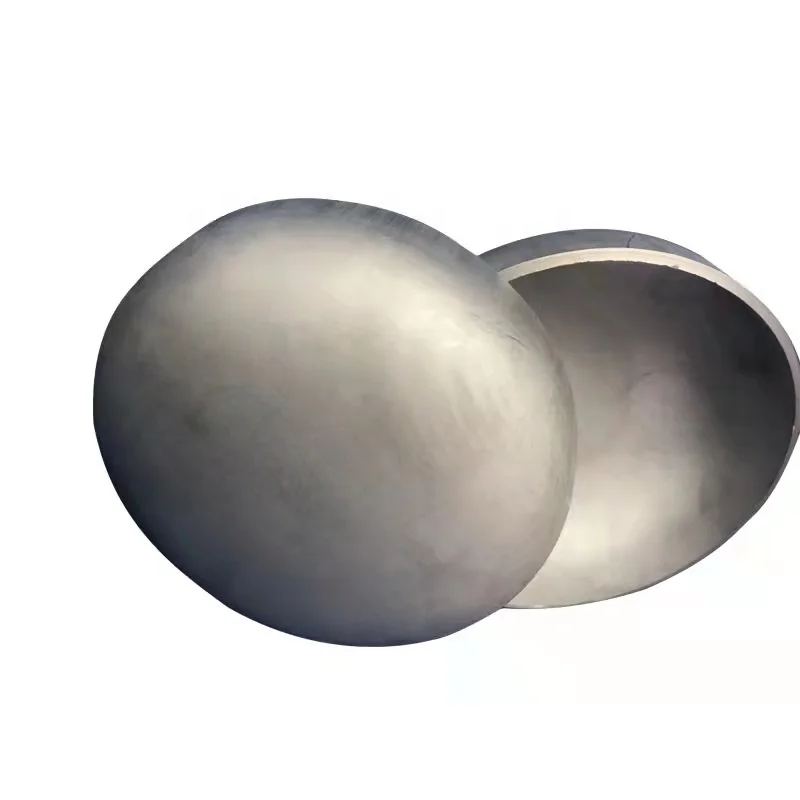

NXF настраиваемый DN 15-1200 SCH 10-80 MOQ 1 шт. ASTM B573 ASME SB573 AMS 5771 сплав N/UNS N10003 Крышка для стыковой сварки
57,40-229,60 ₽
Манометр из углеродистой стали сифон с косичкой
- Категория: >>>
- Поставщик: Hubei Hi-Tek Valve And Fitting Co. Ltd.Hubei Ltd.
Сохранить в закладки 60697914367:
Описание и отзывы
Характеристики
Product Description
Description:
Pressure gauge siphons are used to protect the pressure gauge from the effect of hot pressure media such as steam
and also to reduce the effect of rapid pressure surges. The pressure medium forms a condensate and is collected inside the coil or pigtail portion of the siphon. The condensate prevents the hot media from coming in direct contact with the pressure instrument. When the siphon is first installed, it should be filled with water or any other suitable separating liquid
Pressure gauge siphons are used to protect the pressure gauge from the effect of hot pressure media such as steam
and also to reduce the effect of rapid pressure surges. The pressure medium forms a condensate and is collected inside the coil or pigtail portion of the siphon. The condensate prevents the hot media from coming in direct contact with the pressure instrument. When the siphon is first installed, it should be filled with water or any other suitable separating liquid
Material | Stainless steel,Carbon steel,copper |
Type | Pigtail syphon |
Size | 1/4", 3/8",1/2“ |
Pressure | 1000psi,3000psi,6000psi |
Media | Oil,gas,water |
Application | Connect to pressure gauge |
Application

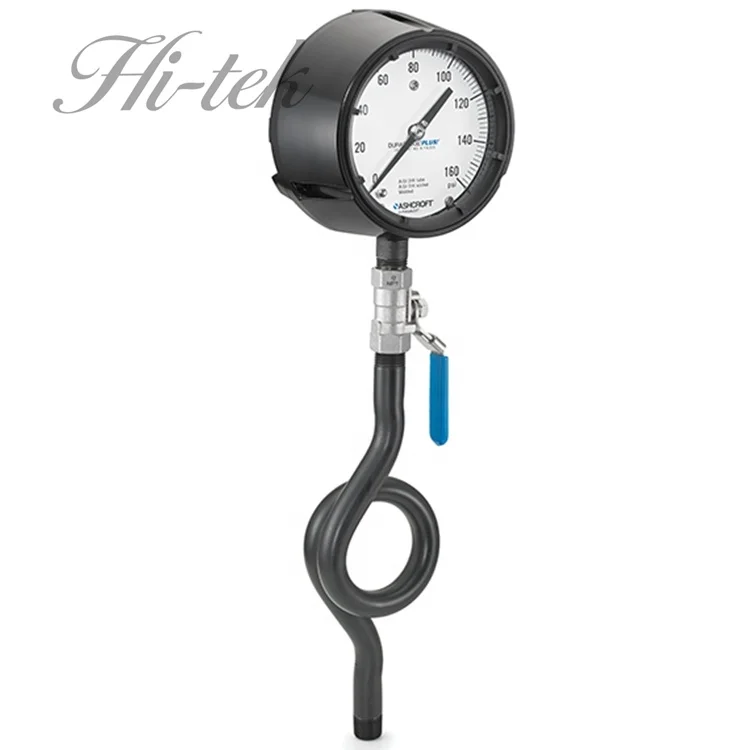

syphon is often used in conjunction with a gauge cock or isolation valve. This helps reduce the temperature of the medium.
Condensation forms and accumulates within the loop or bend, providing the gauge protection before it reaches the gauge head. It can also help the gauge with stand rapid pressure surges.
Condensation forms and accumulates within the loop or bend, providing the gauge protection before it reaches the gauge head. It can also help the gauge with stand rapid pressure surges.
Installation

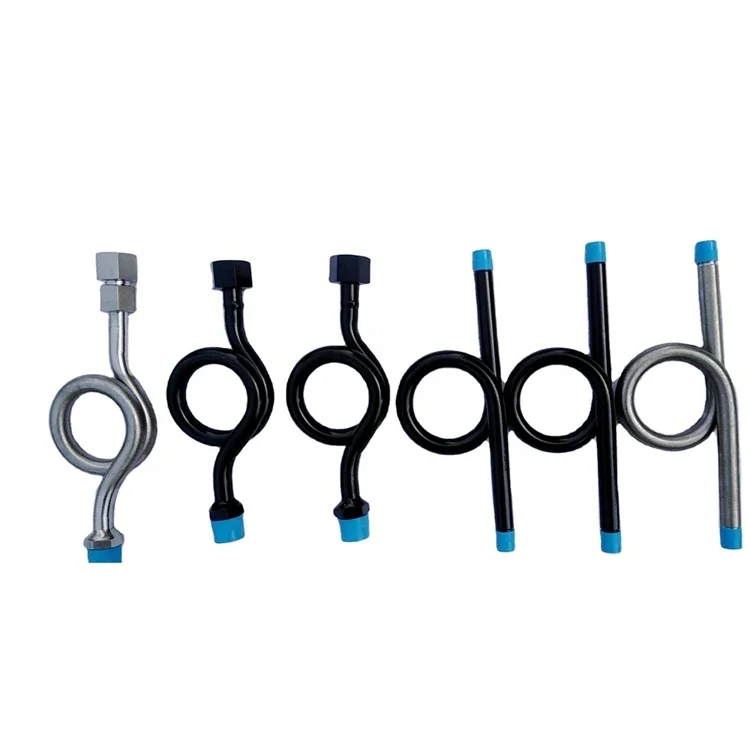

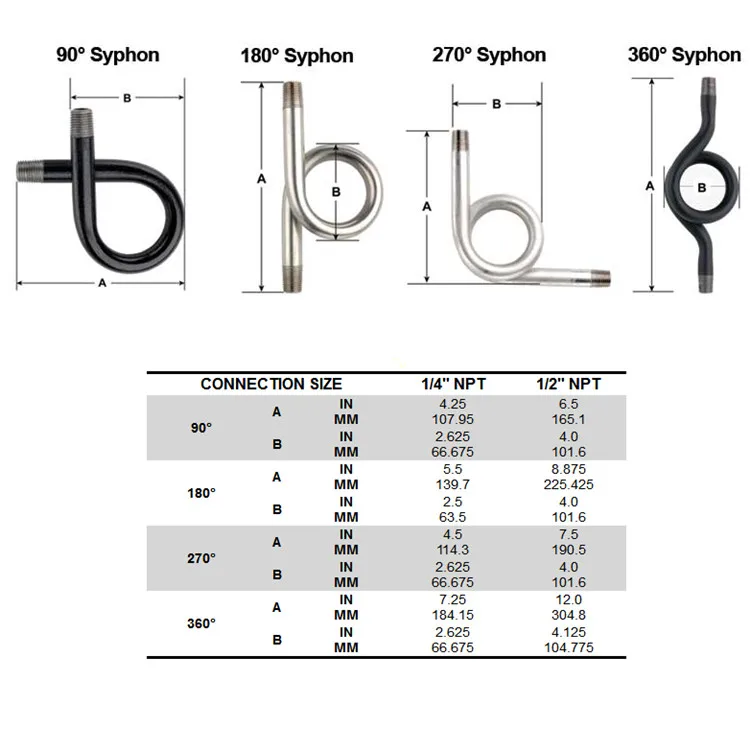

O Type Syphons:The Coil Syphon is normally used for vertical installations.
U Type Syphons:The U Type Syphon is normally used forhorizontal installations.
Why do we use Pressure Gauge Syphons?
Pressure gauge syphons are used to protect the pressure gauge from the effect of hot pressure media such as steam and also to reduce the effect of rapid pressure surges. The pressure medium forms a condensate and is collected inside the coil or pigtail portion of the siphon. The condensate prevents the hot media from coming in direct contact with the pressure instrument. When the siphon is first installed, it should be filled with water or any other suitable separating liquid.
It can also be used to reduce the potentially damaging effects of rapid pressure changes. These low-cost devices allow systems builders to use a pressure sensor with a much lower temperature range in high-temperature applications.

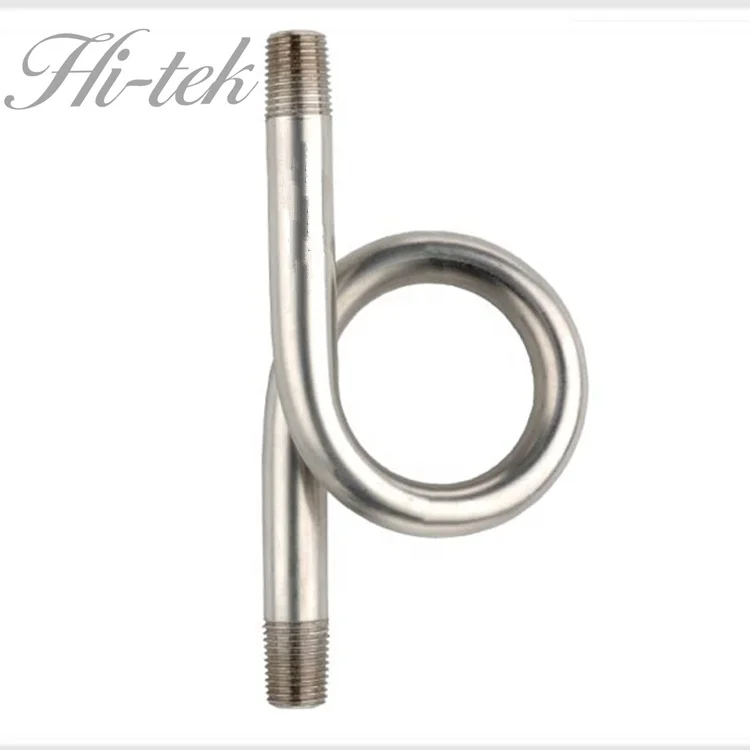

Pigtail for vertical installations
U for vertical installations

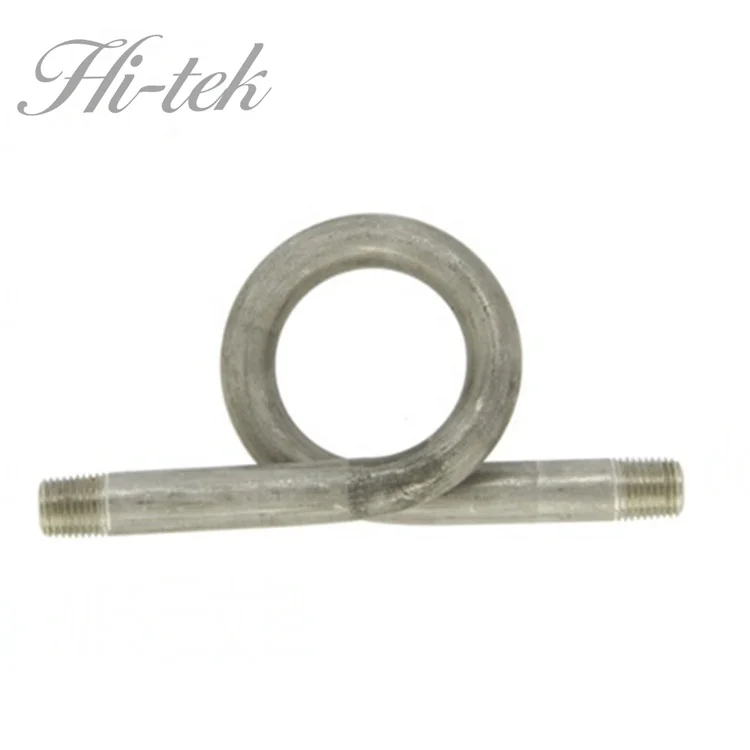

Coil for horizontal installations
It can also be used to reduce the potentially damaging effects of rapid pressure changes. These low-cost devices allow systems builders to use a pressure sensor with a much lower temperature range in high-temperature applications.
Pigtail for vertical installations
U for vertical installations
Coil for horizontal installations
that's why:
From the example chart, the pressure gauge siphon acts as a thermal barrier between the process media and pressure gauge.
Note: The chart specifications will change based on the type of pressure gauge siphon. The below chart displays the readings for 3 different siphons.
Note: The chart specifications will change based on the type of pressure gauge siphon. The below chart displays the readings for 3 different siphons.
HI-TEK GAUGE SYPHON SPECIFICATION TABLE
Part No. | material | type | Inlet | out let |
HK-CSOFM0104 | carbon steel | O type | 1/4 NPT Male | 1/4 NPT Female |
HK-SSOFM0104 | stainless steel | O type | 1/4 BSPT Male | 1/4 BSPT Female |
HK-CSOMM0104 | carbon steel | O type | 1/4 NPT Male | 1/4 NPT Male |
HK-SSOMM0102 | stainless steel | O type | 1/2 NPT Male | 1/2 NPT Male |
HK-CSUFM0102 | carbon steel | U type | G 1/2 | G 1/2 LH |
HK-SUFM0102 | steel | U type | G 1/2 | G 1/2 LH |
Note: Accept customization, BSP BSPT NPT and other threads (Male to Female Swivel) | ||||||||||
Packing picture
Related Products
Customers feedback
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
