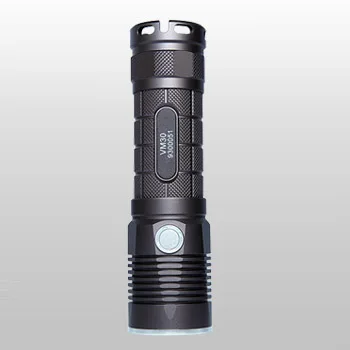

yushi VM30 handheld industrial 365nm 3w black light torch
VM30 Industrial LED UV NDT Flashlight is a professional portable UV Detection Light with High Power Output and Quick Start, can reach the maximum illuminance as soon as switched on.
Production Application
YUSHI Handheld LED UV NDT Flashlights are mainly used in industrial detection, including Fluorescent Penetrate Testing, Fluorescent Magnetic Particle Flaw Detection and Fluorescent Leak Detection.
Other Applications: Oil and Stain detection, special gas, oil and gas pipeline inspection, Fluorescence Reflectance Detection of Special Substances, Criminal investigation and forensic investigation, Paper currency identification, gem appreciation, agriculture, food, medical and other related industries.

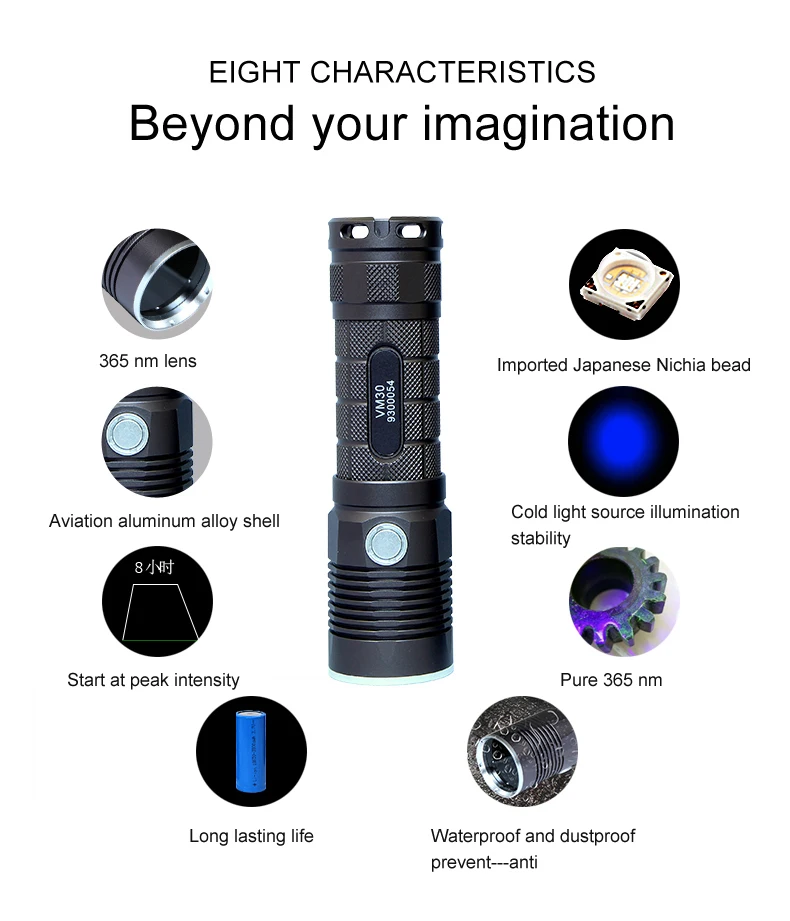

Product Features

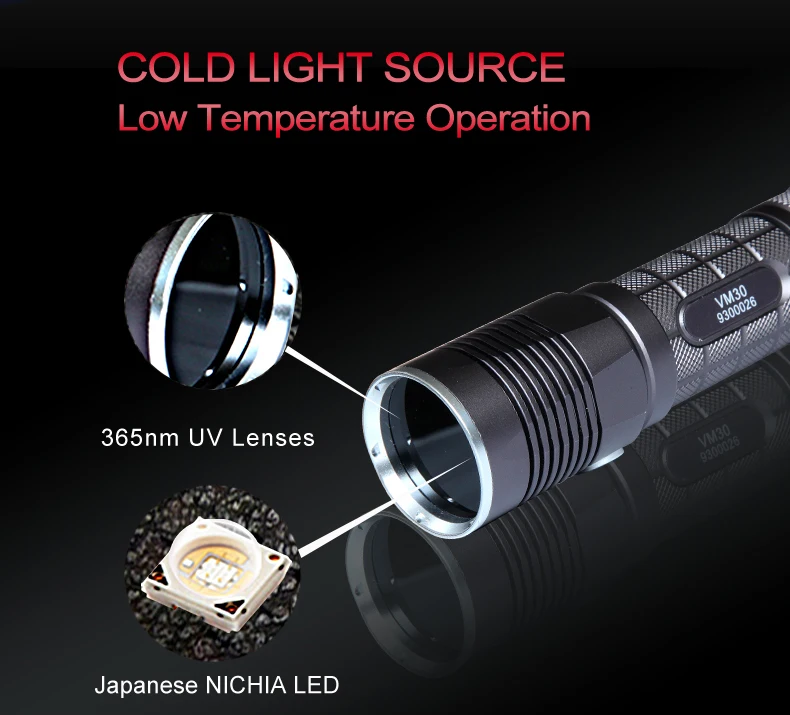

Product Detail

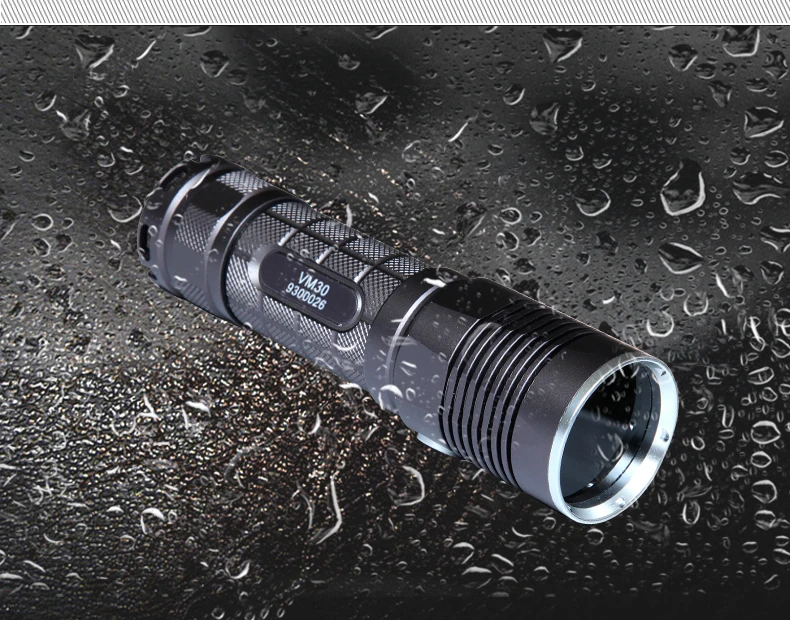

Super Waterproof 100% UV protection glasses
Relate Product
Specifications of VM Series Industrial LED UV NDT Flashlights | |||||
PRODUCT MODEL | VM10 | VM30 | VM50 | VM70 | |
NOMINAL STEADY-STATE UV-A INTENSITY at 38cm (15 in) | 10000 μW/cm² | 13000 μW/cm² | L:8000 μW/cm² | 20000 μW/cm² | |
H:20000 μW/cm² | |||||
UV-A COVERAGE AREA at 38cm (15 in) at minimum 1,200 μW/cm² | Φ 6.3cm (2.5 in) | Φ 5.5cm (2.2 in) | Φ 5.5cm (2.2 in) | Φ 10.5cm (4.1 in) | |
VISIBLE LIGHT MEASUREMENT | 2.91 lux | 3.4 lux | 3.14 lux | 5.8 lux | |
BLACK LIGHT FILTER | Y | Y | Y | Y | |
LIGHT SOURCE | 365nm UV-A LED | ||||
NUMBER of LEDs | 1 | 1 | 1 | 3 | |
BATTERY MODEL | ICR 18650 Li-ion Battery | Y | Y | ||
ICR 26650 Li-ion Battery | Y | Y | |||
BATTERY CAPACITY | 3.7V 2600mAh | 3.7V 4800mAh | 3.7V 4800mAh | 3.7V 2600mAh | |
NUMBER of BATTERIES | 1 | 1 | 2 | 4 | |
RUN TIME (CONTINUOUS) | 4 hours | 5 hours | L: 18 hours | 5 hours | |
H: 8 hours | |||||
CHARGING TIME | 5 hours | 6 hours | 7 hours | 5 hours | |
DIMENSIONS | LAMP HEAD DIAMETER | 2.8 cm (1.1 in) | 4 cm (1.6 in) | 6.2 cm (2.5 in) | 6 cm (2.4 in) |
WINDOW DIAMETER | 2.2 cm (0.9 in) | 3.4 cm (1.4 in) | 5.5 cm (2.2 in) | 5 cm (2.0 in) | |
LENGTH | 12.8 cm (5.1 in) | 14.4 cm (5.7 in) | 24 cm (9.5 in) | 14.3 cm (5.6 in) | |
WEIGHT(with BATTERY) | 140g (4.9 oz) | 240g (8.5 oz) | 520g (18.3 oz) | 610g (21.5 oz) |
About Us
YUSHI INSTRUMENTS Co.,Ltd
A Professional China NDT Instruments Manufactor Over 20 years.
Not only a strong R&D team for technical support we have ,but also the advanced production equipment and Sales Team with good service awareness wehave.Additionally,a professional After-Sales Service team we have to better service to you and satisfied to you.
Customied Service and OEM Service could provide.
Provide our customers with Reliable Quality, High Performance products,Fast delivery, Satisfactory Service and Competitive price is our Eternal Goal.
Welcome to inquiy ,we are your best choose.
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.
Q:What’s the MOQ?
A: MOQ is 1pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for single order is 1-3 days, for bulk orders is 3-10 days.
Q:How to place orders?
A: 1. Email us the model and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
