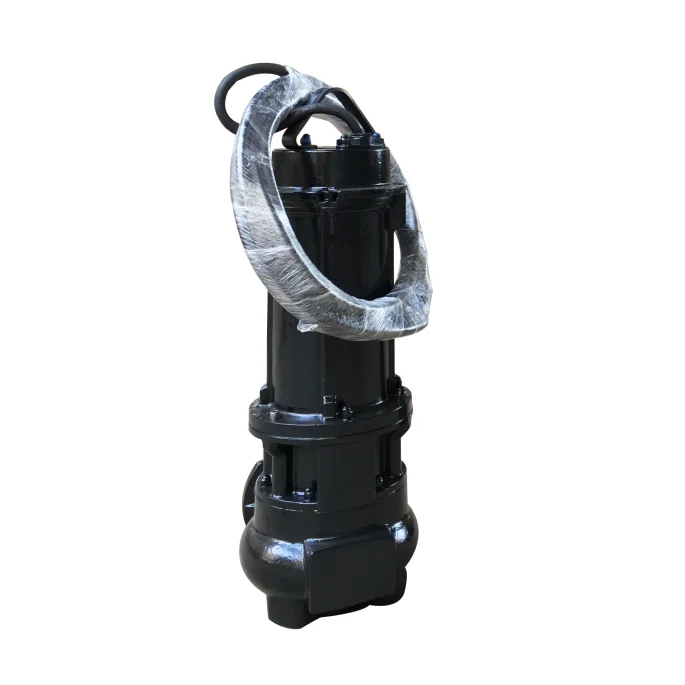

Океан 80 мм Свободный погружной насос вертикальный канализационный

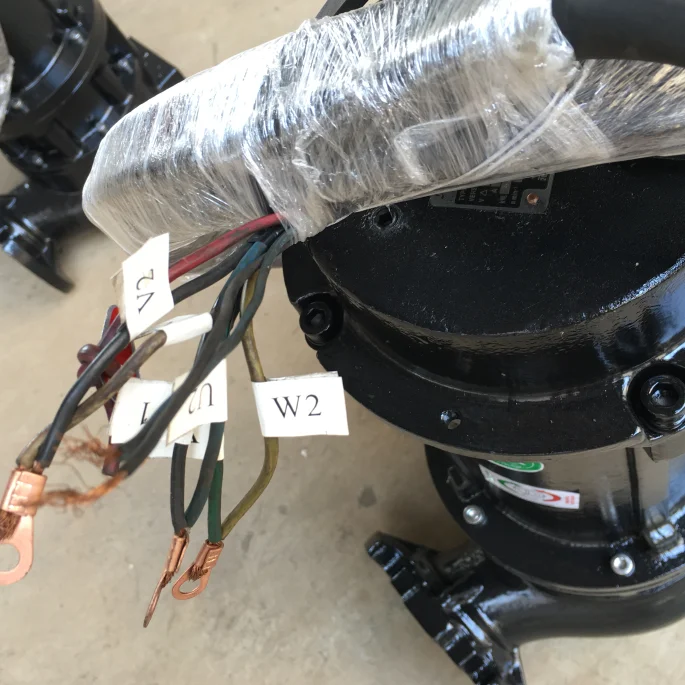

Cable Gland:                                                Cable gland system to guarantee perfect water-tightness. The GAS
thread ring-nut can be removed to fix a rigid or flexible duct to the cable gland to protect the power supply cable.

Mechanical seals:                                          Two mechanical seals in silicon carbide (2SiC).

Oil sump:                                                              Large oil sump to guarantee longer mechanical seal lifetime.

Drive shaft:                                                         Impeller connected to the drive shaft by means of tapered coupling.

Free passage:                                                      Ample free passage allowing the expulsion of solids and preventing fouling of the impeller.

EX:                                                                        Models available on request with ATEX certification, suitable for installation in the presence of potentially explosive gases, powders and liquids.

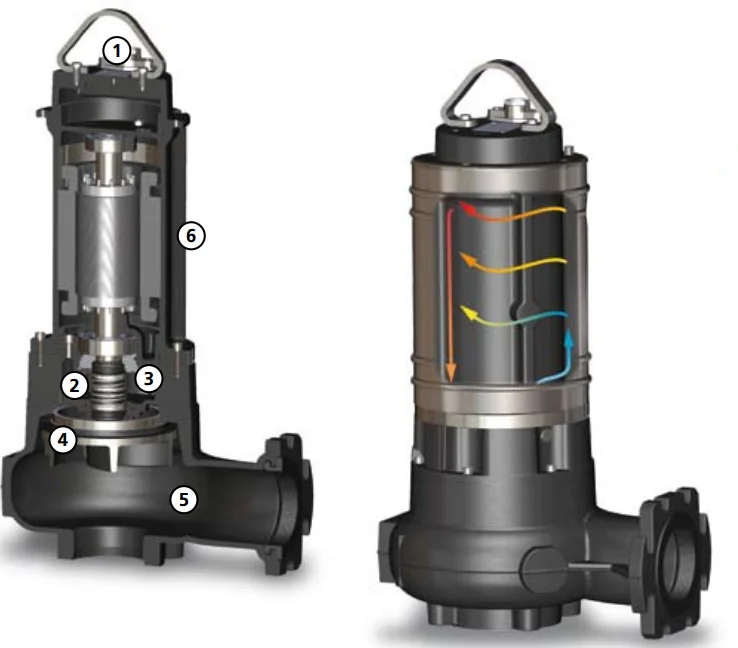

1.Set-back Vortex impeller
2. 1,1 ÷ 4,1 kW motor power
3. 2 / 4 / 6 poles
4. GAS 21/2" vertical
DN65÷DN150 PN10-16 horizontal
5. max 150 mm free passage

Electromechanical assembly:
Electromechanical assembly in GJL-250 cast iron, for submerged operation. Seal set comprising
2 (two) opposing silicon carbide mechanical seals in inspectable oil sump. Ecological dry motor.
Separate pump body. Series available in explosion-proof version.

Applications:
Used with unstrained soiled biological wastewaters and sewage and for civil lifting applications.
It is thus ideal for wastewater treatment plants, sewer systems, livestock farms, industry and
agriculture. The pump is also available in explosion-proof version with ATEX certification.
This series also suitable dry or semi-submergedinstallation.

Construction materials:
Case: Cast Iron EN-GJL 250
Impeller: Cast iron EN-GJL-250
Nuts and bolts: Stainless Steel - Class A2-70
Standard gasket: Rubber - NBR
Shaft: Stainless Steel - AISI 420
Cooling jacket:Carbon Steel - Fe360 ÷ Fe370
Set of standard mechanical seals: Two Silicon carbide mechanical seals (2SiC)

Operating limits:
Maximum operating temperature: 40 °C
PH of treated fluid: 6 to 10 pH
Viscosity of treated fluid: 1 mm2/s
Maximum immersion depth: 20 m
Density of treated fluid: 1 Kg/dm3
Maximum acoustic pressure: 70 dB
