Профессиональный HD SDI Видео кодирование для IPTV прямая трансляция широковещательный SDI к IP TV потоковой передачи

Профессиональный HD SDI Видео кодирование для IPTV прямая трансляция широковещательный SDI к IP TV потоковой передачи

Категория: >>>
Поставщик: Shenzhen TBS Technologies Ltd.

Цена:129,00 $ - 249,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

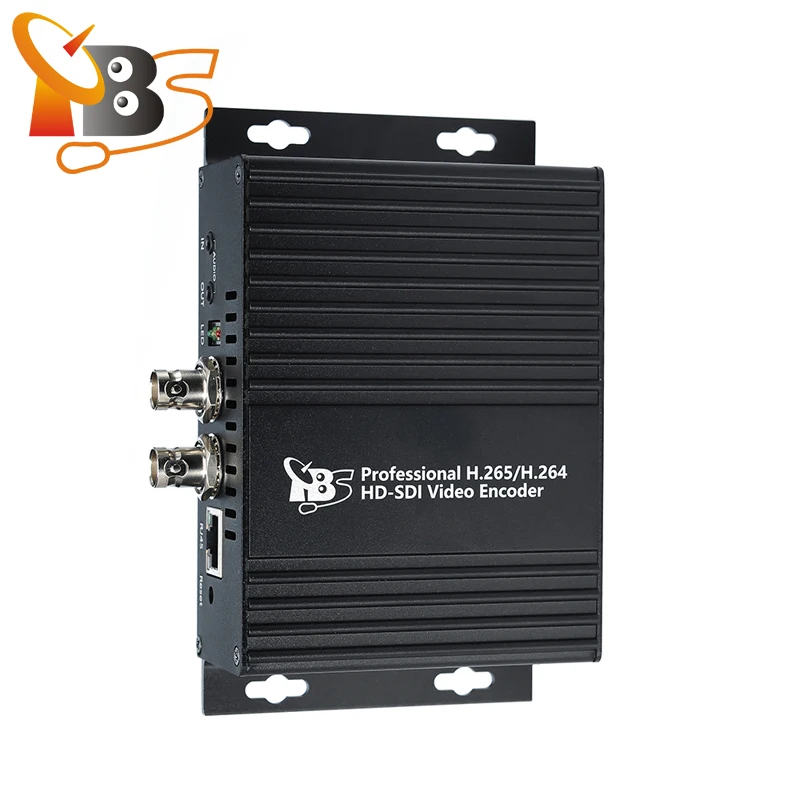

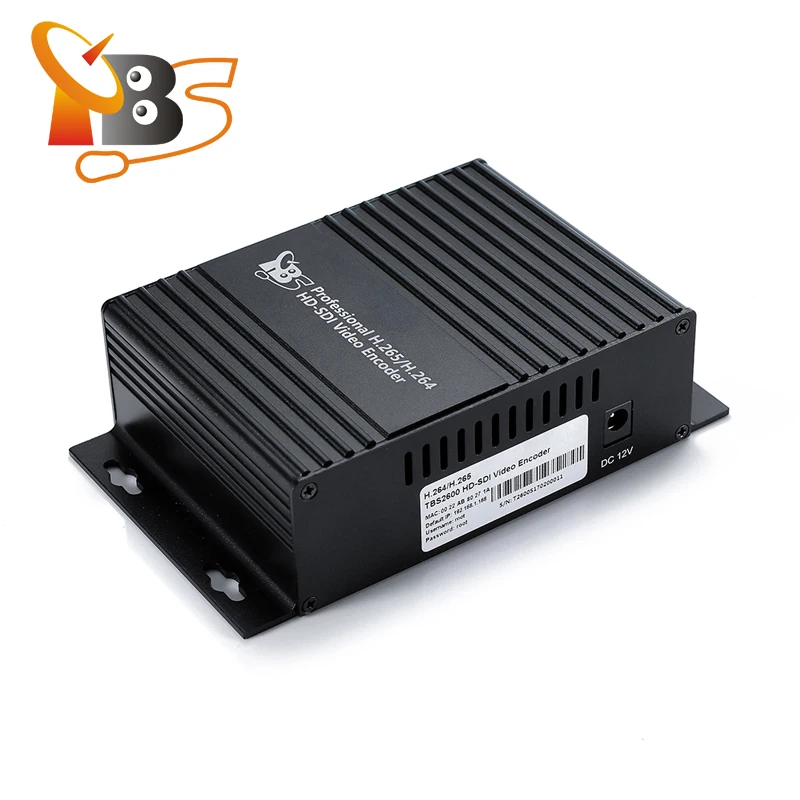

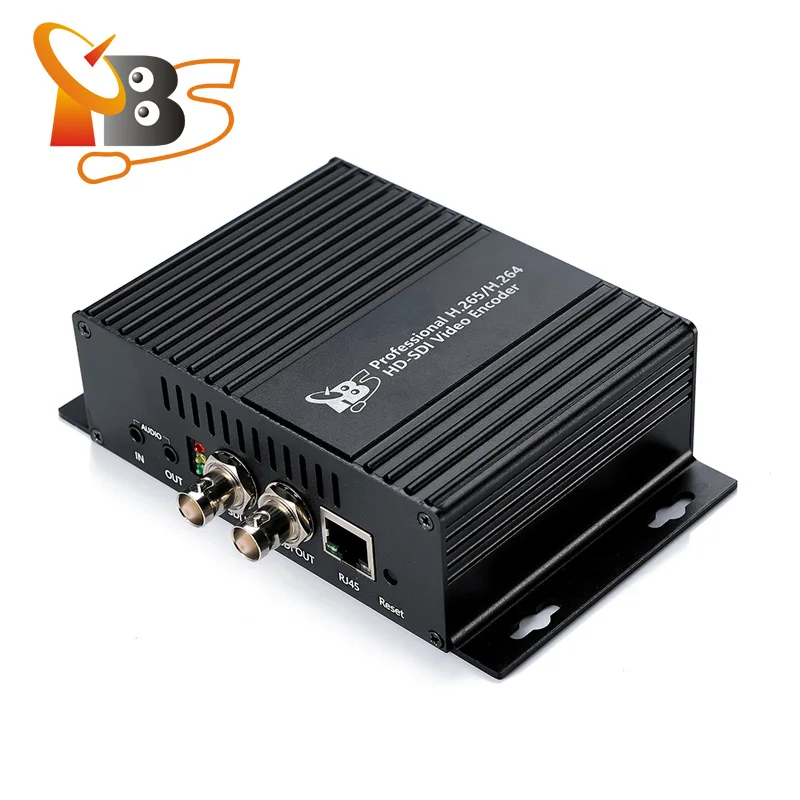

TBS2600 HD-SDI Video Encoder - Professional HD-SDI video coding box for IPTV Live Stream Broadcast

TBS2600 HD-SDI Video Encoder is a professional high-definition video coding box, which equipped with 1 SDI channel input and dual stream RJ45 output, what’s more, it has direct SDI output which can output original data. TBS2600 supports MPEG-4 AVC/H.264 High Profile code format input and dual stream H.264 format, audio ACC format output.

TBS2600 HD SDI encoder can be widely used to bellow applications:
1. IPTV;
2. Digital Signage;
3. Video Conference;
4. Replace HD Video Capture Card;
5. Hotel TV system;
6. Live Broadcast;
7. Teaching/Campus Broadcast;
8. Recording System;
9. NVR (Net Video Recorder);

Specifications:

Video
Input	1x HD-SDI
HDMI Resolution	1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below
Encoding	H.264/AVC Main Profile/High Profile , Audio AAC
Data Rate	16KBIT/S~12MBIT/S
Rate Control	CBR/VBR
GOP Structure	IBBP
Advanced Pretreatment	De-interlacing, Noise Reduction, Sharpening
Audio
Encoding	AAC, MP3
Sampling rate	Auto
Bit-rate	32K/48K/64K/96K/128K/160K/192K
Sampling precision	24 bit
Data Rate	64Kb/s ~ 384Kb/s
System
Ethernet/RJ45	1000 Base-T Ethernet interface
Protocol	HTTP, UDP, RTSP, RTMP, ONVIF
Control Interface	WEB
General Spec
Size	146mm x 122mm x 42mm
Weight	0.25kg
Working Temperature	0~45℃
Packing List
1 x TBS2600 HD-SDI Video Encode
1 x Power DC12V

Detailed Images

Packing & Delivery

Dimension: 482mm320.2mm108mm

Net weight: 15kg

temperature\t-20℃+ 60℃

Our Comany

TBS Technologies International Ltd

TBS Technologies is one of the leading providers for cost-efficient IPTV headend solutions, a company which specializes in developing, producing and marketing of IPTV streamers, HDMI encoding device and digital TV tuner cards for PCs. We are committed to providing customers with high quality products. With years of unremitting efforts, TBS has become one of the worldwide leaders in production of IPTV headend provider.

Our main products include IPTV streaming server, professional HDMI encoder , PCIe DVB-S2 TV Octa/Quad tuner devices, PCIe DVB-S2 Dual TV tuner cards, PCIe DVB-S2 TV tuner CI receivers, USB DVB-S2 TV tuners CI box, USB DVB-S2 TV Box with blind scan, DVB-C TV tuner USB boxes, DVB-C digital Cable TV CI box and so on.

TBS has an excellent R & D team with many years experience in providing a high degree of technology integration and development capabilities. We persist in seeking a breakthrough in technique and strive to provide wider space for designing and developing new products for our customers.

TBS Technologies International Ltd

Address: 610，6/F，Bldg.36，Chentian Industrial Park, Baotian 1st RD., Xixiang Town, Bao'an District, SZ, China， 518101

Tel: +86-755-26501345

Web: www.tbsiptv.com

Irene Jiang

Email: irene (at) tbsdtv.com

Skype: irene_jiang
Whatsapp: +86-18620325239

Related Products

H.264 IP Video Encoder IPTV

UDP Multicast H DMI Encoder H.264 H.265 IPTV Encoder

16 channel UDP Multicast SDI Encoder H.264 H.265 IPTV Encoder

FAQ

Q1: How does your factory do regarding Quality Control?

A1: Quality is very important and always be put at the first place. Our team members always pay great attention to quality controlling from the very beginning to the end.

Inspections of each step will be done during the production process.

Q2: Can I get some Samples?

A2: Yes, sure, we are honored to offer you samples to test, but sample is not free.

Q3: What is your Delivery date and method of Transportation?

A3: All goods in stock , just need 100%QC testing and Aging testing again before delivery.So delivery within 2~7 days after confirm payment !

We deliver goods via International Express like FedEx, UPS, DHL, TNT, EMS etc, take 3-6 days to your address!

Q4: Could you please make OEM for us?

A4: Surely yes. We provide the service of replacing your logo and company name on box and software interface of the device.

Q5: What's your Payment method supported?

A5: We accept T/T, Paypal, Western Union, MoneyGram , Alibaba Trade Assurance etc.

Q6: What about your Warranty?

A6: It's 1 year warranty for free repair or replacement.
