Wholesale Price flashing refrigerator magnets push pin
- Категория: >>>
- Поставщик: Hangzhou Shengshideng Magnetics Co. Ltd.
Сохранить в закладки 60700427265:
Описание и отзывы
Характеристики
Wholesale Price flashing refrigerator magnets push pin
USD $61000 Alibaba Trade Assurance to Secure Your Transaction
Top 3 Alibaba Permanent Magnet Supplier;
Our big advantages
1:). Magnets and Magnetic assemblies are Customized.
2:). Strategic cooperation with China’s No.1 rare earth miner CHINALCO, which enables us strong and safe backup for rare earth raw materials cost stability, 3 x -3% annual price down guaranteed.
3:). ISO/TS 16949, VDA 6.3, ISO9001, ISO14001 certified company, RoHS, REACH, SGS complied product.
4:). 0 PPM performance for General Motor's OEM since 2010, remarkable customers such as SIEMENS, BMW, REGAL BELOIT, NIDEC, ELECTROLUX, S&T Motiv.
5:). Over 100 million magnets delivered to American, European, Asian and African countries.
6:). One stop service from R&D to mass production.
Product Description

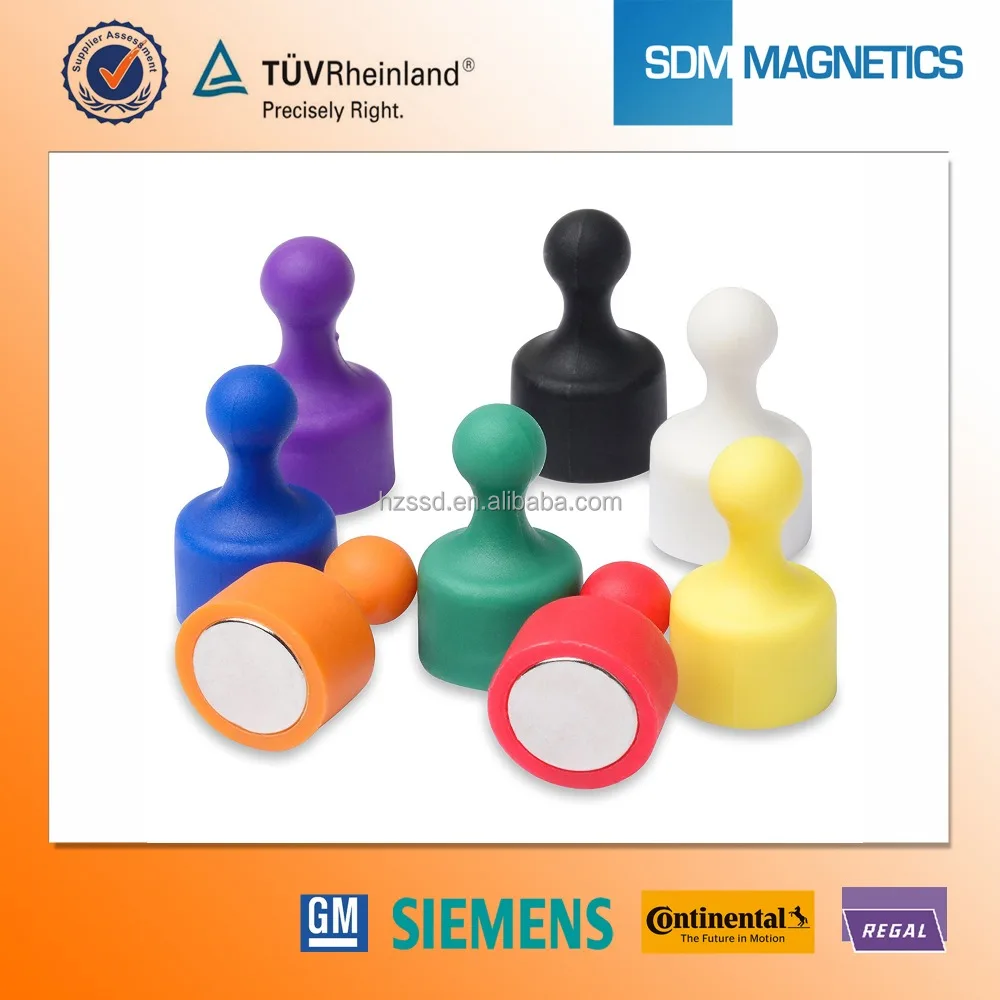

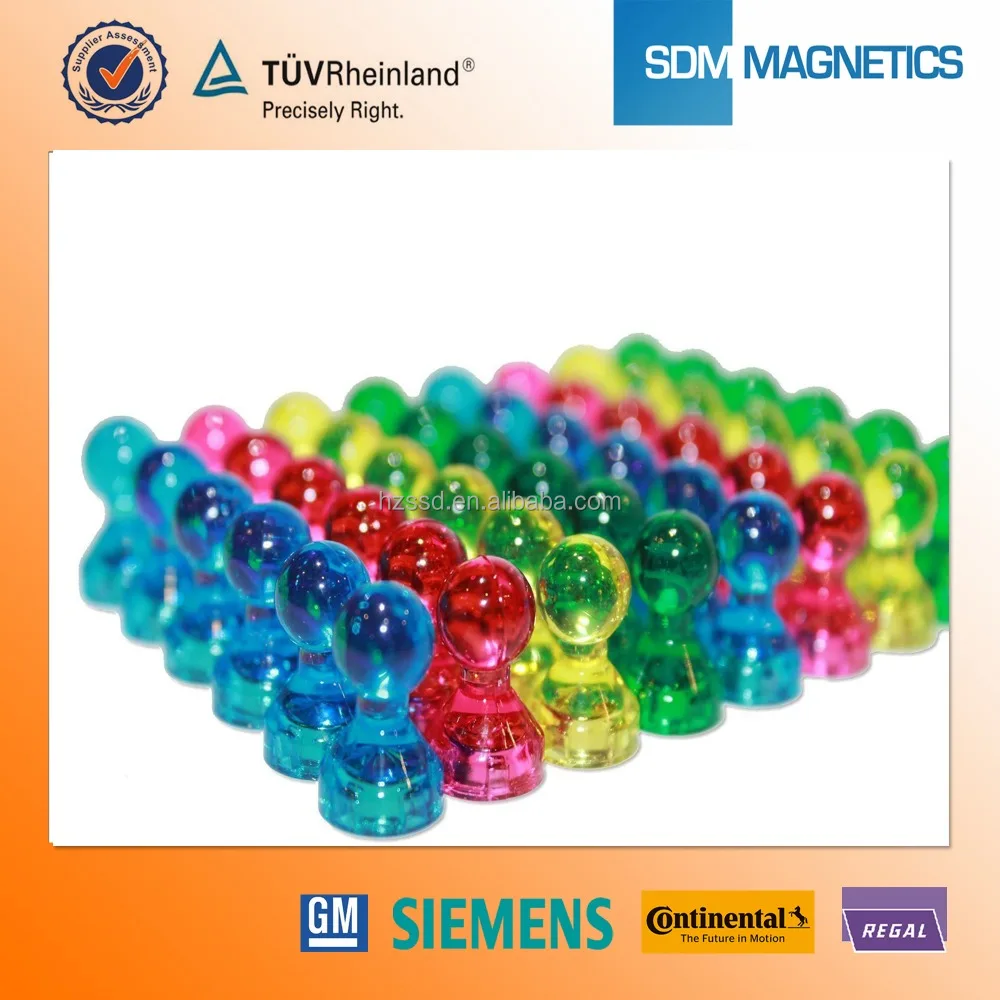

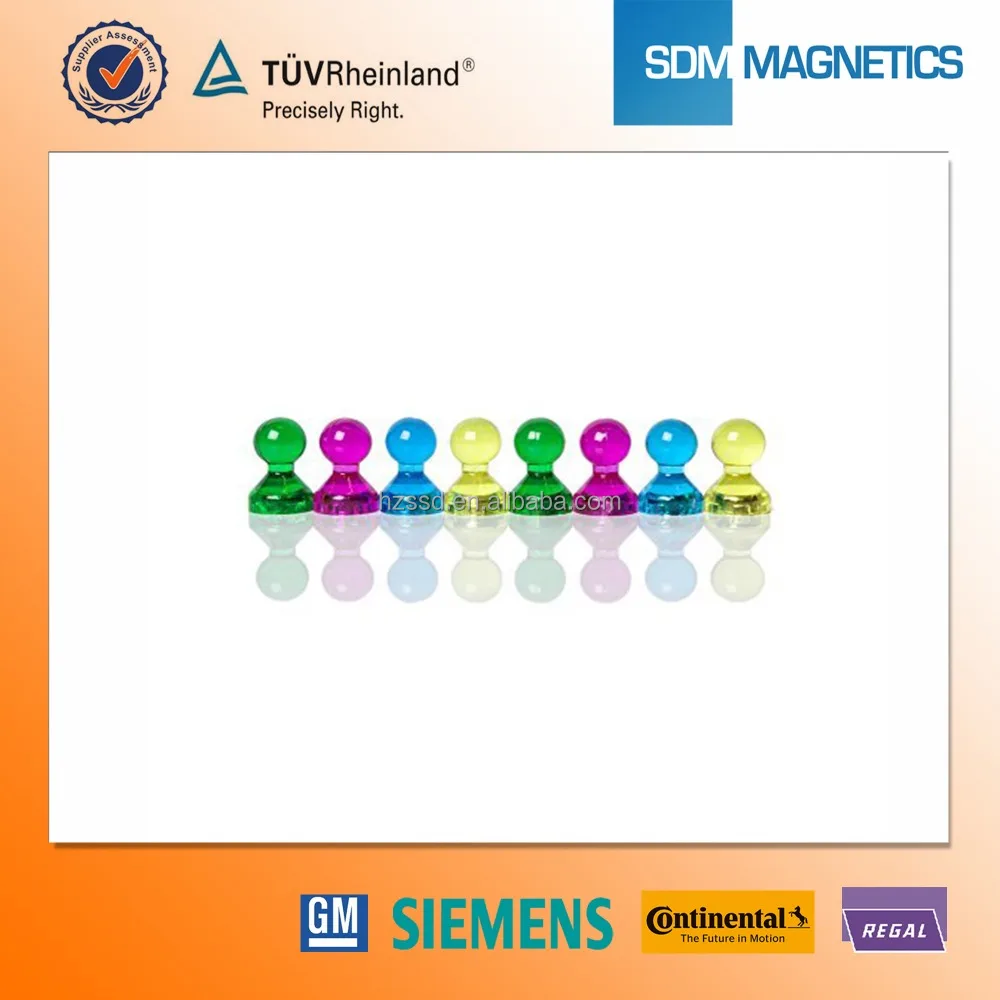

refridgerator magnets pin
Magnetic Pins made of 1 piece strong Neodymium disc (disk) magnet and 1 plastic mold. The magnet is mounted in a plastic shell with an ergonomically designed plastic handle for ease of use.

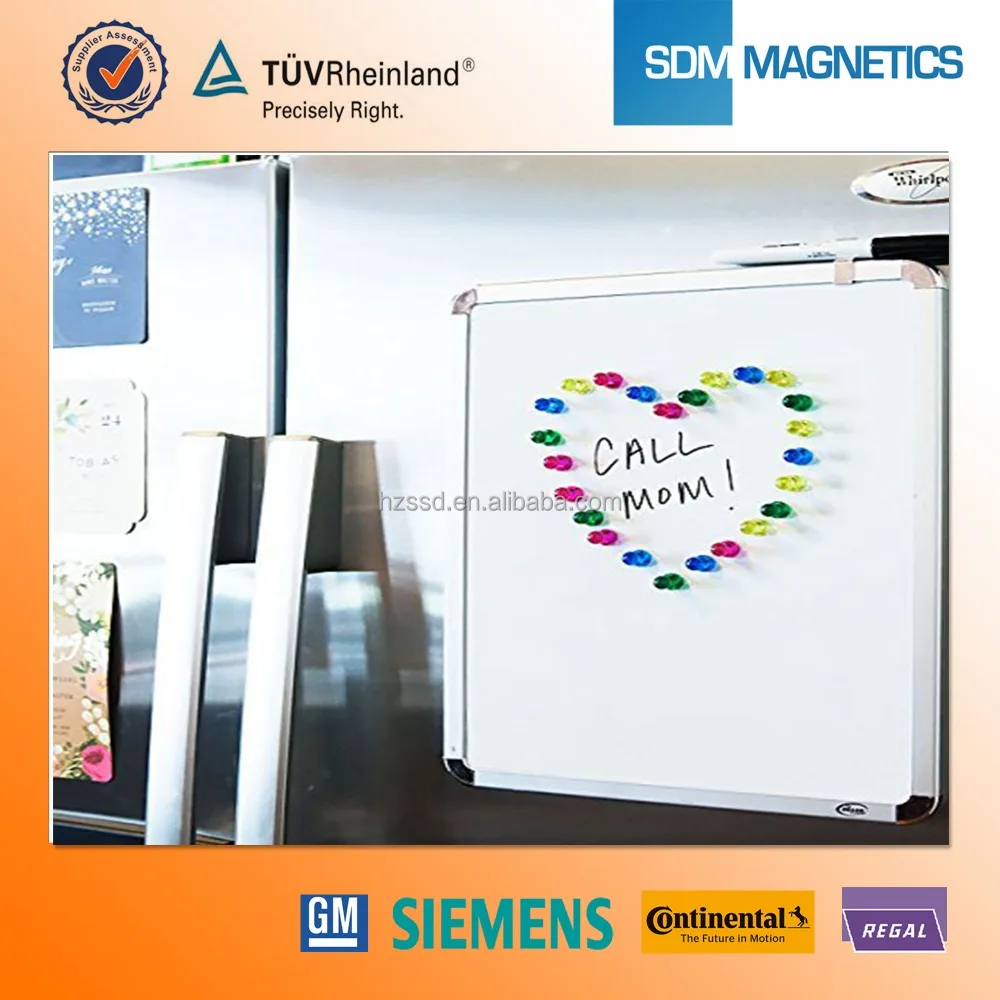

They are small, easy to grip yet very powerful.One magnetic pin will hold 35 pieces of A4 paper to a magnetic surface.
Color and size of magnetic pin can be made by customers’ requirement.
Related Products
1.The Neodymium Magnet and Neodymium Magnetic Assembly we could produce:
2.Customized Neodymium Magnet and Magnetic Assemblies
Neodymium Magnets and Neodymium Magnetic assemblies are Customized. You can tell us the Size, Shape and Grade of the Magnet, we can help you produce in 7-15 days !!
Shape | max.size | min.size |
Block | 240*100*40 | 2*2*1 |
Cylinder | D240*40 | D2*1 |
Ring | OD240*40 (hole size customized) | D5*1*1 |
Arc | per your request | |
And other special shape neodymium magnet per your request. | ||
3.More Magnets We Could Produce:
4. Grades, Coatings and Magnetization Direction
(1) Material grades include: N35--N52, N35M--N50M, N35H--N48H, N35SH--N45SH, N28UH--N42UH, N28EH--N40EH.
| Grade | Residual Induction (Br) | Coercive Force (Hcb) | Intrinsic Coercive Force (Hcj) | Max Energy Product (BH)max | Max Working Temp. | ||||
| T | kGs | kA/m | kOe | kA/m | kOe | Kj/m³ | MGOe | (°C) | |
| N35 | 1.17-1.22 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 955 | ≥ 12 | 263-287 | 33-36 | 80 |
| N38 | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 955 | ≥ 12 | 287-310 | 36-39 | 80 |
| N40 | 1.25-1.28 | 12.5-12.8 | ≥ 907 | ≥ 11.4 | ≥ 955 | ≥ 12 | 302-326 | 38-41 | 80 |
| N42 | 1.28-1.32 | 12.8-13.2 | ≥ 915 | ≥ 11.5 | ≥ 955 | ≥ 12 | 318-342 | 40-43 | 80 |
| N45 | 1.32-1.38 | 13.2-13.8 | ≥ 923 | ≥ 11.6 | ≥ 955 | ≥ 12 | 342-366 | 43-46 | 80 |
| N48 | 1.38-1.42 | 13.8-14.2 | ≥ 923 | ≥ 11.6 | ≥ 955 | ≥ 12 | 366-390 | 46-49 | 80 |
| N50 | 1.40-1.45 | 14.0-14.5 | ≥ 796 | ≥ 10 | ≥ 876 | ≥ 11 | 374-406 | 47-51 | 60 |
| N52 | 1.43-1.48 | 14.3-14.8 | ≥ 796 | ≥ 10 | ≥ 876 | ≥ 11 | 390-422 | 49-53 | 60 |
| N35M | 1.17-1.22 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1114 | ≥ 14 | 263-287 | 33-36 | 100 |
| N38M | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1114 | ≥ 14 | 287-310 | 36-39 | 100 |
| N40M | 1.25-1.28 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1114 | ≥ 14 | 302-326 | 38-41 | 100 |
| N42M | 1.28-1.32 | 12.8-13.2 | ≥ 955 | ≥ 12 | ≥ 1114 | ≥ 14 | 318-342 | 40-43 | 100 |
| N45M | 1.32-1.38 | 13.2-13.8 | ≥ 955 | ≥ 12.5 | ≥ 1114 | ≥ 14 | 342-366 | 43-46 | 100 |
| N48M | 1.37-1.43 | 13.7-14.3 | ≥ 1027 | ≥ 12.9 | ≥ 1114 | ≥ 14 | 366-390 | 46-49 | 100 |
| N50M | 1.40-1.45 | 14.0-14.5 | ≥ 1033 | ≥ 13 | ≥ 1114 | ≥ 14 | 382-406 | 48-51 | 100 |
| N35H | 1.17-1.22 | 11.7-12.2 | ≥ 868 | ≥ 10.9 | ≥ 1353 | ≥ 17 | 263-287 | 33-36 | 120 |
| N38H | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 1353 | ≥ 17 | 287-310 | 36-39 | 120 |
| N40H | 1.25-1.28 | 12.5-12.8 | ≥ 923 | ≥ 11.6 | ≥ 1353 | ≥ 17 | 302-326 | 38-41 | 120 |
| N42H | 1.28-1.32 | 12.8-13.2 | ≥ 955 | ≥ 12 | ≥ 1353 | ≥ 17 | 318-342 | 40-43 | 120 |
| N45H | 1.32-1.36 | 13.2-13.6 | ≥ 963 | ≥ 12.1 | ≥ 1353 | ≥ 17 | 326-358 | 43-46 | 120 |
| N48H | 1.37-1.43 | 13.7-14.3 | ≥ 995 | 12.5 | ≥ 1353 | ≥ 17 | 366-390 | 46-49 | 120 |
| N35SH | 1.17-1.22 | 11.7-12.2 | ≥ 876 | ≥ 11 | ≥ 1592 | ≥ 20 | 263-287 | 33-36 | 150 |
| N38SH | 1.22-1.25 | 12.2-12.5 | ≥ 907 | ≥ 11.4 | ≥ 1592 | ≥ 20 | 287-310 | 36-39 | 150 |
| N40SH | 1.25-1.28 | 12.5-12.8 | ≥ 939 | ≥ 11.8 | ≥ 1592 | ≥ 20 | 302-326 | 38-41 | 150 |
| N42SH | 1.28-1.32 | 12.8-13.2 | ≥ 987 | ≥ 12.4 | ≥ 1592 | ≥ 20 | 318-342 | 40-43 | 150 |
| N45SH | 1.32-1.38 | 13.2-13.8 | ≥ 1003 | ≥ 12.6 | ≥ 1592 | ≥ 20 | 342-366 | 43-46 | 150 |
| N28UH | 1.04-108 | 10.4-10.8 | ≥ 764 | ≥ 9.6 | ≥ 1990 | ≥ 25 | 207-231 | 26-29 | 180 |
| N30UH | 1.08-1.13 | 10.8-11.3 | ≥ 812 | ≥ 10.2 | ≥ 1990 | ≥ 25 | 223-247 | 28-31 | 180 |
| N33UH | 1.13-1.17 | 11.3-11.7 | ≥ 852 | ≥ 10.7 | ≥ 1990 | ≥ 25 | 247-271 | 31-34 | 180 |
| N35UH | 1.17-1.22 | 11.7-12.2 | ≥ 860 | ≥ 10.8 | ≥ 1990 | ≥ 25 | 263-287 | 33-36 | 180 |
| N38UH | 1.22-1.25 | 12.2-12.5 | ≥ 876 | ≥ 11 | ≥ 1990 | ≥ 25 | 287-310 | 36-39 | 180 |
| N40UH | 1.25-1.28 | 12.5-12.8 | ≥ 899 | ≥ 11.3 | ≥ 1990 | ≥ 25 | 302-326 | 38-41 | 180 |
| N42UH | 1.28-1.32 | 12.8-13.2 | ≥ 899 | ≥ 11.3 | ≥ 1990 | ≥ 25 | 318-342 | 40-43 | 180 |
| N28EH | 1.04-1.08 | 10.4-10.8 | ≥ 780 | ≥ 9.8 | ≥ 2388 | ≥ 30 | 207-231 | 26-29 | 200 |
| N30EH | 1.08-1.13 | 10.8-11.3 | ≥ 812 | ≥ 10.2 | ≥ 2388 | ≥ 30 | 223-247 | 28-31 | 200 |
| N33EH | 1.13-1.17 | 11.3-11.7 | ≥ 836 | ≥ 10.5 | ≥ 2388 | ≥ 30 | 247-271 | 31-34 | 200 |
| N35EH | 1.17-1.22 | 11.7-12.2 | ≥ 876 | ≥ 11 | ≥ 2388 | ≥ 30 | 263-287 | 33-36 | 200 |
| N38EH | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 2388 | ≥ 30 | 287-310 | 36-39 | 200 |
| N40EH | 1.25-1.28 | 12.5-12.8 | ≥ 899 | ≥ 11.3 | ≥ 2388 | ≥ 30 | 302-326 | 38-41 | 200 |
| N28AH | 1.04-1.08 | 10.4-10.8 | ≥ 787 | ≥ 9.9 | ≥ 2624 | ≥ 33 | 207-231 | 26-29 | 230 |
| N30AH | 1.08-1.13 | 10.8-11.3 | ≥ 819 | 10.3 | ≥ 2624 | ≥ 33 | 223-247 | 28-31 | 230 |
| N33AH | 1.13-1.17 | 11.3-11.7 | ≥ 843 | ≥ 10.6 | ≥ 2624 | ≥ 33 | 247-271 | 31-34 | 230 |
| N35AH | 1.17-1.22 | 11.7-12.2 | ≥ 876 | ≥ 11 | ≥ 2624 | ≥ 33 | 263-287 | 33-36 | 230 |
| N38AH | 1.22-1.25 | 12.2-12.5 | ≥ 899 | ≥ 11.3 | ≥ 2624 | ≥ 33 | 287-310 | 36-39 | 230 |
(2) Coating includes Ni-Cu-Ni, Black Nickel, Zn, Sn,Au, Ag,Black Epoxy, Phosphated, Parylene, etc.
(3) Magnetization directions include:
Company Information
1.Our factory
SDM Magnetics is a supplier of Siemens Ltd Australia, GM, BMW, BENTLEY, and REGAL-BELOIT in European. We have been supplying magnetic materials since 2004. Our products are export to American,European and Asian countries.Our customers include motor manufacturers, industries equipments producers and so on.
Our manufacturing plants are located in Tonglu, Hangzhou which are only one hour by car from Hangzhou airport or railway station.We are also only one hour by train from Shanghai or Ningbo. It's available to pickup and drop off at Hangzhou Air/Train stations if you are traveling to Hangzhou from other cities in China.
2.As a professional neodymium magnet manufacturer, we are certified by ISO9001:2008, ISO/TS16949:2009, RoHS, REACH, TUV, SGS
Our Exhibition
We Will Join CWIEME Berlin every year;
We Will Join HANNOVER MESSE every year;
We Will Join CWIEME Chicago every year.
If you are convenient, we could talk face to face !!
We could let our customers in your country to help you send the samples, to let you check our quality faster!!
Our Services
1.Products Magnetization
We can do all the magnetization for neodymium magnet including: Axial magnetization/Diametrical magnetization/Radial magnetization/Inner-diameter
multi-polar magnetization/Outer diameter multi-polar magnetization/Surface magnetization/Complex magnetization/Encoder magnetization/Skewed magnetization.
In order to offer better understanding of these methods of magnetization, please see below explaination.
2. Demagnetization Curves & Outgoing Inspection Report for each customer.
3. Standard Packing and Shipment
The package for neodymium we use: Sea Pallet / Air Carton / Express Packaging / Plastic Tube / Wooden Case / Vacumm Package and any other packing terms as per your requirement.
4. Shipping Details:
A: We have a discount price with Fedex and DHL. So if the weight is under 100Kg, you can those two shipping companies. But you can also choose TNT, UPS
or any other shipping companies if you like. We'll use iron boxes to shield the magnetics force for air shipping.
B: When the weight is over 100Kg,we think sea shipping is more reasonable. We have our own forwarder, you can also entrust your own forwarder.
C: Anyway, we'll respect your choices.
5. Payment
We accept T/T, Paypal, Western Union, ESCROW and L/C
FAQ
1: How fast can I get a reply?
You will receive our reply within 15 minutes during our work time 08:00 – 18:00(UTC-8).
2: Can I get free samples?
Free samples are available at SDM warehouse. However it may take minimum 7 days for production if your size is not on our stock list.
3: Are you able to offer best prices?
Magnets are functional products, the costs depend on how strong the materials you need. We believe the most suitable is the best, therefore SDM is keen to offer best prices to meet your target.
4: Are you able to provide best quality?
At SDM you receive products under guarantee of ISO9001, ISO/TS16949 systems.
5: What are your best lead-times?
Immediately shipments are available for stock magnets. For fresh materials, we need 7-15 days for production.
6: How can you make sure that my money is safe with you?
As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payment will not be released to vendor until buyer confirms receipt and good material of delivery.
Похожие товары

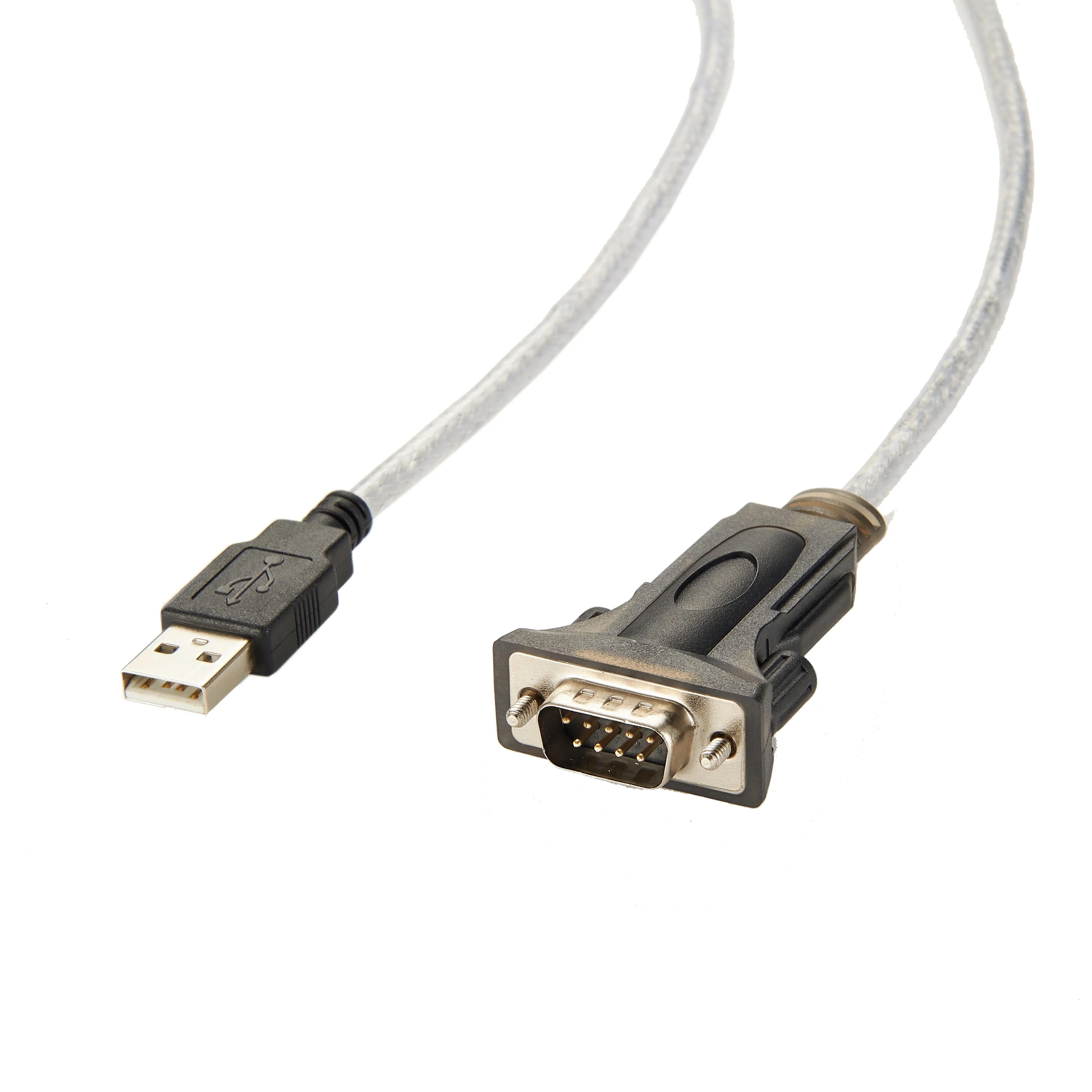

Кабель-переходник DB9 папа-USB RS232
Кофе-машина очиститель порошок 1кг
4,45 $ - 4,88 $

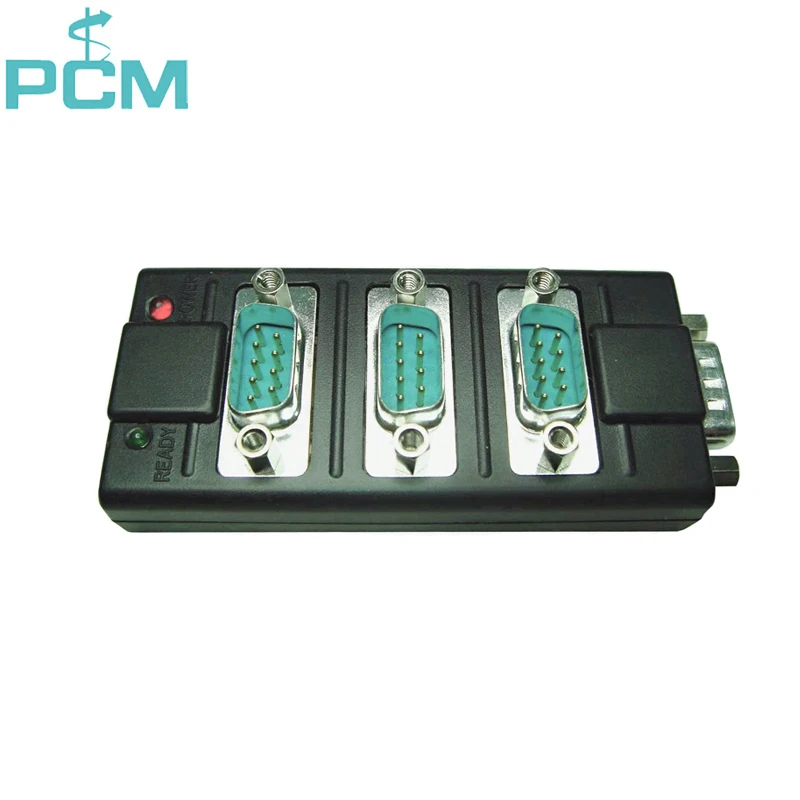

USB к DB9 RS232 концентратор с 4 портами

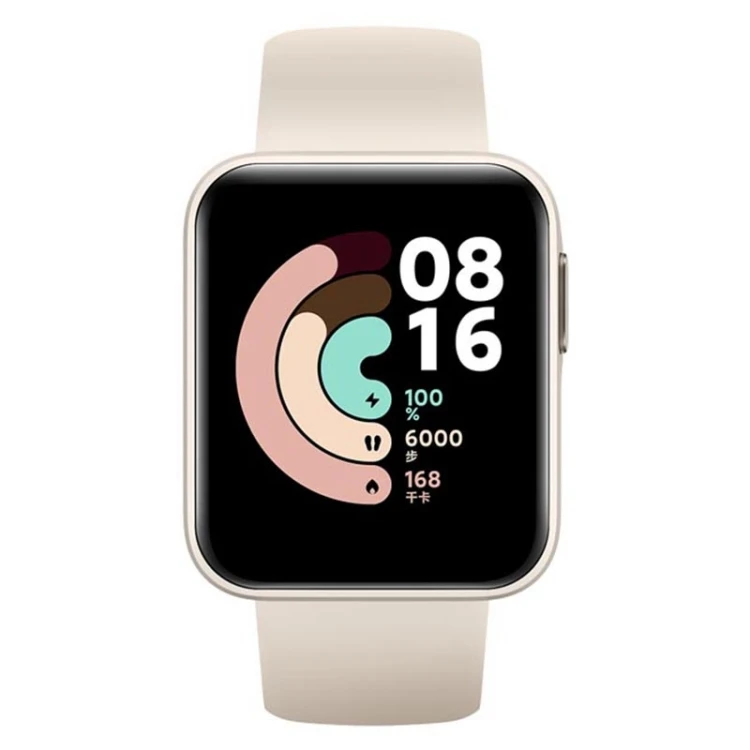

Original Xiaomi Redmi Watch 1.4 inch High-definition Screen 5 ATM Waterproof
41,00 $ - 45,00 $
Оптовая продажа черные CD сумки на молнии из искусственной кожи 32 CD держатель
47,44 ₽

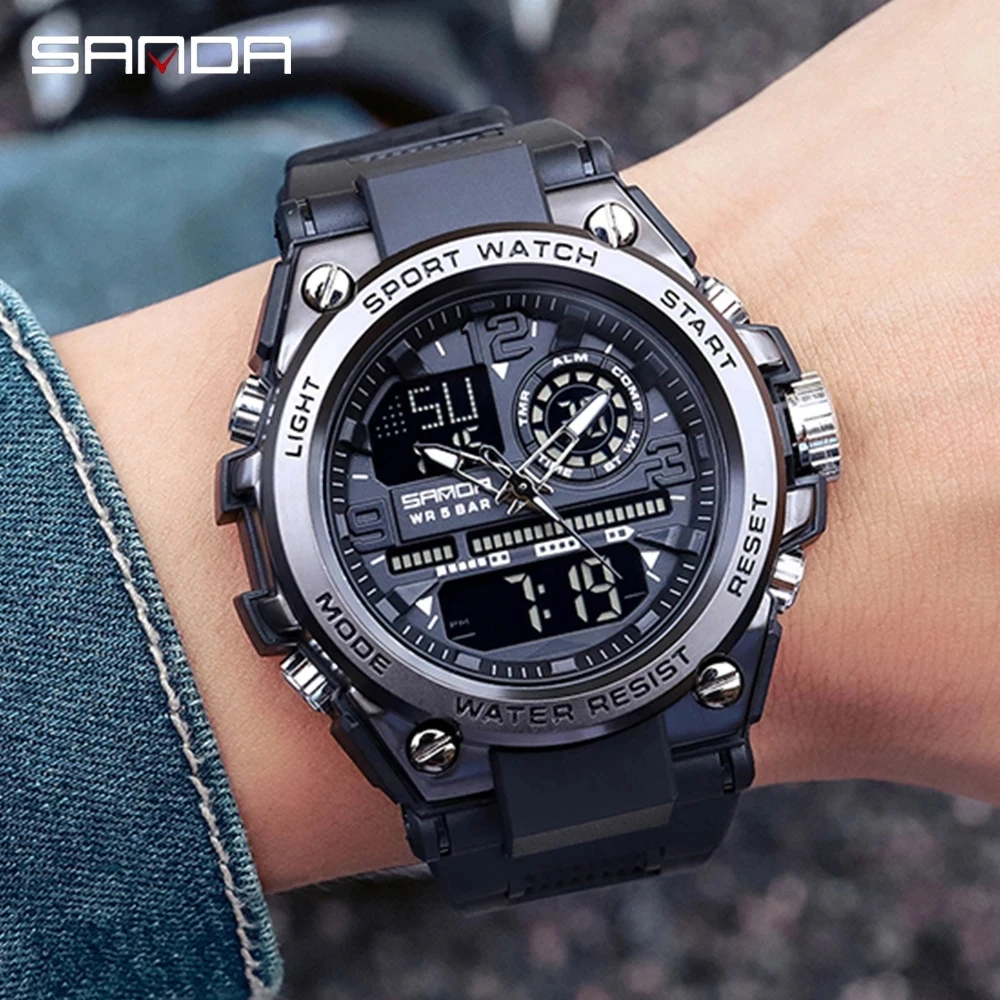

Sanda 6024 Топ бренд Цифровые мужские часы Модные Военные Спортивные кварцевые часы G стиль силиконовый ремешок 5 атм
7,90 $ - 8,73 $

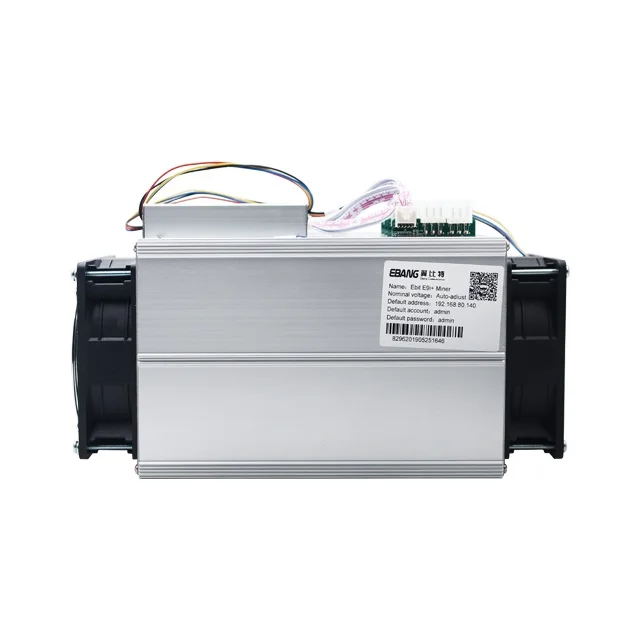

Новинка 2021, Ebang Ebit E11 + 37Th/s, машина для майнинга биткоинов, Майнер биткоинов ebang ebit e11 +
