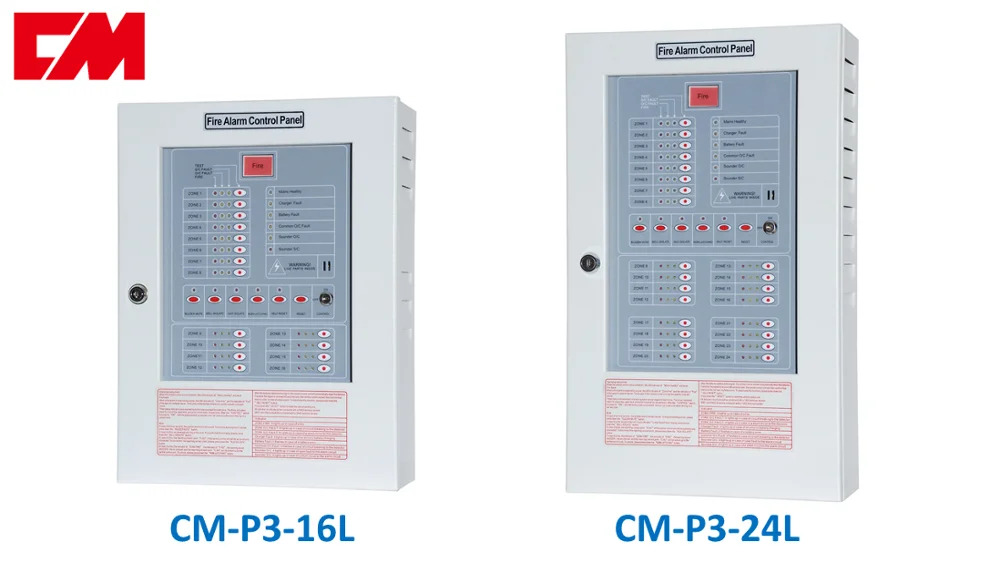

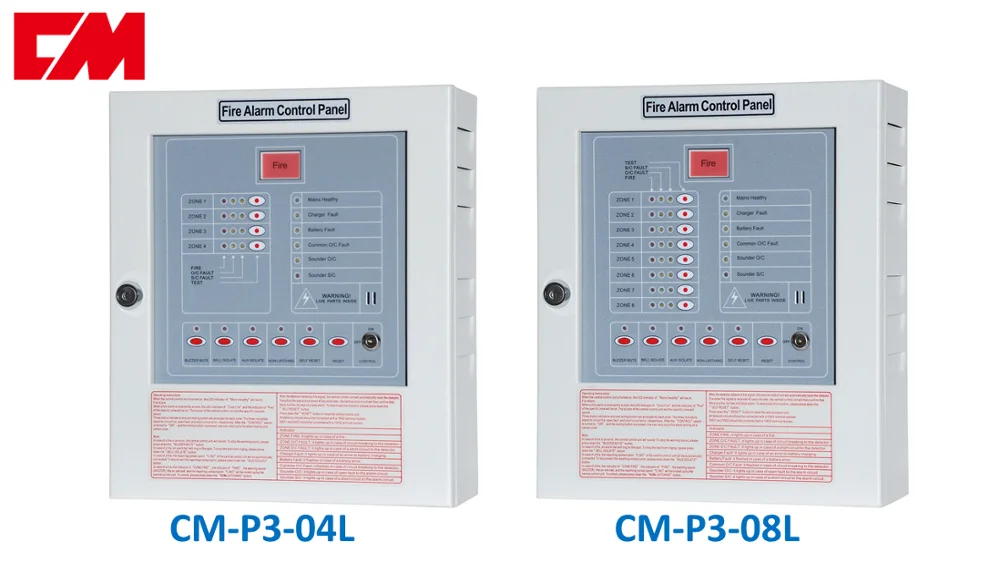

Simple Safe Home Firefighting Equipment Alarm System Control Panel
Product Description
Characteristics:
- Equipped with monitoring functions on fire, circuit break and short circuit, respectively
- Able to detect circuit break and offer protection against short circuit
- Keeping watch over battery charging and the voltage of the stand-by battery to ensure that the central control unit functions well in all circumstances to prevent any disaster
- Each circuit is equipped with a testing button to ensure the normal function of each monitoring circuit
- Key-controlled function switches prevent false alarms caused by accidental touch
- Digital detection of voltage error
- Two-stage accumulation function to prevent false alarms:
* When the detector activates for the first time, the system will automatically reset the detector
* If another signal is received later, the system will then confirm that there is a fire - Self-Protection mode and Non Self-Protection mode are available
- Separate control switches: main audio, local audio, indicators, and reporting output
- Not-Located indicator above each switch
- Digital-electronic switches are used due to advantages of dust proofing and a long service life
- The alarm buzzer sounds in a loud voice
Specification:
MODEL NO. | CM-P3 | STANDBY BATTERY | 24V DC Sealed Maintenance-Free Lead-Acid Battery |
POWER SUPPLY | 240V AC 50/60Hz ± 10% | ||
CHARGING VOLTAGE & CURRENT | 26V DC below 450mA, Trickle Charging | CHARGING CURRENT | 26.4V DC, under 450mA, Trickle Charge |
EXTERNAL CIRCUIT | T-and-fro below 50 Ω | DETECTORS | No limit of R.O.R Heat or Fixed Temp. Heat Detector can be installed; Each circuit can connect to a maximum of 20 smoke detectors (standby current for detector: 24V DC 25 μA below) |
E.O.L RESISTOR | 10 KΩ | ||
NO. OF INDICATORS | 1 time of panels circuits | ||
NO. OF BELLS | 1 time of panels circuits | REPORT CONTACT | No voltage N.O. contact Capacity 250V AC 7A × 2 sets |
CASE MATERIAL | Standard Material of 1.2mm |
Order Information :
CM-P3-1L | FACP 01 zone with battery |
CM-P3-2L | FACP 02 zone with battery |
CM-P3-4L | FACP 04 zone with battery |
CM-P3-8L | FACP 08 zone with battery |
CM-P3-12L | FACP 12 zone with battery |
CM-P3-16L | FACP 16 zone with battery |
CM-P3-24L | FACP 24 zone with battery |
External Dimensions :
- Max. 24L
- Other circuit and dimensions can be ordered.

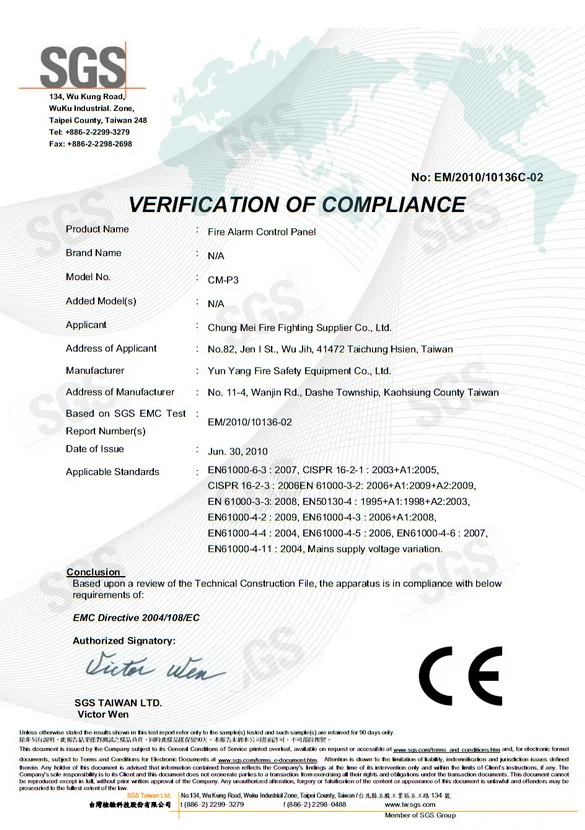

*Certificates
Packaging & Shipping
(UNIT: mm)
MODEL NO. | DESCRIPTION | PACKING | N/W (KG) | G/W (KG) | MEASUREMENT |
CM-P3-01L | With battery | 1 SET/CTN | 6.1 | 6.5 | 345 × 290 × 145 |
CM-P3-02L | 1 SET/CTN | 6.1 | 6.5 | ||
CM-P3-04L | 1 SET/CTN | 6.16 | 6.5 | ||
CM-P3-08L | 1 SET/CTN | 6.16 | 6.5 | ||
CM-P3-12L | 1 SET/CTN | 7.6 | 9 | 460 × 350 × 180 | |
CM-P3-16L | 1 SET/CTN | 7.6 | 9 | ||
CM-P3-24L | 1 SET/CTN | 8.5 | 9.6 | 560 × 370 × 180 |
- Shippment: By Sea
- Loading Port: Taichung/ Keelung Port

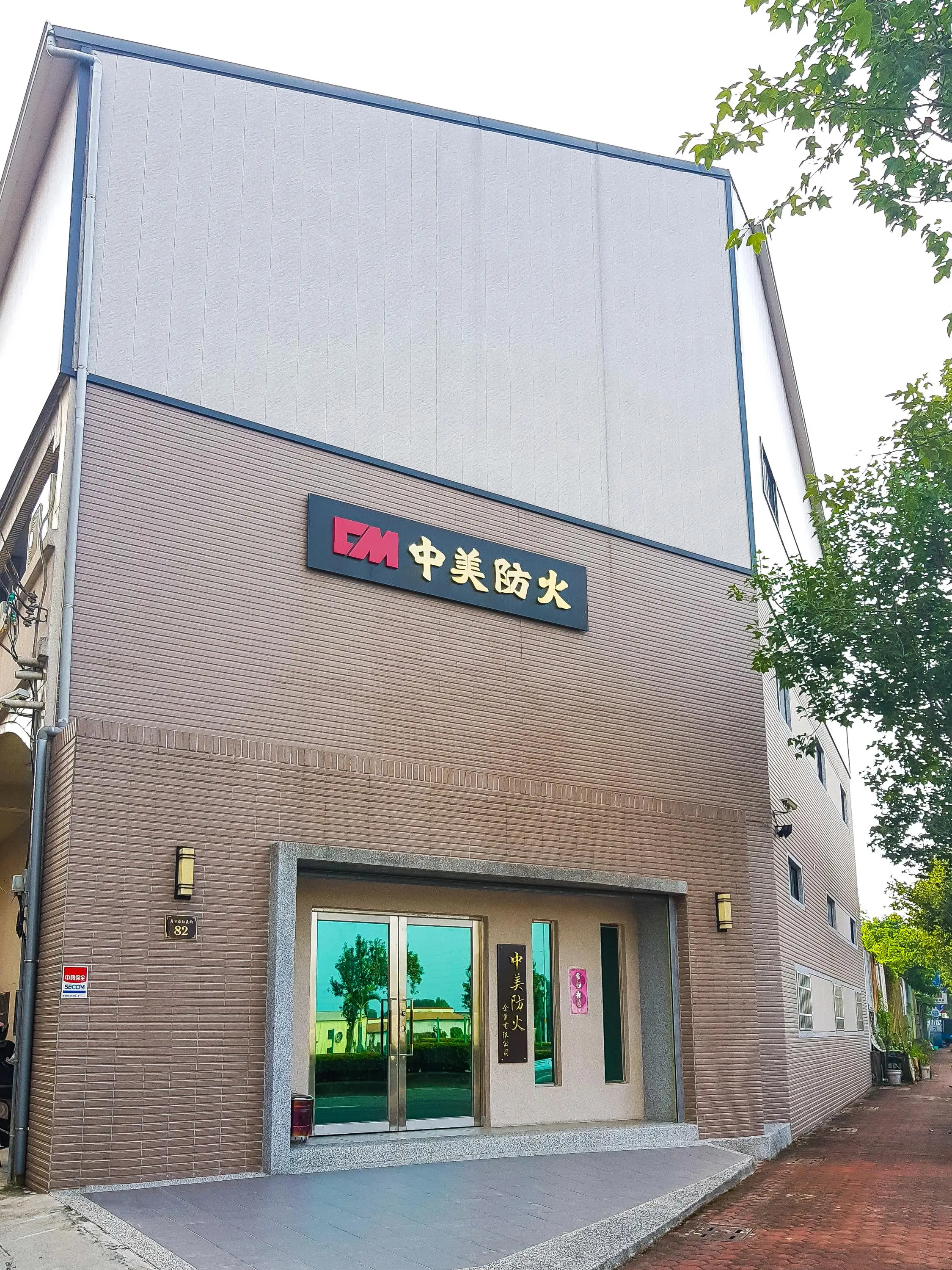

Company Information
CM is a professional fire alarm system manufacturer and designer in Taiwan for over 40 years. We offer high quality products including Fire Alarm Control Panel, Detectors, Fire Alarm Accessories, and others. As well as, we have accumulated lots of technical and marketing experience. We have dedicated ourselves in research and development of new products by escalating standards of technology and quality.
Our product line is compliant with the Chinese National Standard (CNS), ISO 9001 as well as the safety standard of European Union (CE).
In addition to being the leader brand in Taiwan with well-recognized quality, we have been working on expanding our oversea markets. Our products are available in Europe, Asia and Africa. It's the ultimate goal of our company to put our products in every major market of the world. Our philosophy is to take care of all the customers' needs and people's safety.
Quality means everything in our production system
- Stringent quality control operations are carried out at every stage of the manufacturing process, from raw materialsto finished products. Manufactured capsules are fully and carefully inspected.
- We implement sophisticated in-process monitoring systems based on statistical methods to assure bothconsistency and quality of capsules at every stage. Only excellent products that meet our strict in-house standards are allowed to pass on to our clients.
- To facilitate tracing of historical records, we hold a representative amount of samples of every batch produced. These samples can be used to analyze the pre-shipment product quality if necessary.

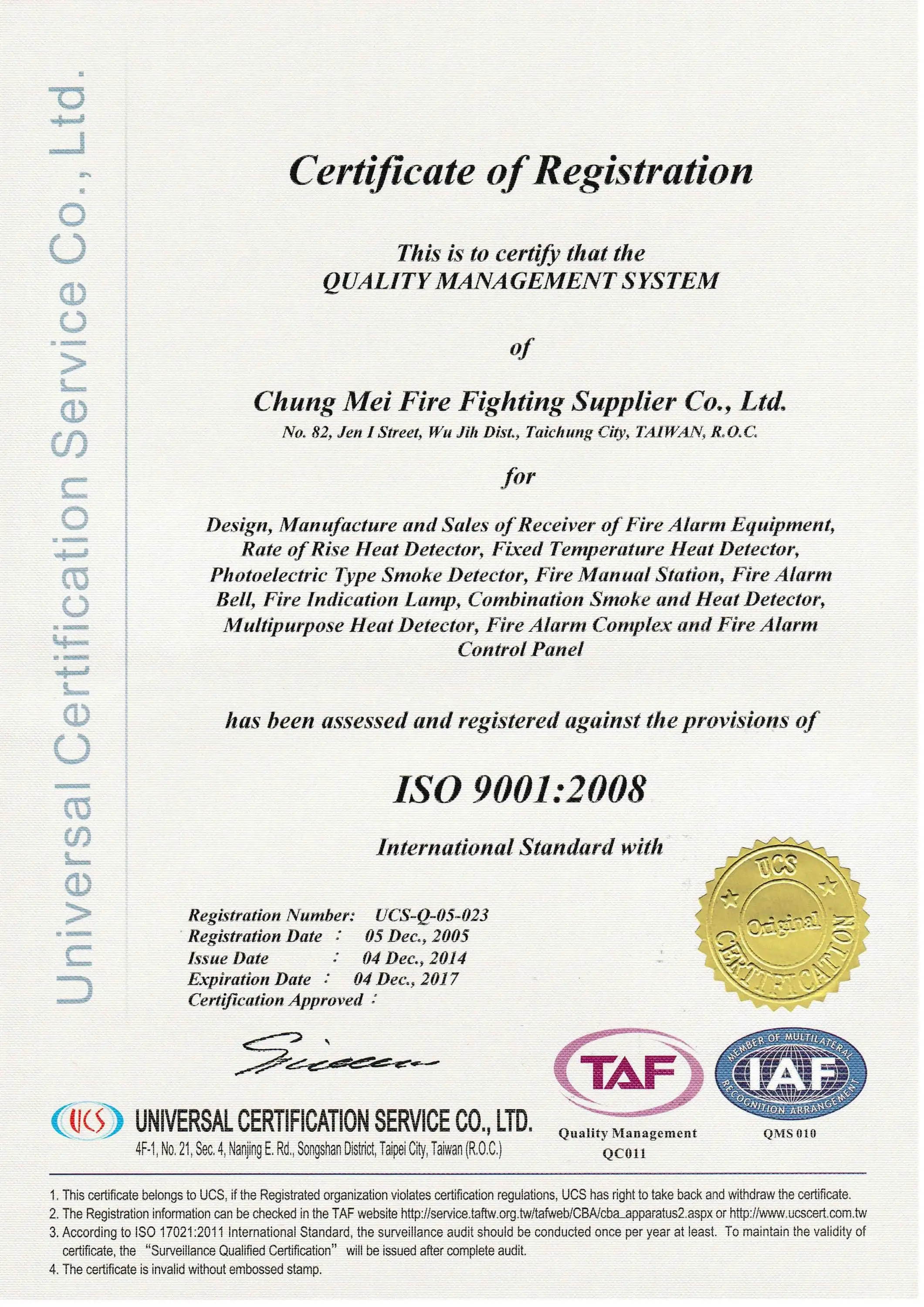

- Our strict quality management system was approved by both CE and ISO 9001 in 2001. We take pride in delivering only the best quality products to our clients while meeting regulatory requirements.
World Market
FAQ
Payment Term: FOB T/ T 100 %
*Contact Us
Похожие товары
Конвенциональная пожароизвещательная станция
Приемно-контрольный прибор
Конвенциональная пожароизвещательная станция
13 лет завод 4 панель управления стандартной пожарной сигнализации контрольный узел

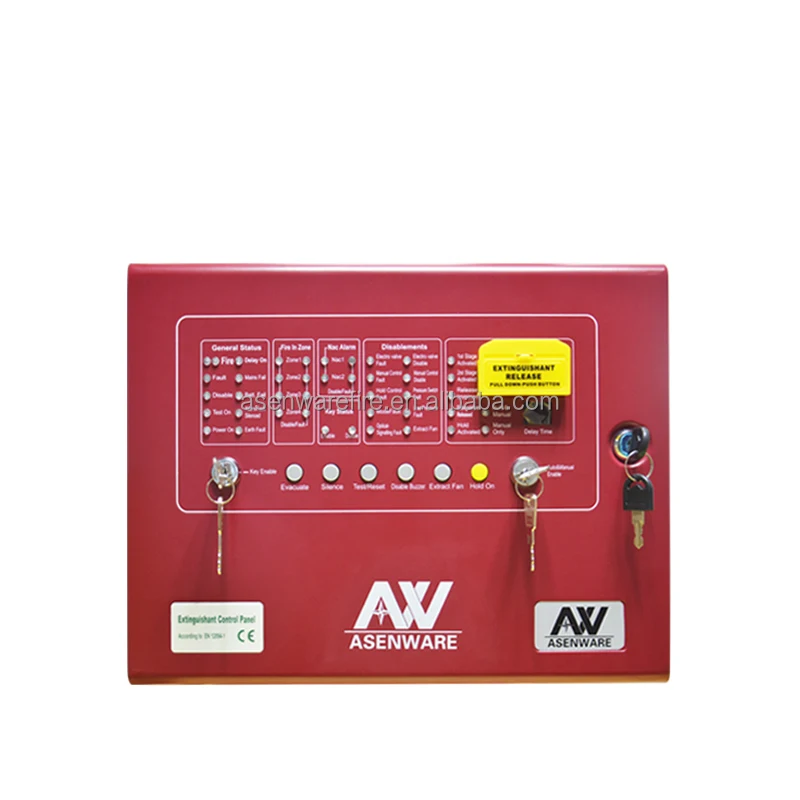

Лучшая цена! Автоматическая fm 200 asenware панель управления пожарной сигнализации

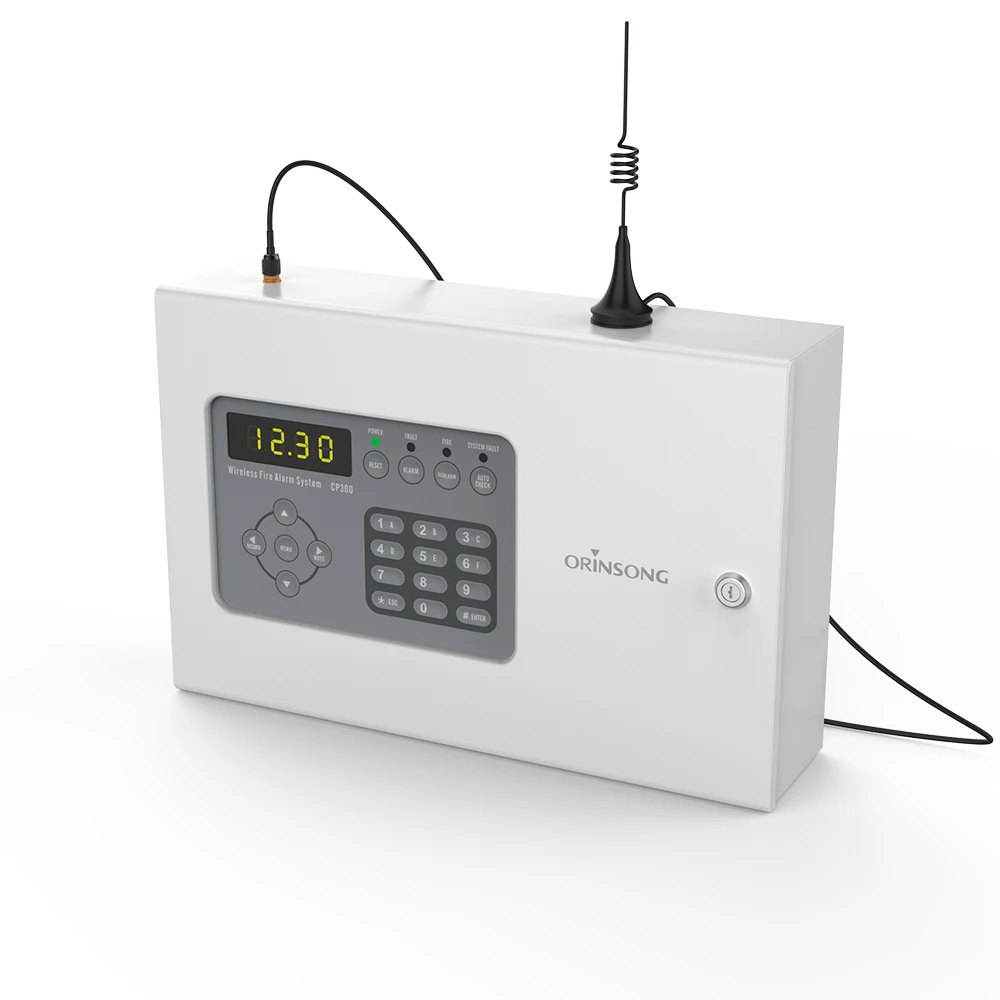

Беспроводная пожарная сигнализация, панель управления 433 МГц GSM zigbee, детектор дыма, цены
