Product Description




_20210629102413.pngSlewing bearings are large-sized bearings which can accommodate a combined load, i.e., radial loads and tilting moment.

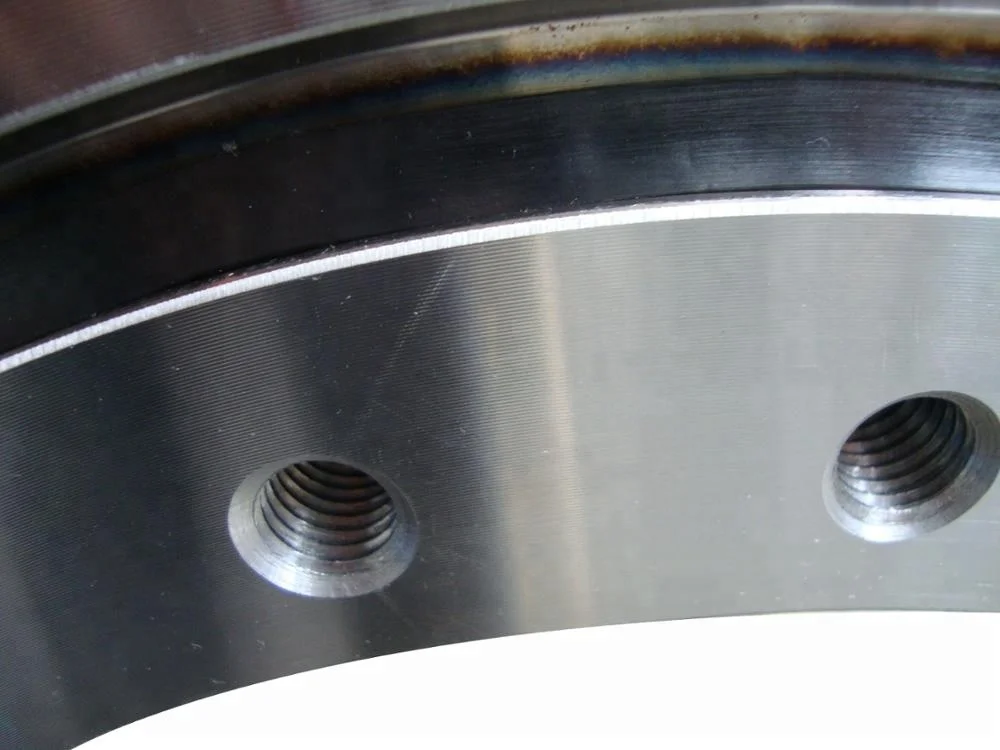

They are usually provided with holes for fixing bolts; internal, external or no gear; and lubrication holes and seals, which allow


a compact and economical arrangement. In additon they often enable the elimination of many components necessary in the


classical bearing arrangement.



















































































































Product Name

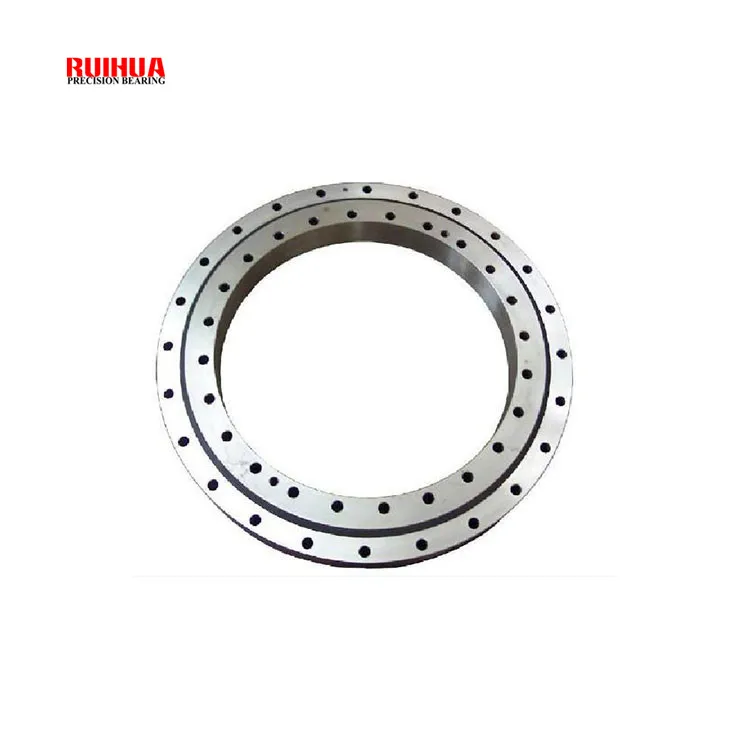

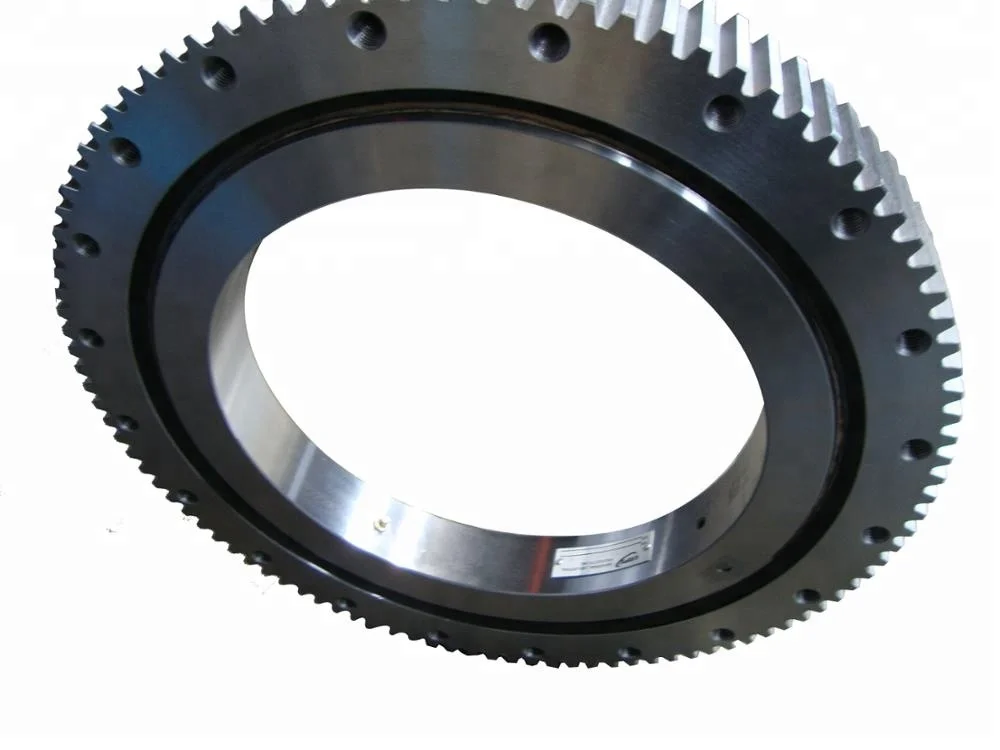

China Supplier Slewing Ring Bearing Replacement


Model Number


EGSBM 520 324 54


Reference Number


9E-1B25-0422-0354


Application


For Crane Attachment


Gear Option

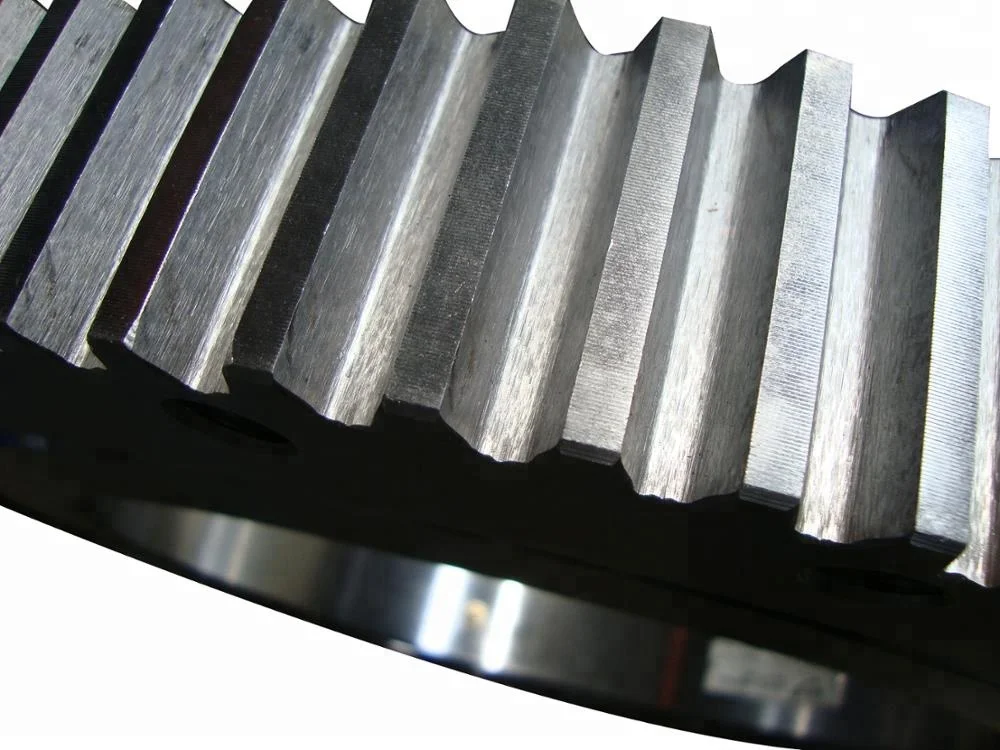

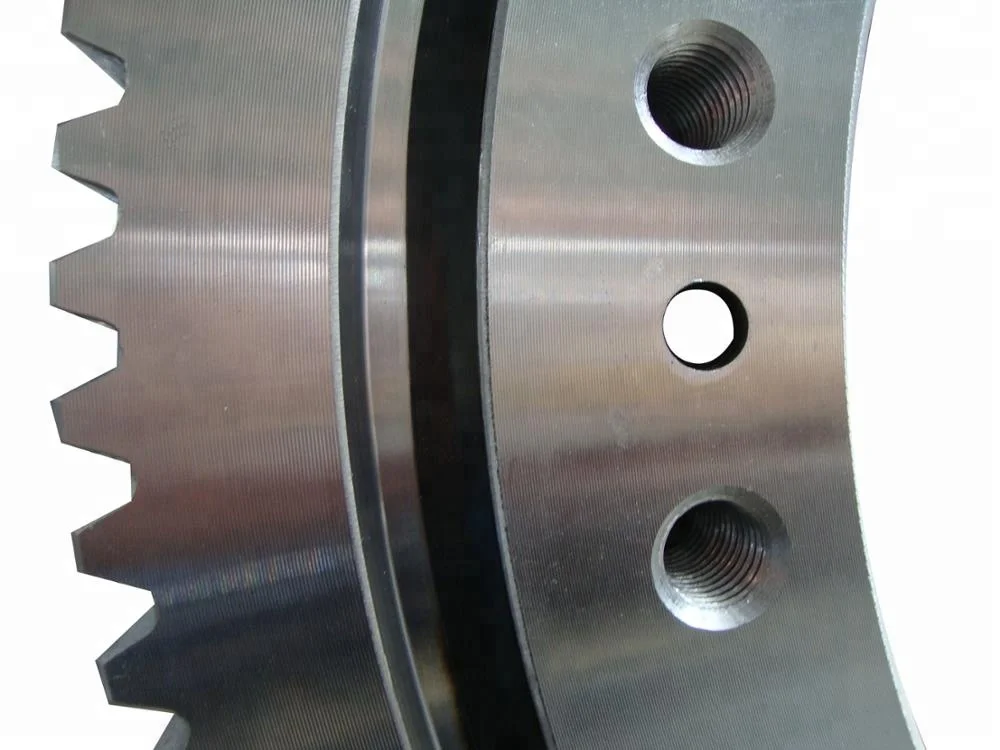

External Gear Only


Seal Type


Rubber Sealed


Features


Four Point Contact Ball


Brand


UIPI


Outer diameter:


520.3 mm (20.48")


Inner diameter:


323.7 mm (12.74")


Height


54 mm (2.13")


Axial play:


0.01 mm~0.05 mm


Radial play:


0.01 mm~0.063 mm


Core hardness:


257~307 HB


Raceway Hardness:


55 ~ 60 HRC


Raceway Effective depth


≥3 mm


Material:


GB42CrMo (DIN42CrMo4/BS708A42/AISI4140)


Standard


EN 10204 2.2; EN 10204 3.1.B ; EN10204 3.1.C


Heat treatment


Quenching and tempering
Raceway induction quenching


Operating Temperature


-40℃ to +50℃


Grease


EP2 lubricating lithium grease


Weight


43.53 KGS


Place of Origin


Luoyang, Henan, China


Certificate


API Q1 Certificate (American Petroleum Institute) Quality Assured Firm
Qualified to be used in Petroleum machinery equipment.
ISO9001:2008 Certificate


Services


OEM Service, Customized Service, Design Service
















Applications


Leadway facility manufactures large diameter ball and roller bearings, and our slewing bearings have proven effectiveness in many applications such as below:


chris-application fields.png


Combining compactness, accuracy, smooth operation with relative high rigidity, together with simple mounting and operation reliability are qualities that allow use of these bearing in all industrial branches.





 Application





Company Information


chris-companyShenyang Leadway Machinery Equipment Co., Ltd. is sales office, it is  the subsidiary corporation of Universal Industrial Products, Inc.(UIPI) which is a slewing bearing(slewing ring) manufacturer specializing in large diameter solutions in California. Universal Industrial Products, Inc.(Luoyang) is the facility of UIPI, with a very strict Quality Management System.





Leadway and UIPI builds slewing bearings to meet the OEM specifications of all major equipment manufacturers as well as fully custom solutions for companies in the construction machinery industry.


chris-API2


chris-oil industry








Production Process


chris-production process.png





Packaging & Shipping


When slewing ring bearings are ready for shipment, Leadway usually give a light coating of


preservative oil and packaged in a tire wrap of protective paper and a shipping container.





1st: plastic film
2nd: kraft paper
3rd: blue blet
4th: International Standard Wooden Case for by Sea or by Air





This provides adequate protection during the typical short-term storage in a protected area





Chris-packing & shipping.png








FAQ


CHRIS-FAQ2
