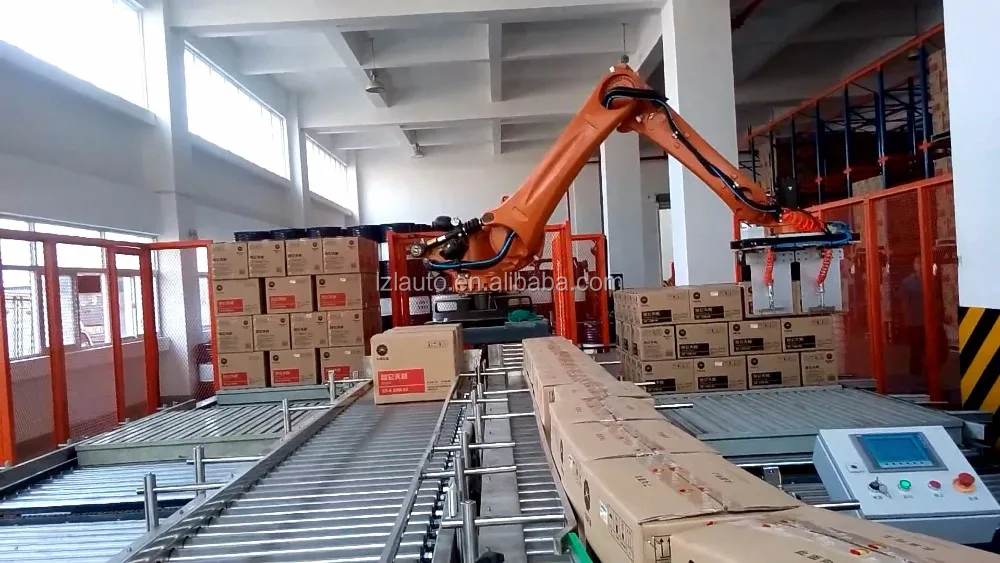

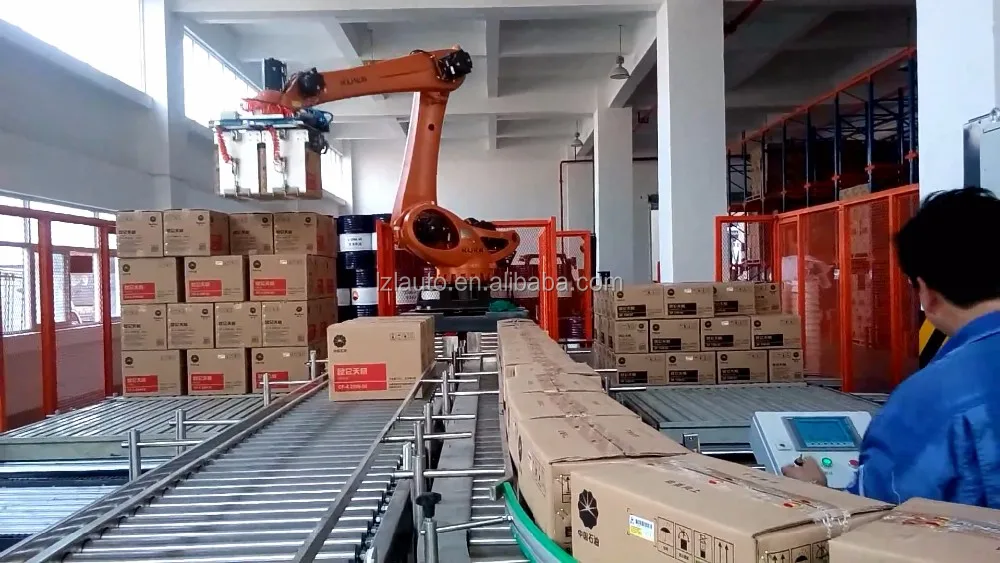

Робот паллейзер KUKA

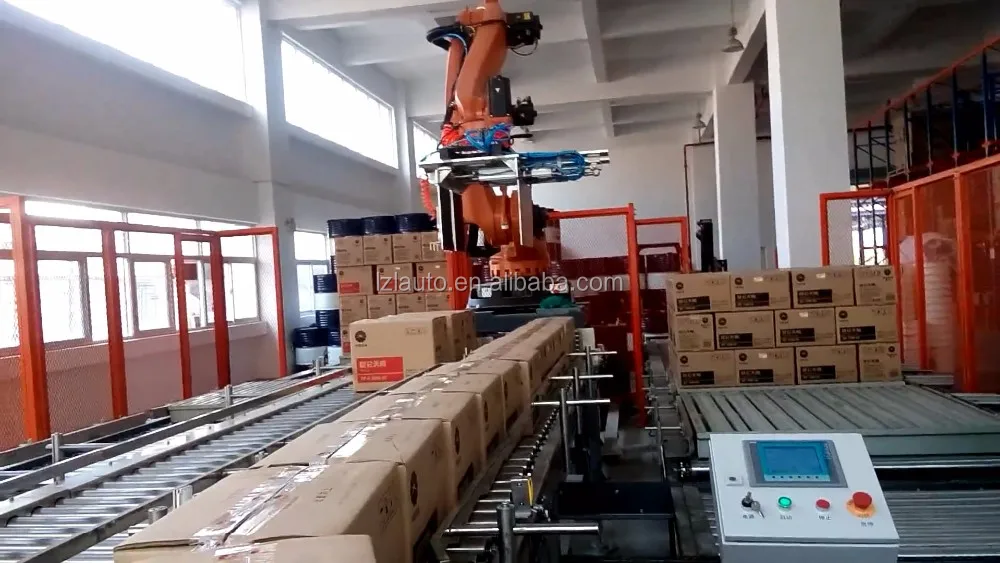

Full Automatic KUKA Robot Palletizer system

Machine application

This Automatic Robot Palletizer is widely used in Chemical,beverage, food,beer, plastic,

air conditioner industry ect . Automatically pack and stack the carton ,bagged  ,canned ,

boxed and bottled products .

The simple structure ,less components  make it easy maintenance

and low maintenance cost.The Robot Palletizer takes less space and more flexible and accurate .

All the control can be implemented on the touch screen of the control box , easy operation .

The robot can work continuously for a long time, reduce a lot of labor and labor cost, more productive.

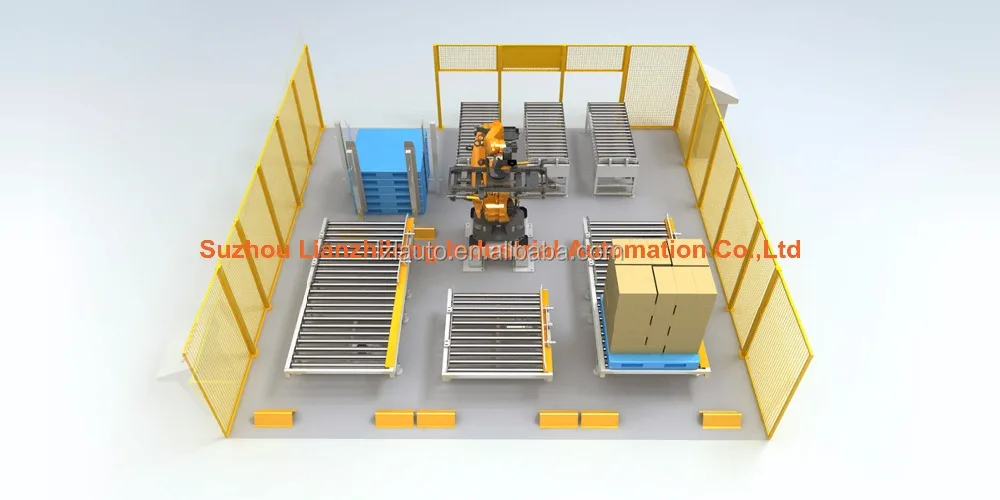

The modular palletizing system uses the carton product as palletizing type.

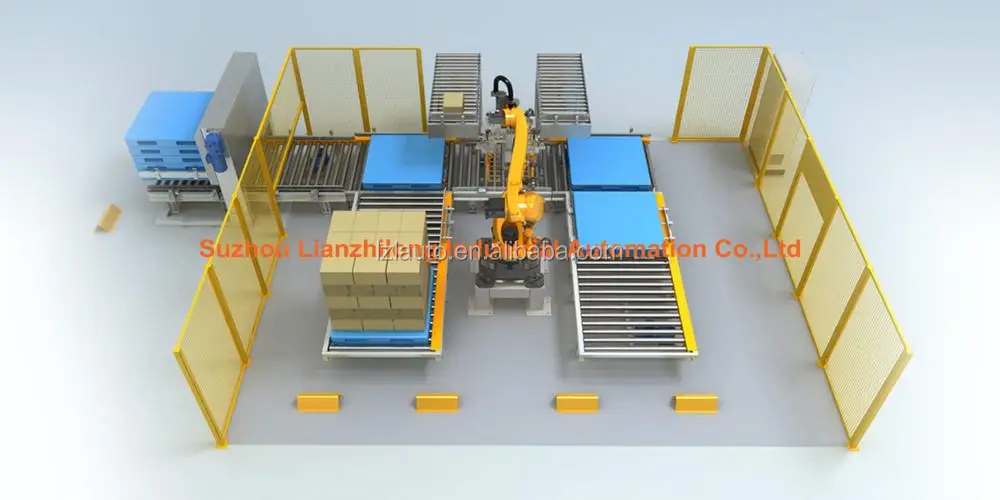

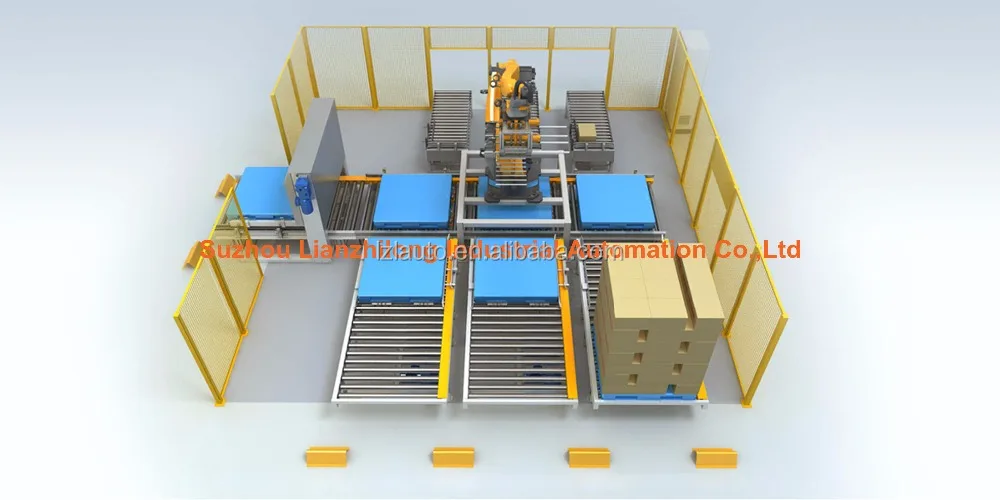

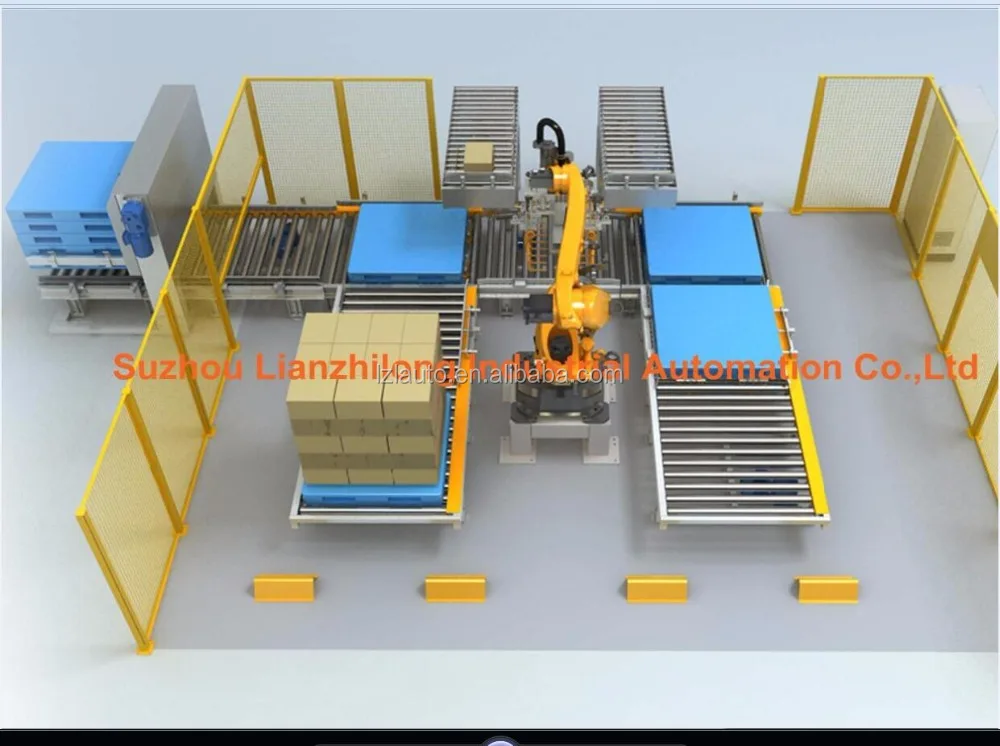

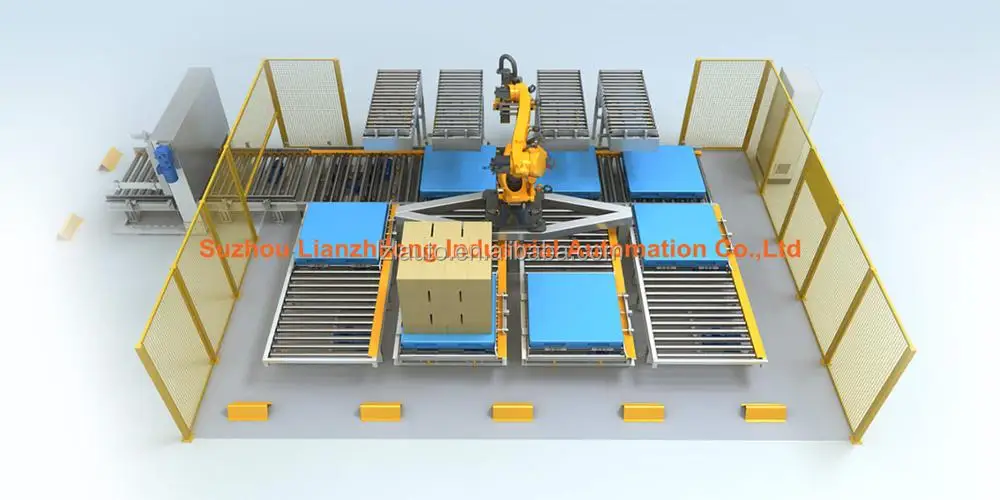

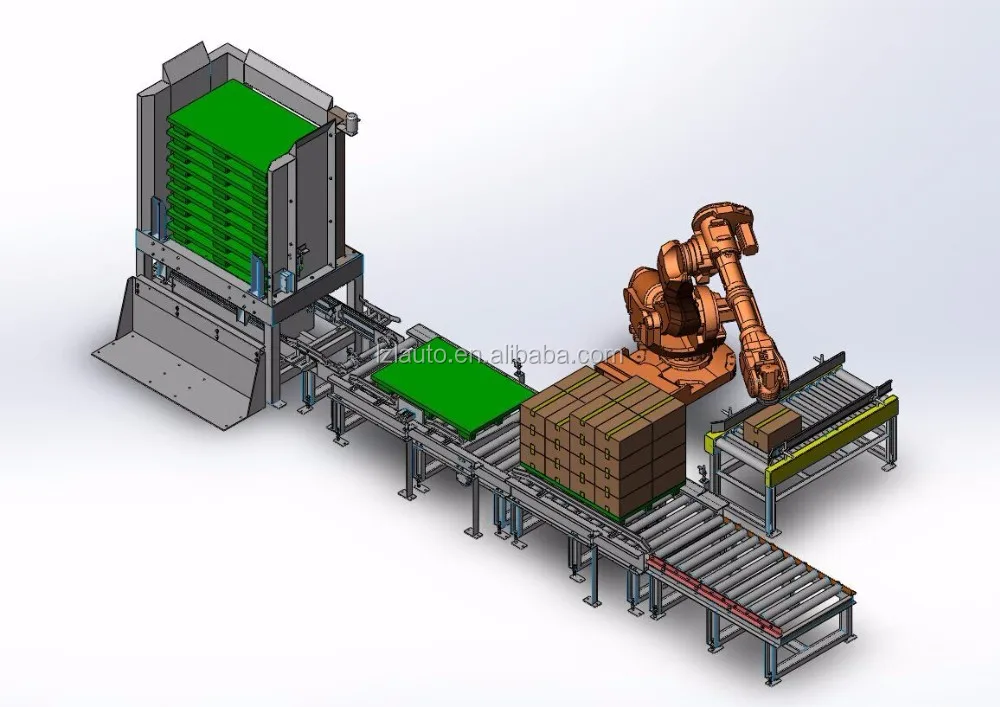

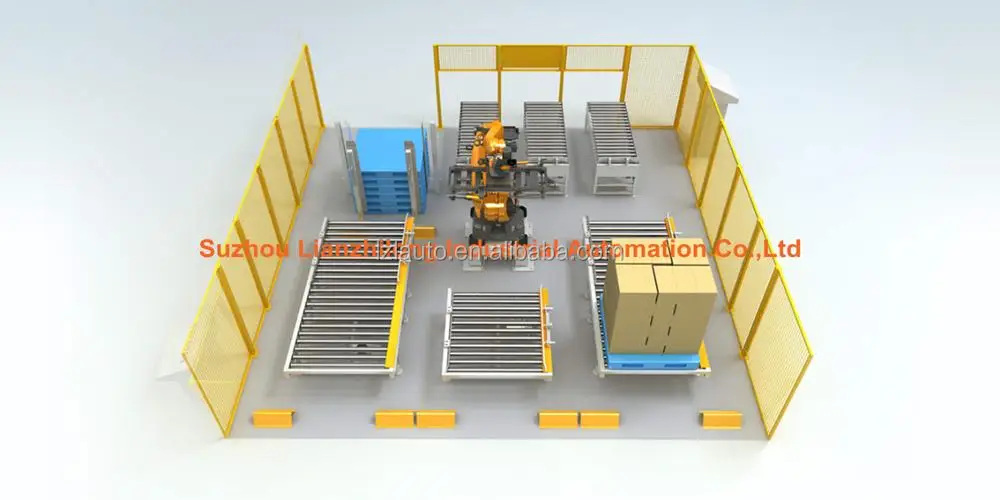

The modular palletizing system is carton palletizing type. It is a basic 4 in way and 4 out way pallet supply way.

Including:

a KUKA robot * 1,

sponge sucker * 1, base * 1,

Full automatic pallet dispenser * 1,

palletizing station * 4,

pallet out station * 4,

pallet conveyor * 5,

2 meter carton conveyors feed line * 4 ,

Electric control cabinet * 1.

product properties:

Product Category: high-speed robot palletizing module

Product Material: carbon steel powder spray painting

Product Model: LZL120-L4

Product Specifications: Can be customized according to customer requirements

Product useful: through the standardization design and modular design, provide a stable and mature robot palletizing complete system solutions for customers.

The main technical parameters:

Feeding speed: 17.5m / min

Feeding conveyor width: Effective width 650mm

Carton Scope: L200 ~ 550mm * W200 ~ 460mm * H150 ~ 450mm

Applicable pallet and tray: L800 ~ 1200mm * W800 ~ 1200mm

Supply power: 380V 50Hz

Pallet conveyor height: 400 ~ 450mm

Pallet conveyor effective width: 1250mm

Carton roller conveyor length: 2000mm

General stacking height: 1500mm ~ 1800mm or less

Carton roller conveyor height: 900 ~ 1100mm

palletizing capacity: 400 ~ 1500 cartons/hour,  carton weight equal or less than 80KG

Robot grab head tentative pattern, sponge sucker. With the packet detection.

System including:

Equipment main components and brand
