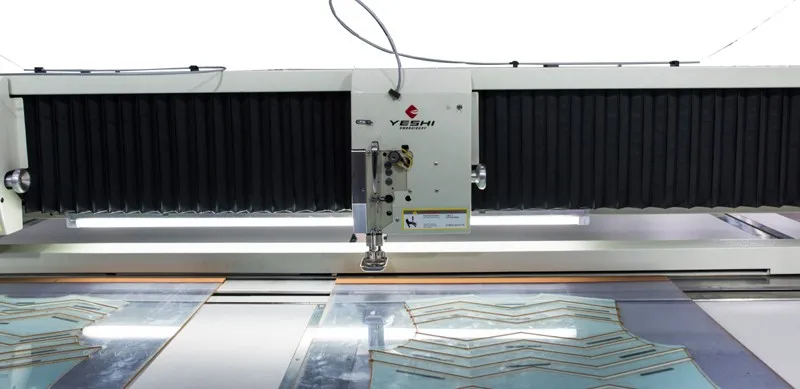

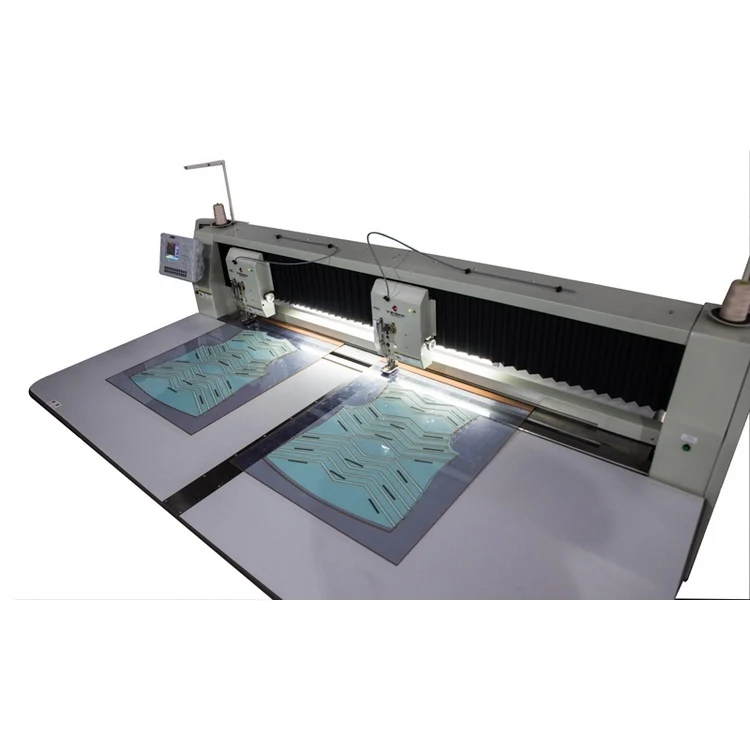

Performance Features:
1.Double servo spindle, Separated servo control for machine head and shuttle,
Simple mechanical action, Low maintenance rate, High stability, Stable & ultra-quiet running. 2.Machine head lifting: easy for thick material feeding and coming out, ensuring smooth embroidering.
3.Bar code scanning: automatic pattern selection and sewing confirmation
4.Moveable machine head: large sewing range while machine taking less space
5.No need to wait, realize left and right circular continous sewing with seamless design match, greatly improve the work efficiency.
Technical parameters
Model | YS-L-8020 |
Spindle servo | Double servo drives (upper shaft & down shaft) |
Max. stiching speed | 3000RPM |
Hook | Double size hook |
Head lifting height | 55mm |
work clamp height | 60mm |
Needle pitch | 0.05-10mm |
Trimming way | Stepping motor trimmer |
Maximum needle number | 100 million stitches (Max. 2 million stitches for one design) |
Stitch type | Plain stitch |
Max sewing thickness | 8mm-25mm |
Embroidery frame drivers | Servo, Closed-loop stepping |
Breakage detection mode | Spring lever detection |
Q1.Are you manufacturer?
A:Yes, we are manufacturer with more than 11 year's experience.
Q2.Where are you ? Can we go to China and visit your factory?
A:Yes,sure.We are in Zhejiang ,China.Welcome to our factory.
Q3.What about payment term?
A:The payment is T/T,30 days after received 30% deposit,70% before shipment.
Q4:What is the packing?
A:Woonden case or vacuum package.Container loads as per the machine size.
Q5:Can I put my LOGO/brand on the machines and finish products?
A:Yes, Sure. Just send us your artwork.
Q6.Q:How long we will get the machine?
A:We and our clients usually choose the delivery by sea, so once you place the order,
we will arrange the produce within 2 days, and about 20-50days(depend the destination port) you will get the machine.
