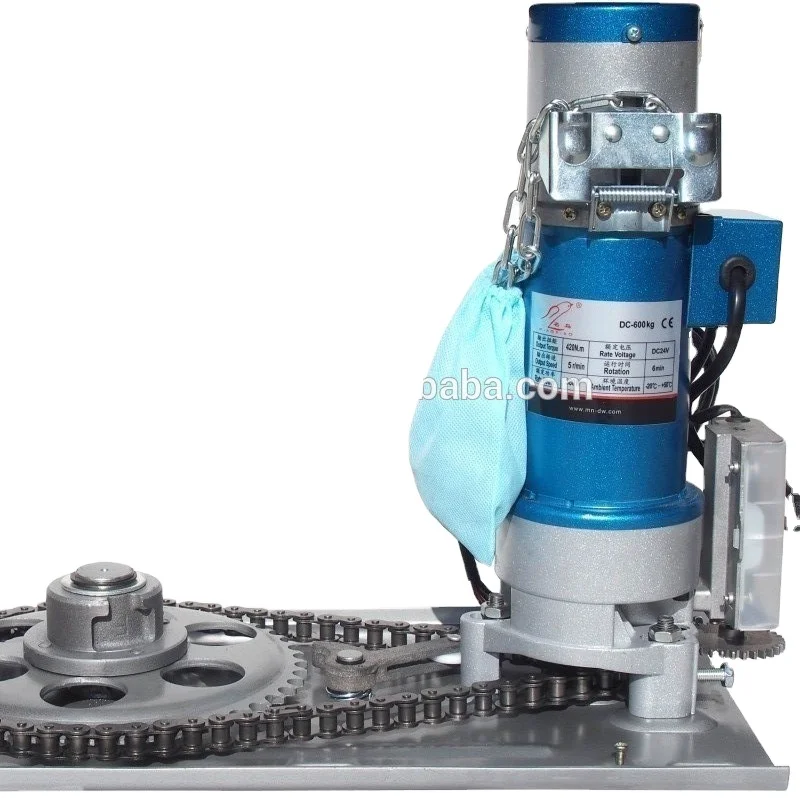

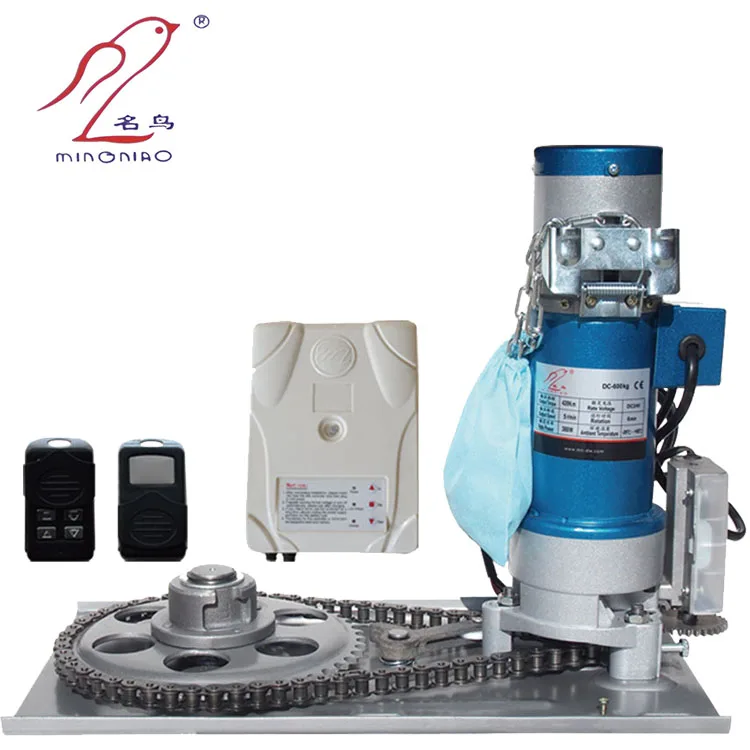

Mingniao factory DC500KG DC600KG dc rolling door motor ups для
- Категория: Automatic Door Operators >>>
- Поставщик: Zhangzhou Mingniao Electronic Machinery Co. Ltd.
Сохранить в закладки 60701880360:
Описание и отзывы
Характеристики
Production Description
Professional factory supply roller shutter garage gate opener rolling door motor
Product Features:
1.Good design,advanced structure,strong power.
2.Import electric component,security and credibility.
3.Motor operation smooth,easy fever,low vibration and noise,long service life.

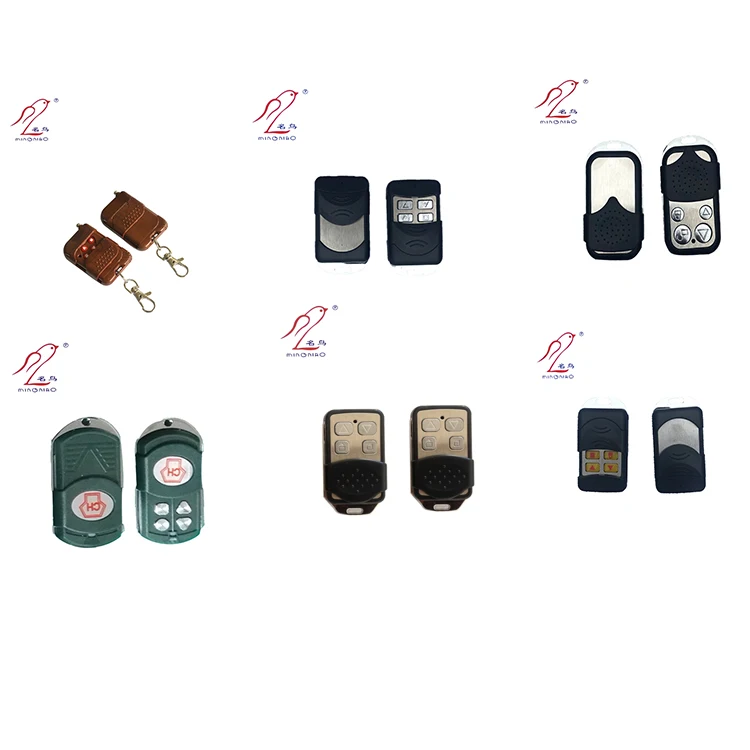

4.Remote control.
5.Supply reserved power equipment.In the absence of power,the users can also operate the motors.
6.The battery is 4Ah/12V
7.Safe voltage:24V.
2.Import electric component,security and credibility.
3.Motor operation smooth,easy fever,low vibration and noise,long service life.
4.Remote control.
5.Supply reserved power equipment.In the absence of power,the users can also operate the motors.
6.The battery is 4Ah/12V
7.Safe voltage:24V.
1 | electric control box | 8 | reduction gear box |
2 | clutch lever | 9 | bracket |
3 | clutch drive | 10 | shaft block |
4 | motor | 11 | flange |
5 | limit stop | 12 | side bracket |
6 | manual chain | 13 | madrel |

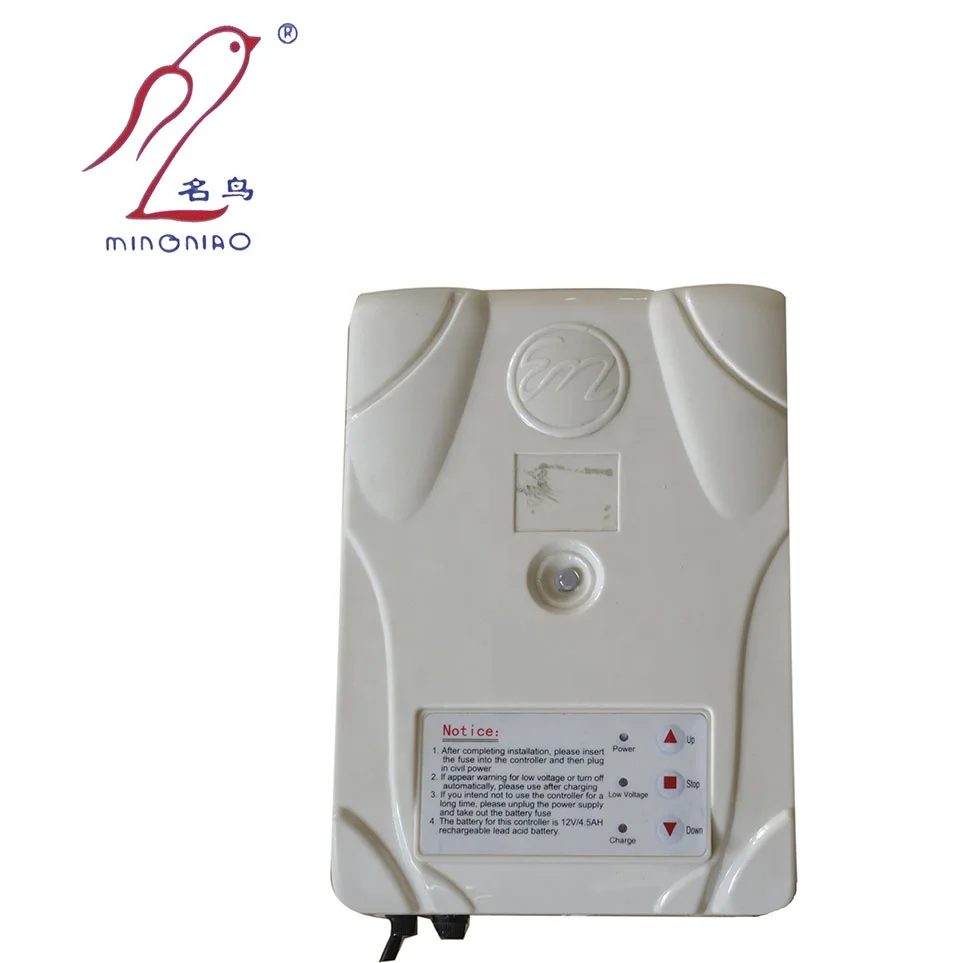

7 | UPS |
1 | Cover | 5 | Back of cover |
2 | Gear wheel / bearing | 6 | Limit gear wheel |
3 | Motor | 7 | Limit switch |
4 | Manual chain | 8 | Terminals |
Product Specification | |
Item Name | Red 24V Copper Wire 24v DC automatic sliding auto gate door motor For Sale |
Type | DC300kg-800kg |
Lifting Weight | 300kg-800kg |
Color | OEM |
Place Of Origin | Fujian,China(Mainland) |
Voltage | DC24V |
Motor Wire | Copper |
Brand Name | Mingniao |
Battery | 4Ah/12V |
Max Lifting Height | 6m |
MOQ | 1 set |
Supply Capacity | 10000 Sets Each Month |
Delivery | Within 15-30 days After Received 30% Deposit |
Packing | Carton packed fill with foam,can be customized one set in 2 cartons:1 ctn for main motor,1 ctn for accessories |
Technical parameters
Model | Rate voltage | Rate powe(w) | Elevation | Output torque(N.m) | Output turn speed(r/min) | Max.Elevating distance(m) | chain |
DC300kg | DC24V | 290 | 300 | 210 | 3 | 6 | 10A |
DC500kg | DC24V | 330 | 500 | 350 | 3 | 6 | 10A |
DC600kg | DC24V | 380 | 600 | 410 | 3 | 6 | 10A |
DC800kg | DC24V | 390 | 800 | 560 | 3 | 6 | 10A |

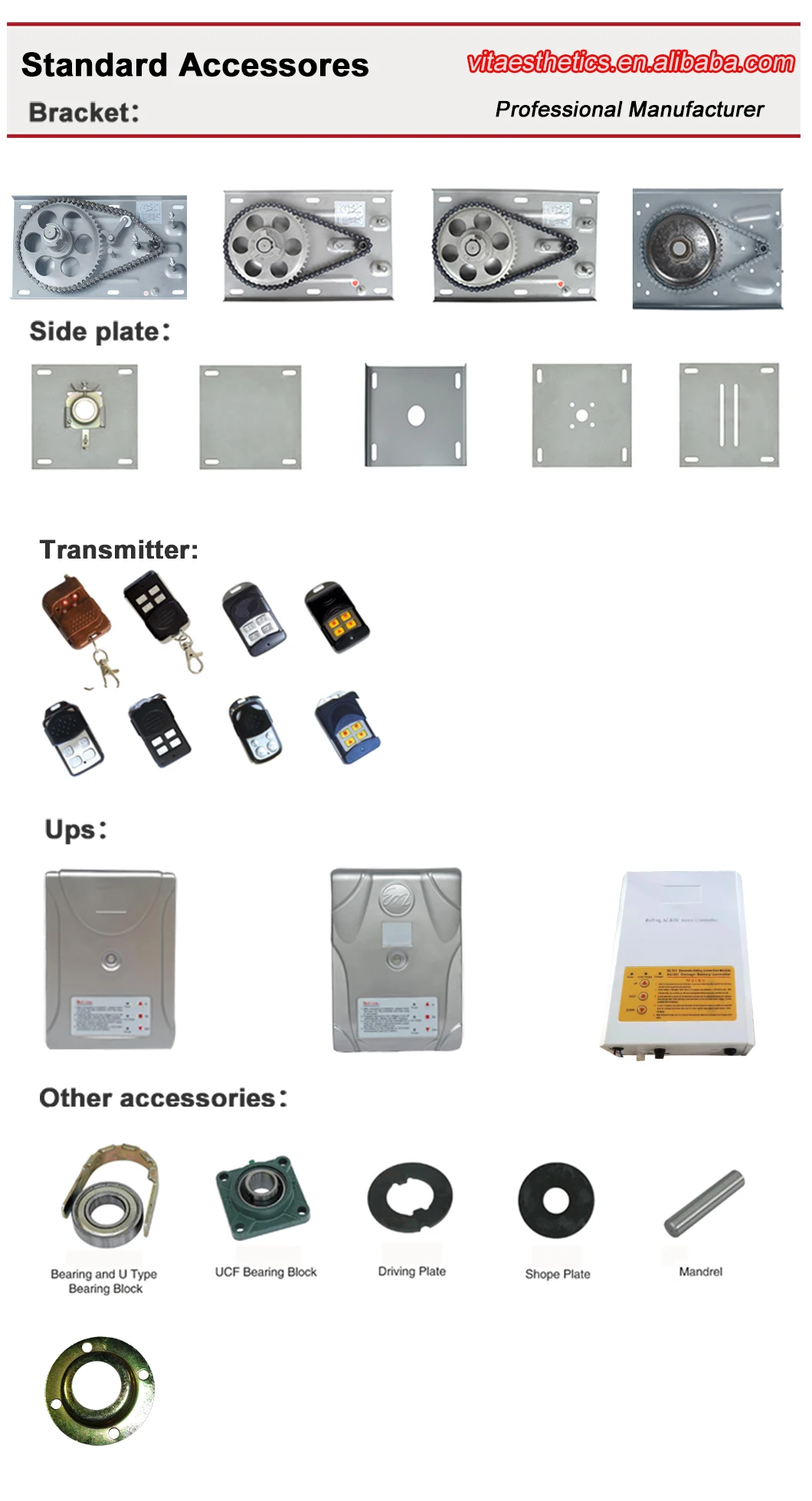

Standard Accessores
We provide customized services that can provide you with specific requirements for different countries, including packaging, accesso-ries, motors, power, plugs, etc.

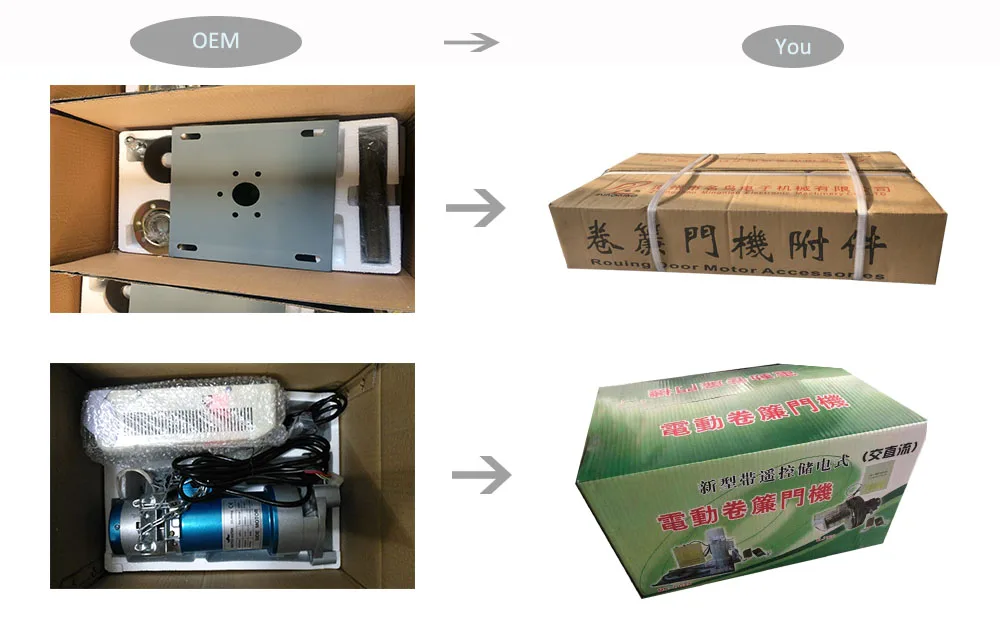

Packing&Shipping
Packaging:one set packing in two cartons with foam inside.
FOB (Xiamen)Price
Lead Time: Delivery time is determined by the amount of your order .
Warranty: 1 year.
Container Loading Capacit
20" container DC motor can put 500set-520set
20" container AC rolling door motor mixed with DC roller shutter motor can put 550set
40" container DC motor can put 850set
40" container AC rolling door motor mixed with DC roller shutter motor can put 920-950set
FOB (Xiamen)Price
Lead Time: Delivery time is determined by the amount of your order .
Warranty: 1 year.
Container Loading Capacit
20" container DC motor can put 500set-520set
20" container AC rolling door motor mixed with DC roller shutter motor can put 550set
40" container DC motor can put 850set
40" container AC rolling door motor mixed with DC roller shutter motor can put 920-950set
About us
Zhangzhou Mingniao Electronic Machinery Co., Ltd. is a professional research and production of various forms of electric door opener and inverter welding machine high-tech enterprises. The company was founded in 2000, the existing equip-ment is excellent, the technical force is abundant, has the strong mechanical processing ability and the microcomputer control system design ability, can support the mechatronics function for the general user in time. The inverter welder de-signed and developed by our company adopts advanced inverter power source technology and imported IGBT module. The inverter frequency can reach 20kHz, the dynamic response speed is faster, the function is perfect, the performance is excellent, and the welder has high reliability. It can meet the requirements of high-quality welding and is a reliable welding equipment for users. Your need is our pursuit! The company diligently maintains the brand, develops the market honestly, pursues the perfect function with the meticulous design, the accurate manufacture guarantees the product quality, deve-lops the market with the sincere service attitude, strives for the survival with the quality With the aim of quality and deve-lopment, our products are sold all over the country and exported all over the world.
FAQ
Q1. How long is your products' warranty?
A: All our products have 1 years warranty.
Q2. Do you have CE certification?
A: Yes, we do have CE certification. We have CE for our complete roller doors.
Q3. How can i get a price of needed garage door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q4. We want to be your agent of our area. How to apply for this?
A: Please send your ideal and your profile to any e-mails of us .Let's cooperate.
Q5. I am a sall wholesaler, do you accept small order?
A: It's no problem is you are a small wholesaler, we would like to grow up with you together.
A: All our products have 1 years warranty.
Q2. Do you have CE certification?
A: Yes, we do have CE certification. We have CE for our complete roller doors.
Q3. How can i get a price of needed garage door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q4. We want to be your agent of our area. How to apply for this?
A: Please send your ideal and your profile to any e-mails of us .Let's cooperate.
Q5. I am a sall wholesaler, do you accept small order?
A: It's no problem is you are a small wholesaler, we would like to grow up with you together.
Contact us
Похожие товары
Высокоскоростная Гибкая роликовая система управления дверью A2 серии 1500 Вт 7.2N, мощный Серводвигатель для чистой комнаты
35 635,73 ₽ - 36 732,22 ₽

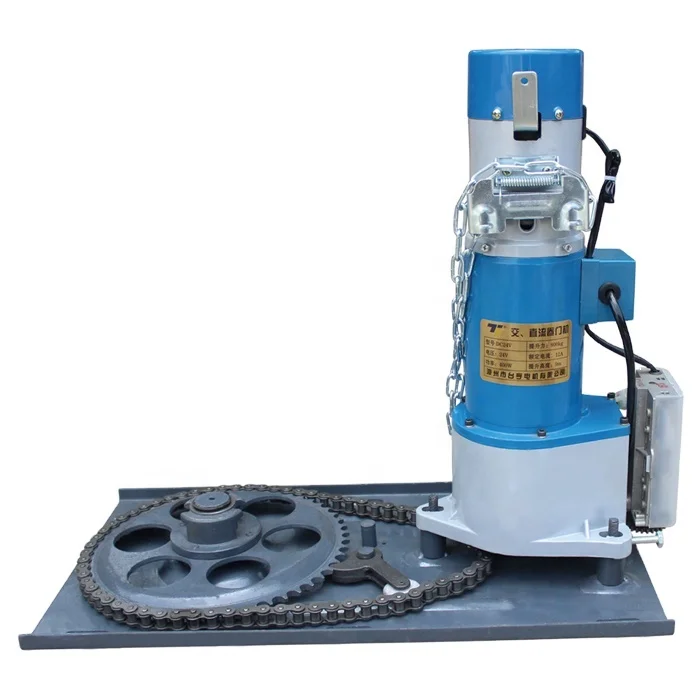

Рулонные затворы постоянного тока, 800 кг, китайский поставщик, скатывающаяся затворная дверь, мотор оператора
4 385,94 ₽ - 4 934,18 ₽

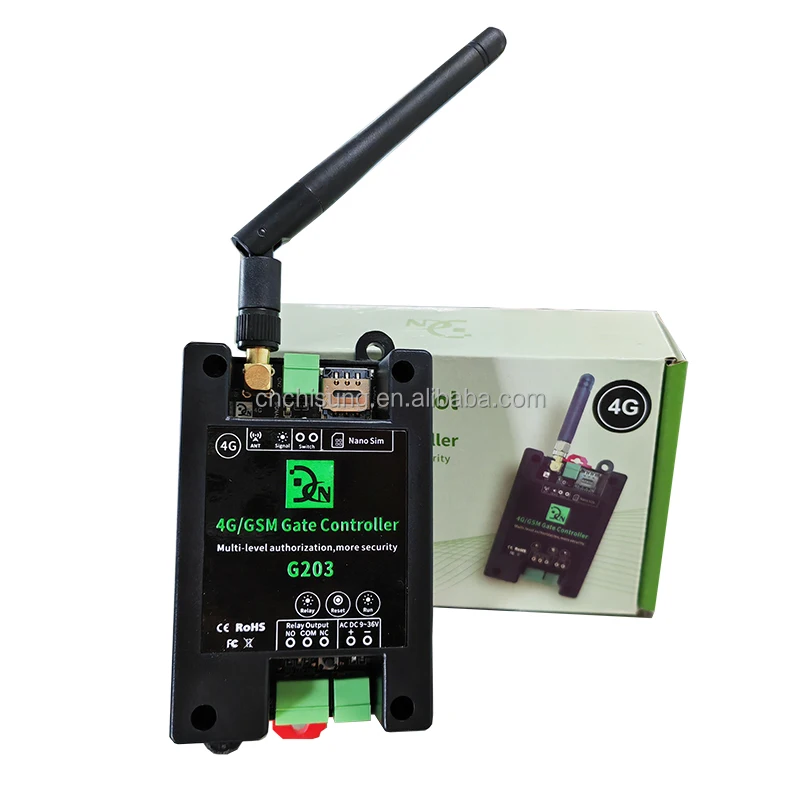

G203 4G GSM реле с дистанционным включением/выключением
3 067,97 ₽ - 3 506,56 ₽
ДВС резервная батарея, роликовый двигатель с заслонкой
7 127,15 ₽ - 7 675,39 ₽

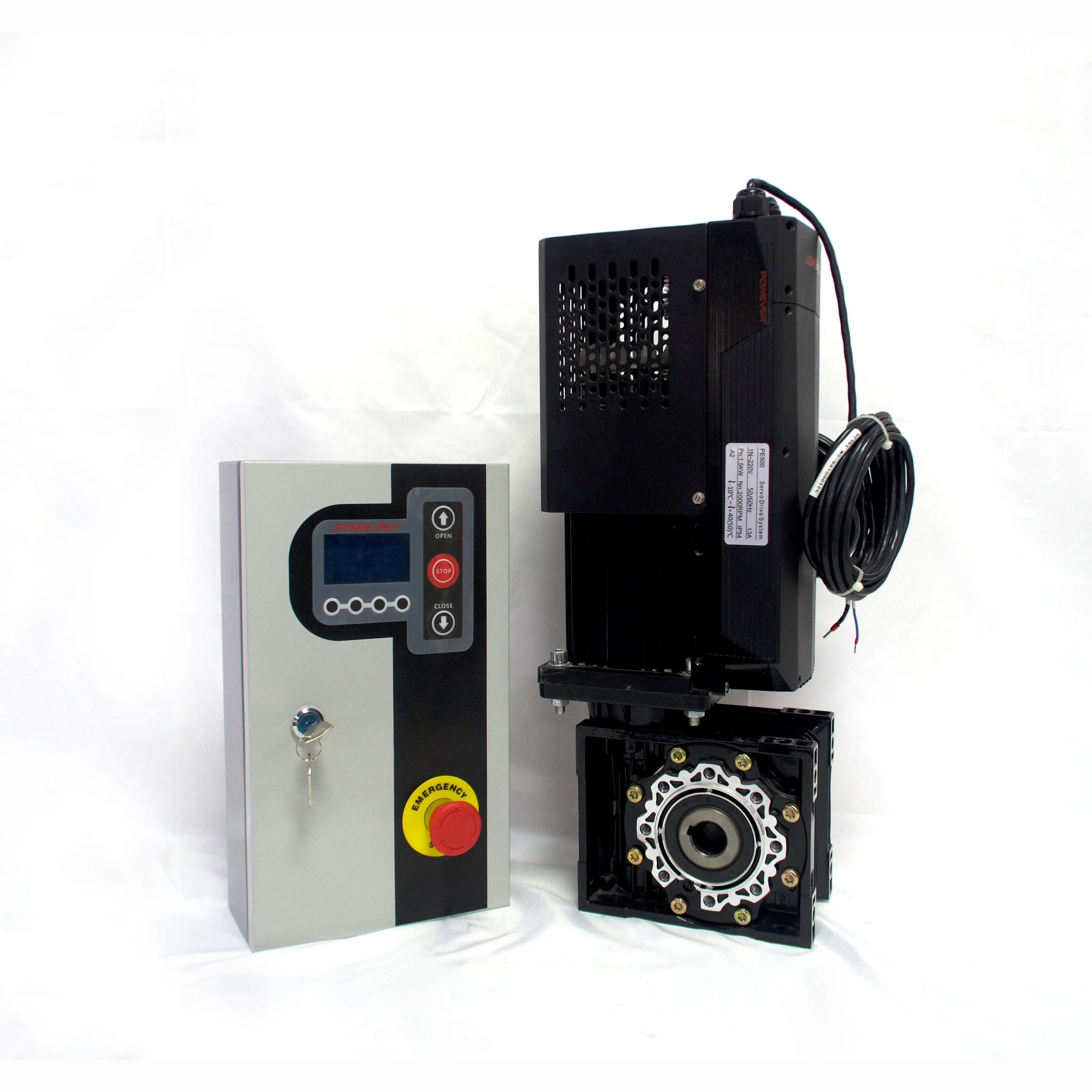

Промышленный оператор 1300N 1800N роликовый двигатель для открывания дверей
