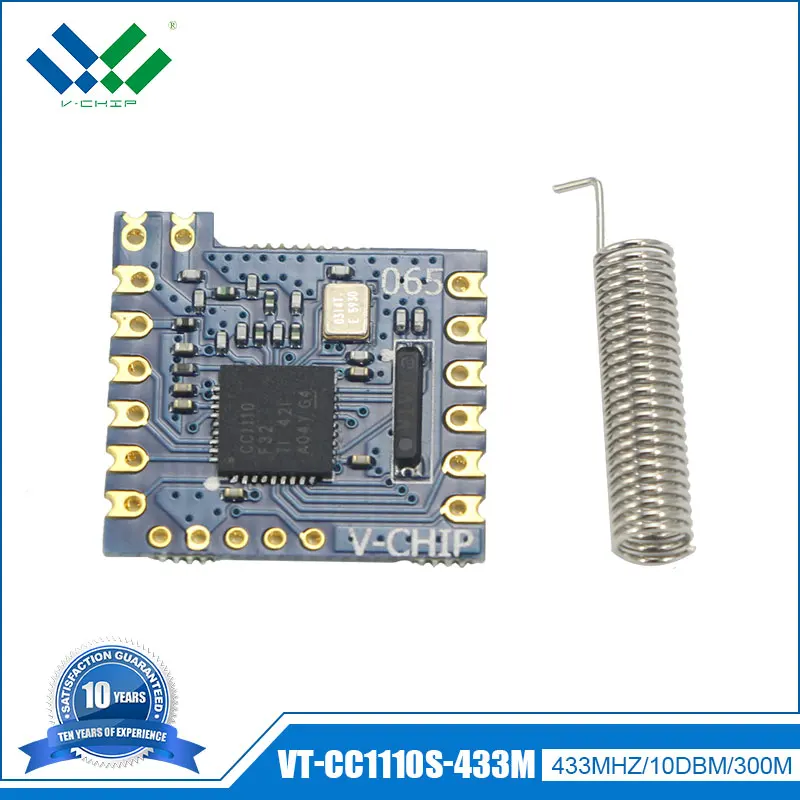

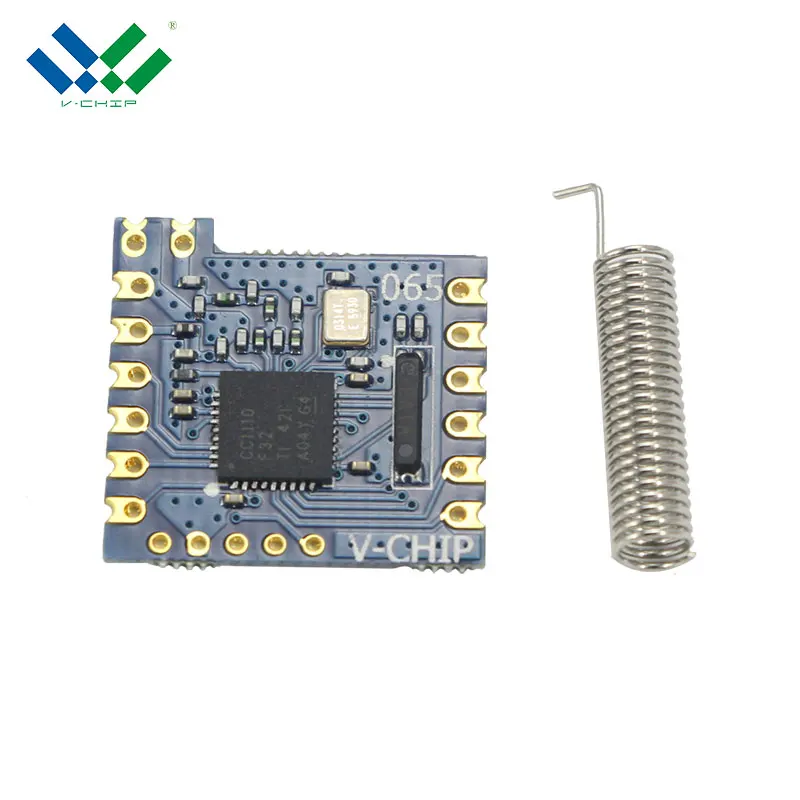

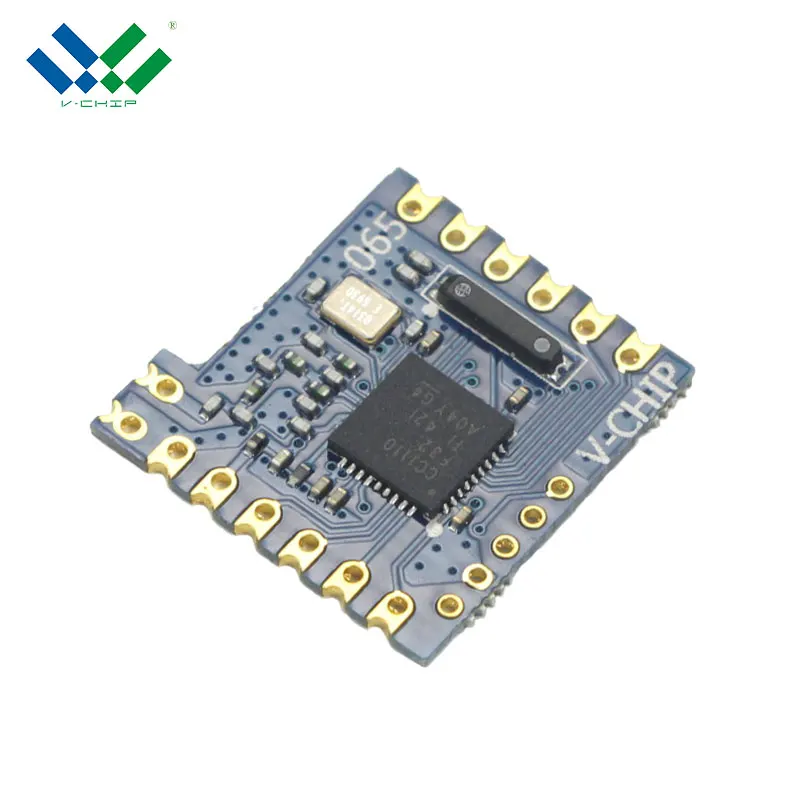

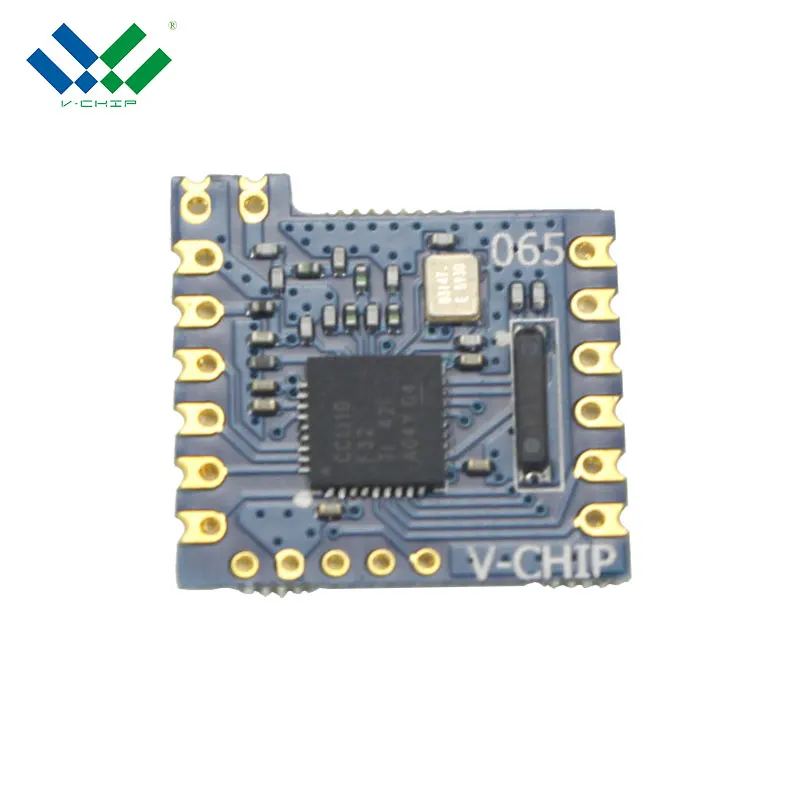

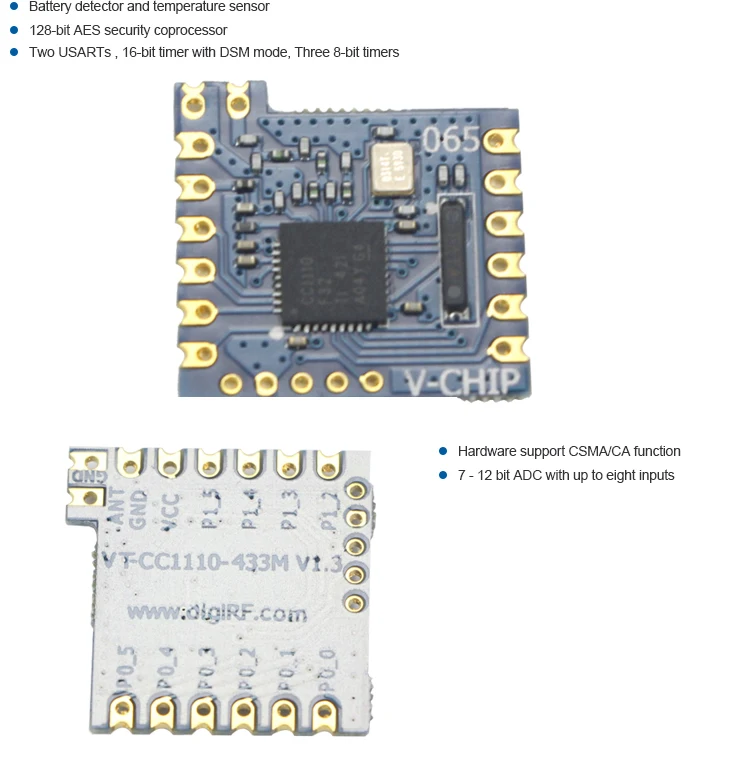

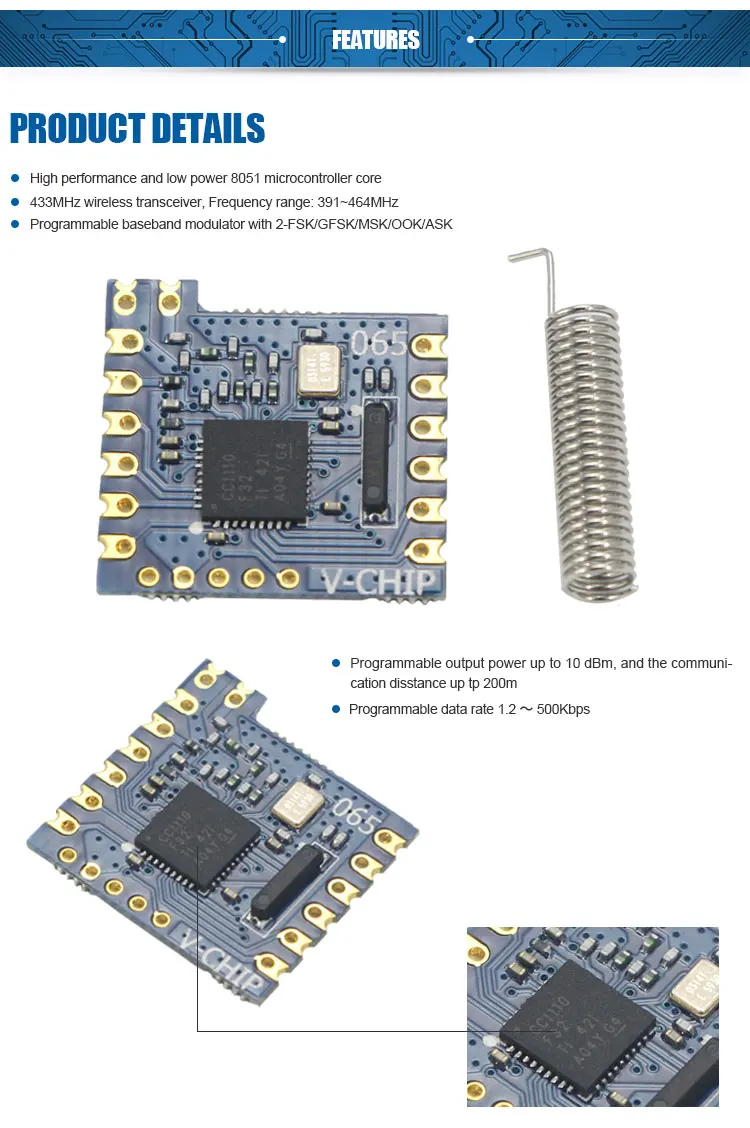

Заводская цена CC1110 промышленный класс 433 МГц беспроводной модуль приемопередатчика

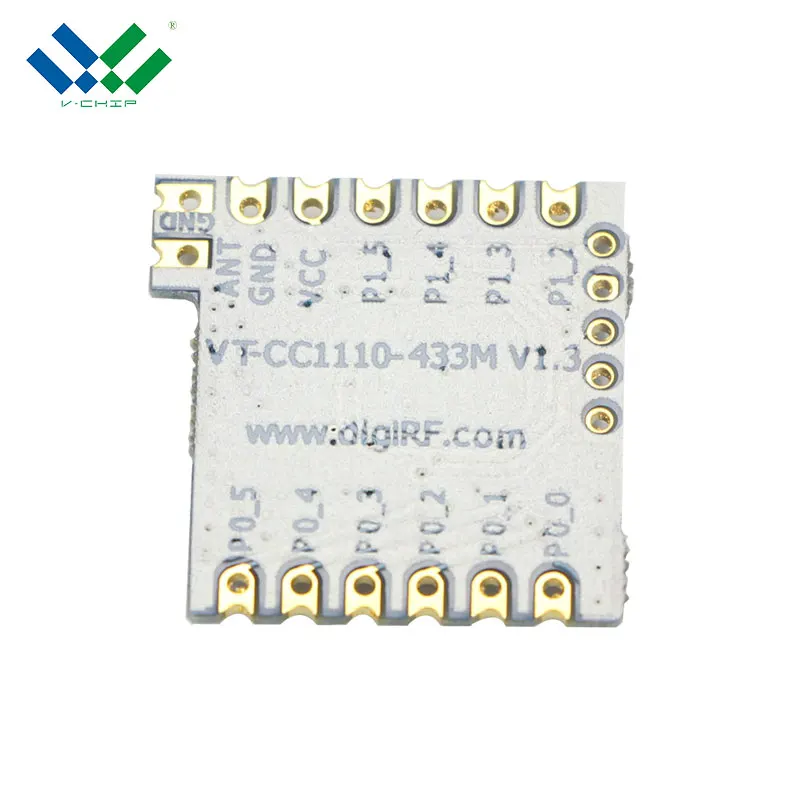

Parameter

Type

Condition/Note

Operating supply voltage

DC2.0~3.6V

Central frequency

433MHz

Can be programmable to other frequency in bands 391~464MHz

Frequency accuracy

±10KHz

Modulation format

GFSK/2-FSK/ASK/OOK/MSK

Programmable

Transmit power

-30~+10dBm

Programmable

Receiver sensitivity

-110dBm

2.4Kbps

TX current consumption

<35mA

Po=10dBm

RX current consumption

<22mA

Sleep State current consumption

0.5uA

Power Mode 3

Data rate

1.2~500Kbps

Programmable

Communication distance

>200m

2-FSK modulation, 2.4kBaud data rata,

+10dBm output power.

Flash

32KB

RAM

4KB

Operating temperature

-20~+85 °C

Storage temperature range

-50~+125°C

Antenna Impedance

50ohm

Dimension

20.0×19.0×2.4mm

See more in PCB description

Description

Reason and Solution

Can’t communication

1.The power supply connect not well, check the module VCC whether it is out of maximum rating.

2.The signal line connect not well, check the module SPI interface.

3.The settings of the transmitter module and receiver module are not the same. Check these modules’ register configuration.

4.Signal block. If the transmitter work with a high TX power, and the receiver was put at a short distance(<0.5m), maybe there is a signal block to make no communication.

Communication distance is too short

1.The application environment is too bad or the antenna is shield. Put the antenna to a better place outside or higher throw a coaxial line , replace it with a higher gain antenna.

2.The work space contains a same frequency interference source, or a strong magnetic field interference, power source disturbance. Try to change the carrier frequency or get far away from the source of the disturbance.

3.The power supply is not strong. Check the voltage and the current whether it is enough.

High data error

1.The power supply ripple is too big, Change the power supply.

2.Check the module register configuration, it is recommended to set as the CC1120-datasheet.

3.There is a carrier frequency interference, change the channel.

4.The antenna unmatched to the module RF interface, change another matched antenna.
