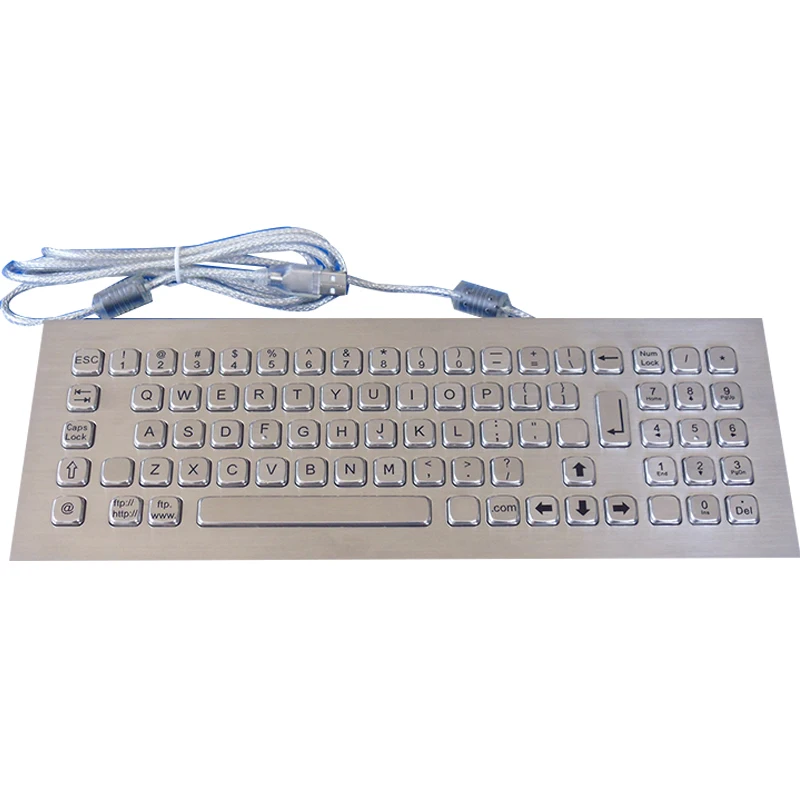

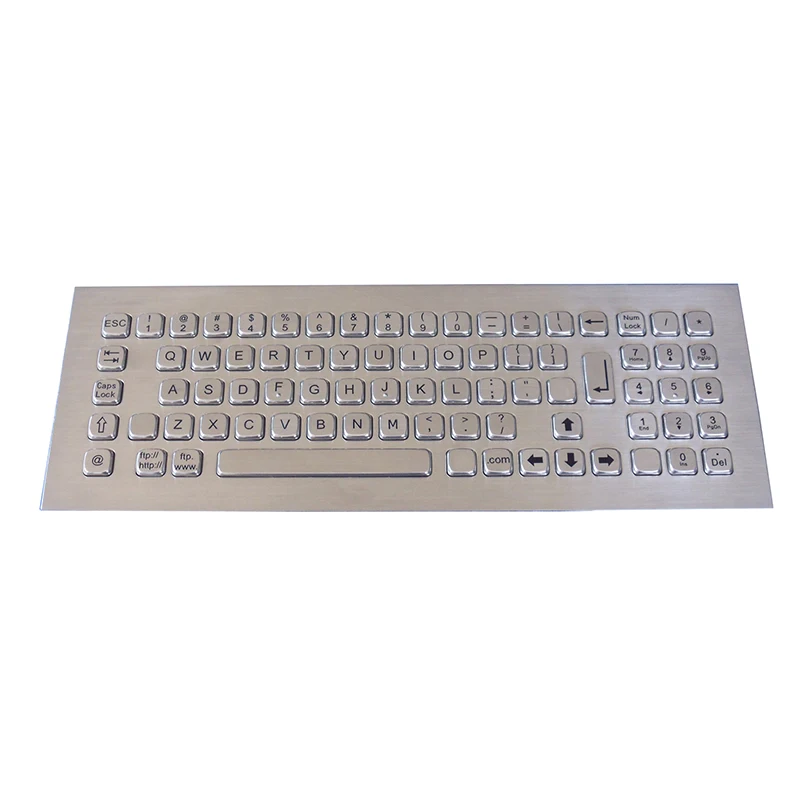

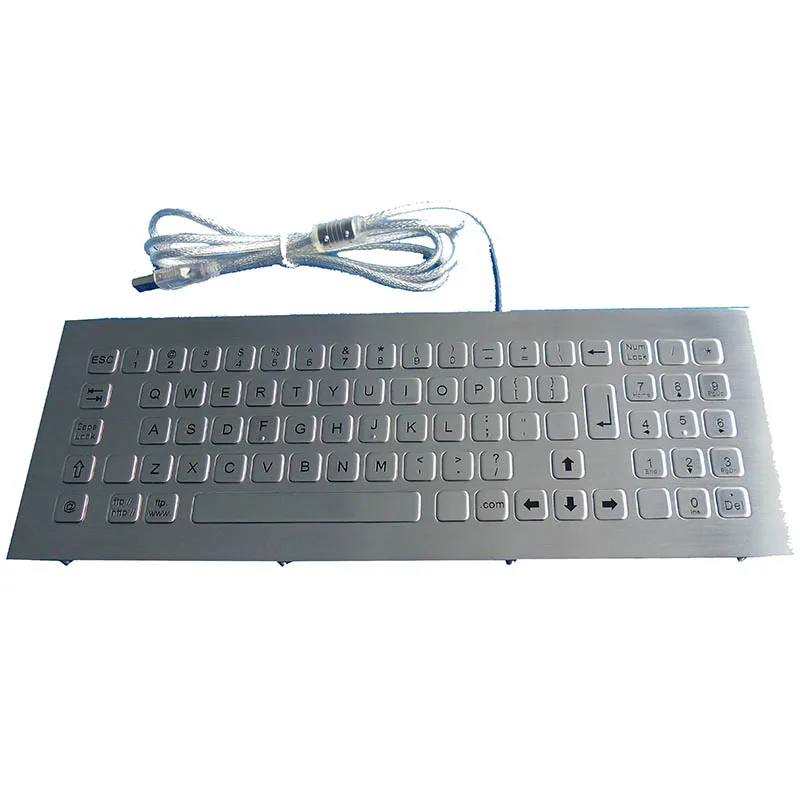

Standard wired 79 kyes stainless steel mechanical keyboard

DESCRIPTION:

· 79 keys compact format

·IP65 static vandal proof stainless steel industrial keyboard

· Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input integrated numeric keypad

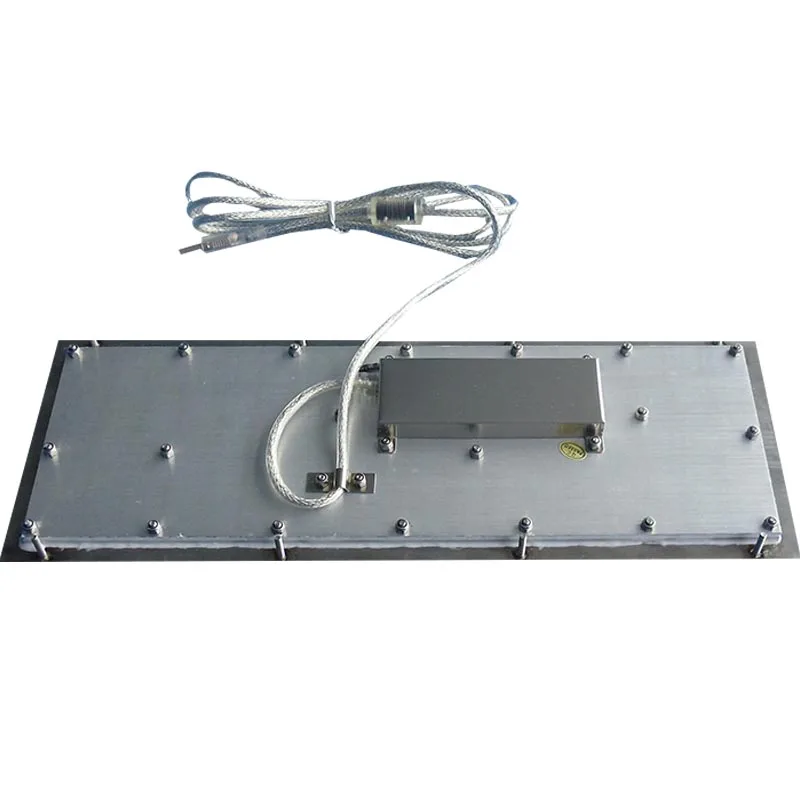

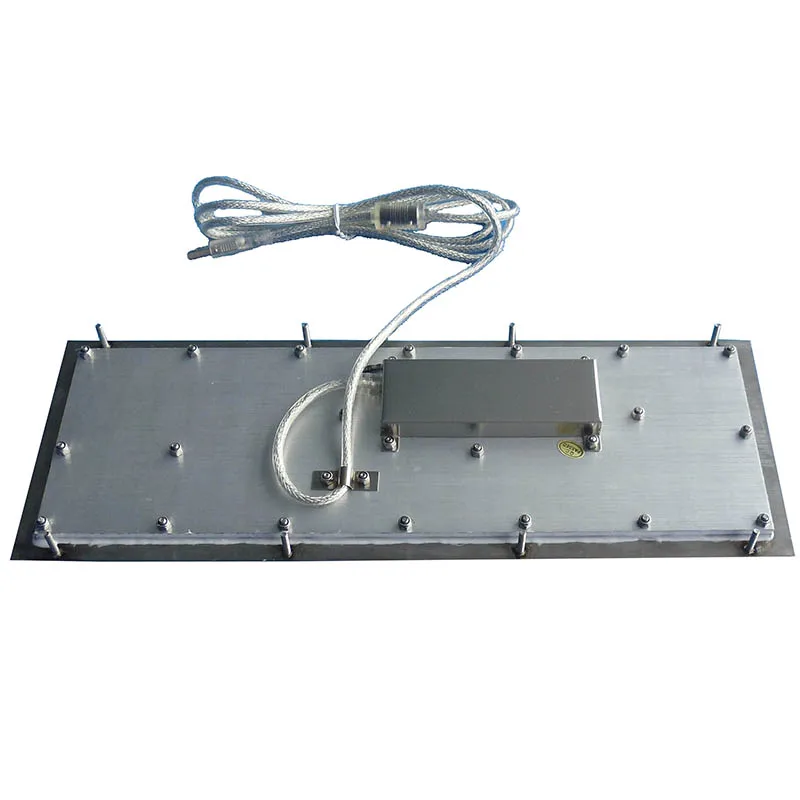

·stainless steel top plate with threaded bolts for top panel mounting solution.

MAIN FEATURE:

· Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

· Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

· Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning & threaded bolts for easy tightly mounting to enclosure or panel.

· An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation

· Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

· Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

· Ease of customizing with multiple languages, to accommodate foreign or custom variants.

· Complete electronic modules including controller in close consultation with our customers are available.

· PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

MECHANICAL DATA:

· Actuator/keys: 79 keys, 2.0mm thickness super quality SUS304 brushed stainless steel flat key.

· Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are

available

· Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.

· Key travel: 0.45mm

· Actuation Force: 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

· Switch life: more than 5 million of operations.

· Front Plate: 1.5mm thickness super quality brushed stainless steel

· Back Plate:3.0mm thickness brushed & oxidized aluminium

· G.W.: 1.40KGs

· Dimensions: 340.0mm x 125.0mm (L x W )

ELECTRICAL DATA:

· Supply Voltage: +5V DC +/-5%

· Current Rating: appr. 30mA

· EMC Standard:  It is compliance with the council IEC 61000-4-2:2008;

· IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

· EMI: EN 55022: 2010

· EMS: EN 55024:2010

· Lifespan > 5 years

· Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology

· Interface: PS2, USB available, RS232 for EPP

· If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES.

· OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
