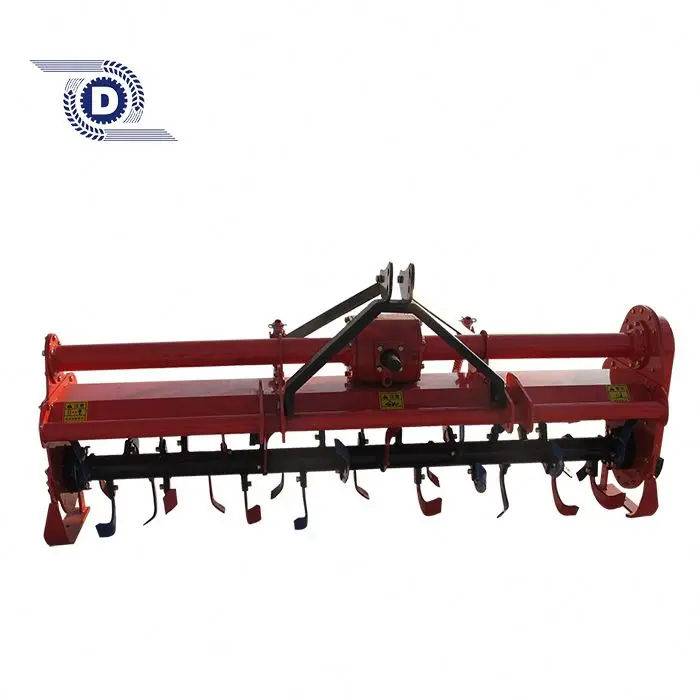

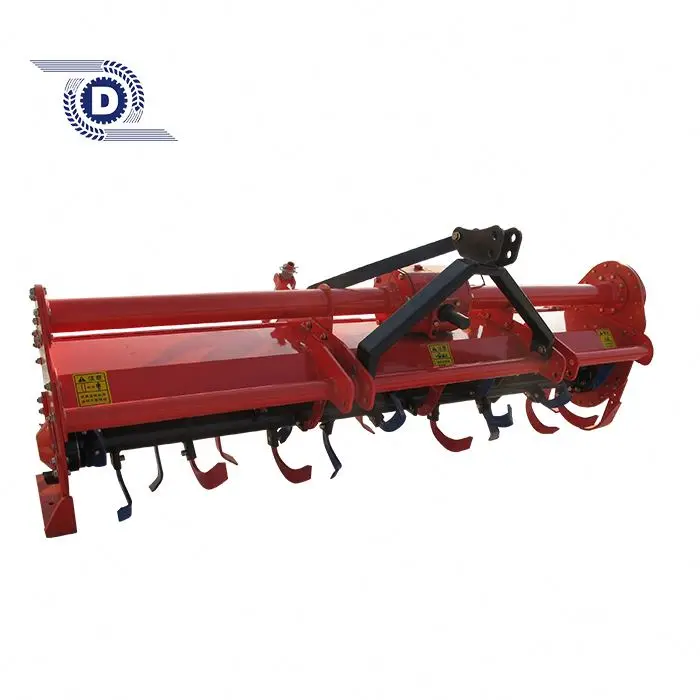

We have gear drive and chain drive , you can choose according to the actual situation
Adopt the side chain transmission system,which makes the operation more efficiency than middle gear transmission(no blind area)
The quality is reliable and the performance is excellent , suitable for dry land,such as corn beet and wheat field.
It can reduce the time, laboring and cost during operation

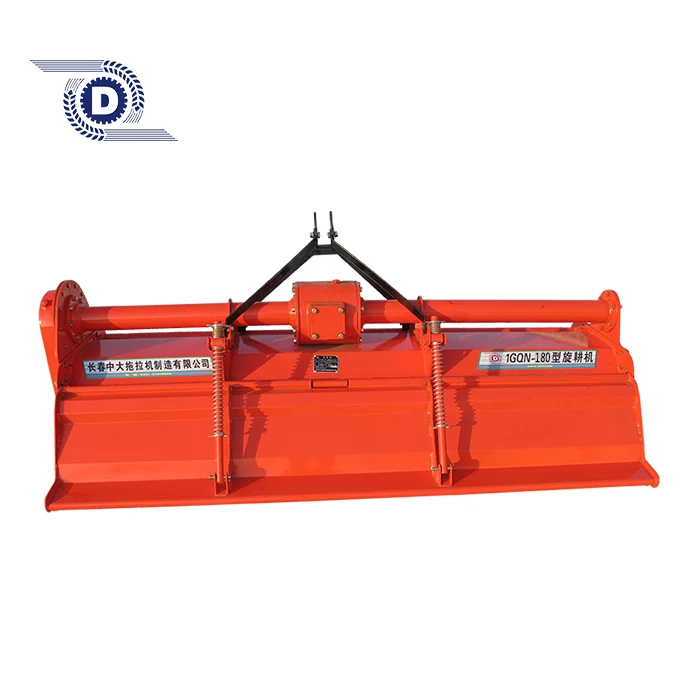

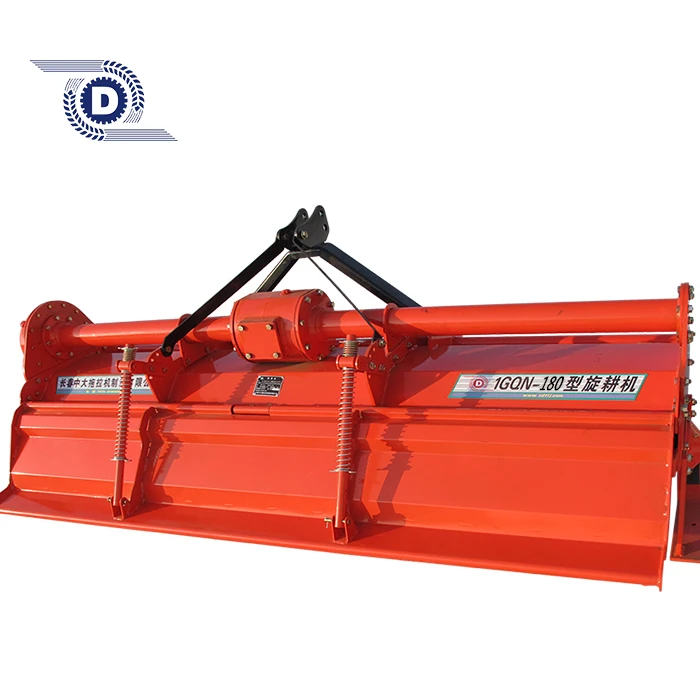

Item.no | 1GQN-180 | |
Dimensions | 2036x720x1010mm | |
Total weight | 310Kg | |
Matched tractor | 29.4~40.5 kw | |
Tilling width | 1800mm | |
Qty of blades | 36pieces | |
Turning diameter of knife roll | 490 mm | |
Type of matched blade | IT245 | |
Working speed | 2.0~4.0Km/h | |
Tilling depth | 80~160mm | |
Broken rate of soil | 60% | |
vegetation coverage | 60% | |
Revolving speed | PTO shaft | 540-720r/min |
Knife roll | 197.3-263r/min | |
gear oil filling dosage | Main reduction gear box 2.5L | |
Side chain box 1.5L |
Buyer tips:
1)Sample Policy: You can buy & test the quality of our sample firstly before you purchase them in mass quantity.
2) Payment Way: the way is different in different countries and regions.
3) Delivery Date: 5-15 working days after receiving your payment.
4) Shipping Way: By Sea(FOB Dalian)
5) After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently.
click to see more hot-sale products↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
1) Are you a factory or a trading company?
We are a factory.
2) How can I get to your factory?
You can fly to Yancheng airport, we will pick you up.
3) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check quality.
4) Can you do the design for us?
Yes. We have a professional team having rich experience in design and manufacturing. Just tell us
your ideas and we will help to carry out your ideas into perfect Rotary Tillers
5) What's your term of your payment?
Usually T/T, L/C.30% deposit once place an order and sign contract, 70% balanced before shipping or against copy of bill of lading.
The payment method is different for different regions and different countries
6) The lowest transportation cost?
We are located in Changchun City,near the port of Dalian, it's transportation is convenient, so our price is competitive .
