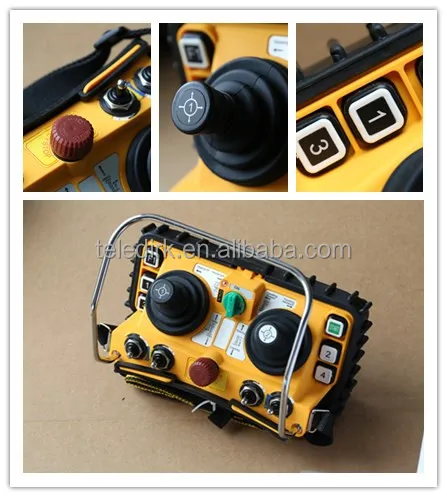

Башенный кран джойстик промышленный беспроводный контроллер пульта дистанционного управления F24 60

Products Application:

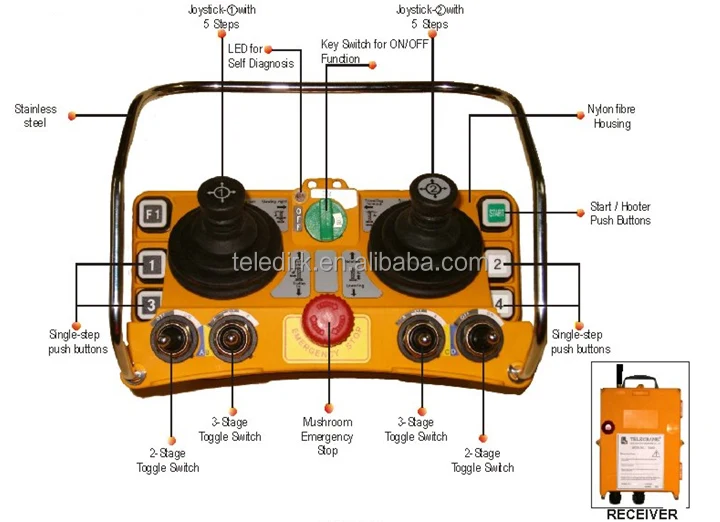

F24-60 Dual joystick remote control mainly used on tower crane, overhead cranes, concrete pumps truck , or others condition which are much more complex.

FEATURES:

1. With ratio module,analog signals can be output (additional costs). Ratio output: standard 0-10V

2. 2 five steps of 10 million times mechanical life Pure proportion joystick without fault of poor contact

3. 6 function keys

4. Three positions/tow positions rotating switches

5. Light weight and neck hanging design for Asian ergonomics

6. With 3 steps battery voltage alarm device, the power is cut off during low power

7. Safety key switch

8. Enhanced watch-dog circuit with automatically stop device

9. Signal search and frequency automatic tracking circuit

10. Prevent power from sudden breaking

11. Programmable relays outputs

12.3 super heterodyne receiving circuits

13. LED and indicator outputs

14. Variety functions and parameters can be set by computer interface

15. Setting free up to users requirements

Basic information:

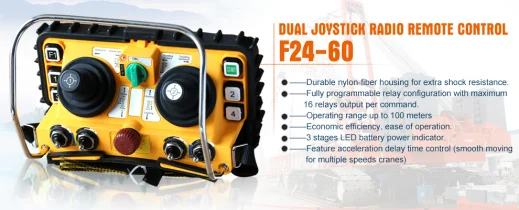

Products Features:

*Durable nylon-fiber housing for extra shock resistance.

*Fully programmable relay configuration with maximum 16 relays output per command.

*Operating range up to 100 meters.

*Pre-wiring standard cable making installation quick and easy.

*Economic efficiency, ease of operation.

*3 stages LED battery power indicator.

*Feature acceleration delay time control (smooth moving for multiple speeds cranes).

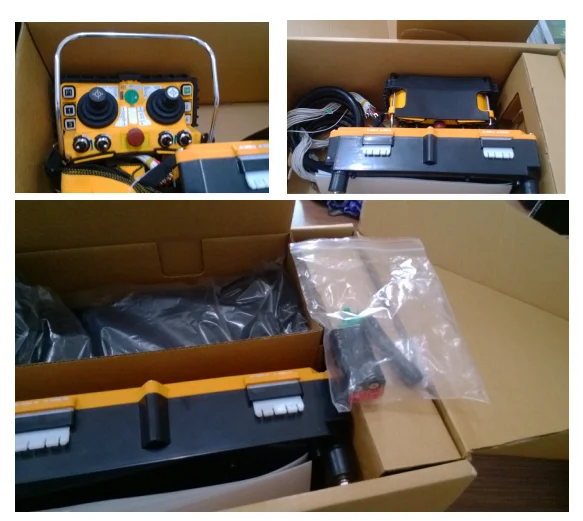

Standard configuration:

 One transmitter;

 One receiver;

 One 3m cable connect with receiver;

 One operation and maintain manual.

 F24-60 Wiring Diagram

HENAN DIRK ELECTRONIC CO.LTD (predecessor HENAN YUDING ELECTRONICS CORP., LTD) was established in August 2010.We are a new &high-tech company that specializes in the research and development, production and selling of industrial wireless remote control products and components. The production and office area is nearly 2,000 square meters .We have more than 100 employees , including 30 junior ,intermediate and senior engineers .Average age of staff is about 26 years old and we are a dynamic, vigorous and young team.

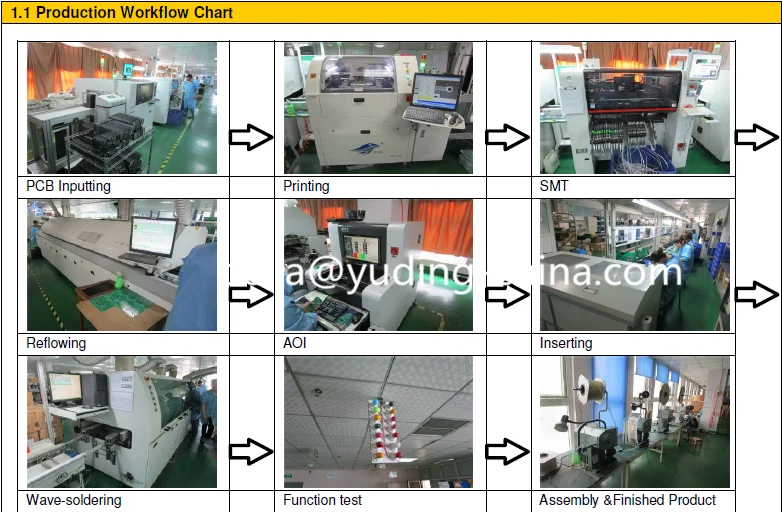

Our company has three advanced production lines :

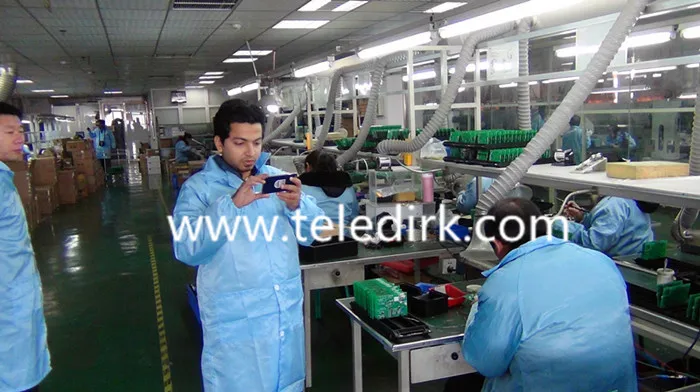

SMT production line,BGA professional production line ,DIP production line .

1.SMT production line:Automatic Unloader machine, printing machine, Chip Mounter, reflow soldering , AOI detector.

2.BGA professional production lines are: constant temperature humidity chamber, ovens, X-Ray specialized detector, BGA rework station.

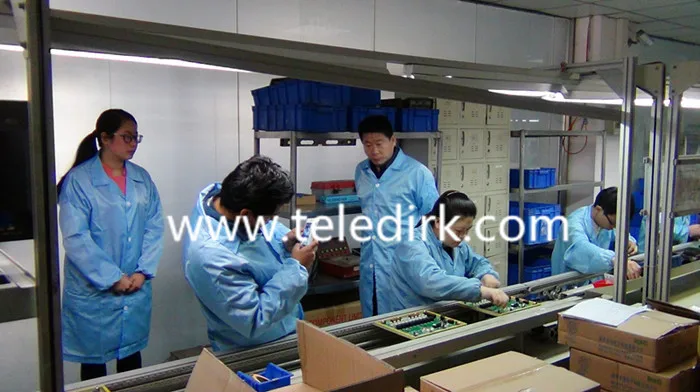

3.DIP production line : plug-in line, wave soldering, final welding line.

Advanced production equipment, high-quality products and efficient team make company greatly enhance its overall strength and top in the same industry-leading level .

Our company initiated mold design, manufacturing, injection molding production lines in May, 2015 . They provide comprehensive facilities bases for company's own remote control production. From parts to finished product ,we can complete design independently and sell directly.

Our products have approval of ISO9001-2008 international quality management system certification in December ,2014 . Knowledgeable and professional management team make products more scientific, standardized and humane from the design, stereotypes, production, testing, sales to after-sales service . And Our products have accessed "utility model patents", "Design Patent" and many other authoritative certificates . Enterprise sticks to the business philosophy of " Pursuing survival with quality, Promoting Development with Technology" , which promotes our products towards the path of subtilized and fine  .

Keeping on “advanced technology ” , focus on technology research  and development, to maintain product innovation are all our concept all the time, and we achieved fruitful results. Now the company has a stable and strong partner in supplier and marketing, meanwhile, more strategic partner in the high-tech filed make us lay solid foundation for the continuous development

 of DIRK Company.

1. Is your products customized?

    Yes. We can provide the customized product depending on your detail requirement.
