Свинцово кислотный аккумулятор с клапаном регулируемым напряжением 100 Ач 200 ач 12 В

Сохранить в закладки 60705737493:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

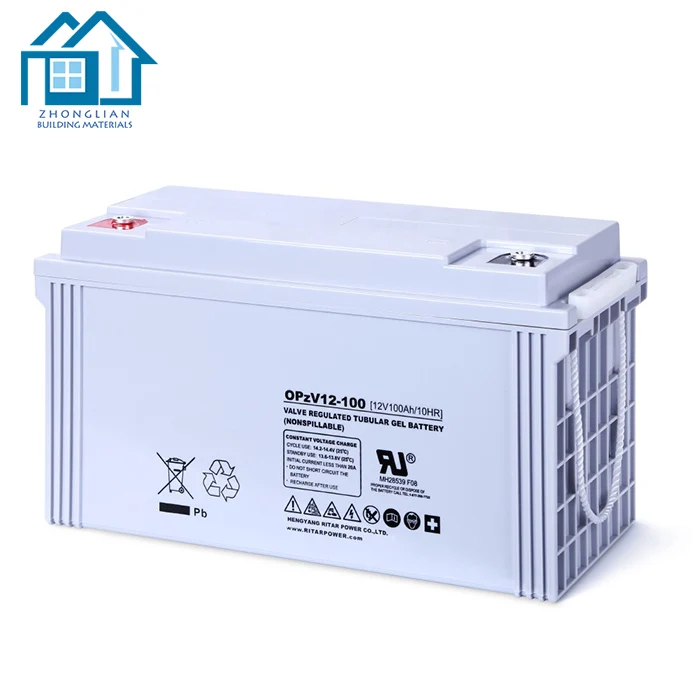

Storage Batteries sealed valve regulated 100ah 200ah 12v lead acid battery



Product Description

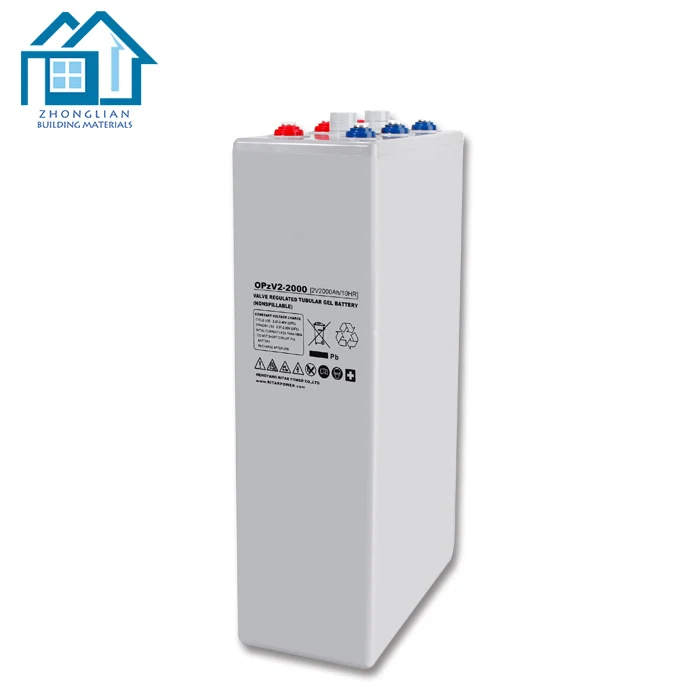

OPzV series is Valve Regulated Lead Acid battery adopting immobilised GEL and Tubular Plate technology, offering high reliability and stable performance.The OPzV series is designed and manufactured according to DIN standards, with die-casted positive grid and patented active material formula, they exceed the DIN standard values. They offer 20+ years design life in float service at 25 °C and are more suitable for cyclic use under extreme operating conditions.







Suitable for power supply in telecommunication, photovoltaic / wind energy storage and UPS applications.





Product Features:



  • Capacity range ( C10): 200Ah—3000Ah

  • Voltage :2V

  • Floating design life : 20 years at 25ºC

  • Cycle life:2000 at 80% DOD and 6000 at 25% DOD

  • Self discharge rate ≤ 2%/month;

  • High charge acceptance performance;

  • Wide operation temperature: -45ºC-75ºC

  • Storage life:After fully charged, it c an be storaged about 2 years at 20ºC

  • Good deep discharge recovery performance.


Specification









































































































































































































































ModelVoltage (V)Capacity (Ah)Weight(kg)TerminalDimension(l*w*h)(mm)Internal(mΩ)
OPzV2-200220016.8F10103*206*355(390)1
OPzV2-250225020.5F10124*206*355(390)0.9
OPzV2-300230024.5F10145*206*355(390)0.85
OPzV2-350235027.5F10124*206*470(505)0.8
OPzV2-420242033F10145*206*470(505)0.65
OPzV2-490249038.5F10166*206*470(505)0.65
OPzV2-600260046.5F10145*206*645(680)0.6
OPzV2-770277056F10210*254*470(525)0.55
OPzV2-800280063F10191*210*645(680)0.5
OPzV2-10002100077F10233*210*645(680)0.45
OPzV2-12002120092F10276*210*645(680)0.45
OPzV2-150021500110F10275*210*795(830)0.4
OPzV2-200022000150F10399*214*770(805)0.4
OPzV2-250022500190F10487*212*770(805)0.35
OPzV2-300023000225F10576*212*770(805)0.35
OPzV12-45124518F11260*169*211(218)17
OPzV12-60126023F11260*169*211(218)13.5

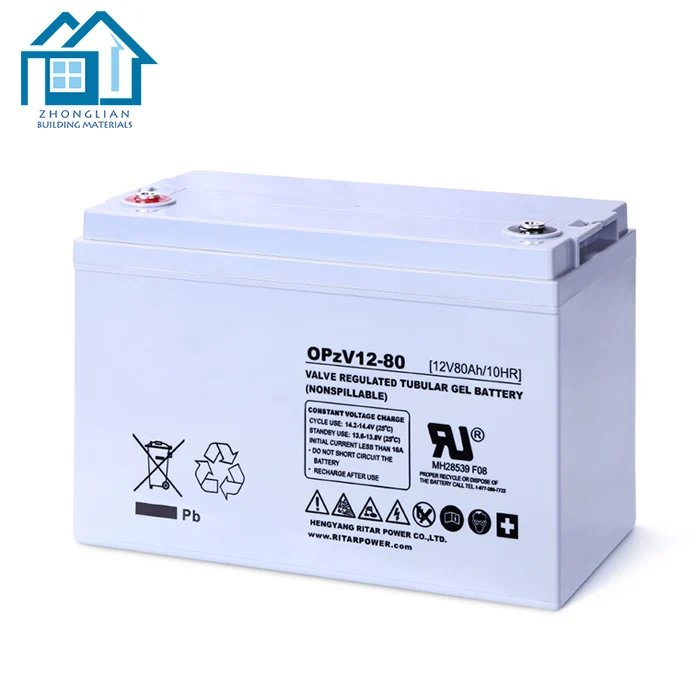

OPzV12-80128030F12328*172*215(220)10
OPzV12-1001210036F12407*177*225(225)8
OPzV12-1201212045.9F12483*170*241(241)7.5
OPzV12-1401214053.5F12532*207*214(219)7
OPzV12-1601216057F12532*207*214(219)6.5
OPzV12-1801218066.5F10522*240*219(224)6
OPzV12-2001220073F14521*262*220(225)5




Storage Batteries sealed valve regulated 100ah 200ah 12v lead acid batteryStorage Batteries sealed valve regulated 100ah 200ah 12v lead acid batteryStorage Batteries sealed valve regulated 100ah 200ah 12v lead acid batteryStorage Batteries sealed valve regulated 100ah 200ah 12v lead acid battery


Application


Storage Batteries sealed valve regulated 100ah 200ah 12v lead acid battery








Packing of our lead acid battery


Storage Batteries sealed valve regulated 100ah 200ah 12v lead acid battery


Lead acid battery production line


Storage Batteries sealed valve regulated 100ah 200ah 12v lead acid battery








Any interested about our lead acid battery, pls contact with me





Storage Batteries sealed valve regulated 100ah 200ah 12v lead acid battery
