Product Description


Product Application

This series machine is used for bunching bare copper, tinned wire and enameled wire, etc which mainly applicated in the wire and cable industry.





2019 GOOD QUALITY & HOT SALE DOUBLE TWIST BUNCHING COILER SPOOLER MACHINE HIGH-SPEED CABLE MACHINE FACTORY
Model No.
300P
500P
650P
Copper wire Dia.
0.05-0.25mm
0.10-0.45mm
0.18-1.00mm
Twisting sectional area
0.035-0.45mm2
0.05-2.50mm2
0.18-6.00mm2
Max. main shaft speed
3000rpm
3000rpm
2000rpm
Twisting pitch range
2.00-17.17mm
6.30-50.40mm
11.61-99.04mm
Traversing type
transverse and distance can be adjusted by bearing bransverse
Bobbin loading & unloading type
hydraulic type
Bobbin Dia.
300mm
500mm
630mm
Brake system
magnetic brake
Motor power
4kw
5.5kw
7.5kw
Main shaft center height
630mm
700mm
850mm
Auto stop unit
auto stop when reach setting length, and wire broken inside and outside
Operating direction
left/right hand machine


Main Features

1) High speed
2) High productivity
3) High quality
4) Easy to operate
5) One stop station services

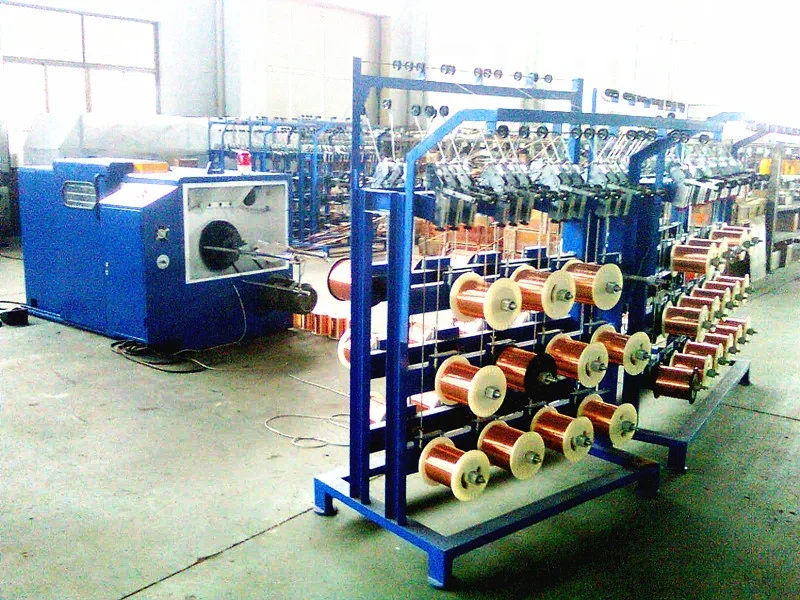

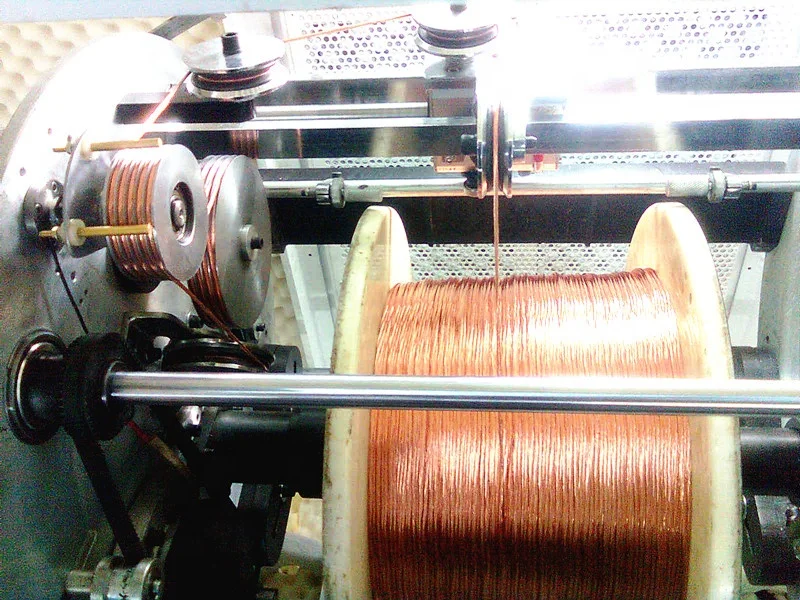

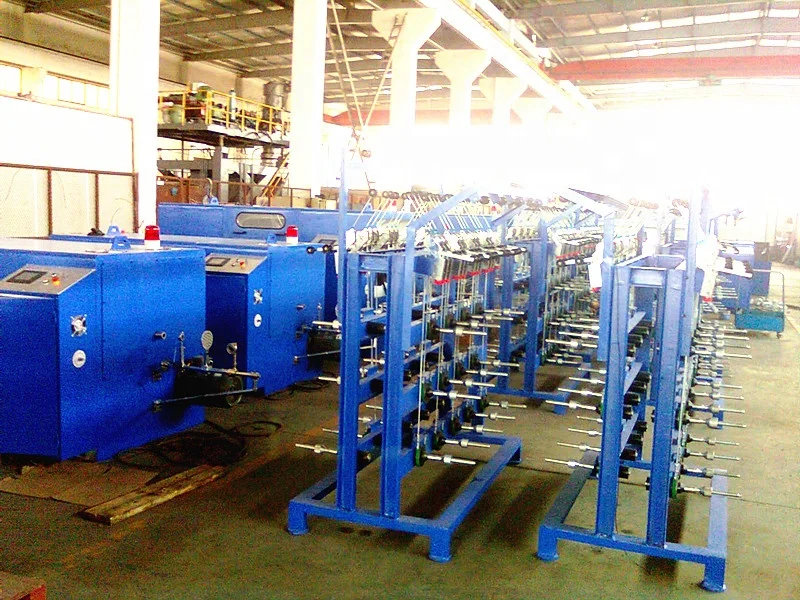

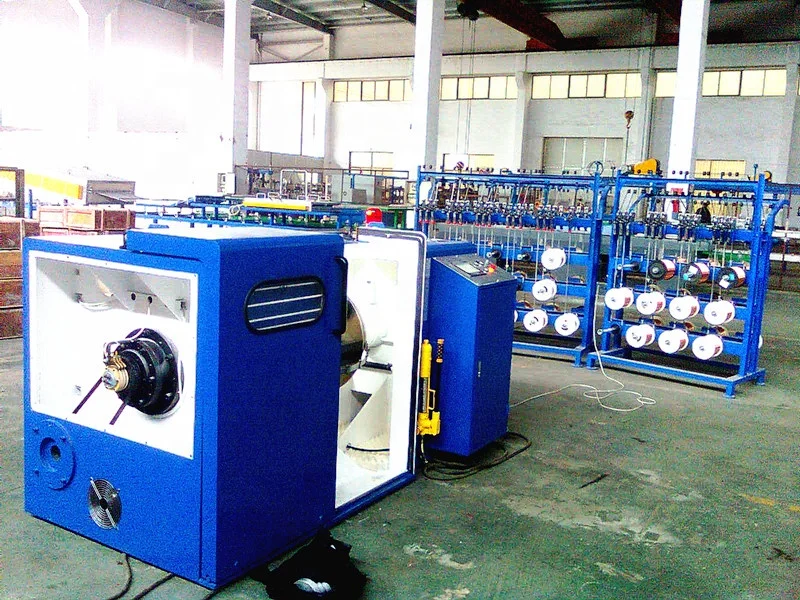

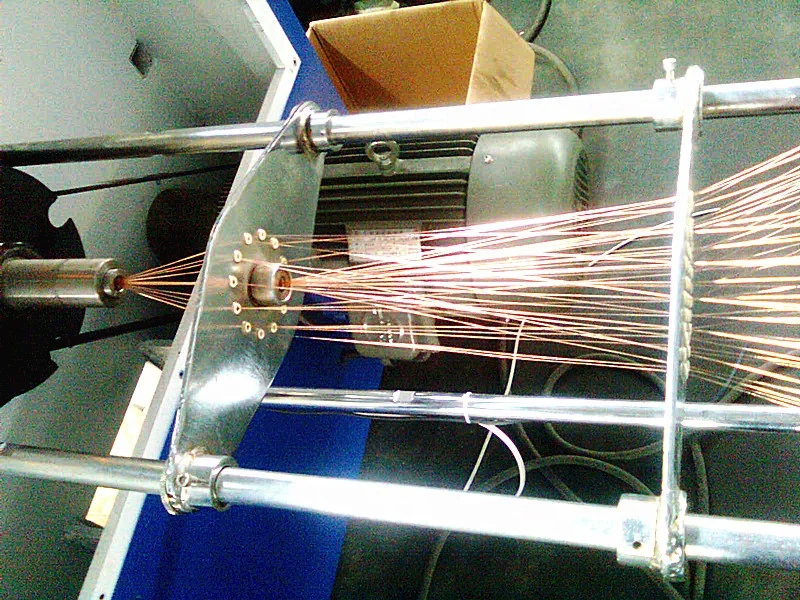

Finished Products




Packing & Delivery




Our Services


One Stop Station Services

1) Stand-by engineers team to provide overseas installation and commissioning service
2) 1 year warranty. During warranty, we provide free of charge for repairing cost
3) Lifetime maintenance. After-sales department can provide life long maintenance service



Our Certifications




Our Clients




About Us






JIANGSU JIACHENG GROUP(Stock Code: 830957) - As a TOP 3 professional manufacturer in wire & cable making machinery based in China, we have 30 years experience since 1990(founded) and 16 years export experience on ALIBABA since 2004, over 300 workers and 7000 square meters factory rooms, and all products passed CE, BV, TUV & ISO 9001:2015 certifications.

Our main products are Wire Drawing Machine(including Copper/Brass/Aluminium/Al-alloy/Al-Mg Alloy/Stainless Steel/Mild and Low Carbon Steel Wire Drawing Machine Series), 40 Heads Tubular Type Annealing & Tinning Machine, Copper Electroplating Machine, Stranding & Bunching Machine, Extruder, etc. And our products have exported to U.K, Russia, Ukraine, Uzbekistan, Kazakhstan, Turkmenistan, India, Pakistan, Bangladesh, Vietnam, Thailand, Laos, Cambodia, Malaysia, Brazil, Peru, Chile, Dominican, Ecuador, Israel, Morocco, Egypt, Kenya, Syria, Iraq, etc.

Our factory is located in Zhangjiagang city, It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
