Product Description

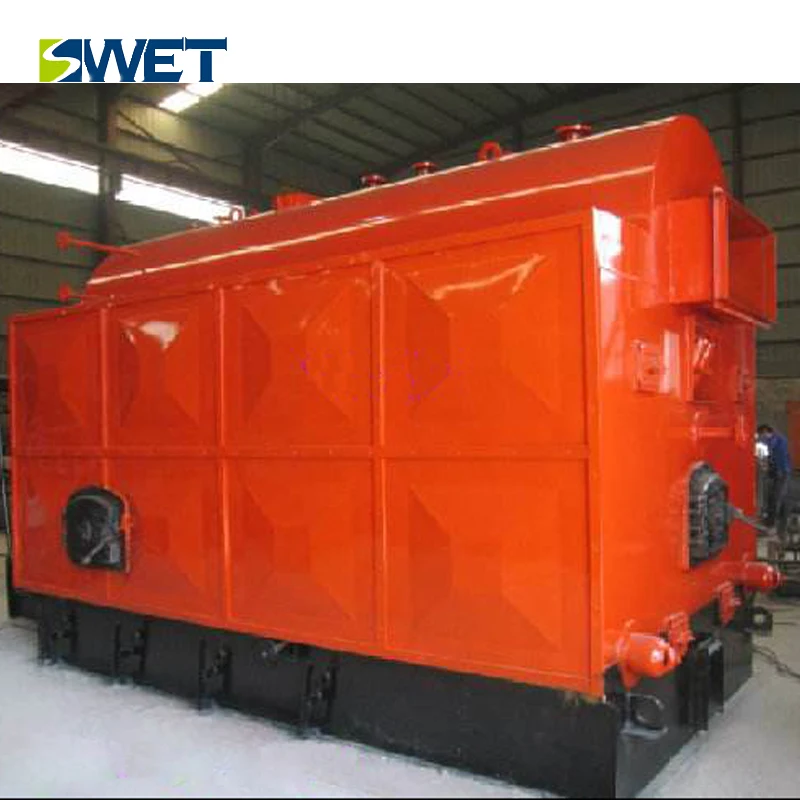

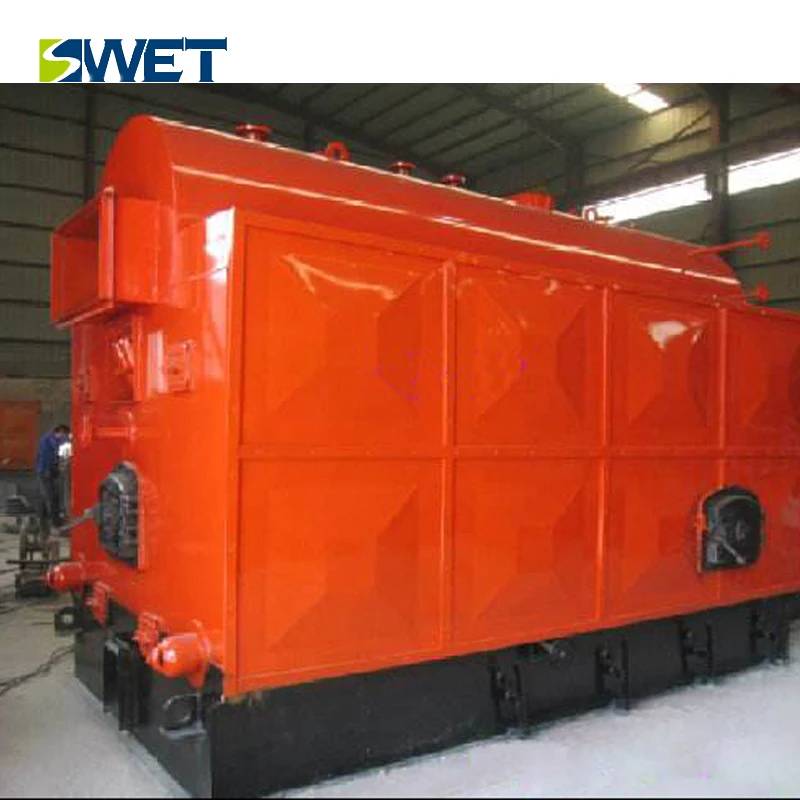

High performance 10t/h steam output stoker steam boiler

    SZL series boiler host design as double boiler drum longitudinal layout, set steam water separating device in upper boiler drum, set periodic blow-off device in lower boiler drum, there are water cooling wall tubes at left and right side of furnace.



steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler



     Use light chain grate add fuel automatically, the back of furnace is re-burning chamber, convection tubes, the tail of furnace is economizer or air preheater, equip with blower, draft fan for mechanical ventilation, and also equip with slag extractor for slagging automatically.

    Fuel fall down to chain grate and enter furnace for burning, the flue gas go through furnace, re-burning chamber, convection tubes, economizer or air preheater into tail flue, enter deduster, draft fan and chimney, and finally discharge into atmosphere.



steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler



Boiler made materials

steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler



Advantages:

   Our company provides high quality steel and dedicated to producing the best quality boilers.



The birth of a boiler

steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler

Click on send inquiry



Related Products

7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler 7MW industrial biomass coal fired steam boiler



    Our main products including circular flow bed (CFB)boiler ,gas boiler,coal boiler,biomass boiler,oil boiler,power plant boiler , energy-saving boiler,solider waste boiler, high-efficiency boiler,electric hot water boiler,high-pressure boiler,fully automatic control boiler,wood chip biomass steam boiler,chain grate boiler,condensing  boiler ,natural gas steam boiler ,water tube boiler,fire tube boiler,full artificial intelligence boiler ,biomass steam generator,refractory materials,boiler accessories and so on.

Product Parameters

Main technical parameters:



parametermodel
SZL6(4.2)SZL8(5.6)SZL10(7)SZL15(10.5)SZL20(14)

Steam



Boiler

Rated Evaporation Capacity(t/h)68101520

Rated Working

Pressure(Mpa)

0.7/1.0/1.250.7/1.0/1.250.7/1.0/1.251.0/1.25/1.61.0/1.25/1.6
Steam Temperature(℃)170.4/184/194170.4/184/194170.4/184/194184/194/204184/194/204
Feed Water Temperature(℃)2020104104104

Body Heating Area

(square meter)

Radiation

(squaremeter)

2927.432.64060.4

Convection

(square meter)

147.2213.2204.1264.1371.5

Economizer

(square meter)

87174.4174.4174.4236

Air Preheater

(square meter)

////107.8
Effective Area Of Grate(square meter)7.411.612.317.2520.9
Design Thermal efficiency(%)79.280.480.480.480.4
Fume Temperature(℃)165165165165160
FuelCoal,biomass fired



operational principle

steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler



Fuel



 Our boilers can use both coal and biomass fuel



steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler steam output steam boiler

 New Type excellent quality double barrel biomass horizontal steam boiler

 Biomass boilers' advantages:

1. Because the biomass pellet fuel without parathion, does not produce sulfur dioxide and P2O5 combustion, thus it will not lead to acid rain, won't pollute the atmosphere and environment.

2.The biomass pellet fuel is clean, sanitary, convenient for feeding, reducing the labor intensity of workers, greatly improving the labor environment, and enterprises will reduce the cost of labor.

3.After the biomass pellet fuel burns, the ash ballast is very few, greatly reduces the place where piles up the coal ballast, reduces the mucking expense.



Why choose us



Henan Swet Boiler Co., LTD

 New Type excellent quality double barrel biomass horizontal steam boiler



    Henan Kaifeng Swet (original Desheng) Boiler Co.,Ltd was established in1954,we have continued to provide customers with more than 60 years of quality service,known as the king of China's boiler.It's the national design-ated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.

    It holds level 1 boiler installation permit National special equipment manufacturing license . National special equipment installaion remould maintenance permits and so on.In 1979,the world's first circulating fluidized bed boiler was born in our factory.In  2016, in order to meet current emissions and reduce energy consumption re-quirements,our company launched efficient low-emission energy-saving circulating fluidized bed boiler has be-en identified by the national institute of special equipment.







Our advantages

1.Sixty years of boiler manufacturing enterprise culture,top ten enterprises of boiler manufacturing industry in China.

2.The birthplace of China's first circulating fluidized bed boiler, advanced technology and products have been extended so far.
3.More than 2000 environmental protection industrial boilers have been sold at home and abroad, performance, quality and stability.
4.National A-class boiler manufacturing plant,Shanghai Industrial Boiler Research Institute.
5.Teaching and Research Base of North China Institute of Water Resources and Hydropower.
6.Chinese Academy of Sciences circulating fluidized bed R & D base.
Institute of Engineering Thermophysics,Chinese Academy of Sciences.







Transportion

                                                                         Highway transport and Shipping



Customer visit

Many domestic and foreign customers visit our factory every year,welcome to our factory.

Our service:

1.Service is part of product, pre-sale and after-sale service are the same important. Customer’s satisfaction is our aim.

2.Consultation Service: Experienced technicians guidance is available on the phone, and on the internet.
3. Warm Service: Based on customers’ request and budget, our experts make efficient, reliable solutions, and we produce strictly following customers’ order. Every customer has the chance to visit our workshops before placing the order.





 Some of our domestic customers:
China Petroleum Pipeline Materials and Equipment Corporation.
China Petroleum & Chemical Corporation.
China Aero Engine Group.
COFCO Group Limited.
Weida Paper Co., Ltd.



Contect us

24 hours at any time welcome customers to inquiry!





 QQ:1260552507
 Wechat:ChocolateDaisy325

 Mobile:+86 15890952986

 Twitter:@DaisyZhangZhang



Please send your inquiry at the bottom of this page,click“send”now




Похожие товары
Развивающие игрушки-лягушки с большими движущимися

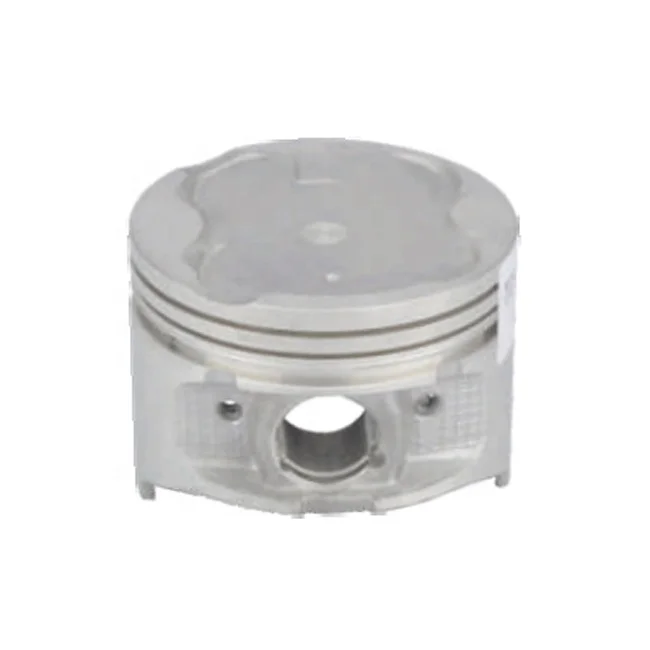

Поршневые поршни для TOYOTA 3SFE 13101 -74100
50,00 $ - 150,00 $

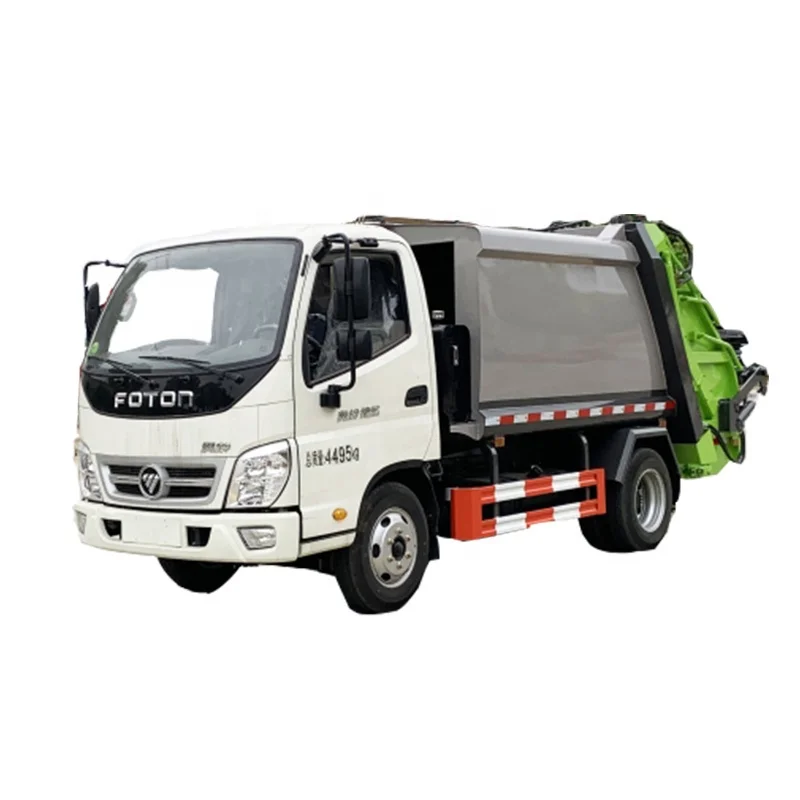

Экологически чистый небольшой мусорокомпрессионный грузовик для сбора мусора Laneway, поставляемые уплотнители Евро 3, ручное дизельное топливо
16 500,00 $ - 17 000,00 $

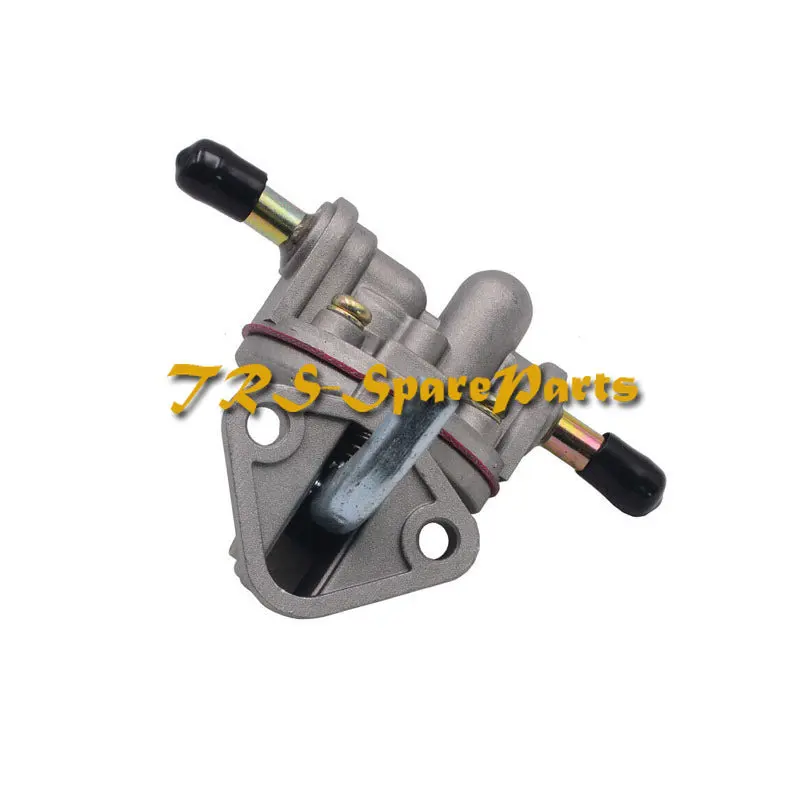

Топливный насос 12581-52030 15821-52030 для двигателя Kubota D662 D722 D750 D782 D850 D950 Z482 Z402 Z602
29,00 $ - 32,00 $
Японский 5t pc55 экскаватор Komastu PC55MR-2 б/у экскаватор

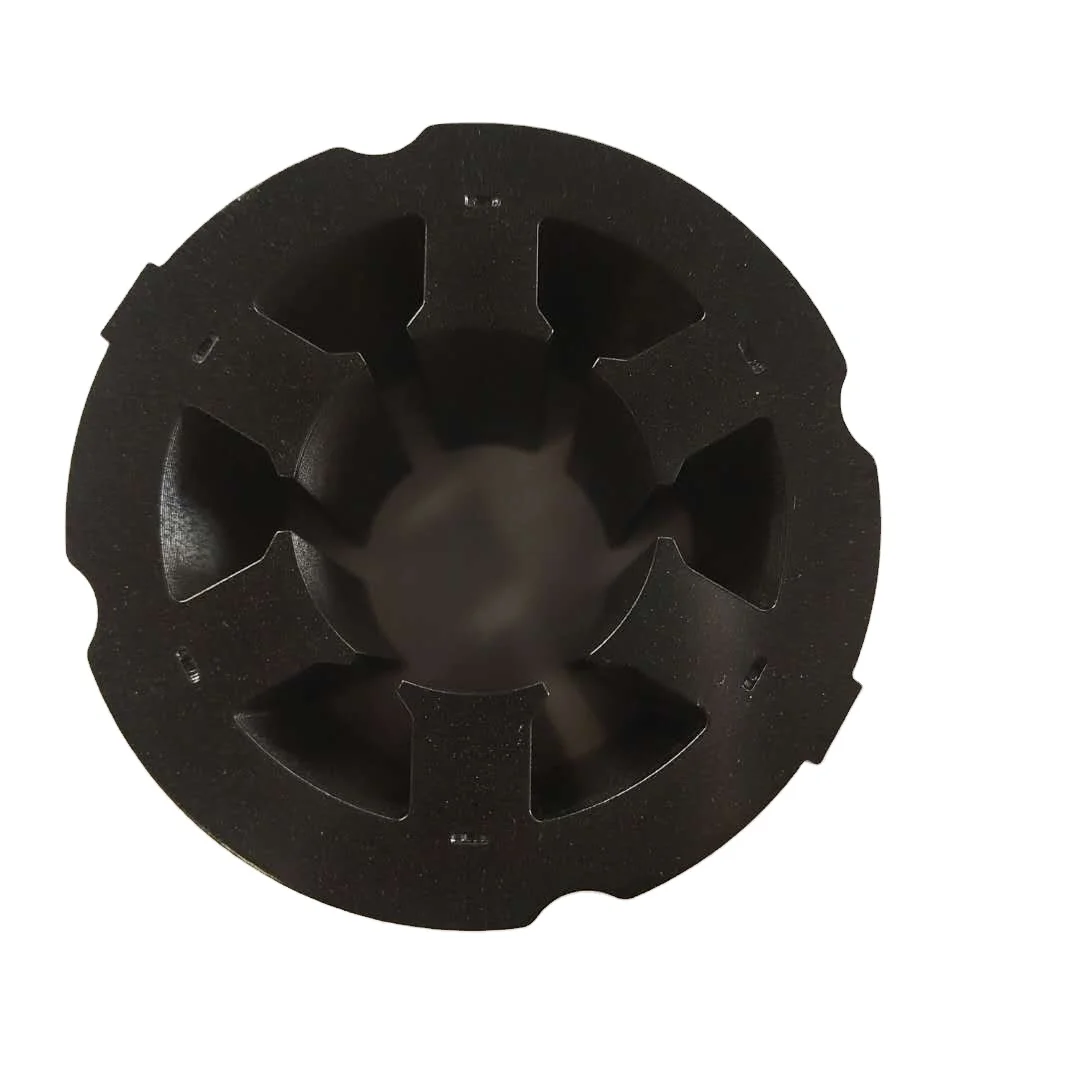

Электрический магнитный мотор Chuangjia, ротор статора 80-46/30
0,92 $ - 3,00 $

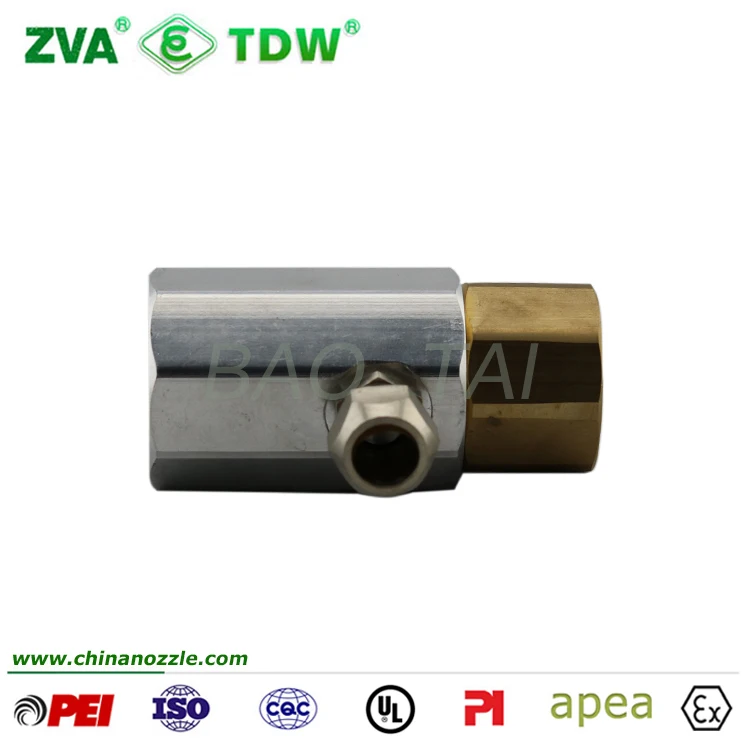

ZVA Elaflex, адаптер для газовых труб, система восстановления пара бензозаправочных станций

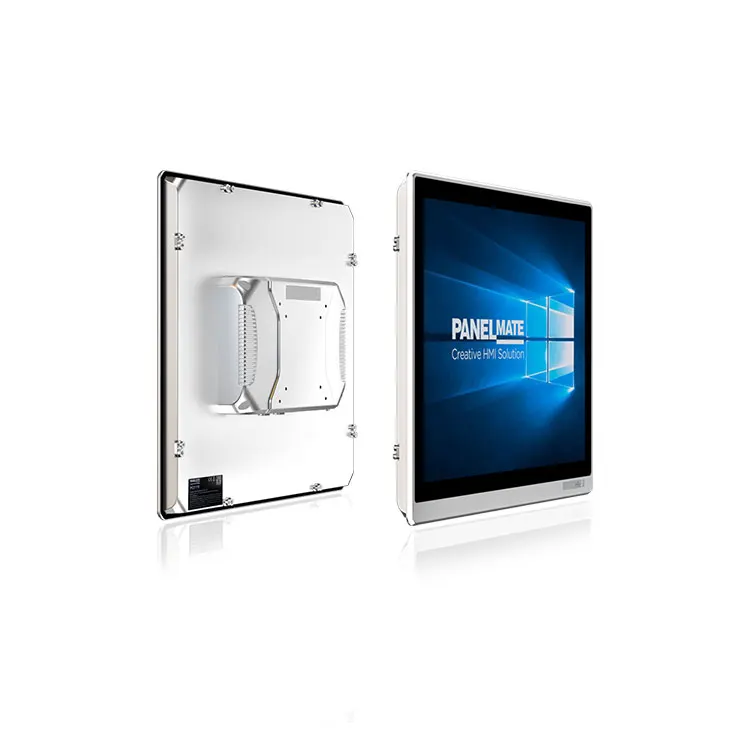

Модель PI22101 codeys | 10,1 дюймов raspberry PI 2G 8G Портативная емкостная сенсорная панель планшетный ПК
