Product Description

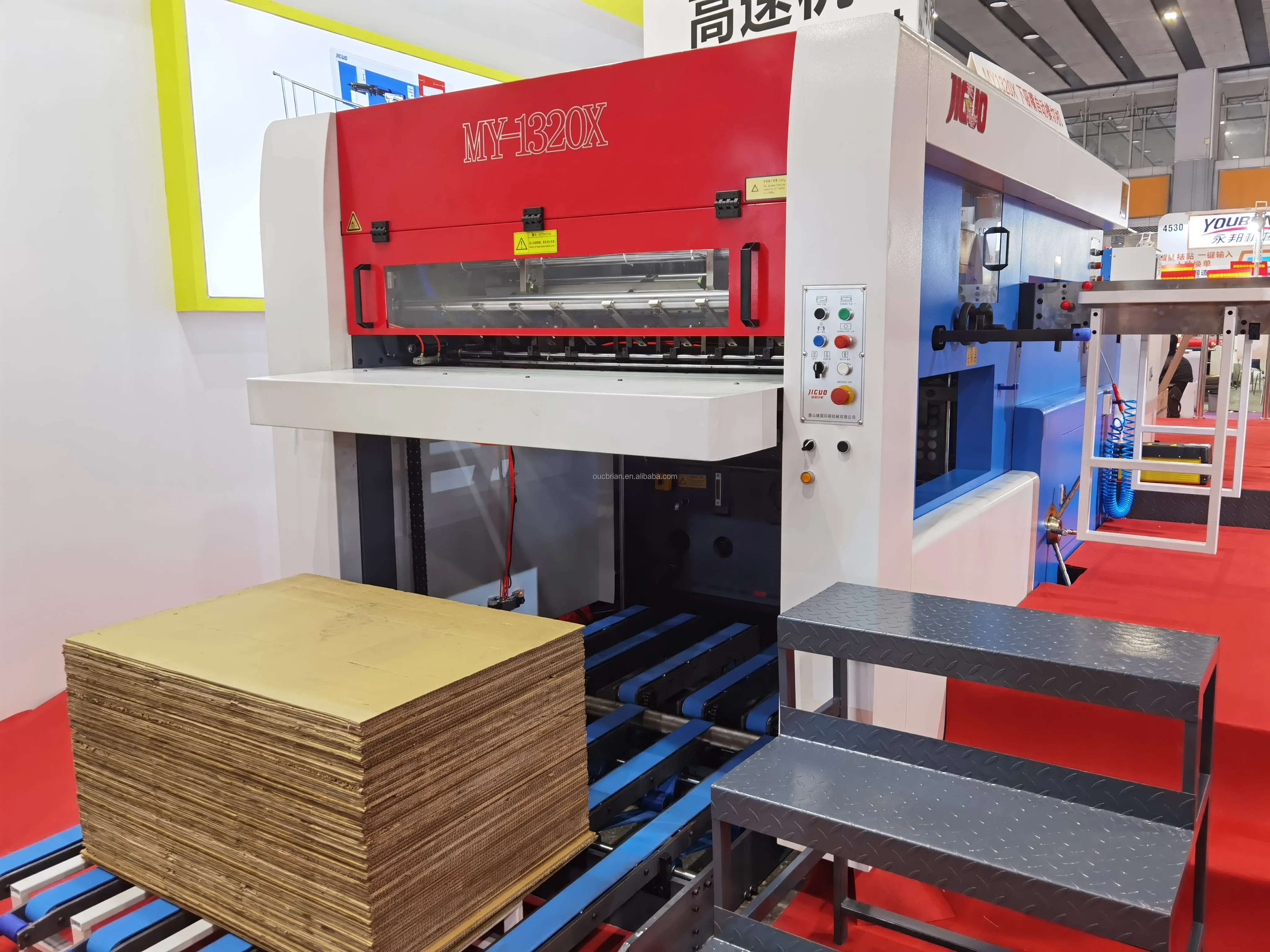

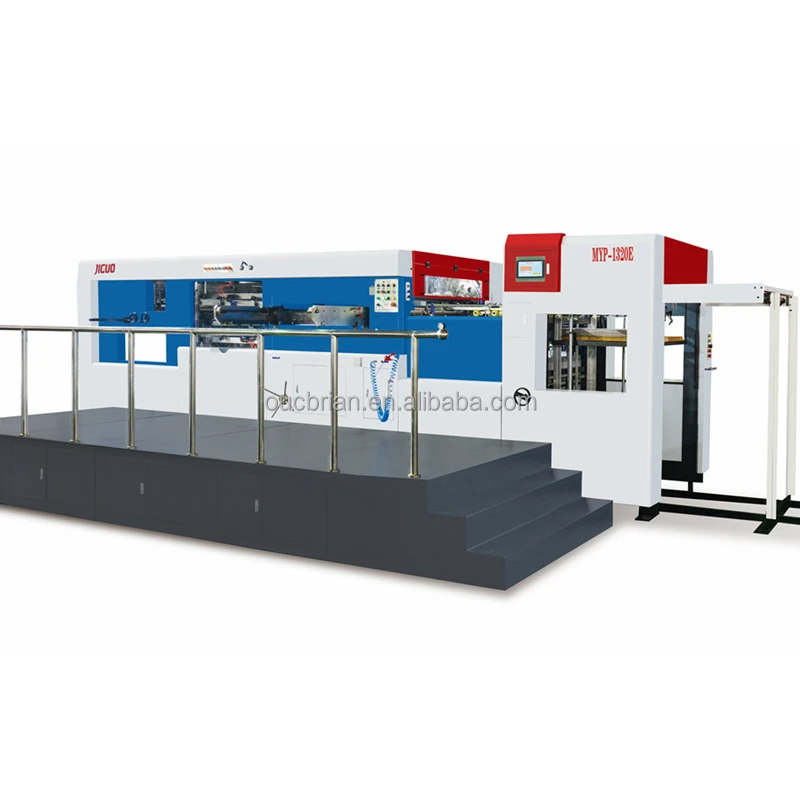

JIGUO MY-1320X Bottom Feeder Lead egde Automatic Die-Cutting &Creasing Machine

For your better learning about our factory, here kindly sending you our VR video link, you will view our workshopes and introduction there.
Tangshan Jiguo Printing Machinery Co., Ltd. — VR
https://720yun.com/t/33vkO77yO1h#scene_id=54907694

Technical details for MY-1300X Automatic die cutting machine
Max. sheet size	1320×960mm
Min. sheet size	450×400mm
Max. die cutting size	1300×940mm
Max. mechanical speed	6000 sheets/hr
Paper processable	Corrugated Board<10mm (Max.thickness)
Die-Cutting Precision	±0.15mm
Total weight	Approx 20 tons
Full load power	31 KW
Overall dimensions approx:	7550×4530×2330mm

Application

automatic die cutting & creasing machine is used for die cutting and creasing pizza box, corrugated box, gift box, medicine box, cigarette box, gift paper box, etc.

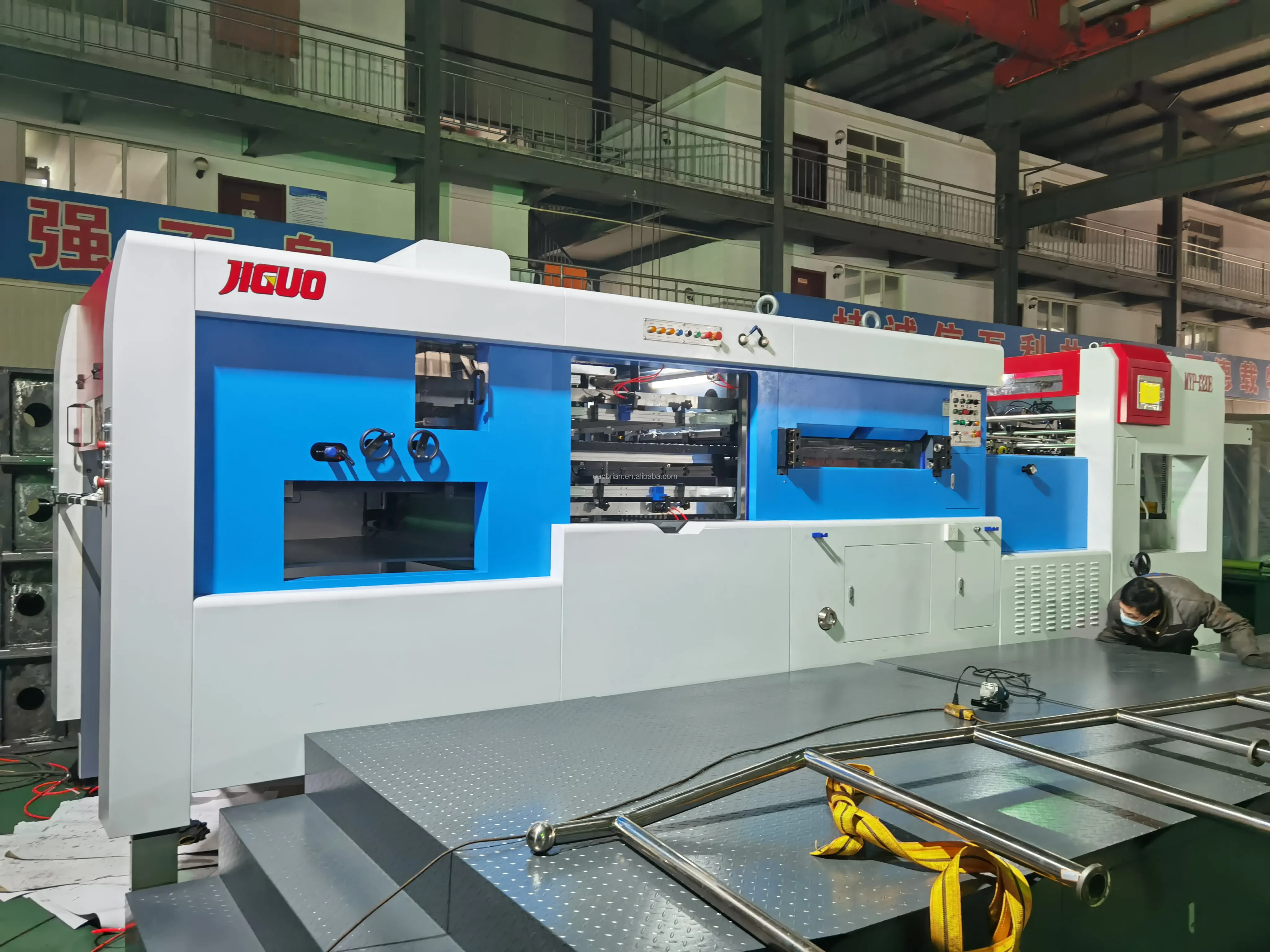

Detailed Images

Main Chain drive

The main chain of toothpicks are all imported original German IWIS high-quality chain, made in Germany.

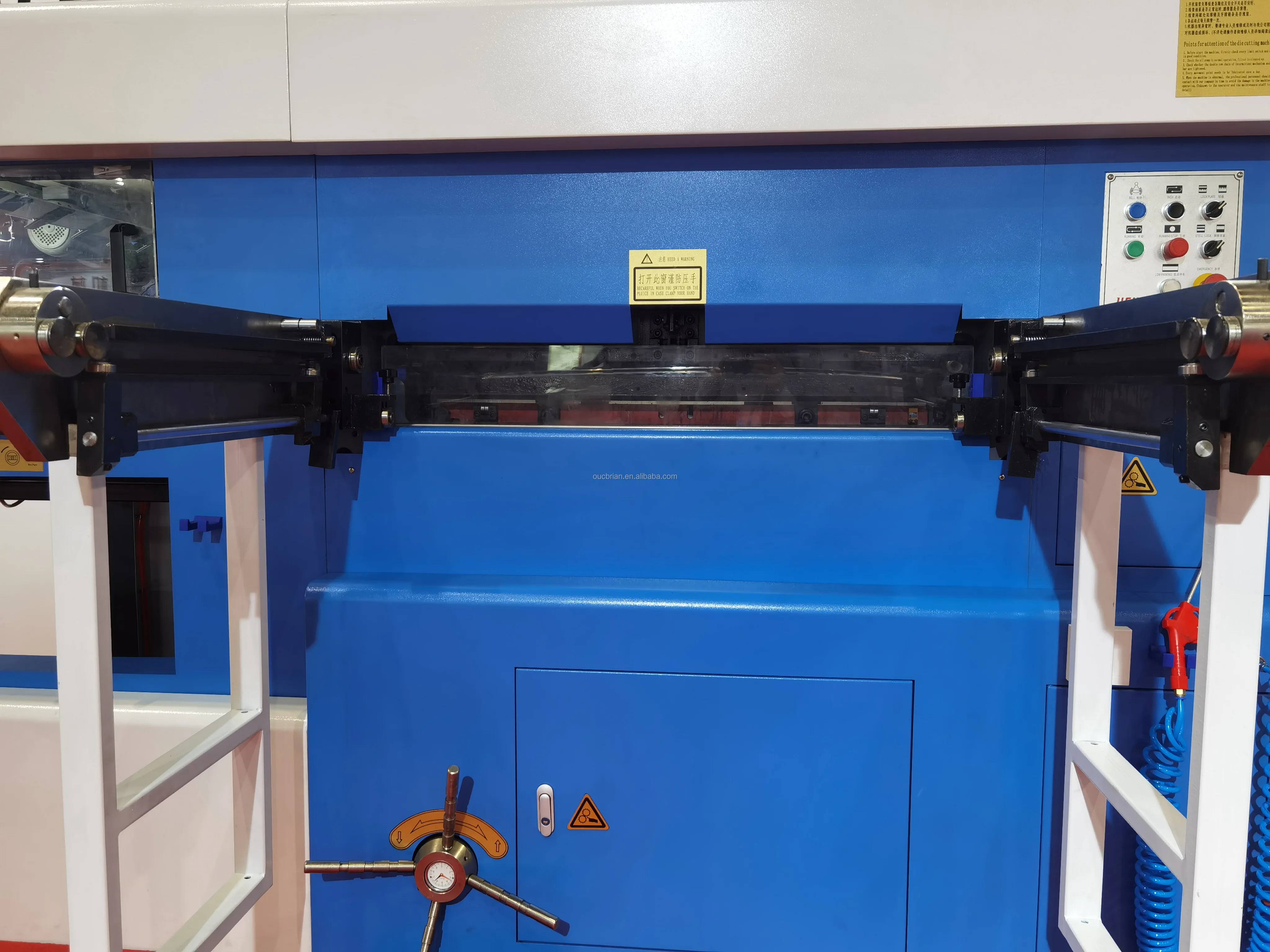

Die cutting section

* 1) The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like
Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without
any deformation.
* 2) This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation.
The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.

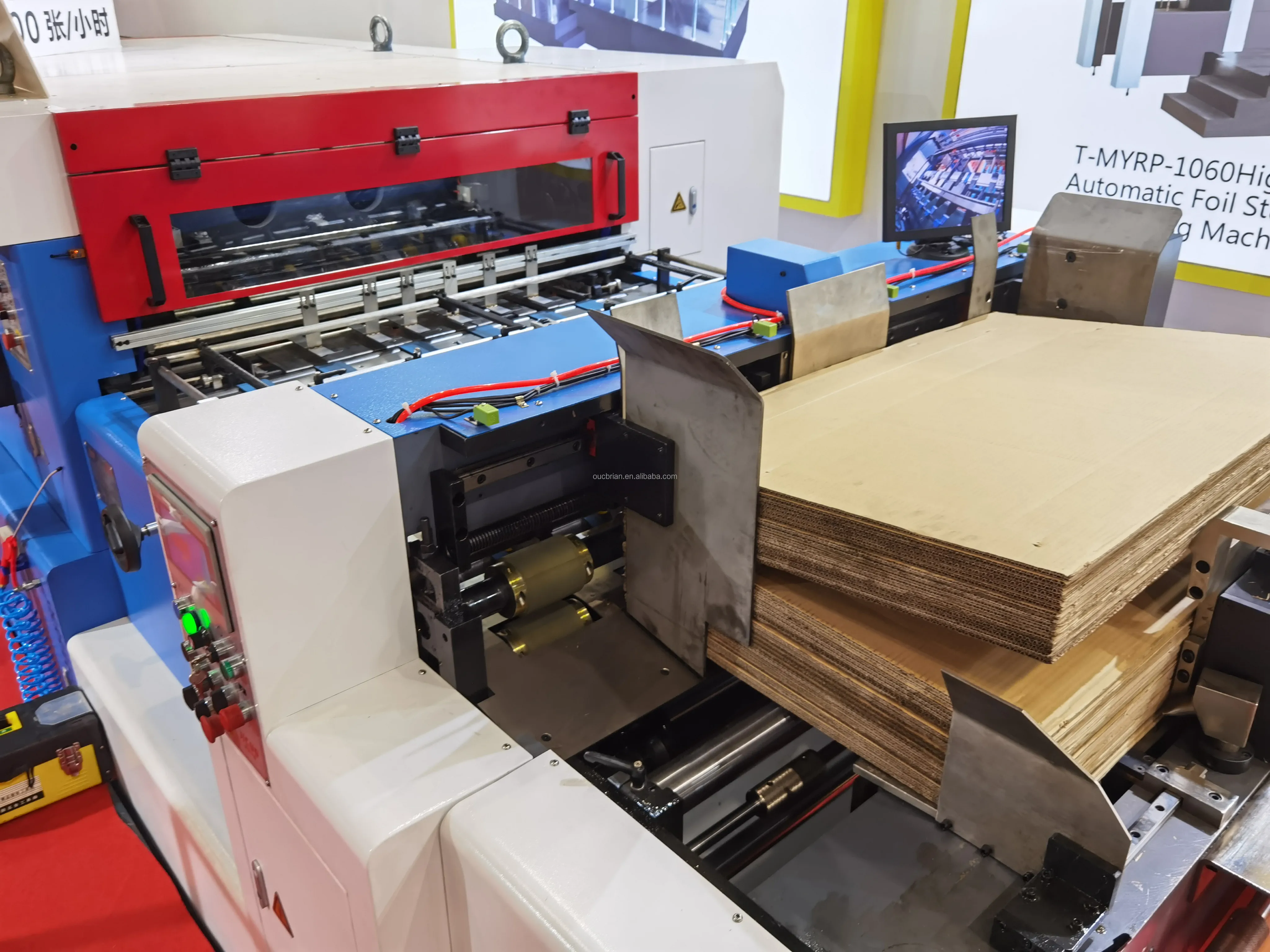

Lead Edge bottom feeder Paper Feeding Unit

* The high precision lead edge feeder, can adopt to different requirement of the different paper. Frequency conversion control
wind volume adjustment. Wind suction area can adjust according to the paper size with high-power fan.
* The forward, backward, light and low positions can be adjusted according to the stock for smooth feeding of thinner paper,
large gram cardboard and corrugated paper etc.

Electronicl contrl system

* The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan
frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper
collecting.
* The human-machine interface can display various working conditions, indicate fault positions and give solutions.

Our Service

Packing & Delivery

Packaging
Size	7600 (L) * 4600 (W) * 2400 (D)
Weight	20.1T
Packaging Details	Use the PE film to protect the machine well firstly, then put the goods into the export seaworthy steel case.

Any inquiry, please feel free to contact with us.
Tangshan Jiguo Printing Machinery Co.,Ltd. Weifang Swan Machinery is a Sub-company of Tangshan JIGUO Printing group.
website: en.jiguo.net
Add: Printing Machine Industry Zone, North Side, Haomen Road, Yutian County, Tangshan City, Hebei Province.

Lisa Wang, Tel/Whatsapp/Wechat:86-186 7806 1686
Email: lisa@jiguo.net, lisa.wang@swanmachinery.com
