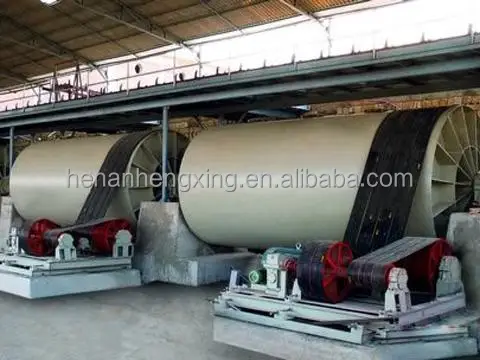

Best Quality 2 tons Per Batch  Small Ball Mill For Ceramic Powder

1. Introduction to small ball mill for ceramic powder:
Ceramic ball mill also named Intermittent ball mill ,batch ball mill which adopts the wet intermittent operation, is used for fine grinding and mixing the material such as feldspar, quartz, clay ceramic raw materials. The discharging and the mud size can through through 1000 sieve pore. This machine is high milling machinery, materials should be Broken in the fineness of the state into the grinding mill to get the highest efficiency and economic benefits.

The loading and unloading material in the production process is intermittent, the first parking to fill the material, and then start grinding a certain time and then stop the discharge.

For the wet grinding method, the different raw materials such as clay, flux (feldspar) and filler (normally sand) that make up the body composition are stored in separate bays. The raw materials are weighed proportionally according to the formulation and charged into ball mills  together with suitable amounts of water and deflocculant to ease dispersion. One of the purposes of milling is to obtain a high compaction in the body powder, by producing a range of coarse, medium and fine particles in the particle size distribution of the ball mill slip

3.Technical parameter of ceramic ball mill/batch ball mill

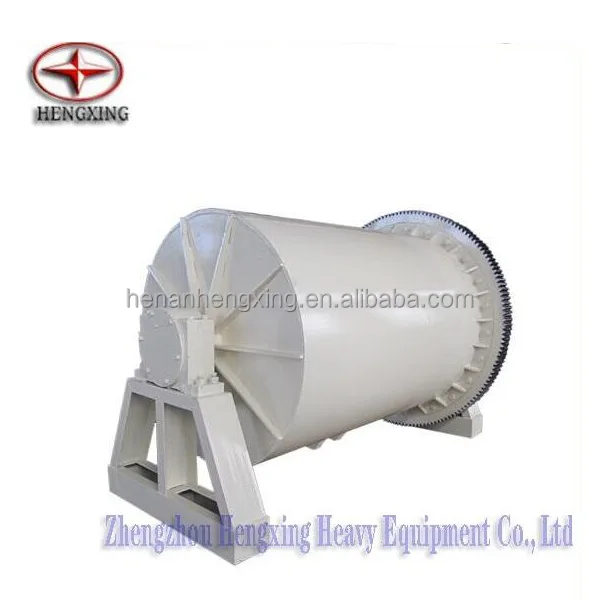

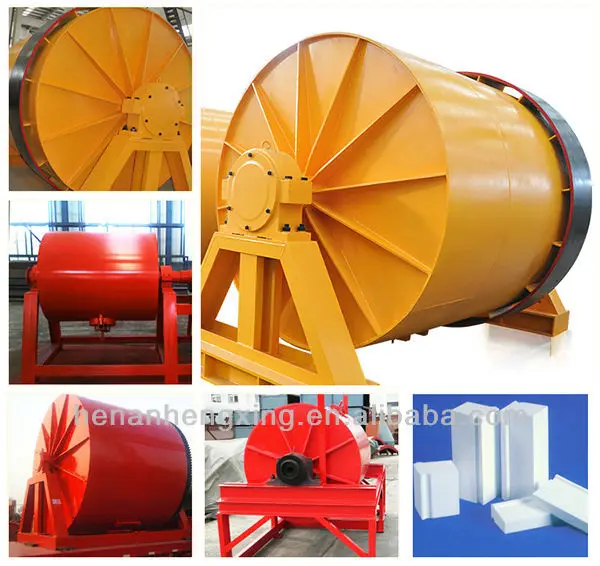

4.Ceramic ball mill Structure composition

Ceramic ball mill mainly by the cylinder, the main bearing, reinforced concrete bearing, transmission and other components. Wherein the cylinder is provided with a combination of the shaft head, the head and the barrel body as a whole.

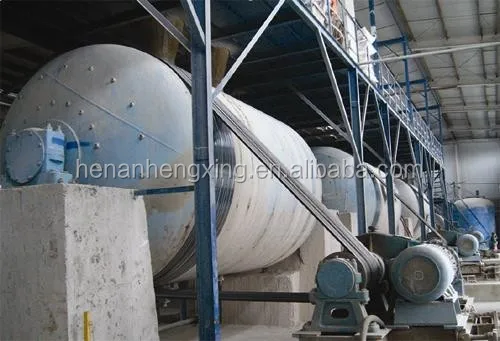

The main drive is driven by the main motor gearbox end belt drive, the final belt drive is composed of the V-belt, V-belt with a bag in the pulley on the pit, so that a package in the On the surface of the cylinder.

The auxiliary drive is achieved by the auxiliary motor gearbox and the final belt drive. The main drive to achieve the material within the cylinder grinding.

5.ball mill for ceramic powder performance characteristics:

1. the use of belt drive, easy to replace, low noise, low prices, material filling rate can reach 80%.

2. with less investment, energy saving than similar products, novel structure, easy operation, the use of safe, stable and reliable performance.

3. rely on grinding time to control their own.

4. the motor automatically decompression start, reduce the starting current, its structure is divided into integral and independent.

5. the product has less investment, energy saving than similar products, novel structure, easy operation, the use of safe, stable and reliable performance characteristics, suitable for ordinary and special materials, mixing and grinding operations.

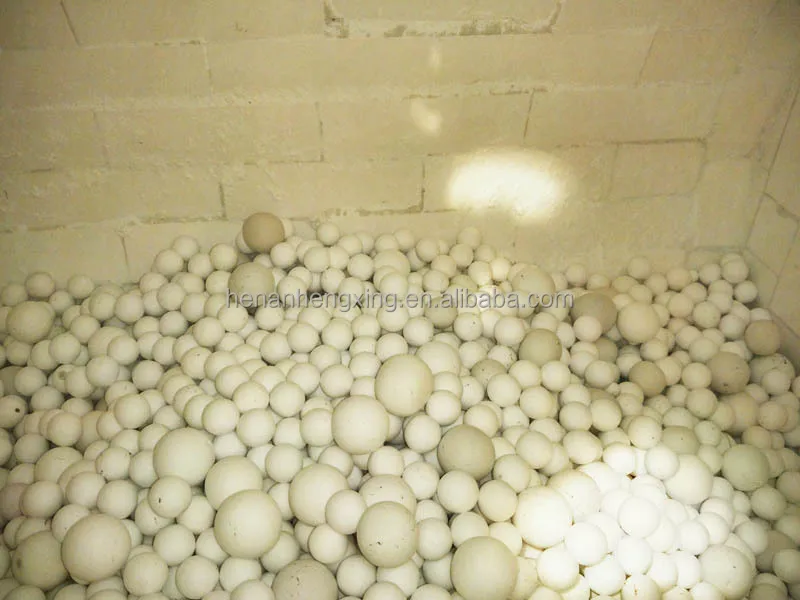

6. the user can be based on the proportion of material, hardness, and according to yield and other factors to consider the appropriate choice of models and liner, media type.

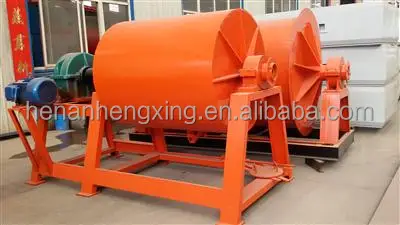

6.Another type of small batch ball mill for ceramic powder( by belt driving ):
