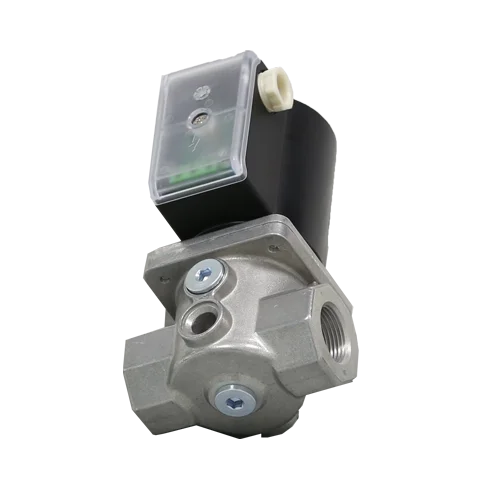

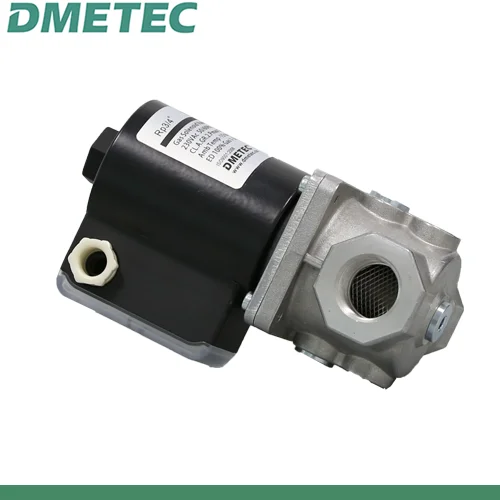

Dn15 клапан запорного клапана высокого давления с регулируемым расходом газа

Introduction of the production

 Fuel gas solenoid valves are widely applied to the safe transportation of fuel gases so as to start the supply of gases or cut it off upon emergency.

The mediums of gases applicable are: natural gases, methane, liquefied petroleum gas.

When activated, the blue indicator lights up, this allows the operators to check working mode through visual observation.

This kind of solenoid valve is adopted to add a regulate knob device on the basis of the quick-opening valve, and the gas flow size can be regulated by turning the knob when the valve is opened .

Operation and installation

Normally closed type, after the power is energized, it will open quickly, and when the power
is off, it will be shut down immediately.

Flow can be regulate

TECHNICAL FEATURES

Opening Time : less than 1 second
Closing Time : less ihan 1 second.

Numbers of operations : 20 per minute

Max working Pressure : 360mbar( normal gas pressure)

By-pass port are set on both sides of the valves, with diameter of G¼
inside filter net

Protection : IP54

Sealing material : chemigum

Body material : aluminum alloy
Pressure steel spring AISI 302.

the ambient temperature :-15 ℃~60 ℃
coil temperature : 65 ℃

HOMOLOGATION AND STANDARDS
To achieve Grade A standard

According to standards EN161

According to European Gas Standards
CE Certification

ELECTRICAL FEATURES

Voltage : 50-60Hz, 230Vac. 110Vac. 24Vdc (other voltage can be customized).
Coils to Class F, 360 ° rotation, suitable for permanent excitation.

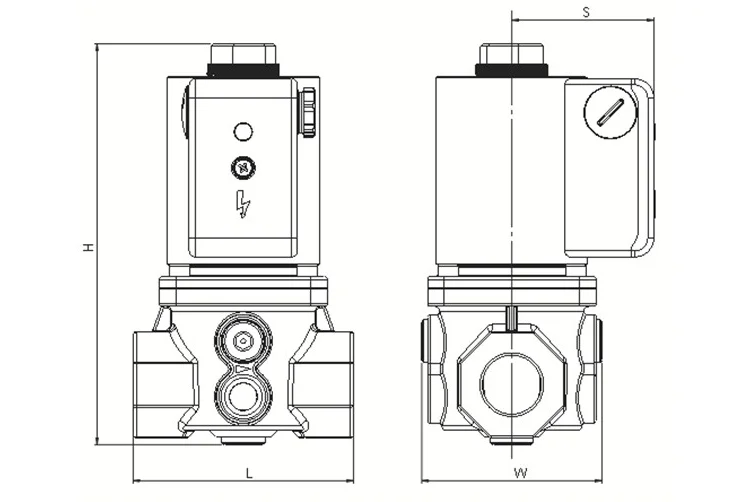

                                                                                                                                        Installation dimensions

JIAXING D METEC LTD is located in the city of Jiaxing, Zhejiang Province of China, being a moderm enterprise integrating the R&D, production and sales functions, being a professional manufacturer of natural gas solenoid valves, which are divided into normal gas pressure solenoid valves, higher gas pressure solenoid valves, explosion-proof solenoid valves etc. These products can be used in such as natural gas pipelining and natural gas combustion furnaces, etc.
The enterprise has been growing ever since its establishment in 2004 and currently our annual production capacity 100,000 sets of solenoid valves which sell well all over the world.
Committed to the philosophy of honesty and quality, the enterprise has comprehensively implemented 1S09001:2008, ensure the quality of our products is always at a high level.
The R&D fleet of the enterprise has been forging ahead in the past years by developing new technology. Its endeavor has led to one invention patent and over 40 utility and appearance patents, winning such honors as Jiaxing Technological SME, Jiaxing Private Owned Technology Oriented Enterprise, Jiaxing Patent Demonstrative Enterprise and Jiaxing High-tech R&D Center,etc.
Dedicated to providing all the clients with high quality production and considerate service, JIAXING D METEC LTD hopes to become one of your best partners in China.

Q : Can I get samples from your factory?
A. Yes, Samples can be provided.

Q If products have some quality problem, howwould
you deal with?
A : We have quality assurance agreement and we will
responsible for all the quality problems.

Q How to ensure the delivery date of the product?
A. We are the manufacturer of solenoid valve. We offer
a one-stop service from order to prod uction to delivery to
ensure timely delivery.
